How to Wire a 208V Three Phase Motor Step by Step Connection Guide

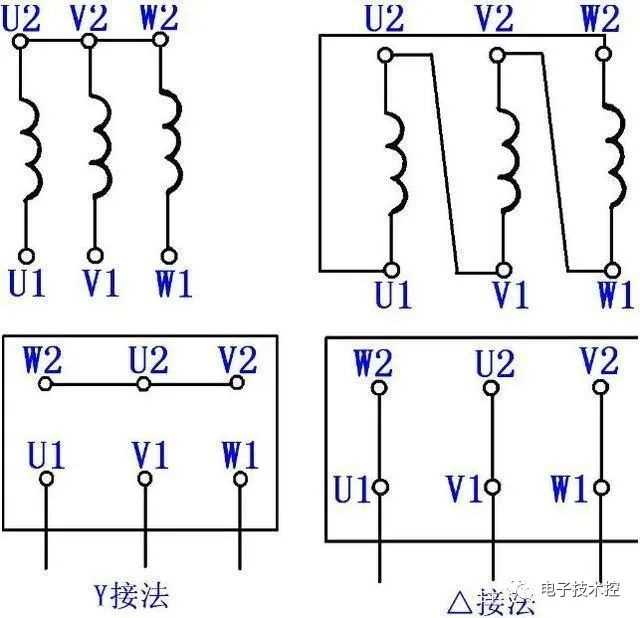

208 volt 3 phase motor wiring diagram

For standard dual-voltage industrial drives, the delta configuration is optimal when working with 120-degree separated lines. Start by verifying the nameplate rating–most units specify delta for 200V service and wye for 400V. Connect Line 1, Line 2, and Line 3 directly to terminals T1, T2, and T3 respectively, ensuring no neutral is jumpered unless the unit explicitly demands it. Ground the frame to the supply neutral or a dedicated earth rod with at least 10 AWG copper conductor.

Avoid common mistakes: swapped line assignments will cause reverse rotation, and missing phase balancing leads to overheating. If the nameplate allows 10% voltage variance, measure each leg–readings should not differ by more than 3 volts. For across-the-line starters, wire the control circuit through a separate 120V leg or a step-down transformer to prevent nuisance tripping.

Motor protection devices must match the load: thermal overloads sized at 115-125% of FLA, and magnetic breakers set at 250-300% of FLA for starting inrush. Label all conductors per NFPA 79: L1 (black), L2 (red), L3 (blue), neutral (white), ground (green or bare). Test rotation with a phase rotation meter before final energization–counterclockwise rotation typically requires swapping L2 and L3.

Where ambient temperatures exceed 40°C, derate the conductor by 0.8% per degree above limit or install supplemental cooling. Verify torque on terminal blocks–25 lb-in for #14 AWG, 40 lb-in for #10 AWG–to prevent arcing under vibration. For CE compliance, ensure all connections meet IEC 60335 creepage and clearance requirements: 5.5mm for 300V between phases, 3.0mm to ground.

Connecting a 120/208Y Supply to Industrial Equipment

Begin by identifying the main leads on the stator: T1, T2, and T3 for wye (star) configuration, or U1, V1, W1 for delta. Verify supply voltage matches the equipment nameplate–typically 120 across phase to neutral or 208 between phases in a three-legged system. Misalignment causes immediate failure.

For a wye hookup, tie T4, T5, and T6 together at the neutral point. Connect T1 to L1, T2 to L2, T3 to L3. Use 6 AWG copper wire rated for 75°C minimum; insulation must handle transient spikes up to 250V. Check continuity with a multimeter: resistance between any two leads should read 0.5–5 Ω depending on horsepower.

Delta Configuration Parameters

HP Rating Current (A) Wire Size (AWG) Breaker (A)
5 HP 14.8 10 25
10 HP 27.5 8 40
20 HP 53.0 6 70

In delta, jumper U1 to W2, V1 to U2, W1 to V2. Attach L1 to U1, L2 to V1, L3 to W1. Avoid loose terminals: torque to 20 lb·in for 6 AWG, 30 lb·in for 4 AWG. Over-tightening cracks plating; under-tightening creates hotspots.

Always ground the frame to the service panel. Use green 8 AWG wire bonded to a dedicated grounding rod driven 8 ft into soil with resistivity below 25 Ω·m. Verify ground path with a megohmmeter: readings above 1 MΩ indicate corrosion–excavate and replace the rod.

Before energizing, rotate the shaft by hand. Binding feels like grit under load; free rotation confirms proper magnetic alignment. Apply power momentarily–listen for a steady hum. A growl suggests miswired coils; a squeal indicates bearing failure. Recheck connections if abnormal noise persists.

Fault Detection Steps

If the unit trips immediately, measure line voltage with a true-RMS meter: imbalance exceeding 3V between phases causes overheating. Disconnect all leads, then measure coil resistance again. A short reads

For thermal overloads, install Klixon-style heaters sized to 115% of full-load current. Use Class 10 trip curves for quick-start applications, Class 20 for continuous duty. Never bypass protection–overcurrent destroys windings within minutes at 250% load.

How to Identify Terminal Connections on a 120/208Y Multi-Tap Equipment Data Plate

Check the nameplate for a wiring schematic first–most manufacturers etch or print a small diagram near the voltage rating label. Look for standardized markings like T1, T2, T3, or L1, L2, L3 alongside delta (△) or wye (Y) symbols. If the plate shows a wye configuration, note the neutral designation, often labeled N or ground, crucial for 120V tap connections.

Locate the voltage specification section–it typically lists dual ratings, such as 120/208Y or 240△/415Y. Below this, terminal labels may include suffixes like U1, V1, W1 for European or IEC-standard equipment. Cross-reference these with North American equivalents: U1 matches T1, V1 equals T2, etc.

  • Line terminals (L1-L3): Direct mains input for high-voltage operation, usually connected to a three-pole breaker.
  • Star (wye) point: If present, marked X0 or N, must bond to ground in 208Y systems for safety.
  • Delta corners: Labelled T4-T5-T6 on some plates, rarely used in standard 208Y applications but critical for 480V△.

Examine the plate for directional arrows or rotation notes–incorrect sequencing (L1→T1, L2→T2, L3→T3) causes clockwise vs. counterclockwise spin. Some plates include a CCW or REV indicator for jumper adjustments. If thermal overload terminals exist, they’re often paired alongside primary taps (e.g., 95-96 for NC contacts).

For dual-voltage units, find the low/high mode jumpers–these appear as either brass links or removable straps. Common configurations require bridging T1-T7, T2-T8, T3-T9 for low setting (120V per leg) or separating them for high. Verify strap presence via ohmmeter; continuity confirms jumper engagement.

Quick Reference Markings Matrix

  1. NEMA (North America): T1-T2-T3-T4-T5-T6
  2. IEC (Europe/Asia): U1-V1-W1-U2-V2-W2
  3. Dual-usage tags: BR1-BR2-BR3 (brake coils), A1-A2 (auxiliary windings)
  4. Ground/Neutral: Always green/yellow stripe or GRD/⏚ symbol

Practical Delta Hookup Sequence for 120/208 Electrical Systems

Connect the supply conductors to terminals L1, L2, and L3 in order, tightening each terminal screw to 12-15 lb-ft using a torque wrench–torque values vary by manufacturer, so verify the nameplate ranging from 9-18 lb-ft.

Route each of the three input lines directly to its corresponding terminal without intermediate splices; any splice introduces additional resistance and heat risk, reducing load capacity by up to 5% per connection point.

Link terminal U1 to L1, V1 to L2, and W1 to L3 internally using copper jumpers sized per NEC Table 250.122–minimum 10 AWG for 15 HP units, 8 AWG for 25 HP and above.

Ground the frame to the service panel via a dedicated 6 AWG bare copper conductor; bonding screw torque matches line conductor torque, preventing conduction failure under fault conditions.

Verify line-to-line readings between each pair of terminals–expect 208 VAC ±3% at no load; deviations exceeding this range indicate incorrect tap selection or damaged supply conductors requiring immediate correction.

Energize the circuit through a molded-case breaker rated 125% continuous current plus 25% short-term overload per NEC 430.22, selecting a 60 A breaker for 15 HP and 100 A for 25 HP units.

After energizing, measure rotational speed via strobe tachometer–actual speed should not deviate more than 2% from nameplate RPM to confirm correct configuration and avoid overheating from low-speed operation.

Critical Errors in Connecting Industrial Equipment to 120/208 Systems

Avoid mixing terminal labels when configuring delta or wye setups–L1, L2, L3 must align precisely with the supply lines. Swapping any pair causes reverse rotation, leading to overheating or mechanical damage within minutes. Verify connections with a phase rotation meter before powering the unit; relying on color-coding alone risks misalignment since industrial standards vary globally.

Neglecting to match the nameplate voltage rating to the available power source triggers immediate stress. For instance, a device rated for 240 V will draw excessive current if connected to a lower potential, reducing efficiency by up to 30%. Always cross-check the equipment’s specifications against the supply voltage–even a 5% discrepancy can shorten lifespan by years.

Overlooking Grounding Requirements

Failing to establish a proper ground path invites catastrophic failure. A missing or loose earth connection allows stray currents to flow through bearings, eroding lubrication and causing pitting in under 200 hours of operation. Use a dedicated ground wire sized at least equal to the phase conductors, and measure continuity with a megohmmeter before commissioning.

Improperly sized conductors accelerate voltage drop across longer runs, forcing the system to compensate by drawing more current. For a 15 HP load over 50 meters, undersized wiring can result in a 12% loss–enough to trip protection relays under full load. Calculate wire gauge using the NEC 310.16 table, factoring in ambient temperature and conduit fill; a single skipped step leads to chronic undervoltage faults.

Selecting Proper Conductor Size and Overcurrent Protection for Triple-Line 120/208 Systems

For a 5-horsepower load on a 120/208 grid, use 8 AWG copper wire with a 30 amp breaker. This pairing ensures a continuous ampacity of 40 A per conductor while maintaining compliance with NEC Table 310.16 at 75°C terminal ratings.

Current ratings shift when aluminum is chosen: 6 AWG aluminum conductors secure the same 5-horsepower capacity but require derating for ambient temperatures exceeding 30°C. Multiply the 90°C column ampacity (50 A) by 0.91 for a 40°C environment, yielding 45.5 A–still above the 28 A full-load draw.

  • 10 hp circuits demand 4 AWG copper or 2 AWG aluminum; breaker sizing remains at 60 A to match the 54 A nameplate current.
  • 15 hp loads jump to 2 AWG copper or 1/0 AWG aluminum with an 80 A breaker–calculate conduit fill for four conductors when including equipment ground.
  • Larger 25 hp units need 1/0 AWG copper or 3/0 AWG aluminum conductors, paired with a 125 A breaker; verify voltage drop under 3% for runs exceeding 150 feet.

Conduit fill tables dictate minimum trade sizes: three 8 AWG copper conductors fit comfortably in ½-inch EMT but require ¾-inch EMT if an 8 AWG equipment ground is included. Schedule 40 PVC mandates one size larger due to thicker walls.

Ambient correction factors at 45°C reduce 8 AWG copper capacity from 40 A to 31.6 A (40 × 0.79). For sustained loads, upsize to 6 AWG or install forced-air ventilation to reclaim lost thermal headroom.

Short-circuit withstand ratings must align: 6 AWG copper withstands 10,000 A RMS symmetrical at 208 line for 0.025 seconds; confirm breaker interrupting rating exceeds the available fault current at the service entrance.

  1. Measure actual run length in feet, multiply by 1.73 × load current × conductor resistance (per NEC Chapter 9, Table 8).
  2. Divide by 1,000 to obtain voltage drop in volts.
  3. Compare result against maximum 3% drop tolerance; adjust conductor size upward if necessary.
