How to Read and Understand Sewing Machine Circuit Diagrams Step by Step
Examine the technical blueprint of any stitching apparatus, and you’ll find the feed dog system positioned beneath the needle plate. This component moves fabric in precise increments–typically 2–3 mm per stitch–using synchronized gears driven by the handwheel. Adjusting the feed dog height (0.8–1.2 mm above the plate) prevents skipped stitches and fabric slippage. Models like the Brother CS6000i include a drop feed lever for free-motion work; disengage it only after lowering the presser foot to avoid thread tangles.
The tension assembly combines spring-loaded discs and a take-up lever to regulate thread flow. Upper thread tension ranges from 2–6 on most dials, while bobbin tension remains fixed at 0.3–0.5 N. Test tension by sewing a straight line on scrap fabric: tighten the dial if loops appear on the underside, loosen if puckering occurs. Industrial units like the Juki TL-2010Q use a separate tension calibrator–set it to 4.5 before threading to match factory specs.
Power transmission occurs via a V-belt and pulley system, converting motor RPM (8,000–11,000) to needle frequency (700–1,200 strokes per minute). Replace belts every 500 hours of operation or when cracks appear. The needle bar, guided by a crankshaft, oscillates within a 3.5–4.5 mm vertical range–misalignment beyond 0.1 mm causes needle breakage. Lubricate the crankshaft journal with SAE 20 machine oil every 20 hours of use, focusing on friction points highlighted in service manuals.
Critical electrical components include the foot pedal rheostat and motor controller PCB. The rheostat modulates voltage (0–220V AC) to vary speed; faulty pedals often exhibit erratic acceleration–replace the carbon brushes if resistance exceeds 5 kΩ. On older models like the Singer 201, the PCB may corrode at solder joints; apply conformal coating to prevent short circuits. Always disconnect power before probing circuits–multi-strand wires leading to the motor terminal block must maintain
Thread path anomalies account for 60% of operational failures. Follow the exact sequence: spool pin → tension discs → take-up lever → needle. Bypass the thread guide nearest the spool if using thicker threads (>40wt); otherwise, friction will cause breakage. The hook timing–where the bobbin case rotates to catch the upper thread–requires a 0.1–0.3 mm gap between hook point and needle eye. Verify timing by turning the handwheel: the hook should intersect the needle as it begins its upward stroke, never before or after.
Understanding Technical Blueprints of Stitching Devices
Begin by isolating the power transmission system: locate the drive wheel (typically 8–12 cm in diameter) connected via a belt to the upper shaft, which rotates at 600–1,100 RPM. The lower shaft, synchronized via gears or a second belt, operates the bobbin case at half the speed. Verify the gear ratio–most domestic models use a 2:1 configuration, while industrial variants may employ 4:1 for heavy-duty fabrics. Replace worn belts if slack exceeds 5 mm when pressed, as misalignment causes thread breaks or skipped stitches.
| Component | Voltage/Current | Torque (Nm) | Lubrication Interval |
|---|---|---|---|
| Motor (AC) | 110V–240V / 0.8–1.5A | 0.5–1.2 | Every 500 hours |
| Upper shaft bearings | N/A | N/A | Every 300 hours |
| Feed dog mechanism | N/A | 0.1–0.3 | Every 200 hours |
Trace the needle bar’s vertical motion: a crank linkage converts rotational force into linear travel, with a stroke of 22–35 mm. Adjust the presser foot pressure gauge (0–4 scale) based on material–2.5 for denim, 1 for silk–to prevent fabric distortion. Check the bobbin tension spring: a force of 0.15–0.25 N ensures balanced stitch formation. For zigzag models, the lateral swing of the needle bar (3–7 mm) is controlled by a cam; replace the cam if groove wear exceeds 0.3 mm.

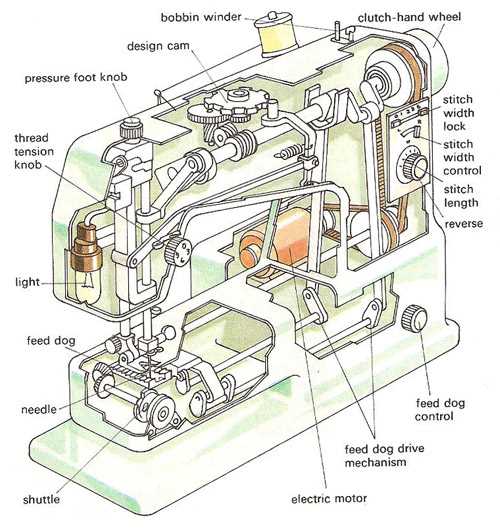

Essential Parts Highlighted in Technical Drawings of Stitching Devices
Start by identifying the needle bar assembly in the illustration–its precise alignment dictates thread tension and stitch uniformity. Look for the presser foot connected to the feed dog system; their interaction controls fabric movement, preventing slippage during operation. Verify the thread path from the spool to the take-up lever, ensuring no sharp bends could weaken the filament or disrupt stitch formation.
Examine the bobbin case positioning; it should sit flush with the hook race to avoid skipped stitches or thread jams. The motor’s wiring placement must avoid interference with moving parts–insulate connections to prevent shorts. Check that the tension discs are symmetrically adjusted; unequal pressure causes uneven seams.
Trace the drive belt from the handwheel to the motor pulley–wear marks indicate misalignment. Lubrication points, often marked in red or yellow, require periodic attention; neglect leads to overheating. Confirm that the stitch length regulator operates smoothly, as stiffness distorts pattern consistency.
Inspect the feed dog mechanism’s elevation settings; improper height distorts fabric layers. The throat plate’s needle hole must align perfectly with the bar’s trajectory–misalignment breaks needles. Verify the reverse lever’s engagement; faulty operation complicates backstitching.
Assess the foot controller’s resistance; erratic speeds signal wiring issues. The power switch’s isolation from moving components prevents accidental activation. Highlight safety features like the automatic thread cutter’s retractable guard to avoid operator injury.
Cross-reference electrical components with the manual–voltage mismatches damage circuits. Document adjustments for future reference; inconsistent settings degrade performance over time. Prioritize visibility of all gears, belts, and pivots to simplify troubleshooting.
Step-by-Step Tracing of Power Flow in Stitch Equipment Blueprints
Begin by locating the motor assembly in the technical layout–typically a shaded circular or rectangular component near the base. Verify its voltage rating (commonly 110V or 220V AC) and trace the red or black thick line leading to the power switch. Use a multimeter set to continuity mode to confirm no breaks exist between the motor’s input terminal and the switch’s live contact. If resistance exceeds 0.5 ohms, inspect the wiring for fraying or loose connections, particularly at the crimp points where copper strands meet the terminal screws.
- Connect the neutral wire (white or blue) directly to the motor’s second terminal, bypassing the control board if present. For models with electronic speed regulation, identify the triac or PWM module–usually a small IC or transistor cluster–and measure voltage drop across its terminals during operation (expect ~2-5V AC).
- Follow the secondary path from the motor’s output shaft to the handwheel via the drive belt. Check belt tension: deflection should not exceed 10mm when pressed mid-span. Replace belts showing cracks or glazing, as these reduce torque transfer by up to 40%.
- For foot-pedal-controlled units, dissect the pedal’s potentiometer: desolder the variable resistor and test its resistance range (standard: 0–100k ohms). Deviations indicate wear–clean the carbon track with isopropyl alcohol or replace the component entirely.
- In industrial variants, trace the power relay (often a 12VDC coil with 250VAC contacts). Energize the coil and listen for a sharp *click*; absence suggests coil failure or open circuit in the control loop. Test coil resistance: 100–300 ohms is typical; infinite readings confirm burnout.
For three-phase models, confirm phase rotation using a non-contact voltage tester. Incorrect rotation (detectable by reversed motor hum) will cause excessive vibration; swap any two power leads at the terminal block. Always discharge capacitors before probing–80% of unexpected shocks occur here.
Key Graphic Marks and Interpretations in Stitching Device Blueprints
Begin by identifying arrows–straight lines with pointed tips often indicate thread pathways or directional motion. A solid arrow typically represents the primary route fabric follows during operation, while dashed or dotted arrows may signify auxiliary paths, such as bobbin feeding or tension adjustments. Look for circular loops intersecting lines; these mark critical connection points like needle bars or presser foot linkages, where misalignment disrupts performance.
Rectangles with internal slashes denote adjustable components–check tension discs, stitch width selectors, or feed dog mechanisms. Squares enclosing smaller shapes (dots, crosses, or triangles) frequently symbolize control knobs or levers; a dot inside suggests a default setting, while a cross warns of manual calibration required before use. Unfilled circles with letters (e.g., “M” or “R”) pinpoint motors or release catches–verify their labels against your manual to avoid incorrect adjustments.
Triangles pointing upward signal thread guides; downward triangles indicate take-up levers or thread cutters. Paired parallel lines with bidirectional arrows reveal reversible parts, like needle clamp screws or bobbin cases–tighten these with a screwdriver matching the manufactured torque specs (typically 0.5–0.8 Nm). Wavy lines crossing straight segments identify springs–replace if rusted or stretched beyond 5% of original length, as weakened springs distort stitch uniformity.
Interpreting Electrical Flowcharts in Stitching Devices
Locate the power entry point first–typically a thick line originating from the main switch or fuse. Trace this line downstream to identify branching circuits, noting how each splits toward motors, lights, or control modules. Look for standardized symbols: resistors appear as zigzag lines, capacitors as parallel lines (one curved if polarized), and coils as tight loops. Check for numerals beside components; these often indicate values like ohms (Ω) or microfarads (µF), critical for diagnosing shorts or faulty parts.
Identifying Circuit Loops
Follow each loop until it reconnects to the ground or neutral line, usually marked with a downward triangle or chassis symbol. Solid arrows or dotted paths signal directional current; dashed lines may denote alternative routes or optional features like pedal bypasses. Interruptions–gaps between lines–mean manual switches or relays; test these points with a multimeter if the device fails to activate. Color codes on paths (red for live, black for neutral, green for ground) simplify verification, but always cross-reference with the legend if provided.
Examine interaction nodes where components connect–junctions carry potential drops. A motor’s wiring may intersect with a speed controller or stitch pattern selector; isolate each segment to rule out cascading failures. Note small annotations like “C1” or “R3” near connectors; these tags correlate to parts lists, helping order replacements faster. If paths merge unexpectedly, suspect a parallel circuit or redundant safety mechanism; sequential barriers (like thermal fuses) require separate continuity checks.
Verify end-of-line components: solenoids, LED indicators, or heating elements. Their return paths should loop back cleanly; stray marks or overlapping lines often indicate drafting errors–confirm against physical connectors. For AC-driven devices, trace the phase line’s return through the controller before looping to ground to ensure proper polarity. Document each traced route in order, labeling notes with timestamps if diagnosing intermittent faults.
