Simplified 220V AC Light Dimmer Circuit Design and Wiring Guide
For a simple yet robust variable resistor setup handling 230-240V AC, use a triac-based phase control schematic with an optocoupler isolation stage. The core components must include a BT136 triac, a MOC3021 optocoupler, and a 100kΩ potentiometer. Connect the triac’s gate to the optocoupler output via a 360Ω resistor to prevent false triggering, while the input side of the optocoupler should be driven by a 10kΩ series resistor paired with a 0.1µF snubber capacitor across the triac’s main terminals. This arrangement ensures stable operation and suppresses voltage spikes exceeding 400V transients.
Critical safety considerations: always fuse the live wire with a 2A fast-acting fuse and mount the triac on a heatsink rated for 5°C/W or better. The optocoupler must maintain minimum 3kV isolation to prevent mains leakage. For precise brightness adjustment, use a logarithmic taper potentiometer to compensate for the non-linear response of incandescent filaments. If driving LED arrays, insert a bridge rectifier with 1N4007 diodes and a smoothing capacitor of at least 47µF/450V to eliminate flicker at low settings.
Avoid common pitfalls: never omit the snubber network–it prevents destructive ringing that can exceed the triac’s 600V breakdown limit. Check component tolerances–opt for X2-class capacitors if operating near maximum load (e.g., 300W). For dimming ranges below 10%, add a small fixed resistor (1kΩ) in parallel with the potentiometer to maintain minimum conduction. Test the completed assembly with a true-RMS multimeter to confirm RMS voltage matches the setpoint within ±5%.
Building a Voltage-Controlled Brightness Regulator for Household Lamps

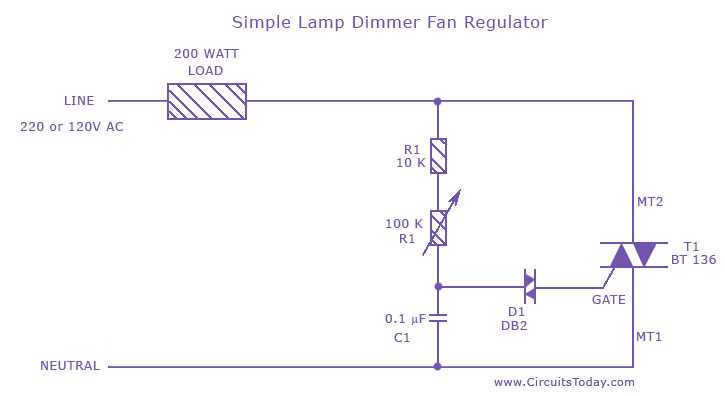

Start with a triac-based switching component like the BT136, rated for at least 4A to handle standard 60W incandescent loads safely. Pair it with a DIAC, such as the DB3, to trigger the triac gate at precise phase angles–this prevents erratic flickering at low settings. Ensure the printed board layout separates high-current traces from control signals by at least 3mm; narrower spacing risks arcing under inductive loads.
Use a 250kΩ logarithmic potentiometer for smooth intensity adjustment–linear taper models create abrupt jumps below 30% power. Place a 100nF X2-rated capacitor across the supply terminals to suppress RF interference, especially critical near AM radio frequencies (530–1700kHz). Avoid cheaper Y-rated capacitors here; their lower voltage margins fail under transient spikes common in grids with poor regulation.
For overload protection, insert a 2A slow-blow fuse in series with the live conductor–fast-acting fuses nuisance-trip during startup transients. If controlling LED bulbs, add a snubber network (10Ω resistor + 47nF capacitor) across the triac; without it, cheap LEDs may emit audible buzzing or fail prematurely due to rapid switching.
Critical Component Alternatives
- Triac: MAC97A8 (6A, TO-220) for heavier loads up to 150W; ensures cooler operation under sustained use.
- DIAC: ST2 (breakover voltage ~32V) for sharper triggering; HT-32 requires higher gate current, reducing efficiency.
- Potentiometer: ALPS RK09K series (conductive plastic) withstands >50k cycles; carbon-film types degrade after ~5k cycles.
- Capacitor: WIMA MKP4 (polypropylene dielectric) for pulse stability; avoid ceramic types–piezoelectric effects distort dimming linearity.
Wire the assembly in an enclosure with a minimum IP44 rating if installed in damp areas–condensation on uncoated PCBs causes short circuits within weeks. Use silicone-insulated stranded wire for connections; PVC degrades above 75°C, risking insulation breakdown. Test initial operation with a 40W tungsten bulb first; LED compatibility varies widely–manufacturers like Philips and Osram specify dimming ranges, but no-name brands often lack this data.
Calibrate by adjusting the potentiometer’s end-stop resistor (typically 10kΩ–22kΩ) to fine-tune the minimum brightness–remove the cover bulb during this step to prevent overheating. For multi-lamp setups, series-wire lamps to distribute phase-cut stress; parallel wiring concentrates heat in a single triac, reducing lifespan. Never exceed 80% of the triac’s rated current–derate further if ambient temperature exceeds 40°C.
Key Parts for Building a High-Voltage Illumination Regulator
Begin with a triac rated for at least 400V and 6A, such as the BT136 or MAC97A8, ensuring it can handle the load without overheating. Pair it with a DIAC (e.g., DB3) to trigger the triac at the correct phase angle–this component is non-negotiable for smooth control of alternating current.
A potentiometer (500kΩ linear type) acts as the user interface, adjusting resistance to vary the firing angle of the triac. Include a fixed resistor (4.7kΩ, 1W) in series to limit current through the potentiometer and prevent premature failure. Add a capacitor (0.1µF, 250VAC) to filter noise and stabilize the trigger signal.
Critical Safety Elements
Use a metal oxide varistor (MOV), like the V130LA20A, across the input terminals to absorb voltage spikes and protect the triac. A fuse holder with a fast-acting 2A fuse safeguards against short circuits. Opt for a PCB-mounted heat sink (minimum 10°C/W rating) for the triac–even small loads generate heat that can degrade performance over time.
For wiring, select stranded copper wire (0.75mm²) rated for 250VAC, with silicone insulation to resist heat. Avoid solid-core wire, as it fatigues under thermal cycling. If dimming inductive loads (e.g., transformers), add a snubber circuit (47Ω resistor + 0.01µF capacitor) to prevent false triggering.
Step-by-Step Wiring Layout for AC Illumination Control
Begin by securing a triac-based semiconductor controller rated for at least 400W resistive load. Connect the live conductor from the mains supply to the input terminal of the semiconductor switch, ensuring proper insulation of the 6mm² copper wire to prevent shorting. Route the neutral line directly to the load–bypass the control module entirely–using crimp connectors for strain relief. Verify polarity with a non-contact voltage tester before proceeding; reversed connections will damage the phase-angle regulator.
Component Placement and Soldering Guidelines
| Component | Mounting Location | Soldering Temperature (°C) | Wire Gauge (AWG) |
|---|---|---|---|
| Triac (e.g., BT139) | Perforated board, 15mm from edge | 320°C | 18 |
| Potentiometer (500kΩ) | Front panel, 3mm hole clearance | N/A (press-fit) | 22 (stranded) |
| Snubber capacitor (100nF, X2) | Adjacent to triac, heat-shrink wrapped | 280°C | 20 |
| Diac (DB3) | Vertical mount, 5mm standoffs | 300°C | 24 |
Position the switchable resistor 10mm from the triac’s gate terminal to minimize interference; twist the gate wiring with a 0.5mm pitch to reduce capacitive coupling. Attach the snubber network–a 47Ω resistor in series with a 100nF X2 safety capacitor–across the triac’s main terminals. Heat-sink the semiconductor switch with a TO-220 clip-on cooler; apply thermal compound sparingly to avoid performance degradation over 60°C case temperatures. Double-check all solder joints with a magnifying glass for cold-solder bridges before energizing.
Enclose the assembly in a flame-retardant polycarbonate box with a 1.6mm wall thickness. Drill a 5mm vent hole 30mm from the top edge for heat dissipation, and secure the box with M4 nylon screws to avoid conductive pathways. Test the adjustable intensity module by gradually increasing the control voltage from 0V to 240V while monitoring load current with a true-RMS multimeter; abrupt jumps above 3A indicate faulty wiring or defective semiconductor switching. Calibrate the potentiometer’s end-stops to limit minimum luminosity to 10% of full output to prevent flicker.
Choosing the Optimal Triac and Diac for High-Voltage AC Phase Control
For 230V AC mains regulation, prioritize triacs with a minimum repetitive peak off-state voltage (VDRM) of 600V–components like the BT139-600E, MAC223A-10, or Q6015L5 ensure reliable switching without avalanche breakdown. Current ratings should exceed the load demand by at least 30%: for 5A resistive loads, opt for triacs handling 6-8A (e.g., BTA08-600C), while inductive loads (e.g., motors) require derating to 50% of the nominal current. Gate sensitivity matters–triacs with 25-50mA gate trigger current (IGT) (e.g., TIC226M) pair well with standard diacs, while low-gate-sensitivity models (≤10mA) like the BT138-600E demand precise diac selection to avoid false triggering.
- Diac selection: Use the DB3 or BR100 for consistent breakdown voltages (≈32V). Avoid generic diacs with breakdown tolerances exceeding ±4V, as they introduce phase jitter and flicker. For tight hysteresis control, the NTE6408 (breakdown at 35V) minimizes thermal drift in ambient temperatures above 50°C.
- Snubberless triacs: If suppressing transients is critical (e.g., LED loads), choose snubberless variants like the BTA16-600B to eliminate RC snubbers, reducing component count and failure points. Verify critical rate of rise (dV/dt)–values ≥500V/μs prevent commutating dv/dt failures.
- Heat dissipation: TO-220 packaged triacs (e.g., T1635) require heatsinks for currents ≥3A; calculate thermal resistance using θJA = (TJ(max) – TA) / PD, where TJ(max) is 125°C for most silicones.
- Gate isolation: For noise immunity, isolated triacs (e.g., MOC3041 optocoupler + BTA12-600CW) prevent ground loops in sensitive applications. Non-isolated triacs demand galvanic separation via transformers or optocouplers.
