Complete 22R Wiring Harness Diagram Guide for Toyota Engines

Locate the main fuse block under the dashboard on the driver’s side–it houses critical relays for the ignition, fuel pump, and charging circuit. Verify the integrity of fuses 15A IGN, 10A ST, and 7.5A ECU before proceeding; corrosion here mimics wiring failures.

Trace the red/black wire from the ignition coil to terminal 5 on the ECU connector. If voltage drops below 11.5V at idle, inspect the alternator’s white/black output line–resistance above 0.5Ω indicates brush wear or rectifier damage.

For fuel injection diagnostics, probe the green/red wire at the ECU pin 10. Expected readings: 12V with ignition on, 0V during cranking. Deviations suggest faulty fuel pump relay (K2)–replace it with OEM part 89620-12010 to avoid voltage spikes.

Check sensor grounds at the intake manifold flange–use a multimeter to confirm continuity between black/white wires and engine block. Poor grounding causes erratic MAP sensor readings; clean contact surfaces with 3M Scotch-Brite and apply dielectric grease.

Install a 10A inline fuse on the blue/yellow A/C clutch wire if retrofitting aftermarket compressors. Toyota’s stock 20A fuse risks melting insulation on older OEM bundles; splice in a TYCO 1535111-1 connector for stress relief.

When splicing into the violet tachometer signal wire, use 30-24 AWG butt connectors–avoid twist-and-tape methods as vibration loosens connections over time. For accuracy, route the wire away from the alternator’s white output to prevent EMI interference.

Electrical Network for Toyota’s R-Series Engine: Hands-On Walkthrough

Start by labeling each connector with heat-shrink tubing marked in permanent ink–use color codes matching the factory service manual. For the R-series 2.4L variant, pin A1 (black/red) carries ignition power from the main fusebox to the coil, while A2 (black/yellow) grounds through the engine block. Cross-reference your work with a multimeter: expect 12V at A1 with the key in ON position and near-zero resistance at A2 when probing chassis ground.

Route replacement leads along original paths, securing them every 15 cm with zip ties–avoid sharp edges near the valve cover gasket and exhaust manifold. The alternator’s B-terminal (thick white wire) must connect directly to the battery positive via an 80A fuse link; bypassing this risks voltage spikes damaging the ECU. If splices are needed, use crimped butt connectors sealed with adhesive-lined heat shrink, never solder alone–vibration fractures solder joints over time.

Test each circuit systematically: disconnect the battery negative, then verify continuity between ground points and sensor terminals. The coolant temp sender (green/blue) should read ~2.5 kΩ at room temp; deviations indicate corrosion or incorrect routing. For EFIs, confirm the throttle position sensor’s yellow/black lead outputs 0.5–4.5V while sweeping the pedal–replace the entire loom if values flat-line or spike erratically.

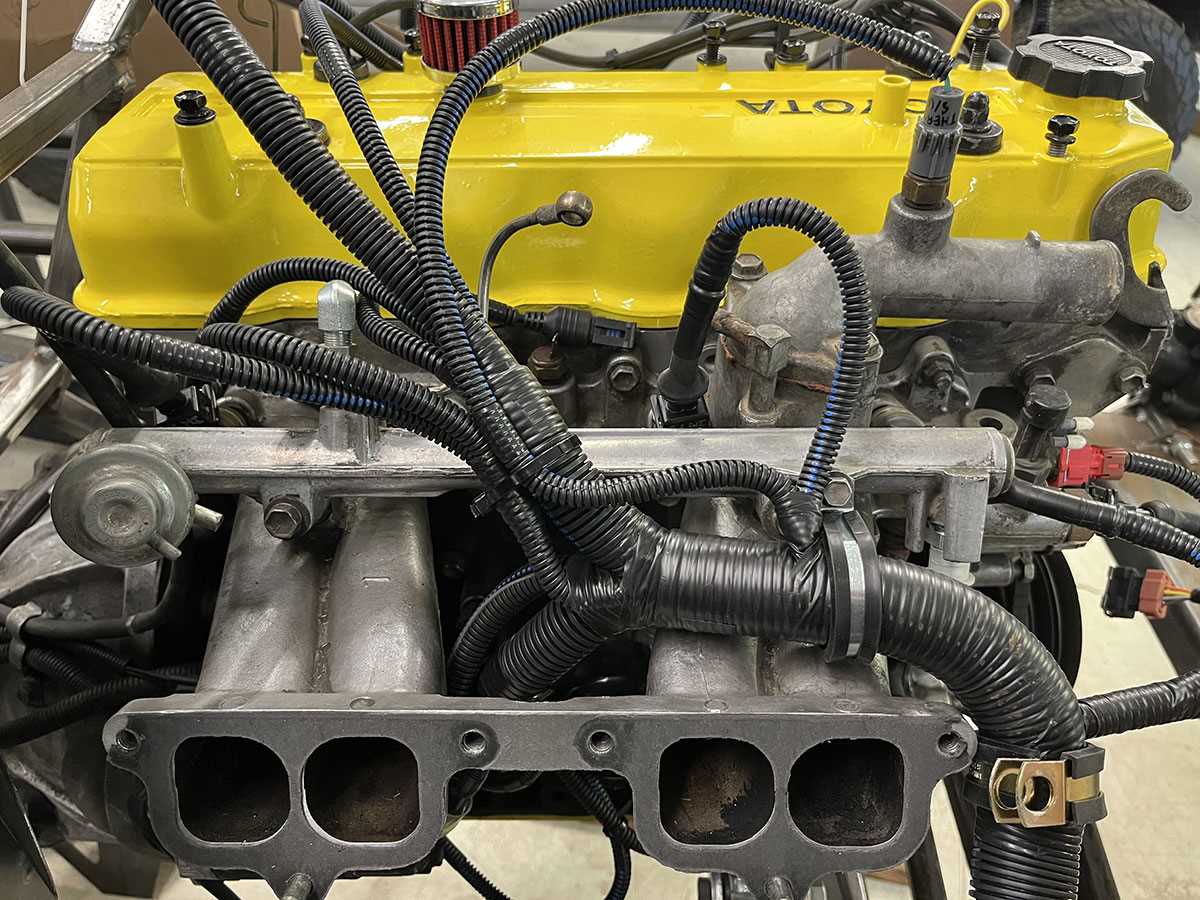

Final step: wrap critical sections in convoluted loom tape, overlapping edges by 50%, and cover exposed lengths near the radiator support with split corrugated tubing. Recheck all connections before reconnecting the battery–misfires, sudden stalling, or flickering dash lights often trace back to a single improperly seated terminal.

Pinpointing Critical Electrical Links in the Toyota 4-Cylinder Engine Compartment

Trace the main power conduit running along the driver-side inner fender–this primary bundle branches into three critical junctions near the strut tower. The upper connector, typically encased in gray plastic, supplies voltage to the ignition coil and distributor; disengage its retaining clip by pressing inward at both sides while pulling outward. Below it, a black cylindrical relay controls fuel pump operation–swing it downward from its bracket to inspect terminals for corrosion or loose pins. The third branch feeds the engine control module; follow its path behind the air intake tube to locate the 31-pin plug secured by a single 10mm bolt.

Sensor and Actuator Plug Identification

• Coolant temperature sender: Mounted on the thermostat housing, its two-wire plug uses a red lead for signal return; check for a brittle sheath near the connector body.
• Throttle position sensor: Attached to the carburetor or throttle body, identify by its three-wire configuration–yellow supplies 5V reference, green carries the signal, black grounds the circuit.
• Oxygen sensor: Beneath the exhaust manifold, its single-wire pigtail routes through a heat-resistant sleeve; avoid damaging the frayed insulation where it passes over the starter.
• Knock sensor: Situated on the engine block near cylinder #2, secured by a 22mm bolt; its one-wire connection uses a metal-braided shield.

Examine the firewall bulkhead connectors first–the male/female pair closest to the brake master cylinder carries signals from the transmission range switch. Separate them by twisting the bayonet lock counterclockwise until alignment marks meet, then pull straight apart. Inside the cabin, the matching harness emerges beneath the dashboard kick panel; probe for continuity between the 8-way orange plug and the corresponding bulkhead pins before reconnecting. Always verify ground integrity at the engine block stud adjacent to the oil dipstick–bare wire contact here often mimics harness failure.

For auxiliary systems, locate the fusible link box directly above the battery; its four 10-gauge wires (red, two blues, and a white tracer) split to the charging circuit, lighting, and A/C compressor clutch. Use an 8mm wrench to remove the cover and inspect each blade terminal for heat discoloration. The alternator’s four-pin rear connector–two small spades for voltage sensing, two large spades for excitation–runs along the valve cover’s underside; route replacement cables precisely to avoid interference with the EGR valve actuator tubing.

Step-by-Step Pinout Identification for Fuel Injector Circuit Connections

Locate the engine control module (ECM) connector first–it’s typically a 26-pin plug on Toyota’s inline-four setup. Pin numbers 10 and 20 correspond to injector drive signals; verify continuity with a multimeter by probing these pins while back-probing the injector side. Resistance should read 12-16 ohms across each injector coil–values outside this range indicate a faulty unit or compromised connection.

Trace the colored wires from the ECM to the injectors: white/red stripe for injector #1, black/red stripe for #2, yellow/black stripe for #3, and blue/yellow stripe for #4. Cross-reference these with the vehicle’s service manual–older models may use slightly different color codes, but the stripe pattern remains consistent. If resistance checks pass but no signal registers during cranking, inspect the fuse box for a blown 10A EFI fuse (usually labeled IGN/INJ).

Remove the injector connector clips carefully; corrosion often hides beneath them. Clean contacts with electronic contact cleaner–never sandpaper, as it removes protective plating. Apply dielectric grease sparingly to prevent moisture ingress. For intermittent misfires, swap suspected injectors with a known-good one; if the issue follows the injector, replace it. Avoid reusing O-rings–install new ones coated with clean engine oil to prevent leaks.

Test the power feed circuit by probing the 12V side of the injector connector (black/yellow wire) with the ignition on–voltage should match battery levels. If absent, check the main relay (located behind the glove box) for proper engagement. For sequential injection systems, verify the camshaft position sensor signal (connects to ECM pin 24); a missing pulse here disables injector operation entirely.

Final validation requires a scan tool capable of live data streaming. Monitor injector pulse width during idle–values between 2.5-3.5 milliseconds are typical for warmed-up engines. Rich or lean conditions outside this range warrant further diagnosis of sensor inputs (O2, MAF, MAP) or fuel pressure deviations. Stubborn issues may stem from a faulty ECM grounding point (G1, usually near the battery tray)–ensure zero resistance to chassis ground.

Adapting Factory Engine Cabling for Aftermarket Control Unit Integration

Identify the OEM connector’s pinout before cutting any leads–most aftermarket ECUs expect a 35-pin (Bosch-style) or 26-pin (Toyota JZ/Tundra) interface. Use a multimeter to trace each terminal from the firewall bulkhead back to the engine bay, recording voltage levels at key points (ignition-on, cranking, idle). Replace the factory relay panel with a solid-state fuse box rated for 40A continuous–this prevents voltage sag during high-current events.

Strip the insulation only from the last 12mm of each lead, crimp using gold-plated 0.5mm² contacts, then heat-shrink with adhesive-lined tubing (polyolefin, 3:1 ratio). Solder is unnecessary if crimping follows the manufacturer’s torque spec (1.2 N·m for terminal screws). Route power feeds separately: battery-positive → main relay → ECU (pin B+) and ignition-switched → ECU (pin IG)–never combine them on the same circuit.

Install a dual-layer shielded cable for crank/cam signals; ground the shield at the ECU chassis only. The factory CKP sensor (VR-type) outputs a ±200mV sine wave at 300rpm–aftermarket units often require a 5V pull-up or Hall-effect adapter. Use a Schottky diode (1N5822) across injector leads to suppress reverse EMF

Recommended Connector Pin Reassignment

Factory Terminal	Aftermarket Pin	Signal Type	Adapter Required
E7-12 (Tach)	ECU-14 (RPM)	0-5V square wave	Resistor divider (2kΩ)
E7-5 (O₂)	ECU-23 (Lambda)	0-1V analog	None (direct)
E6-9 (ITC)	ECU-31 (IAT)	NTC (-40°C to 150°C)	Pull-up 4.7kΩ to 5V

For sequential injection, repurpose the factory distributor’s ignition output (originally wasted) into a cam phase sensor input–drill a 2.5mm hole in the cam gear, insert a M6 bolt, and align it with a Hall sensor (US1881). Calibrate timing with a 4-channel scope (trigger at 1° BTDC, rising edge). Overlay ECU ground with the engine block using M8 stainless bolts; torque to 25 N·m to prevent galvanic corrosion.

Test every splice with a load test–apply 10A for 30 seconds, monitoring for voltage drop >0.2V. Replace factory 16AWG leads with 12AWG silicone-insulated for circuits exceeding 15A. Label every modified segment with Mil-Spec heat-shrink sleeves (white print on black) using a Brother P-Touch (PT-D600, 2mm font). Store backups of the original pinout as PDFs on a ruggedized USB drive (SanDisk Extreme Pro, encrypted).
