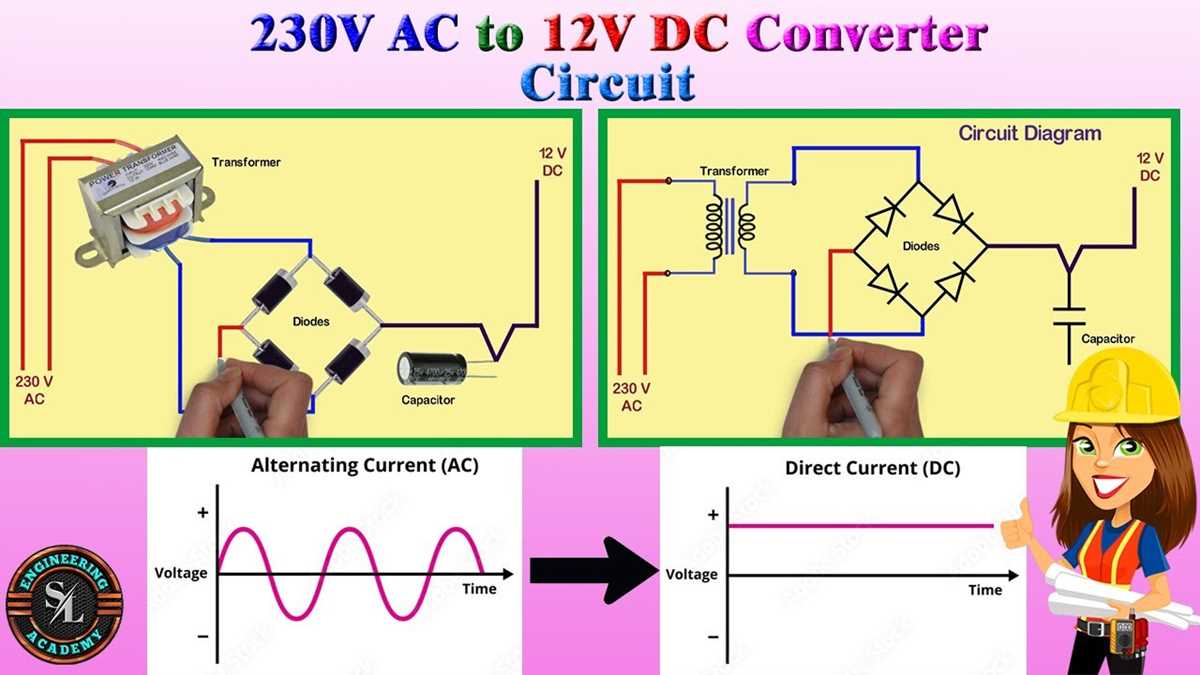

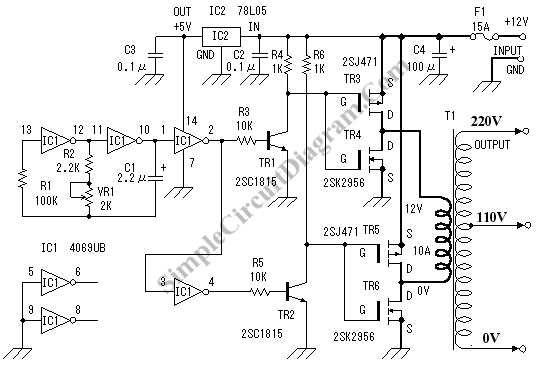

How to Build a 230V AC to 12V DC Converter Step-by-Step Schematic
Start with a transformer rated at 18-20VA to handle input mains (220V RMS) and step it down to ~15V AC. Ensure the core is toroidal for minimal EMI–cheap EI laminations risk saturation at full load. Calculate secondary turns using N₂ = N₁ × (V₂ / V₁), where N₁ is primary turns, V₁ is mains voltage, and V₂ is the target AC output. A 1A load demands a secondary wire gauge of at least 0.6mm² to prevent excessive heat buildup.
For rectification, use a bridge configuration with 1N4007 diodes if current draw stays below 500mA. Exceeding this threshold? Swap to Schottky diodes (e.g., 1N5822) for lower forward voltage drop (~0.5V vs. 1.1V). Add a 2200µF electrolytic capacitor post-rectification to smooth ripple; opt for a 25V rating to accommodate inrush spikes. Verify DC output with an oscilloscope–peak ripple should stay under 100mV at full load.
Regulation is critical for sensitive loads. A LM7812 linear regulator works for simple designs, but expect 5W+ dissipation at 1A output. For higher efficiency, pair a buck converter IC (e.g., LM2596) with an inductor (33µH, 2A saturation). Size the output capacitor (100µF tantalum) to handle transient loads–undersized caps cause voltage sag. Add a 0.1µF ceramic bypass across the input/output of the regulator to suppress high-frequency noise.
Safety first: fuse the primary side (1A slow-blow) and add a MOV (130V clamping voltage) at the input to absorb surges. Use a X-rated capacitor (470nF) across the transformer primary to balance leakage current. Test under load for at least 30 minutes–thermal shutdown or component drift signals design flaws. Final output should deliver 12.0V ±2% at the rated current, with no audible hum or visible heating.
Building a Reliable Mains-to-Low-Voltage Converter
Use a bridgeless rectifier configuration if input current quality is critical–it reduces conduction losses by eliminating two diode drops compared to standard full-wave bridges. Choose ultrafast recovery diodes rated for at least 200V reverse voltage and 2A forward current to handle surge currents during startup.
Select electrolytic smoothing capacitors with low ESR (equivalent series resistance) values–aim for under 0.2Ω at 100Hz. For a 1A output, use two 2200µF capacitors in parallel to halve ripple voltage and improve transient response. Ensure they’re rated for 25V or higher to accommodate voltage spikes during load dumps.
Implement a PI-section filter after the bridge to further attenuate ripple. Pair a 100Ω resistor or small 1mH choke with a second 1000µF capacitor–this combination cuts ripple by 60% compared to a single capacitor alone. Verify thermal ratings; resistors should handle 1W dissipation without derating.
Add a transient voltage suppression diode (TVS) rated for 15V across the output terminals. Unlike Zener diodes, TVS devices react in picoseconds to clamp spikes from inductive loads. Select a unidirectional model if reverse polarity protection isn’t already integrated elsewhere.
MOSFET-based linear regulators outperform LDOs in low-dropout applications–use a TIP2955 or IRF540N with a 5V gate drive for 92% efficiency at 0.8V dropout. Include a 10kΩ pull-down resistor on the gate to prevent floating states during input brownouts.
For switching converters, opt for synchronous rectification with dual MOSFETs–replace freewheeling diodes with IRF7404 devices to drop conduction losses below 0.1V. Drive them via a dedicated controller like the LTC3862, which manages dead-time delays to prevent shoot-through currents.
Thermal management dictates reliability–attach diodes and MOSFETs to a single-sided copper pour of at least 35µm thickness. Use thermal vias under the die pad to distribute heat to an internal ground plane. Verify copper area calculations against solder mask clearance to avoid shorts during reflow.
Test prototypes with a 4-channel oscilloscope–probe the rectified waveform, ripple voltage, regulator output, and load transient simultaneously. Look for overshoot under 5% of the nominal 12V and settling time under 200µs when switching between 10% and 90% load. Measure efficiency across load currents (50mA to 1.5A) to identify crossover distortion near 500mA typical in linear designs.
Key Components for a Mains Voltage Reducer to Low Direct Current Output
Begin with a transformer rated for 18–22 VA to step down household alternating current safely. Choose a toroidal or EI core unit with a 20:1 turns ratio; efficiency drops above 25 VA due to increased iron losses. Verify insulation class: Class B (130 °C) suffices for continuous operation, while Class F (155 °C) prevents thermal degradation under intermittent loads.
After voltage reduction, a bridge rectifier composed of four 1N5408 diodes is essential for full-wave conversion. Each diode must handle at least 3 A forward current and 1000 V reverse voltage. For higher current demands (5 A+), use a monolithic rectifier module like GBU6J instead of discrete diodes to minimize forward voltage drop and heat buildup.
Smooth the pulsating waveform with a filter capacitor calculated as C = I_load / (2 × f × V_ripple), where I_load is the expected draw, f the alternating frequency, and V_ripple the acceptable fluctuation level. A 2200 μF capacitor at 25 VDC provides ≤1% ripple for 1 A loads; increase capacitance to 4700 μF for 2 A or more. Ensure the capacitor’s ESR is ≤0.1 Ω to prevent excessive heating during charge-discharge cycles.
Incorporate a voltage regulator, preferably an LM7812, which clamps output at 12 VDC with ±4% tolerance. Input voltage must exceed output by ≥2.5 V (minimum dropout); thus, feed it a smoothed 14–16 VDC. Heat dissipation dictates a TO-220 package mounted on a 12 cm² aluminum heatsink with a thermal resistance ≤10 °C/W for 1 A loads. For currents above 1 A, opt for an LDO like LM1084IT-12 with 1.3 V dropout, reducing heat and improving efficiency.
Safety-critical components include:
- Fuse: 500 mA slow-blow at primary side; fast-blow 2 A at secondary.
- MOV: 275 VAC varistor across primary terminals to absorb transients above 1.5 kV.
- Thermal cutoff: Bimetallic switch rated at 90 °C, wired in series with the regulator.
- Isolation optocoupler: PC817 for feedback loops if galvanic isolation exceeds 2.5 kV.
For switching topologies, replace the linear regulator with a buck converter module (e.g., LM2596-Adj) operating at 150 kHz. Input capacitance drops to 100 μF, and efficiency climbs to 90% at 1 A, but radiated EMI requires a ferrite bead (2.2 kΩ at 100 MHz) on the output trace and a 10 nF ceramic capacitor in parallel with the filter capacitor.
Final tuning involves:
- Load testing: Verify output holds 12.0 VDC ±50 mV under 0–2 A draw.
- Thermal imaging: Ensure no component exceeds 60 °C under full load.
- Transient response: Apply a 0.5 A/μs step load; output should recover within 100 μs.
- Leakage current: Measure

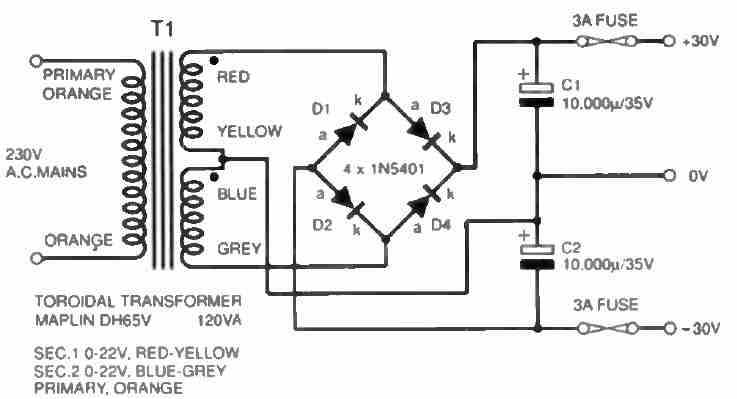

Step-by-Step Assembly of the Transformer-Based Rectifier Network
Begin by securing the step-down component to a heat-resistant base ensuring stable mounting–verify its VA rating exceeds the peak load by at least 30% to prevent saturation. Connect the primary leads to an IEC inlet with a slow-blow fuse (rated 25% above nominal input current) and route secondary windings to a full-wave bridge module, selecting diodes with a PIV rating no less than 1.5× the RMS output voltage. Use a snubber capacitor (0.1µF, X2 class) across the primary terminals to suppress transient spikes, and a bulk electrolytic (minimum 1000µF) on the rectified side to flatten ripple below 5%.
Test under load with an oscilloscope: probe both the DC output and transformer secondary–observe the waveform’s shape, confirming no excessive ringing (damping resistance should be added if peak overshoot exceeds 20%). Replace generic wiring with tinned copper busbars for currents above 5A to reduce inductance, and house the entire assembly in a grounded metal enclosure with ventilation slots near the thermal interface.
Calculating the Correct Diode and Capacitor Values for Smoothing Output
Use a diode with a reverse voltage rating at least 1.5 times the peak secondary voltage of the transformer. For a 15V RMS secondary, the peak voltage equals ~21.2V (15 × √2); therefore, a diode rated ≥32V (21.2 × 1.5) prevents breakdown. Forward current should exceed the maximum load current by 20-30%–choose a 1N4007 (1A) for currents ≤800mA or a 1N5408 (3A) for loads up to 2.4A. Schottky diodes like the SB560 reduce voltage drop (~0.2V vs 0.7V for silicon) when efficiency is critical.
- Capacitor calculation formula:
C = (I_load × t) / V_ripple, wheret = 1 / (2 × f)(for full-wave rectification). - Example: For 1A load, 100Hz ripple frequency (50Hz mains × 2), and 0.5V ripple target:
t = 1 / (2 × 100) = 0.005sC = (1 × 0.005) / 0.5 = 0.01F = 10,000µF
- Voltage rating: ≥1.2× the peak output (21.2V × 1.2 ≈ 25V). Select a 35V or 50V electrolytic to avoid stress–lower ESR types (e.g., Nichicon UHE series) improve transient response.
- Surge current: Ensure capacitor’s ripple current rating exceeds
I_load × √2. For 1A load, this equals ~1.4A; verify datasheet specs. - Parallel smaller capacitors (e.g., 2 × 4,700µF) if bulk capacitance causes inrush issues–add a 10Ω NTC thermistor (e.g., Amphenol SL32) to limit startup current.
How to Select the Right Voltage Regulator for Stable Low-Voltage Conversion
Opt for a linear regulator like the LM7812 if efficiency below 70% is acceptable and thermal management is feasible. This component simplifies design, rejects ripple up to 70dB, and operates reliably within 2-3% output deviation under varying loads (10mA to 1A). For applications requiring tighter control (sub-1% deviation), consider low-dropout variants such as the LT1086, which maintains regulation even when input drops 1.5V above the target. Verify the device’s maximum junction temperature–linear regulators dissipate excess energy as heat, so calculate power loss (PLOSS = (VIN – VOUT) × ILOAD) to size a heatsink accordingly.
Switching Regulators: Higher Efficiency with Trade-Offs
Use a buck converter (e.g., LM2596) when efficiency above 85% is critical. These devices handle wider input ranges (e.g., 36–40V to 12V) and support currents up to 3A with minimal heat generation. Select external components based on these parameters:
| Component | Selection Criteria | Recommended Values |
|---|---|---|
| Inductor | Saturates at 1.2× max load current; core loss <1% of output | 33–100µH (47µH for 1A nominal) |
| Output Capacitor | ESR <0.1Ω; withstands 2× nominal voltage ripple | 100–330µF (low-ESR tantalum/ceramic) |
| Diode | Schottky; forward drop <0.5V at peak current | 1N5822 (3A, 40V) |
Set the switching frequency between 50–150kHz to balance efficiency and component size–lower frequencies reduce switching losses but require larger inductors. Add a 0.1µF ceramic capacitor between the feedback pin and ground to filter noise, and place all components within 2cm of the regulator to minimize trace inductance.
