Complete Guide to Wiring a 240V Heater with Step-by-Step Diagrams

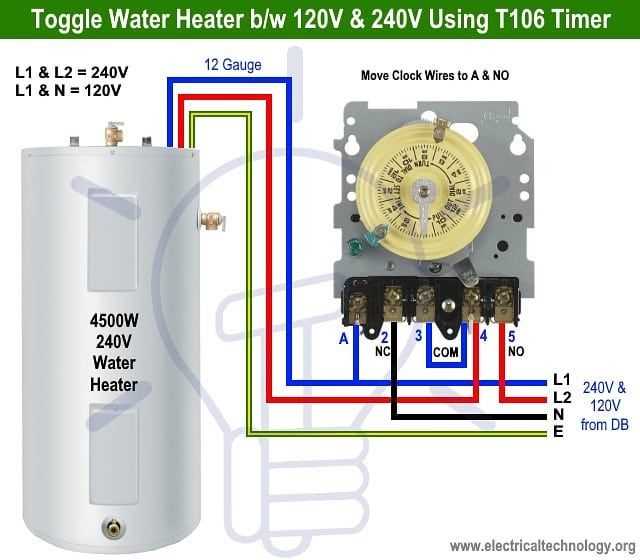

Connect a double-pole breaker rated for 30 amps to a dedicated circuit when powering resistive loads up to 7,200 watts. Use 10-gauge copper wire for runs under 100 feet; upgrade to 8-gauge if the distance exceeds this or voltage drop calculations indicate it. Securely fasten connections with properly sized wire nuts or terminal blocks–loose joints generate heat and risk failure. Always verify local electrical codes before proceeding; some regions require insulated terminals or additional grounding conductors.

Strip insulation precisely: 5/8 inch for standard terminals, 3/4 inch for wrap-around connections. Avoid nicking conductors during stripping–even slight damage reduces current capacity. Route wires through conduit if exposed; NM-B cable is permissible in concealed spaces but must be clamped within 12 inches of entering junction boxes. Label all conductors at both ends for troubleshooting efficiency. Test continuity with a multimeter before energizing; circuits showing infinite resistance require immediate re-inspection.

For terminal connections, use crimp connectors rated for 90°C when working with high-temperature applications (e.g., baseboard units). Apply antioxidant compound to aluminum conductors if present–copper-to-aluminum transitions need UL-listed connectors. Install a disconnect switch within sight of the appliance; local code may mandate this for maintenance safety. Ground the metal housing separately using a 10-gauge green or bare copper wire tied to the panel’s ground bus bar.

Voltage checks should read 230-245 volts across the load terminals under normal operation. Readings outside this range suggest incorrect tap selection at the transformer or overloaded circuits. Replace breakers showing signs of overheating; arcing or discoloration indicates imminent failure. Document wire paths with dated photographs–useful for future modifications or inspections.

Electrical Setup for High-Voltage Appliances

Always verify the circuit’s amperage rating matches the appliance’s nameplate before connecting. Standard dual-pole breakers for 60 Hz systems require 30–50 A for most resistive loads, while heavy-duty units may demand 60 A. Use 10 AWG copper wire for 30 A circuits, 8 AWG for 40–50 A, and 6 AWG for 60 A. Secure connections with UL-listed wire nuts or insulated crimp terminals rated for 90°C.

Connect the hot leads to the breaker’s terminals, ensuring one leg attaches to each pole. The neutral is unnecessary for purely resistive loads but may be required for integrated controls or standby modes. Ground the chassis to the panel’s busbar with a dedicated 10 AWG bare copper conductor. Label all wires at both the appliance and panel ends for future reference.

Breaker Size (A)	Minimum Wire Gauge (AWG)	Maximum Load (W)
30	10	6,900
40	8	9,200
50	8	11,500
60	6	13,800

Install a disconnect switch within 3 feet of the unit if local codes mandate physical isolation. Some models include built-in switches, eliminating this need. For wall-mounted elements, use conduit or armored cable (MC/AC) when routing through studs or joists. Maintain 1.25-inch clearance from combustible surfaces unless the device carries a UL exemption for zero-clearance installation.

Test voltage across both hot legs with a multimeter–expect 220–250 VAC–before finalizing connections. If readings deviate ±5%, recheck the breaker, neutral bus (if applicable), and all terminal tightness. Cycle the unit for 5–10 minutes at full power while monitoring for arcing, discoloration, or excessive vibration, which indicate loose or improperly sized components.

Document the circuit in your home’s electrical panel directory with breaker number, wire gauge, and appliance details. Retain the wiring schematic supplied with the unit for troubleshooting; many manufacturers include QR codes linking to video walkthroughs. Replace factory-provided terminal screws if stripped or corroded–they typically handle 15–20 lb-in of torque but should not exceed the manufacturer’s specified torque value.

Choosing Optimal Cable Thickness for High-Voltage Appliance Loops

For 40A circuits powering electric loads up to 9.6kW, use 8 AWG copper conductors as the minimum safe gauge. This specification aligns with NEC Table 310.16 for 75°C insulation materials like THHN/THWN, accounting for ambient temperatures up to 30°C. Larger installations exceeding 12kW capacity demand 6 AWG wiring to prevent voltage drop beyond 3% over 100-foot cable runs.

The required conductor size scales inversely with distance. A 20A loop at 240VAC spanning 150 feet necessitates upgrading from the standard 12 AWG to 10 AWG copper to maintain performance. Aluminum wiring requires jumping one gauge size–6 AWG aluminum equivalents 8 AWG copper for identical current ratings. Always verify local amendments to NEC guidelines, particularly in jurisdictions adopting stricter derating factors for conduit fill ratios exceeding 4 conductors.

Key factors overriding standard tables:

• Ambient temperatures above 30°C require derating (multiply ampacity by 0.88 for 40°C)
• Six or more current-carrying conductors in a conduit trigger additional derating (310.15(C))
• Voltage drop calculations supersede ampacity tables for runs exceeding 50 feet
• Grounding conductors follow separate sizing rules per 250.122

Subpanel feeds serving multiple resistive loads should incorporate 75°C-rated terminals–even when using 90°C-rated cables–to prevent overheating at connection points. For example, a 50A branch circuit with 6 AWG copper must terminate on devices explicitly listed for 60A minimum to comply with 210.21(B) and 110.14(C). Ignoring terminal temperature limits creates undetectable hotspots that degrade insulation over time.

Outdoor installations exposed to direct sunlight demand further derating; add 15°C to the effective ambient temperature when selecting cable sizes. Underground conduits experience different thermal behavior–use NEC Table 310.60(C)(77) for direct burial calculations. Parallel conductors offer flexibility for large loads but introduce balancing challenges; ensure split-phase legs maintain

Specialized applications like infrared panels or induction units with transient inrush currents may require oversizing conductors by 20-30% beyond standard tables. Always cross-reference equipment nameplate data with NEC Article 424 for fixed space-heating apparatus–this section imposes unique requirements for disconnect means and overcurrent protection coordination not covered in general branch-circuit rules.

Step-by-Step Guide to Installing a Dual-Circuit Protector for Thermal Appliances

Verify the electrical panel’s amperage capacity before selection. A 30-amp dual-circuit protector requires 10-gauge copper conductors, while a 50-amp unit demands 6-gauge. Confirm compatibility with the appliance’s current draw; most high-power resistive loads operate within 20–40 amps.

Switch off the main service disconnect at the meter base. Use a non-contact voltage tester to confirm zero potential across all terminals in the panel. Failure to de-energize poses severe electrocution risk when handling busbars or adjacent protectors.

Remove the panel cover by unscrewing the securing fasteners. Identify two adjacent vacant slots aligned with the busbars–most modern panels accommodate tandem protectors if space is limited, but consult manufacturer guidelines for restrictions.

Insert the dual-circuit protector into the slots at a 45-degree angle, ensuring the clip mechanism engages fully. Tighten the captive screw until torque reaches 18–22 inch-pounds; overtightening damages the housing, while insufficient tension causes overheating.

Connecting Conductors to the Protector

Strip ½ inch of insulation from each conductor using a calibrated wire stripper. Bend the exposed copper into a U-shape and loop it clockwise around the terminal screw. Tighten to 20 inch-pounds; improper contact increases impedance, creating hotspots that prematurely degrade connectors.

Attach the red and black load conductors to the lower terminals of the protector. Route the white neutral conductor–if required–to the neutral busbar, but only for circuits with 120-volt auxiliary components. Secure the green or bare grounding conductor to the grounding busbar with equal torque.

Final Checks Before Energizing

Reinstall the panel cover and restore power via the main disconnect. Observe the protector for 30 seconds; tripping indicates miswiring, reversed polarity, or a short circuit. Use a multimeter to confirm 230–250 volts across the load terminals before connecting the appliance. Repeat the voltage check at the appliance junction box to detect voltage drop caused by undersized conductors.

Ensuring Safe Grounding for High-Voltage Appliances in Home Circuits

Begin by connecting the grounding conductor to the metal junction box using a green grounding screw or a pre-attached grounding clip. The screw must be tightened securely–torque should meet or exceed 12 inch-pounds–to prevent loosening from thermal expansion. Never rely on the box’s knockouts or conduit as a substitute; only a dedicated copper or green-insulated wire (minimum 10 AWG for 30-amp circuits, 8 AWG for 50-amp) ensures compliance with NEC 250.122.

Run the grounding wire directly to the service panel’s grounding bus bar, avoiding splices unless using irreversible crimp connectors rated for the application. If the circuit includes a grounding electrode conductor (GEC), bond it to the same bus bar using a listed lay-in lug, not a twist-on connector. Confirm the bus bar is bonded to the neutral bar only at the main panel; subpanels require isolated grounding and neutral bars to prevent parallel current paths.

Test continuity between the appliance frame and the grounding terminal with a multimeter set to ohms–resistance should read less than 1 ohm. If resistance exceeds this threshold, inspect terminations for corrosion, improper torque, or damaged conductors. For circuits exceeding 40 amps, install a ground-fault circuit interrupter (GFCI) breaker as per NEC 210.12; failure to do so risks undetected faults leading to shock hazards.

Label all grounding conductors at both ends with permanent markers: “GROUND” at the panel and “GND TERMINAL” at the appliance connection. Use anti-oxidant compound on aluminum conductors, even if copper-clad, to prevent long-term degradation. Document the circuit’s grounding path in the home’s electrical schematic, noting wire gauge, breaker ampacity, and bonding points for future reference during inspections or renovations.
