Step-by-Step 3 Phase Air Compressor Motor Starter Electrical Wiring Guide
For a 7.5 kW or smaller three-line unit, use a direct-on-line (DOL) starter with a 25 A fuse and a 2.5 mm² cable if the run is under 30 m. Keep the thermal relay trip at 90 % of the motor’s rated current (13.4 A for a 15 A nameplate) to prevent nuisance drops during cold starts but maintain protection against sustained overloads.
Mount the contactor, thermal relay, and circuit-breaker within 500 mm of each other on a DIN rail; longer distances invite voltage drops that can falsely trip the relay. Use star-dot connectors for all control circuits–spade terminals introduce micro-disconnections under vibration.

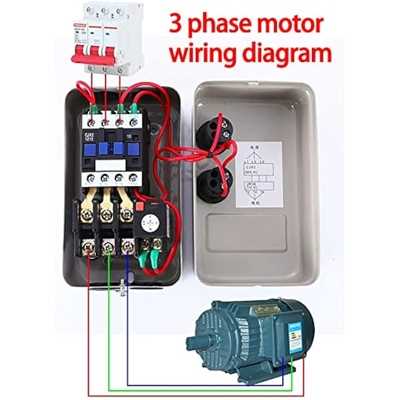

Wire the main circuit first: line L1→fuse→contactor→thermal relay→motor terminal U; repeat for L2→V, L3→W. Terminate the control loop with a 0.75 mm² conductor: 230 V supply→start button→contactor coil→stop button→neutral. Add a 5 μF suppression capacitor across the coil to eliminate pitting on the contactor tips. Label every conductor with shrink tubing showing terminal numbers (e.g., “K12–A1”) so future adjustments don’t require meter tracing.
After assembly, measure insulation resistance–minimum 1.5 MΩ between any conductor and ground–before applying power. If the machine hums but doesn’t spin, swap two incoming conductors at the contactor: this reverses rotation without rewiring the entire circuit.
Powering Industrial Pneumatic Systems: Direct-On-Line Schematic Guide
Connect the power supply terminals (L1, L2, L3) directly to the main contactor’s input points, ensuring each wire corresponds to a 400V industrial network. Use 10AWG copper conductors for currents up to 30A; upsize to 8AWG if ambient temperature exceeds 40°C or if run length exceeds 30 meters. Secure connections with torque-controlled crimp terminals rated for 60 lb-in to prevent loosening under vibration.
Install overload relays between the contactor’s output and the drive terminals (T1, T2, T3), selecting a class 10 device with a trip curve matching the load’s full-load amperage (FLA). Verify the relay’s dial setting aligns with the recorded startup current–typically 6–8×FLA for 3-second durations. Bypass the relay during initial testing to confirm motor direction before enabling protection.
Auxiliary Control Circuit Configuration
Wire the start button (normally open) in series with the contactor’s holding coil, then parallel with a normally closed stop button. Insert a 24V AC control transformer between L1 and L2, stepping down to power the coil if local codes require low-voltage controls. Include a thermal fuse (130°C) in series with the coil for secondary fault protection.
For pressure-actuated systems, integrate a dual-pressure switch across the holding circuit: low-cutout set to 90 psi and high-cutout at 120 psi. Ensure the switch contacts are rated for 10A inductive loads. Connect a manual reset button in series with any fault indicators to meet OSHA lockout/tagout requirements.
Label every conductor at both ends with heat-shrink markers identifying line (e.g., L1/Red), drive (T1/Black), and control (C1/Blue) circuits. Test insulation resistance between each conductor and ground using a 500V megohmmeter; readings below 1 MΩ indicate damaged cables requiring replacement before energizing.
Essential Elements for Three-Line Power Supply Activation Setup
Start with a robust contactor rated for the load’s current draw–typically 1.2 to 1.5 times the full-load amperage of the drive mechanism. Opt for IEC or NEMA standard sizes (e.g., IEC 3TF for 9–12 kW units) to ensure compatibility with local regulations. Verify the coil voltage matches the control voltage source (230V or 400V common in industrial setups).
Incorporate a thermal overload relay directly downstream of the contactor. Select a class 10 or 20 relay for most rotary-screw applications, adjusting trip settings to 105–115% of the nominal current. Ensure the relay includes manual reset capability to prevent unintended restarts after a fault.
- Molded-case circuit breaker sized to interrupt short-circuit currents (minimum 10 kA for 400V systems)
- Control transformer (230V/24V or 400V/110V) for auxiliary circuits
- Three-pole disconnect switch with door interlock (mandatory for OSHA/NFPA compliance)
Use stranded copper conductors sized per IEC 60204-1 (e.g., 4 mm² for 9 kW at 400V). Color-code strictly: brown/black/gray for line leads, blue for neutral (if present), yellow-green for grounding. Twist conductors at termination points to maintain tight connections under vibration.
Install pushbuttons (start/stop) and a pilot light in an IP65-rated enclosure for environments with coolant splashes. Select LED indicators over incandescent for longevity–white for power, red for fault, green for run status. Locate the stop button within 300 mm of the operator’s primary position.
Add a capacitor bank if the supply system lacks sufficient reactive power compensation. Calculate required kVAR using the formula: Q = P × (tanφ₁ – tanφ₂), where φ₁ is the initial power factor (typically 0.75–0.8) and φ₂ is the target (0.95). Use dry-type capacitors with discharge resistors to eliminate residual voltage within 1 minute.
- Motor protection switch combining short-circuit and overload protection
- Soft starter (optional but recommended for loads above 15 kW to limit inrush)
- Surge arrester (varistor-based) for transient protection
Route all control cables in separate conduits from power cables to prevent electromagnetic interference. Use shielded pairs for analog signals (4–20 mA loops) grounded at a single point only. Secure all terminals with torque wrenches set to manufacturer specifications (typically 2.0–2.5 Nm for M4 screws).
Direct-On-Line Initiator Assembly: Terminal Connections Guide
Begin by securing the main power supply conductors to the upper contactor terminals, labeled L1, L2, and L3. Use crimp ring terminals for copper cables up to 25 mm² or lugs for larger cross-sections, ensuring a torque of 12 Nm for M8 screws. Strip insulation back precisely 12 mm–exceeding this risks shorts or loose fits. Verify line voltage compatibility (400V/415V) against the nameplate rating before energizing; mismatches will trip protective devices instantly.
Route the lower contactor outputs (T1-T3) to the load terminals with stranded conductors rated for 1.5x nominal current. Avoid sharp bends–maintain a minimum radius of 6x cable diameter to prevent insulation damage. Link the thermal overload relay input (95-96) in series with one conductor; adjust its dial to 110% of full-load current based on the equipment’s service factor. Bypass the relay temporarily during initial testing but reconnect it before operational use to prevent overloads.
- Connect control circuit to 24V AC/DC or line voltage (as specified) using AWG 14 wire; polarity matters only for DC coils.
- Short the NC contacts (normally closed) of auxiliary switches if no external stop circuit exists–skipping this isolates the entire assembly.
- Ground the metallic enclosure via a 4 mm² green/yellow conductor to a dedicated earth bar; resistance must not exceed 0.1 Ω.
Test continuity across each path with a multimeter before applying power. Energize the control circuit first–listen for a distinct click from the contactor. If absent, check coil voltage or fuse integrity. Apply main voltage gradually using a variac or soft-start module; sudden surges above 600V will permanently damage windings. Monitor inrush current on a clamp meter–it should peak at 6-8x operational current then settle within 2 seconds. Any persistent humming indicates misaligned contacts–de-energize immediately and realign.

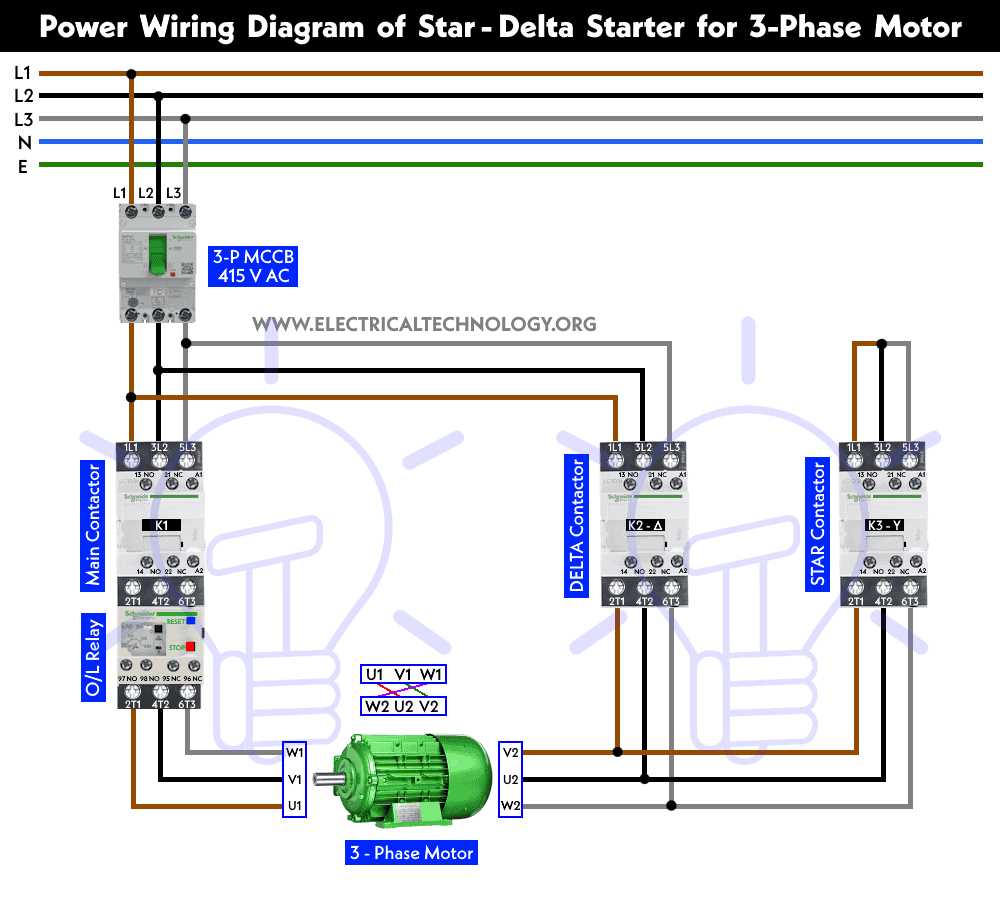

Connecting a Star-Delta Starting System for Industrial Power Units
Begin by securing a 380-415V three-line power source capable of handling the locked rotor current, typically 6-8 times the full load amperage for standard 15-75 kW units. Use copper conductors sized according to IEC 60204-1: 16 mm² for 30 kW, 25 mm² for 45 kW, and 35 mm² for 75 kW loads. Connect the main supply lines (L1, L2, L3) directly to the input terminals of the overload relay, ensuring compatibility with the unit’s service factor (SF 1.15 for most industrial models). Label each conductor with heat-shrink markers readable after 5,000 operating hours to prevent cross-connection errors.
Wire the contactor assembly in strict sequence: main contactor (KM), star contactor (KS), and delta contactor (KD). KM carries the full current during startup, so verify its coil voltage matches the control circuit (commonly 230V or 400V AC). KS reduces voltage by √3 during acceleration (approximately 58% of line voltage), while KD switches to full line voltage once the load reaches 75-85% of synchronous speed–typically 3–12 seconds depending on inertia. Install RC snubbers (0.1 μF/275V + 100Ω) across each contactor coil to suppress transients above 1.5 kV, preventing pitting on silver-cadmium contacts.
| Unit Rating (kW) | Star Duration (s) | Minimum Delta Contact Gap (mm) | Overload Relay Setting (A) |
|---|---|---|---|
| 11 | 2–4 | 4.0 | 22–28 |
| 22 | 4–7 | 4.5 | 40–50 |
| 37 | 6–9 | 5.0 | 65–80 |
| 55 | 8–12 | 5.5 | 95–115 |
Integrate a timing relay with NO/NC contacts rated for 10A inductive loads; set it to 8 seconds for 30 kW units and extend by 2 seconds per additional 15 kW. Connect the protective earth conductor (PE) to the unit’s frame using a crimp lug with 0.5 Nm torque–exceeding 0.7 Nm risks thread shear. Verify phase rotation with a rotary tester before final energization; incorrect sequencing increases starting current by 150% and reduces bearing life by 40%. Terminate all connections with ring terminals to prevent conductor fatigue from vibration above 50 Hz.
Test the system with a 5-second star cycle while monitoring voltage drop across the delta contactor; values above 8% indicate insufficient conductor sizing or loose terminations. Use a thermal camera to confirm contactor surface temperatures remain below 65°C under full load–temperatures exceeding 70°C degrade lubricant viscosity in sealed bearings. For ambient temperatures above 40°C, reduce the overload relay setting by 10% and increase conductor size by one gauge. Document all adjustments in a logbook with date, technician name, and measured values to comply with NFPA 70E arc-flash labeling requirements.
