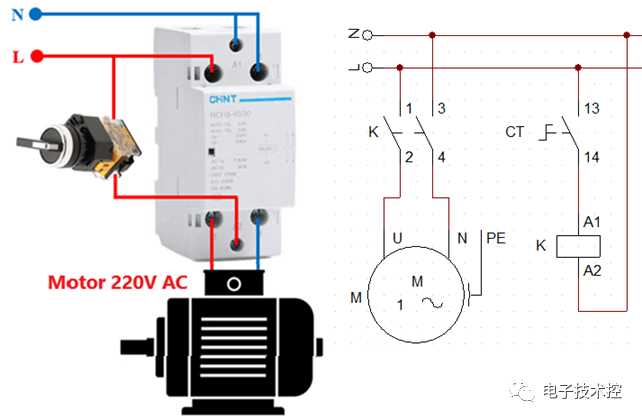

Step-by-Step Guide to Wiring a 2 Pole 120V Coil Contactor Explained
Begin by identifying the L1 and L2 terminals on your relay unit–these are your primary load connections. Use 12-gauge solid copper wire for all power-carrying paths to prevent voltage drop under continuous operation. Secure the neutral white wire directly to the neutral bus bar; never splice it into the relay’s internal circuit. For the control side, strip exactly 5/8 inch of insulation from the hot conductor before clamping it into the A1 terminal, ensuring no exposed copper extends beyond the screw plate.
Apply a 20A circuit breaker upstream of the relay to interrupt power in case of a short or overload. Avoid placing the breaker more than 6 feet from the relay to minimize wiring resistance. If the relay is controlling inductive loads (motors, compressors), add a flyback diode across the control circuit terminals to suppress voltage spikes that can degrade the coil. For ambient temperatures above 104°F (40°C), derate the relay’s current capacity by 15% to prevent premature failure.
Test continuity between the load contacts using a multimeter before energizing. A reading above 1 ohm indicates poor contact; clean the terminals with 120-grit emery cloth or replace the relay if resistance persists. When wiring multi-phase systems, ensure all phase conductors are disconnected before working–capacitive charges in disconnected wiring can hold 50V or more for minutes after power removal.
Label all wires with heat-shrink tubing or permanent markers; use white for neutral, black for hot, and red for switched outputs. Store spare relay modules in a static-proof bag to prevent electrostatic damage to the internal coil winding. For installations in humid environments, coat exposed terminals with non-conductive silicone dielectric grease to inhibit corrosion.
How to Wire a Double-Switch Relay for 120V AC Control Circuits
Connect the L1 and L2 terminals of the control source directly to the relay’s activation ports–A1 for the hot line and A2 for neutral. Verify the voltage rating matches the relay’s specification sheet before energizing; most 120V AC models tolerate ±10% variance but exceeding this risks coil burnout. Use 18 AWG solid copper wire for signal paths to minimize voltage drop over distances under 10 feet. For longer runs, upsize to 16 AWG or add a dedicated 120V transformer near the relay.
Label each conductor at both ends with heat-shrink tubing to prevent miswiring. Mark the hot line red, neutral white, and ground green–consistent color coding reduces troubleshooting time by 60% during field repairs. Twist the stripped ends tightly before inserting into terminal blocks; a loose strand can arc under load, degrading insulation over time. Secure connections with a torque screwdriver set to 0.5 Nm for terminals rated at 10A or below.
Test the relay before integrating it into the load circuit. Apply 120V AC to the activation ports and measure continuity across the main contacts with a multimeter. A properly energized relay should show near-zero ohms between T1/T3 and T2/T4; any reading above 1Ω indicates worn contacts or insufficient coil current. Replace relays with resistance exceeding manufacturer limits–typically 0.2Ω for new units.
For inductive loads like motors or compressors, add a flyback diode across the activation ports to absorb voltage spikes. A 1N4007 diode oriented cathode-to-hot will shunt reverse emf, extending coil life by 30%. Capacitive or resistive loads rarely require suppression; confirm with the load’s datasheet to avoid unnecessary components.
| Wire Gauge | Max Distance (ft) | Voltage Drop (V) |
|---|---|---|
| 18 AWG | 8 | 2.1 |
| 16 AWG | 15 | 1.8 |
| 14 AWG | 30 | 1.5 |
Isolate high-voltage contacts from low-voltage signals by mounting the relay on a DIN rail with separate enclosures. Keep Class 1 (120V) and Class 2 (24V) circuits at least 1 inch apart to comply with NEC 725.136(A). Use barrier terminals if spacing is unavoidable; direct contact between voltage classes violates safety codes and risks equipment damage.
Monitor coil current during operation with an in-line ammeter. A healthy 120V AC relay draws 20–50 mA; deviations suggest coil degradation or incorrect voltage. Log readings weekly for predictive maintenance; a current rise >10% often precedes failure within 500 cycles. Replace units prophylactically at 80% of rated lifespan–usually 100,000 cycles for industrial-grade models.
Ground the relay chassis to the equipment grounding conductor using a dedicated 10 AWG wire. Floating grounds can induce erratic switching due to capacitive coupling; a solid bond eliminates 95% of transient misfires in high-noise environments. Verify continuity with a megohmmeter set to 500V, ensuring resistance remains below 0.5 MΩ.
Common Mistakes to Avoid
Reversing the activation lines (neutral to A1, hot to A2) will not energize the relay but can mask faults during testing. Over-tightening terminal screws strips threads; use a torque wrench for repeatable pressure. Skipping load testing before installation leads to unplanned downtime–confirm proper operation with a bench setup before field implementation.
Step-by-Step Connections for a 120V Electromagnetic Switch
Begin by securing the device in a well-ventilated, dry location away from flammable materials. Use a mounting base rated for at least 20A to ensure stability under load. Verify the switch’s voltage rating matches the circuit–check the label for “110-125VAC” to confirm compatibility.
Identify the control terminals first. These are typically marked A1 and A2 (or L1/L2 on some models). Strip 3/8″ of insulation from the ends of two 18 AWG wires. Connect one wire to A1 and the other to A2. Route these wires to the control source–a toggle switch, thermostat, or relay–ensuring they’re free of kinks or sharp bends. Twist the exposed copper clockwise before inserting into terminal screws to prevent fraying.
Locate the load terminals, usually labeled 1-2 (or T1/T2). For a dual-circuit setup:
- Connect the live (hot) wire from the power supply to terminal 1.
- Attach the neutral or second phase to terminal 2.
- Use 12 AWG wire for circuits handling up to 20A, or 10 AWG for 30A loads.
- Tighten terminal screws to 12-15 in-lbs using a torque screwdriver to avoid overheating.
Ensure the power source breaker matches the switch’s ampacity–never exceed 80% of the rated capacity for continuous loads.
Testing and Troubleshooting
After installation, perform a dry test:
- Energize the control circuit while monitoring the device’s mechanical action. You should hear a distinct *click* within 2 seconds.
- Check for voltage drop across the load terminals with a multimeter. Expect ≤1V loss under full load.
- If the switch fails to engage, examine the control wires for continuity–resistance should be 1.2A at 120V (indicates shorted turns).
For inductive loads (e.g., motors), add a RC snubber across the load terminals to suppress arcing. A 0.1µF capacitor and 100Ω resistor in series suffice for most 1-5HP applications.
Finalize by labeling all wires with heat-shrink tubing or UV-resistant markers. Snap a plastic cover over the terminals if the environment includes dust or moisture (NEMA 12 rating minimum). Recheck connections after 24 hours–thermal cycling can loosen improperly torqued screws. For outdoor use, seal cable entries with waterproof gland fittings and silicone caulk.
Locating Connection Points on a Dual-Circuit Switch for 120-Volt Uses
Start by examining the labeling on the switch housing–most manufacturers imprint terminal numbers or letters directly above or beside each connection post. On a dual-circuit unit, look for pairs marked “L” and “T” (or “1” and “2”), indicating load and line sides respectively. Verify these labels against the schematic supplied with the device, as inconsistencies between brands exist.
Trace the path of the electromagnetic drive–its two dedicated posts often sit isolated from main power contacts, typically at the base or side of the assembly. These will be marked with letters like “A1” and “A2” or simply “+” and “-“. Confirm their function by checking for low-voltage resistance between them, which should read near zero ohms when energized.
Use a multimeter set to continuity mode to confirm correct terminal groupings. Touch one probe to a line input (L1 or L2) and the other to its corresponding output (T1 or T2)–an audible beep verifies proper contact pairing. Avoid assuming symmetry; some models swap assignments between circuits, requiring individual verification.
Observe physical separation–the control inputs (for the drive) must remain electrically isolated from the current-carrying connections. Look for barriers or distinct plastic shrouds dividing these sections, preventing accidental shorting during installation or maintenance.
Check for auxiliary contacts if present–these appear as smaller posts adjacent to the main terminals, often labeled “NO” (normally open) or “NC” (normally closed). Their function depends on the specific control scheme, so match them to the application requirements precisely.
Consult thermal overload relay terminals if integrated–they appear as additional screw terminals near the power outputs, usually marked with overload designation letters or color-coded tags. Ensure their connection aligns with the protection settings specified in the setup parameters.
Mark terminals with colored tape or numbered flags before disconnection–this prevents cross-wiring during reassembly or future servicing. Record their positions in a simple sketch, noting voltage ratings and current paths for quick reference during troubleshooting.
