Understanding Three Phase Motor Control Wiring Schematics and Connections

Begin by assembling a thermal overload relay between the motor and power source, calibrated to 110% of the load’s rated current. For a 400V system, use a 5.5mm² copper conductor for connections, ensuring compression terminals are torqued to 3.5Nm. The starter’s contactor coils should operate at 230VAC for compatibility with standard industrial control panels; specify Class F insulation if ambient temperatures exceed 40°C.

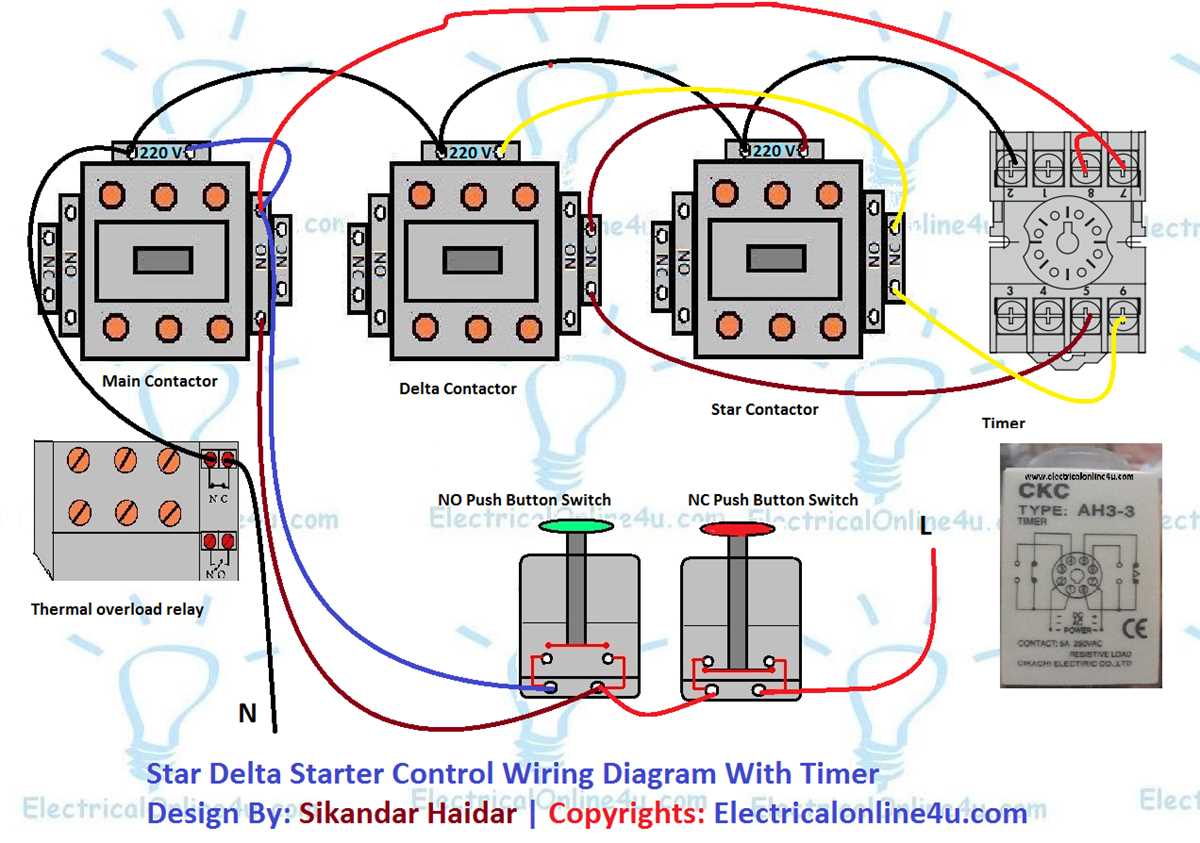

Wire the main contacts in a delta configuration for loads above 5kW, switching to star at startup to reduce inrush current by 67%. Add a three-pole circuit breaker with adjustable trip settings–set the long-delay to 120% of full load and the instantaneous trip to 800%. Include a pushbutton station with a mushroom-head emergency stop, rated IP65 for outdoor or wet environments. Parallel the stop button with a normally closed auxiliary contact from the overload relay for fail-safe operation.

For precise speed regulation, incorporate a variable frequency drive with a 4-20mA speed reference signal. Use a 0.5mm shielded cable with 25% spare capacity for the feedback loop, grounded at one end only to prevent noise interference. Install RC snubbers (0.1µF + 100Ω) across each switching element to suppress voltage spikes exceeding 1.3kV. Label all conductors with heat-resistant sleeves: L1 (red), L2 (yellow), L3 (blue), neutral (gray), and earth (green-yellow).

Position the control enclosure at least 30cm from heat sources; ventilate with forced air if enclosure temperature rises above 50°C. Test the sequence with a multimeter: verify 0Ω across the starter contacts when energized, infinite resistance when off. For remote monitoring, add a 10-bit analog output module sending data to a PLC via Modbus RTU over a twisted-pair cable (AWG 22, 120Ω impedance).

Key Components for a Robust Tri-Line Electrical Schematic

Begin by integrating a three-pole magnetic contactor rated for at least 125% of the motor’s full-load current. Select models with silver-alloy contacts to reduce arcing and extend service life, particularly in frequent start-stop applications. A 24V AC coil minimizes power consumption while ensuring reliable actuation under voltage fluctuations of ±10%. Pair the contactor with a compatible thermal overload relay, calibrated to trip at 1.05 to 1.15 times the motor’s rated current, to prevent overheating without unnecessary shutdowns.

Wire the main power path using THHN copper conductors sized according to NEC Table 310.16–never undersize; for a 40 HP motor at 460V, use 8 AWG for the lines and 10 AWG for control signals. Secure connections with tin-plated lugs crimped at 20,000 psi using a hydraulic tool; soldering introduces resistance and should be avoided. Route high-current leads separately from signal wires to prevent induced noise, which can cause false relay trips or erratic contactor behavior.

Include a manually operated disconnect switch with a visible blade design or an IP65-rated enclosure if installed outdoors. The switch must handle 600V and interrupt load current, not just no-load conditions. For motors above 20 HP, add a soft starter or variable frequency drive (VFD) to limit inrush current to 4–5 times the motor’s full-load amperage, reducing mechanical stress on belts, gears, and couplings. Configure the VFD with a ramp time of 5–10 seconds to balance acceleration control and torque delivery.

Fuse protection must align with the motor’s locked-rotor current–use Class RK1 fuses sized at 300% of the motor’s full-load current for Type 2 coordination, ensuring the fuses clear before the contactor welds. Install a surge protector at the VFD input, such as a metal-oxide varistor with a clamping voltage of 1.5 times the peak line voltage, to absorb spikes from switching transients or lightning. Label every conductor at both ends with mechanical tags or heat-shrink sleeves, matching the schematic’s wire numbers to simplify troubleshooting.

Test the assembly with a megohmmeter at 1 kV DC, measuring at least 1 MΩ between each conductor and ground before energizing. After startup, record line currents with a true-RMS clamp meter–unbalanced currents exceeding 10% indicate miswiring, loose connections, or winding damage. Document all settings, including relay trip points and VFD parameters, in a laminated reference card mounted near the panel for quick adjustments during maintenance.

Critical Elements for a Tri-Powered Motor Management Setup

Begin with a robust magnetic contactor rated for the motor’s full-load current. Select one with coil voltage matching your auxiliary supply (24V DC, 120V AC, or 230V AC) to avoid coil burnout. Schneider Electric’s LC1D series or ABB’s A-line contactors offer reliable mechanical life cycles exceeding 1.5 million operations–critical for frequent start/stop environments like conveyor belts or pump stations.

Integrate thermal overload relays with Class 10 trip characteristics for motors below 30 kW, or Class 20 for larger units. Ensure the relay’s current range overlaps the motor’s nameplate FLA by ±10%. Schneider’s LR2K or Siemens’s 3RB series feature manual/automatic reset options and ambient temperature compensation. Position relays directly downstream of contactors, avoiding intervening components that could delay heat detection.

Motor Rating (kW)	Recommended Overload Relay Class	Trip Current Adjustment Range (A)
0.75–7.5	Class 10	1.6–12
11–22	Class 20	18–32
30–75	Class 20	40–80

Circuit breakers with frame sizes matching the motor’s locked-rotor current (typically 6–8× FLA) prevent short-circuit damage. Use molded-case breakers like Eaton’s PKZM or ABB’s MS series with adjustable magnetic trip settings. For 400V systems, select breakers with 6 kA interrupting capacity; 10 kA for industrial settings with high fault currents. Mount breakers upstream of contactors to protect the entire installation.

Select power factor correction capacitors sized to 70–80% of the motor’s reactive power (kVAR). Use dry-type, self-healing capacitors rated for 460V or 600V systems. Schneider’s VarplusCan or ABB’s UCWT capacitors include discharge resistors to reduce residual voltage below 50V within one minute. Connect capacitors downstream of overload relays but upstream of motor windings to avoid inrush current complications.

Employ soft starters or variable-frequency drives (VFDs) for motors exceeding 10 kW to mitigate voltage dips during startup. Allen-Bradley’s SMC-50 or Siemens’s Sirius series soft starters limit current to 3–4× FLA. For precise speed regulation, use VFDs like ABB’s ACS580 or Mitsubishi’s FR-F800, ensuring carrier frequency settings between 2–10 kHz to minimize bearing currents. Place line reactors upstream of VFDs to attenuate harmonics by 30–50% and protect sensitive equipment.

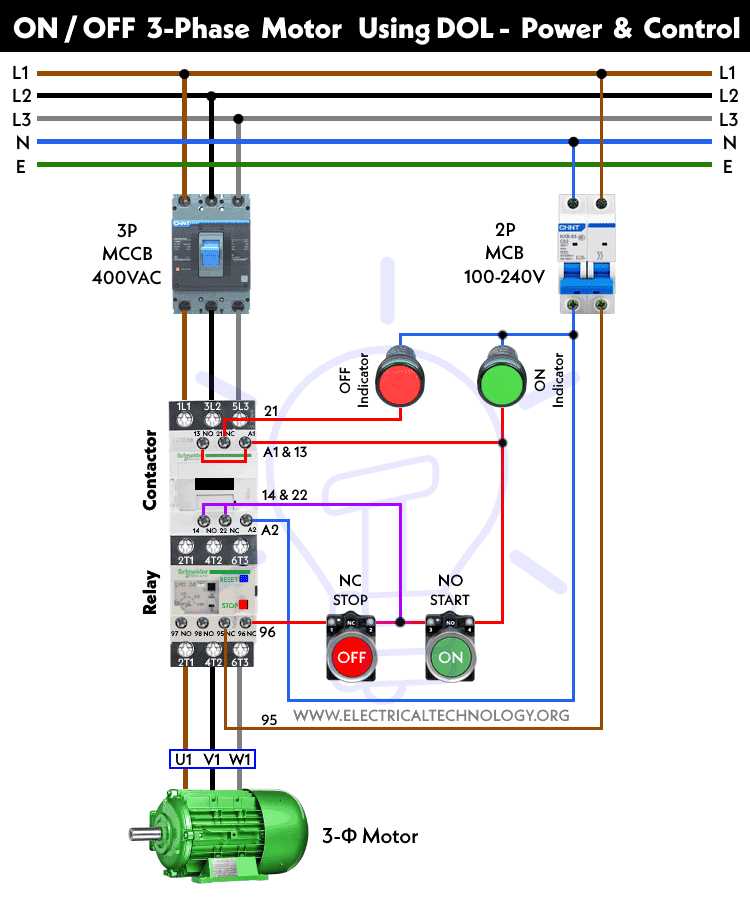

Step-by-Step Assembly of a Triple-Line Motor Activation System

Start by securing a DIN rail or mounting plate near the motor to consolidate all switching components. Use M6 bolts for sturdy fixation–flimsy hardware risks vibration-induced failures.

Isolate the power feed before handling any wires. Verify absence of voltage with a contact tester rated for 600V or higher. Missteps here risk arc flashes, which can exceed 10,000°F.

Connect the main leads to a three-pole breaker sized to match motor nameplate amperage–typically 125% of full load. Undersized breakers trip prematurely; oversized won’t protect against faults.

Route L1, L2, and L3 from the breaker to the magnetic activator’s input terminals, following color coding: brown (L1), black (L2), gray (L3). Crossed lines cause reverse rotation, damaging pumps or compressors.

Wire the activator’s output to thermal overload blocks, matching each input to its corresponding output–overloads must sense all three legs to prevent single-point failures. Bypass this step only if using integrated motor protectors.

Attach motor cables to overload outputs with crimp lugs rather than twist-on connectors–heating cycles loosen the latter, creating hotspots. Torque lugs to manufacturer specs; undertightening causes resistive heating, overtightening strips threads.

Install auxiliary contacts for feedback signals: one normally open (NO) pair for run indication, one normally closed (NC) pair for fault signaling. Wire NO to a pilot lamp, NC to an emergency cutoff relay. Missing feedback leaves operators blind to faults.

Test rotation direction by briefly energizing the activator while observing shaft spin. If backward, swap any two leads at the breaker or activator–never at the motor terminal box. Reverse rotation shortens bearing life by 70%.

Troubleshooting Common Issues in Three-Wire Management Boards

Start by verifying power input across all three supply lines using a multimeter. Voltage imbalances exceeding 3% between any two conductors often indicate loose connections, faulty breakers, or degraded wiring insulation. Check terminal blocks for oxidation or heat discoloration–clean with a wire brush and apply antioxidant paste if corrosion is present.

Unusual humming or buzzing from relays or contactors typically points to inadequate coil voltage or arcing contacts. Measure the coil voltage against manufacturer specifications; if below 90% of rated value, inspect the power feed to the magnetic coil circuit. Replace contacts if pitting or carbon buildup exceeds 0.5mm in depth.

Identifying Motor Starter Failures

• Overcurrent trips without load: Test thermal overload elements by manually resetting the device; if it trips again without motor engagement, recalibrate or replace the overload relay.
• Motor fails to start: Confirm the auxiliary contacts on the starter are closing properly using a continuity tester. A failed contact often requires full starter replacement, not just contact cleaning.
• Tripping under load: Check motor winding resistance with a megohmmeter–values below 100MΩ indicate insulation breakdown requiring motor rewind or replacement.

Ghost signals or unintended equipment activation usually stem from electrical noise or improper shielding. Ensure all signal cables (PLC outputs, sensors) are separated from power conductors by at least 30cm or use shielded twisted-pair wiring grounded at one end only. Replace standard wiring ducts with metallic conduits if interference persists.

Diagnosing Programmable Logic Controller Anomalies

1. Flickering status LEDs: Power cycle the controller while monitoring DC voltage on the 24V rail–ripple above 50mV suggests a failing power supply unit.
2. Unresponsive inputs: Probe the input card terminals with a 24VDC signal source; if readings fluctuate, replace the input module.
3. Erratic outputs: Connect a dummy load (e.g., 24V lamp) to suspect outputs; if the load operates but machinery doesn’t, check output card FETs for short circuits using an ohmmeter.

Excessive heat in busbars or disconnect switches indicates overloading or poor joint connections. Thermographic scans should show temperature differentials below 10°C between adjacent busbar sections; hotspots above 60°C require immediate tightening of bolted connections with a torque wrench to manufacturer specifications (typically 20-25Nm for M8 bolts).

False tripping of circuit protectors (MCBs, fuses) often results from harmonics or momentary inrush currents. Install harmonic filters rated for the specific system’s THD (total harmonic distortion) if measurements exceed 5%. For frequent nuisance trips, replace standard MCBs with Type D devices designed for motor starting applications.
