Three Phase Motor Forward and Reverse Wiring Schematic Guide
For industrial applications requiring bidirectional spindle control, connect L1, L2, L3 to terminal block positions U1, V1, W1 respectively. Swap any two supply leads (e.g., L1→U1 and L2→W1, L3→V1) to invert rotational sense. Always verify shaft alignment after terminal rearrangement to prevent bearing stress during operation.
Include a three-pole contactor rated for 20% above full-load current per winding to handle startup surges. Mount overload relays with Class 10 trip characteristics to protect windings from sustained overloads exceeding 115% of nameplate current. Wire auxiliary contacts (NO/NC) in series with the start pushbutton to create a latching control loop.
Use 4 mm² copper conductors for main leads carrying up to 32A; scale to 10 mm² for 63A service. Terminate all connections with crimped ring lugs and torque to 2.5 N·m to ensure low-resistance joints. Ground the metal enclosure via a dedicated 6 mm² PE conductor bonded at both ends.
Label each conductor at both ends with heat-shrink sleeves marked U, V, W, L1, L2, L3. Install a transparent cover over the wiring compartment to allow visual inspection without disassembly. Store spare contact tips and thermal elements on-site for immediate replacement.

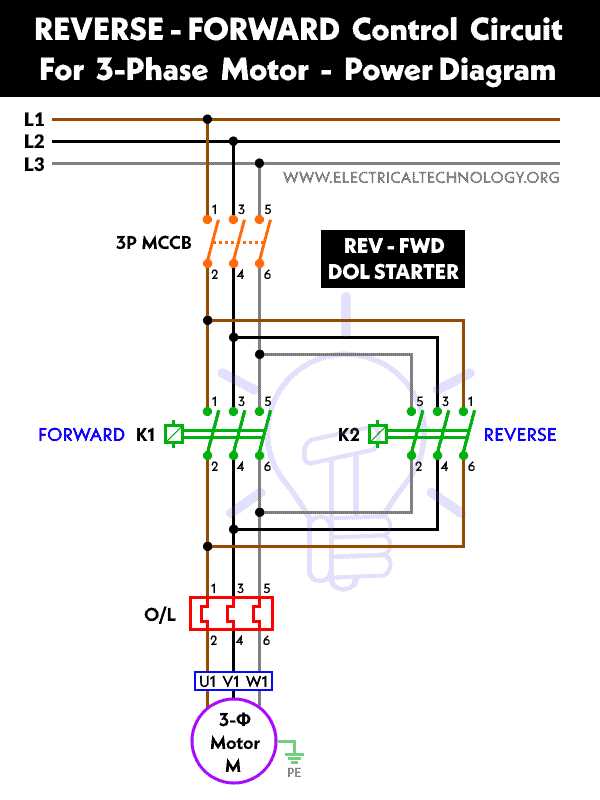

Wiring Schematics for Bidirectional Industrial Drive Control
Begin with a three-pole contactor for each direction, rated for 125% of the drive’s full-load current. Connect the main contacts in series with the power supply lines (L1, L2, L3) and the load terminals (T1, T2, T3). Ensure the auxiliary NO contacts (13-14) are used for interlocking to prevent simultaneous activation of both contactors.
Install a thermal overload relay between the contactors and the drive. Select a relay with trip class 10 or 20, matched to the motor’s service factor. Wire the relay’s normally closed (NC) contacts (95-96) in series with the control voltage to interrupt the circuit during overheating. Avoid placing the relay on the neutral line in ungrounded systems.
- Use 24V AC/DC control voltage for industrial environments to minimize arc risks.
- Mount pushbuttons within 10 meters of the operator station to comply with IEC 60204-1.
- Label all conductors with heat-shrink tubing: black (L1/L2/L3), blue (neutral if used), yellow/green (ground).
Component Selection Criteria
Choose contactors with AC-3 utilization category for squirrel-cage drives. For 400V systems, the following contactor sizes apply:
- 7.5 kW: 25A (e.g., Schneider LC1D25)
- 15 kW: 40A (e.g., ABB A26-30-10)
- 30 kW: 75A (e.g., Siemens 3RT2075)
Verify coil voltage matches local control circuit requirements (e.g., 110V AC, 230V AC, or 24V DC). For NEMA-rated applications, use Class R fuses upstream of each contactor–size at 300% of the drive’s full-load current.
Implement a delay timer (e.g., Omron H3CR-A8) to insert a 0.5-second pause between direction changes. Wire the timer’s NC contact in series with the opposing contactor’s coil circuit. This prevents transient currents from damaging windings during polarity reversal.
For drives exceeding 22 kW, integrate a soft starter (e.g., ABB PSTX) or VFD to limit inrush currents. Bypass the soft starter with a parallel contactor after ramp-up is complete. Use shielded cable (e.g., Belden 83756) for control wiring to reduce electromagnetic interference, grounding the shield at one end only.
Troubleshooting Proactive Measures
Test the schematic with a multimeter set to continuity mode before energizing. Verify:
- No continuity between L1/L2/L3 and ground in the OFF state.
- Proper phase sequencing (R-Y-B) at the drive terminals.
- Contactor coils engage at ≥85% of rated voltage (e.g., 20.4V for 24V coils).
Log all test results in a commissioning report, including torque values from a dynamometer test at 5%, 50%, and 100% load. Replace components showing >15% voltage drop across contacts or coils operating >10°C above ambient.
Key Elements for a Three-Line Rotary Equipment Control Setup
Begin with a magnetic contactor rated for the equipment’s current and voltage. Select a model with three main poles and at least one auxiliary contact for control logic. Schneider Electric’s TeSys D or Siemens Sirius series are reliable choices–verify coil voltage matches the supply (e.g., 24V DC, 230V AC). Overlooking this leads to coil burnout or insufficient pull-in force.
Fuses or circuit breakers must protect each conductor. Use time-delay fuses (e.g., 20A for 5HP loads) to handle inrush currents without nuisance tripping. Install a thermal overload relay with a trip class matching the load’s duty cycle–Class 10 for standard applications, Class 20 for high-inertia loads. Adjust the current setting to 110–120% of the full-load current to prevent overheating.
| Component | Recommended Specifications | Critical Notes |
|---|---|---|
| Contactor | IEC AC-3 rating ≥ 1.2× FLA, 3NO + 1NC | Avoid open-frame designs; sealed coils resist dust |
| Overload Relay | Trip range: 0.9–1.1× FLA, manual reset | Remote reset models save troubleshooting time |
| Fuse/Circuit Breaker | Class RK5 or MCB type C/D, 6–8× FLA rating | Use NEMA-rated enclosures for outdoor installations |
Include control pushbuttons (start/stop) with momentary action and IP65-rated housings if exposed. For reversing setups, a three-position selector switch or two pushbuttons (one for each direction) ensures safe operation–never allow simultaneous closing of direction contactors. Wire interlocks between the contactors to physically prevent short circuits.
Use flexible stranded copper wire (minimum 2.5mm² for 10HP loads) for all power connections, with crimp lugs or ferrules at terminals. Label every conductor, including L1/L2/L3 and T1/T2/T3, to streamline diagnostics. For control circuits, 1.0–1.5mm² wire suffices, but maintain color-coding (red for stop, green for start) to comply with NEC or IEC standards. Add a pilot light (e.g., LED) to indicate power status or overload trips–this reduces downtime during faults.
Auxiliary Devices for Reliability
Incorporate a low-voltage release relay if the control supply is unstable–this ensures a safe restart after power restoration. For variable-speed drives, install line reactors (3% impedance) to suppress harmonics. If using programmable logic, opt for a PLC with expandable I/O modules; avoid basic relays for complex sequences. Test all components with a multimeter before energizing–verify coil resistance (≥10kΩ) and contact continuity (
Step-by-Step Wiring Procedure for Clockwise Operation Setup
Identify the three supply conductors–L1, L2, and L3–and connect them to the corresponding input terminals of the contactor marked T1, T2, and T3. Ensure tight, corrosion-resistant connections using copper terminals and torque the screws to 12–15 Nm to prevent heating. Next, link the output contacts (normally open) of the first contactor to the device’s U, V, and W posts, verifying the sequence matches the power source order. Swap any two leads if the initial rotation is counterclockwise; this adjustment flips the magnetic field’s polarity instantly.
Verification and Safety Checks
Before energizing, isolate the main breaker and use a megohmmeter to test insulation resistance between each conductor and ground–readings below 0.5 MΩ indicate damaged cabling or moisture ingress, requiring replacement. Activate the control switch to engage the contactor, then measure voltage across U-V, V-W, and W-U with a multimeter; expect balanced line-to-line readings within 380–415V AC for European systems or 460–480V AC for North American setups. Observe initial motion direction for 3–5 seconds–any abnormal noise, vibration, or stalling mandates immediate power cutoff and re-inspection of terminal alignment. Secure all covers and label each conductor with heat-shrink sleeves to prevent accidental shorts during future maintenance.
Enhancing Directional Control with Auxiliary Switch Contacts
Integrate a double-throw auxiliary contact block rated for the full load current of the installation–typically 10A for 400V three-wire systems. Mount the block directly above the contactor coil using the manufacturer’s designated slots to prevent mechanical interference during coil energization.
Wire the normally open (NO) auxiliary contact of the run contactor to the coil of the opposite directional device. Ensure the contact rating exceeds the coil inrush current by at least 20% to avoid premature wear. Use stranded copper wire sized no smaller than 1.5 mm² for 230V coils.
Connect the normally closed (NC) auxiliary contact in series with the stop pushbutton. This arrangement creates a hard interlock: pressing the alternate direction pushbutton will immediately drop out the active device before the new one engages, eliminating transient cross-conduction.
Verify the mechanical interlock between the main contactors matches the auxiliary electrical interlock. If the housing only provides a single NC/NO pair, install a second block on the opposing device to maintain redundancy. Misalignment here risks simultaneous engagement.
Test the auxiliary sequence with a multi-meter before applying full power. Set the meter to continuity mode and simulate each button press: the NO contact should close only after the NC contact opens. Lag exceeding 30 ms suggests improper alignment or weak coil spring tension.
Adjust the contact gap on the auxiliary block to 2-3 mm; narrower gaps risk welding under inductive loads, wider gaps lengthen dropout time. Manufacturers specify gaps in product sheets–use feeler gauges for precise adjustment if required.
Replace auxiliary contacts every 200,000 operations or when pitting exceeds 0.3 mm, whichever comes first. Keep spares matched to the exact model number; generic replacements often have different actuation profiles that disrupt timing.
For installations above 10 kW, add snubber networks across both coil and auxiliary contacts. A 0.1 µF capacitor in series with a 100 Ω resistor suppresses arcs that would otherwise degrade the contacts prematurely, maintaining consistent directional switching over the lifecycle.
