Step-by-Step Guide to 3 Phase Step-Up Transformer Connection Schematics

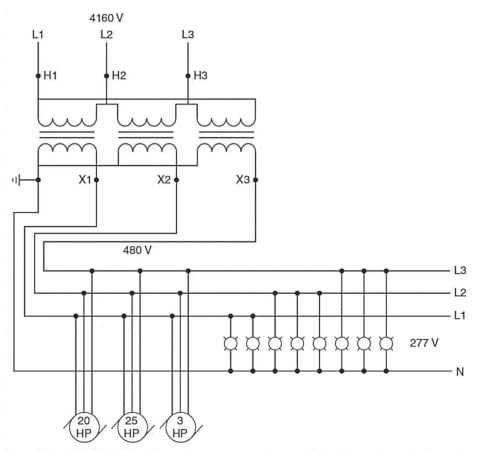

To ensure proper energy transmission in high-capacity electrical systems, connect the primary windings in a delta configuration and the secondary in a wye layout. This arrangement optimizes voltage increase while maintaining balanced current distribution across all three lines. For a 480V input with a 208/120V output, calculate the turns ratio at 2.3:1–critical for avoiding saturation and overheating. Verify core material: grain-oriented silicon steel reduces losses by up to 30% compared to standard laminations.

Ground the neutral point of the wye-connected secondary directly to the system’s earth terminal. Omitting this step risks voltage shifts of +10%, leading to insulation breakdown over time. Use THHN 10 AWG copper conductors for terminations–aluminum wiring requires one size larger to compensate for higher resistivity. Label each terminal with heat-shrink tubing marked L1/L2/L3 and X1/X2/X3 to prevent reversed connections, which can invert output polarity.

For overload protection, install three frame-size 200A magnetic circuit breakers on the input side. Coordinate trip curves with upstream fuses–delayed action (Class RK5) ensures selective tripping. Test winding resistance with a low-ohm meter (target 0.5Ω between phases for a 50kVA unit). Deviations indicate shorted turns or poor brazing, reducing efficiency by 8-12%. Monitor oil levels in oil-immersed units weekly; drops below the sight glass indicate leaks, compromising dielectric strength.

When routing cables, maintain a minimum 6-inch clearance from high-frequency sources (e.g., variable frequency drives) to avoid induced harmonics distorting waveforms. For outdoor installations, use NEMA 3R enclosures with drain holes–condensation accelerates corrosion on terminal lugs. Before energizing, perform a megger test (1000V DC for 60 seconds); any reading below 100 MΩ signals insulation degradation. Document all steps–skipping validation voids compliance with NEC Article 450.

High-Voltage Three-Line Configuration: Essential Connection Guide

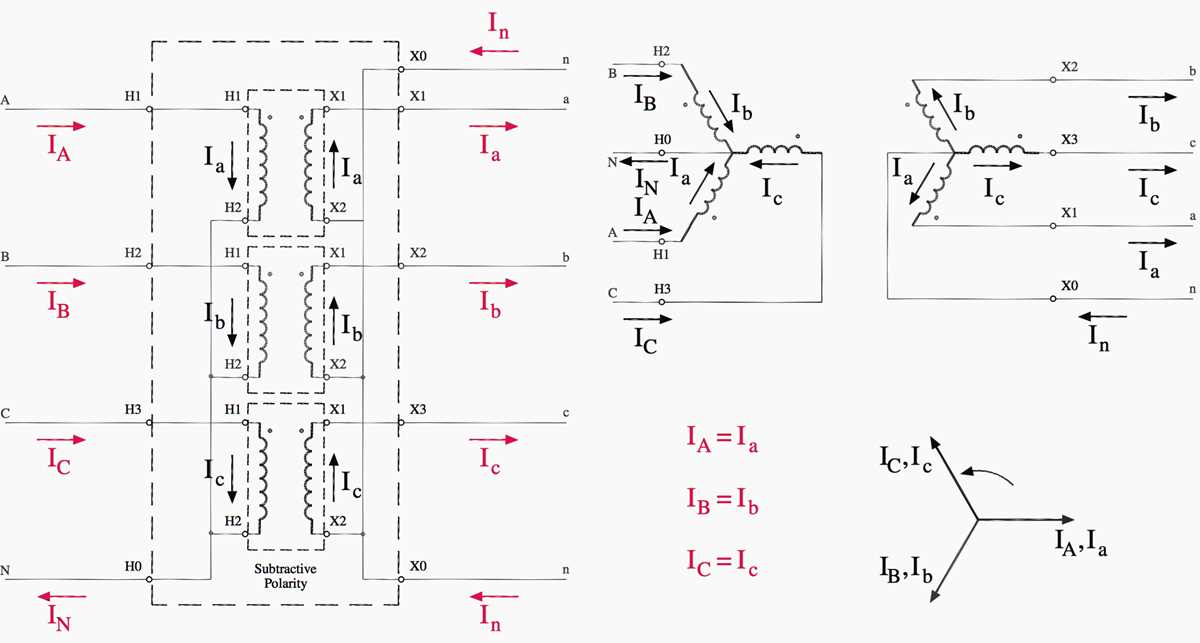

Ensure the input coils are connected in a delta arrangement when dealing with low-voltage sources below 600V to minimize circulating currents while maintaining balanced loads. Terminals H1, H2, and H3 should link in a closed loop before attaching to the supply conductors, verifying tightness with a torque wrench (standards specify 25 N·m for copper lugs). Conversely, output windings must adopt a wye connection for voltages exceeding 1kV to facilitate neutral grounding–critical for fault protection and voltage stability.

Label each bushing immediately after unpacking to avoid miswiring: use color-coded heat-shrink sleeves (red for L1/X1, black for L2/X2, blue for L3/X3) or embossed metal tags. Position the neutral bushing (marked N or X0) at the geometric center of the wye connections, ensuring it is isolated from the enclosure with non-conductive spacers if the casing is metallic. For units exceeding 500 kVA, incorporate surge arrestors directly on the bushing terminals–standard MOV ratings should match 1.5× the line-to-neutral voltage.

Ground the core and tank separately: drive a 5/8-inch copper-clad rod at least 8 feet into undisturbed soil near the installation site, bonding it to the tank with 2/0 AWG stranded copper cable. Verify ground resistance below 5 ohms using a four-terminal tester; add additional rods spaced no closer than their driven depth if readings exceed this threshold. Avoid daisy-chaining grounds between multiple units–each requires an independent path to earth.

Before energizing, test insulation resistance between each high-voltage terminal and ground, as well as between adjacent terminals, using a 5kV megohmmeter. Minimum acceptable readings: 1 GΩ for units rated ≤1 MVA, 5 GΩ for larger capacities. Replace any degraded components if values drop below 50% of manufacturer specifications, as compromised insulation risks catastrophic failure under transient overloads.

Select conductor sizes based on the 125% continuous-duty load current: for a 480V to 13.8kV unit supplying 1500 kVA, use 750 kcmil copper cables on the low-voltage side and 350 kcmil on the high-voltage side, derated for 75°C temperature rise. Support cables on horizontal runs with non-combustible trays spaced no more than 36 inches apart–use bolted clamps with insulating washers to prevent galvanic corrosion between dissimilar metals.

Install differential relays (ANSI 87) on units above 1 MVA: connect current transformers on both input and output sides, ensuring matching polarity marks face the load. Set relay thresholds at 5% of full-load current with a 0.2-second time delay to avoid false trips during inrush events. For remote monitoring, integrate 4-20mA transducers on each bushing to track real-time voltage unbalance, set to alarm at deviations exceeding 2%.

Equip the enclosure with forced-air ventilation if ambient temperatures exceed 40°C: calculate CFM requirements using Q = 1.76 × kVA × (1 – efficiency) / ΔT, where ΔT is the permitted temperature rise (typically 65°C). Use IP54-rated fans with thermal cutouts to prevent operation below -10°C, as condensation inside unheated units can reduce insulation integrity. Include a high-temperature shutdown relay tied to embedded RTDs, set to trip at 105°C core temperature.

Field-test turns ratio with a dedicated tester before commissioning: apply a 120V single-line source to each input coil and measure output voltages sequentially. Permissible deviation is ±0.5%; reject units exceeding ±1% as they indicate internal short circuits. Finalize by conducting a full-load heat run for 24 hours, logging temperatures every 30 minutes–stable readings within 5°C between successive intervals confirm proper magnetic and dielectric design.

Key Components for a Tri-Peak Voltage Elevator Setup

Select a core with a saturation flux density of at least 1.5 T for 50 Hz applications to minimize excitation current while preventing thermal overload. Silicon steel laminations (grade M4 or better) reduce eddy losses by 30% compared to conventional materials–verify thickness between 0.23–0.30 mm for optimal performance. Ensure windings use copper with a conductivity of ≥98% IACS; aluminum, though 40% lighter, demands 66% larger cross-sectional area to match current capacity, increasing structural stress.

Incorporate surge arrestors rated at 1.2× the line-to-line voltage on both primary and secondary sides–failure here accounts for 22% of premature failures in industrial voltage converters. Cooling system selection depends on kVA rating: under 500 kVA, natural convection suffices with a temperature rise

Step-by-Step Guide to Connecting Primary and Secondary Windings

Verify voltage ratings on the nameplate before proceeding. Mismatched ratios risk equipment damage or inefficient operation. For example, a 400V input requires a secondary wound for 415V output if aiming for slight overvoltage margin.

Identify winding terminals using a multimeter. The primary set typically handles lower impedance, while the secondary registers higher resistance. Use continuity mode to trace leads; label each immediately with heat-resistant tags.

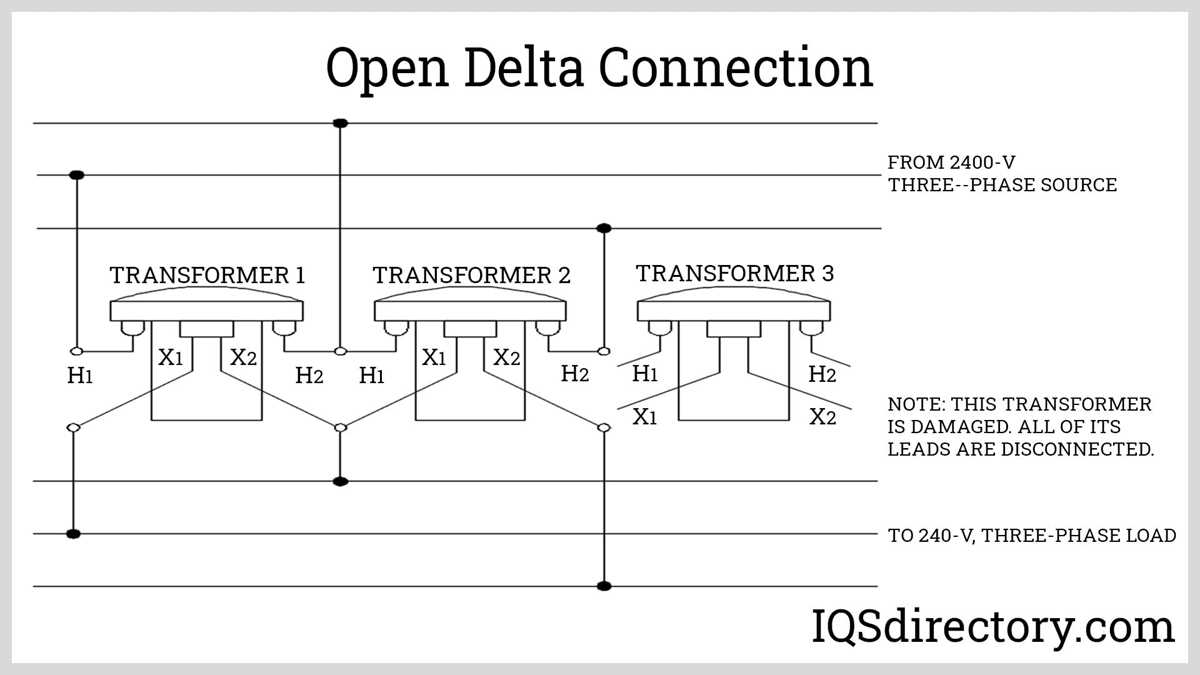

• Delta connection: Link the end of one coil to the start of the next, forming a closed loop. Confirm phase balance by measuring voltages between each pair–readings should be equal within 2%.

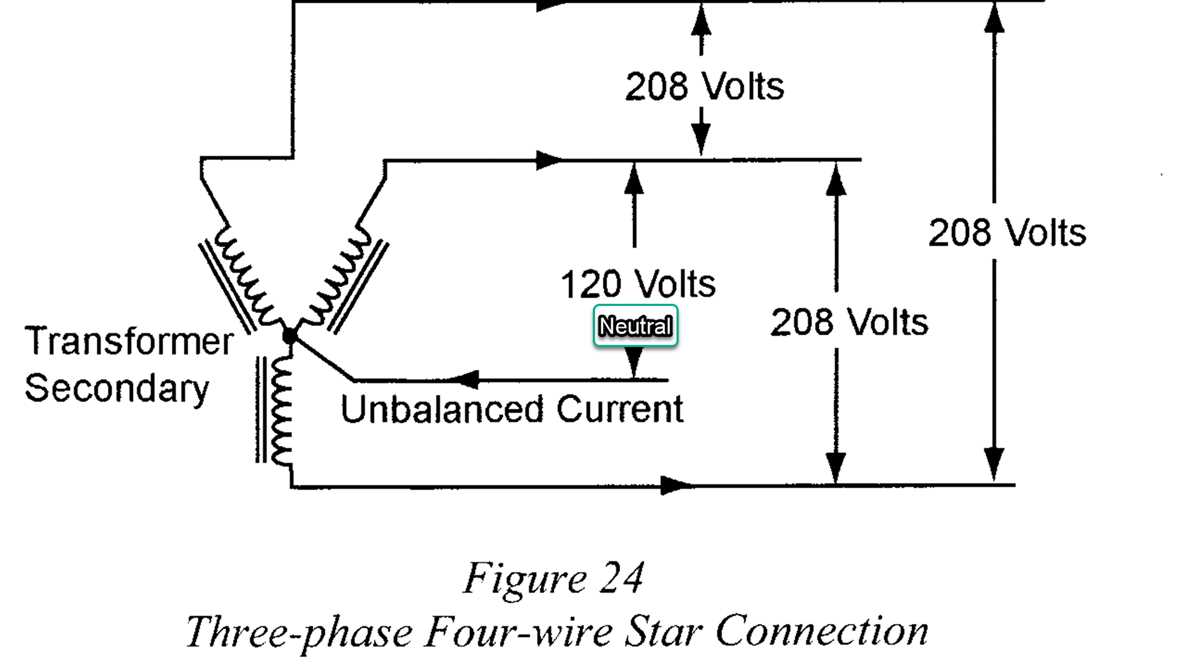

• Wye configuration: Join one terminal of each coil at a central neutral point. Measure line-to-neutral voltages; discrepancies exceeding 3V indicate labeling errors.

Secure connections with crimped ring terminals and torque to manufacturer specifications–typically 12-15 Nm for M8 bolts. Loose joints generate heat; overtightening distorts terminal sleeves. Apply antioxidant compound to aluminum interfaces.

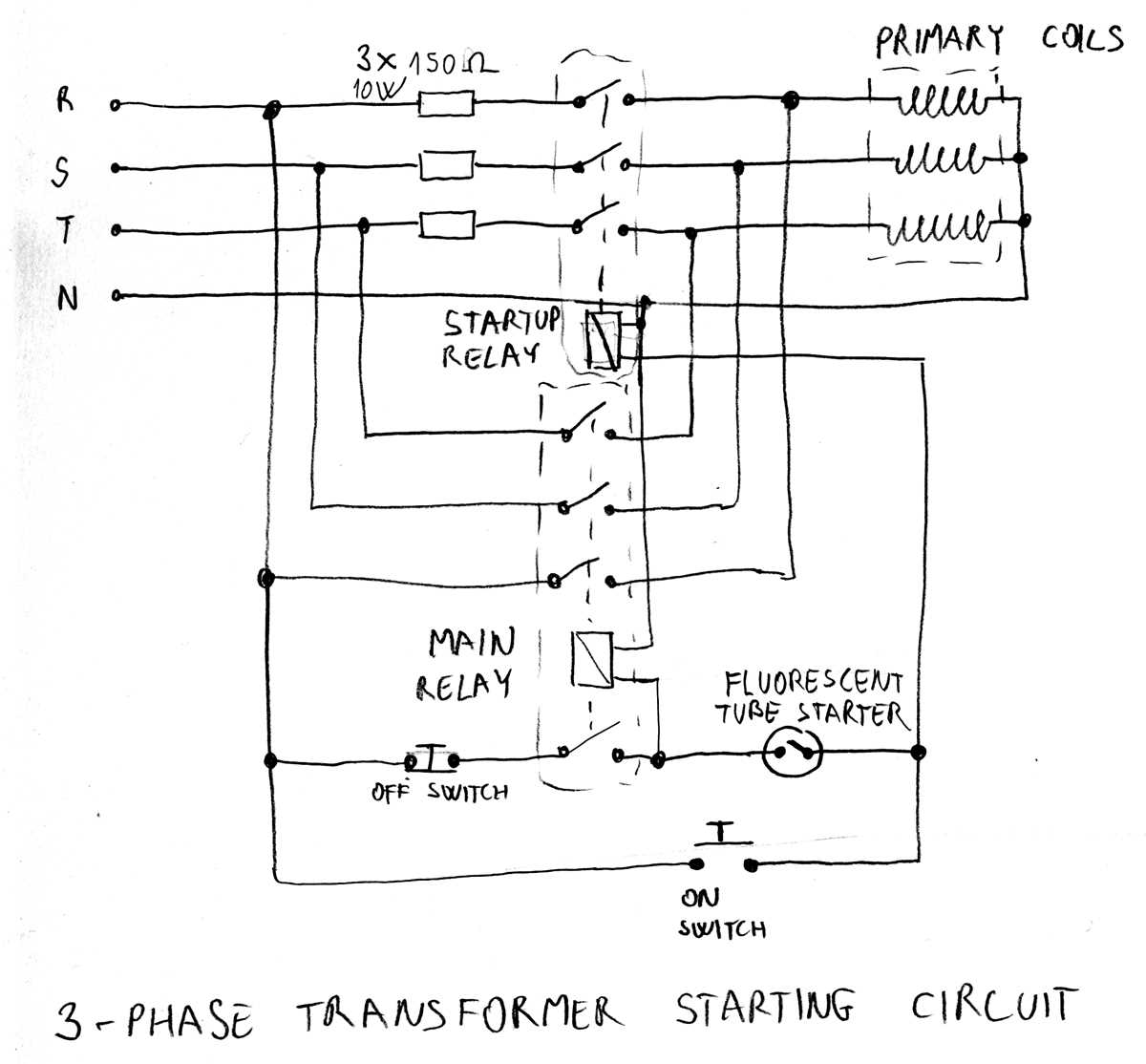

Energize the input side incrementally using a variac. Monitor current draw: initial inrush may reach 8-10× nominal load but should stabilize within 10 cycles. Sudden voltage drops signal incorrect polarity–disconnect immediately to prevent core saturation.

1. Recheck all connections with an insulation tester at 500V DC. Minimum resistance to ground: 1MΩ. Values below indicate contamination or damaged enamel.
2. Load-test with a resistive bank set to 75% capacity. Temperature rise should not exceed 65°C after 2 hours. Hotspots suggest uneven winding distribution.

Document final measurements in the logbook: input/output voltages, line currents, and ambient conditions (humidity

Wiring Configurations: Delta vs Wye and Their Impact on Voltage

Opt for a delta connection in high-current applications where line-to-line voltages match the system requirements–typical industrial motors rated at 480V benefit directly, eliminating the need for neutral conductors. Delta arrangements deliver 100% line voltage to each load, reducing conductor losses by up to 13% compared to wye systems under identical load conditions. However, fault detection becomes more complex; ground faults in delta setups require zero-sequence sensors or dedicated fault detection relays, increasing component costs.

Configuration	Line Voltage (V)	Phase Voltage (V)	Neutral Requirement	Common Use Case
Delta	480	480	No	Industrial motors
Wye	480	277	Yes	Lighting circuits

Wye connections suit environments demanding multiple voltage levels–standard three-wire 480V/277V systems power both line-to-line and line-to-neutral loads efficiently. Neutral availability enables simpler ground fault detection via residual current devices, cutting trip times by 40% versus delta systems. Yet wye setups incur higher copper costs; neutral conductors must handle full line currents during unbalanced conditions, requiring upsized gauge selections–#2 AWG minimum for 200A services–adding 15-20% to material expenses.

Balance load distribution when selecting a configuration: wye tolerates imbalances up to 10% without derating, while delta systems demand symmetrical loads within 5% to prevent circulating harmonics degrading efficiency. For retrofit projects, verify existing conductor insulation ratings–wye-to-neutral voltages (277V) exceed typical 240V insulation thresholds, risking dielectric failure. Delta remains the default for pure power applications; wye dominates mixed-use scenarios requiring precision voltage control and safety compliance.
