Step-by-Step Guide to 3 Phase Motor Start Stop Wiring Schematic

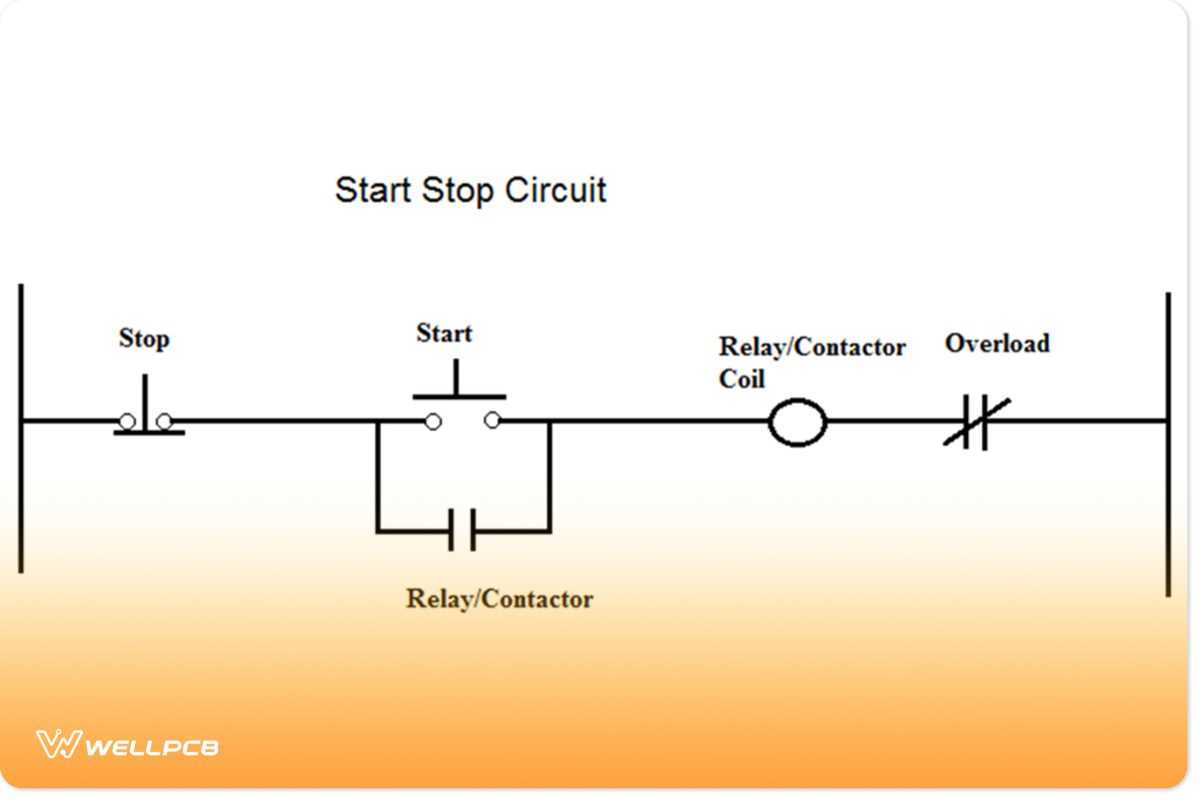

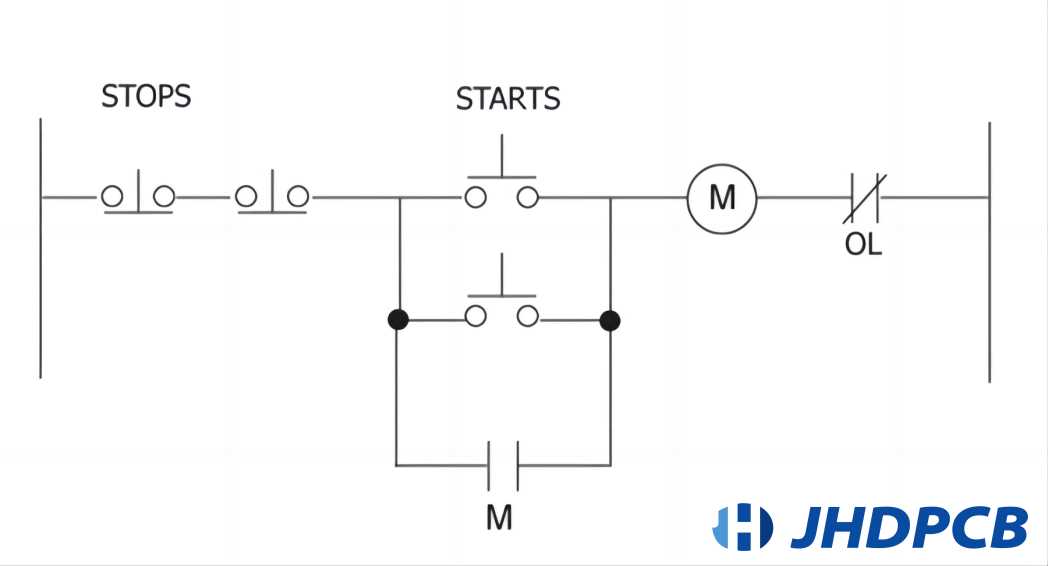

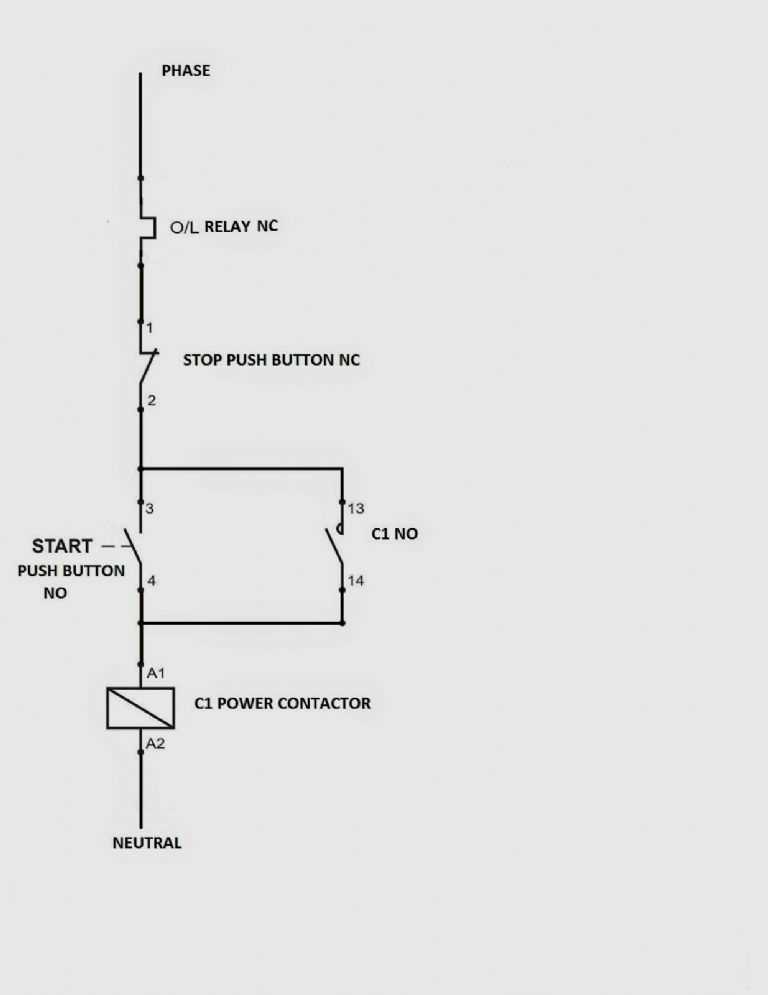

For reliable activation and deactivation of a three-conductor motor, use a pushbutton relay arrangement with two contactors: one for sustained operation (KM1) and one for initial engagement (KM2). Connect the momentary on-switch (SB1) in parallel with the maintained contactor coil (KM1) via a normally open auxiliary block (KM1-AUX). The off-switch (SB2) must interrupt power to KM1 directly, ensuring immediate disconnection regardless of the auxiliary latch state. Include a thermal overload relay (FR) in series with KM1 to protect the windings from sustained overcurrent, setting it to trip at 1.05–1.2 times the motor’s full-load amperage.
Wire the initial engagement contactor (KM2) with a separate normally closed auxiliary contact (KM1-NC) in series to prevent simultaneous operation. Position KM2 downstream of SB1 but upstream of KM1-AUX to create a transient path that collapses once KM1 latches. Ensure all conductors between the control devices and motor terminals are sized for 125% of the motor’s nameplate current, using 14 AWG for 15A circuits or 12 AWG for 20A, with stranded copper for flexibility under vibration. Label every connection with heat-shrink sleeves or adhesive markers at both ends to trace faults without a schematic.
Test the arrangement by pressing SB1–KM2 should energize first, then KM1 within 0.5–1.0 seconds, followed by KM2 dropping out. If KM1 fails to latch, verify the KM1-AUX block’s mechanical alignment and check for loose screws on the terminal strip. For motors above 10 HP, add a capacitor-based surge suppressor across KM1 coil terminals to dampen voltage spikes, using 0.1 µF, 275VAC components spaced no more than 30mm from the coil. Avoid daisy-chaining auxiliary blocks–each contactor’s auxiliary should return to the same power bus as its primary coil to prevent voltage drop.
Ground the motor frame, control panel enclosure, and each metallic conduit entry with 6 AWG bare copper bonded to the facility’s grounding electrode system. Use star-delta or part-winding configurations only if the motor nameplate specifies compatibility; otherwise, stick to full-voltage across-the-line starting for simplicity. If modifying an existing panel, disconnect the main power and confirm residual voltage with a non-contact tester before handling terminals–line-side capacitors can retain charge for several minutes after disconnection. Record the as-built layout on graph paper, noting polarity markers for diodes if used, and store a laminated copy behind the panel door.
Schematic Guide for Tri-Level Motor Control Circuits
Connect the emergency cutoff switch directly to the main contactor coil to ensure immediate power interruption during faults. Use a normally closed (NC) pushbutton for safety–any delay risks winding damage or short-circuits. Standard 24V AC control voltage works for most industrial setups, but verify coil ratings before finalizing layouts.
Route the hold-in circuit through an auxiliary contact on the main contractor to maintain operation after the initial trigger is released. Install a thermal overload relay in series with the motor leads, calibrated to 110-120% of full-load current. Overlooking this step invites overheating failures.
Label all conductors by function–control lines in blue, power in black/red, and protective earth in green-yellow. Mislabeling causes troubleshooting delays. For modular panels, keep control wires at least 20mm from power conductors to minimize interference.
Test the setup with a multimeter in continuity mode before energizing. Probe across each pushbutton, contractor coil, and overload relay to confirm proper open/closed states. A single overlooked contact can prevent startup or cause unsafe runaway conditions.
For systems above 10HP, use two auxiliary contacts in parallel on the main contractor–one for the hold-in path and another for status indication. This redundancy prevents inadvertent dropouts during voltage fluctuations. Document wire gauge alongside the schematic for future reference.
Mount all components vertically in the enclosure to improve heat dissipation. Secure pushbuttons at ergonomic heights–operator stations typically place momentary buttons 1.2-1.5 meters above the floor. Avoid crowding near terminal strips–spacings under 5mm risk arcing in humid environments.
Core Elements for a Triple-Line Control Scheme
Begin with a robust contactor rated for the motor’s current draw–minimum 1.5x the full-load amps. Select coil voltage matching the control supply (typically 24VAC, 110VAC, or 230VAC) to avoid mismatched pulls. Auxiliary contacts must include at least one normally open (NO) and one normally closed (NC) pair; NO holds the circuit after initial activation, while NC prevents dual energization during manual override tests.
Protection and Actuation Devices
Install a thermal overload relay sized to trip within 10 seconds at 6x motor current. Position it upstream of the contactor coil to ensure immediate cut-off. Pair it with a manually resettable pushbutton for safe post-fault restart. Choose momentary switches–green for energizing and red for immediate de-energizing–both rated for industrial duty cycles (minimum 50,000 operations) to withstand frequent toggling.
Integrate a disconnect switch handle upstream of the entire setup, fused at 125% of the motor’s nameplate amperage. Keep wiring runs under 10 meters to minimize voltage drop; use stranded copper conductors sized per NEC Table 310.16 for ambient temperatures above 30°C. Label every terminal in accordance with IEC 60204-1 for rapid troubleshooting.
Step-by-Step Power Link Setup for Tri-Voltage Motors with Control Triggers
Begin by securing the main supply lines to the circuit protector–label each conductor (L1, L2, L3) with heat-resistant sleeves to prevent misidentification. Attach the incoming leads directly to the contactor’s upper terminals, ensuring torque specifications match the motor’s rating: 12 Nm for 4 mm² cables, 18 Nm for 6 mm². Bypass the trigger switch temporarily to verify voltage stability across all three legs before proceeding; readings should hold within ±2% of 400V for 50Hz systems.
Route the return path from the contactor’s lower terminals to the motor windings, maintaining polarity consistency–crossed connections risk winding damage at startup. Install the hold-in coil between the common (NO) contact and the auxiliary terminal, using a 24V DC relay if ambient noise exceeds 65 dB. Below is the torque and cable gauge reference:
| Cable Cross-Section (mm²) | Torque (Nm) | Max Current (A) |
|---|---|---|
| 2.5 | 5 | 25 |
| 4 | 12 | 35 |
| 6 | 18 | 50 |
| 10 | 25 | 70 |
Interlock the control triggers by daisy-chaining the momentary buttons: the reset switch’s NC contact must open before the activation push engages the holding circuit. Ground the motor frame to the busbar with a 16 mm² braided strap if the installation exceeds 10 kW–verify impedance below 0.1Ω before energizing. Test under partial load (30% of nominal) to confirm the holding coil remains latched at voltages down to 85% of nominal.
Critical Errors in Three-Circuit Motor Control Assemblies
Incorrect overload relay placement ranks as the most frequent blunder, often situated downstream of the contactor instead of directly in series with the motor. This misconfiguration prevents the relay from accurately measuring current draw, risking thermal damage. Always position the relay immediately before the load terminals, ensuring uninterrupted current sensing.
Neglecting auxiliary contact integrity during maintenance checks leads to intermittent circuit failures. Verify that normally open and normally closed contacts maintain proper tension–use a multimeter to confirm continuity under load conditions. Replace worn contacts showing resistance exceeding 0.5 ohms to prevent false signaling.
Mismatched conductor sizing creates voltage drops compromising performance. Reference NEC Table 310.16: a 10 HP motor drawing 28A at 480V requires minimum 10 AWG copper conductors. Undersized wiring overheats terminals, while oversized conductors waste resources and introduce installation challenges in tight enclosures.
Improper grounding connections generate hazardous potential differences. Secure all equipment grounding conductors to the enclosure’s dedicated bonding point, not to neutral terminals. Use green insulated conductors exclusively for grounding paths, and torque all terminations to manufacturer-specified values (typically 15-20 lb-in for 1/4″ bolts).
Skipping insulation resistance tests after installation invites latent faults. Apply 500VDC megohmmeter between each conductor and ground–readings below 1MΩ indicate compromised insulation requiring immediate replacement. Repeat tests after environmental exposure (humidity, temperature cycling) to validate long-term reliability.
Overlooking control voltage polarity in dual-voltage systems causes erratic operation. Clearly label supply lines during assembly, distinguishing line-to-line (480V) from control circuit (120V) connections. Install a dedicated transformer if the control voltage differs from the power circuit to eliminate cross-contamination risks.
How to Test and Troubleshoot a Tri-Line Push-Button Circuit
Begin by verifying voltage at the motor terminals using a multimeter set to AC mode. Measure between each pair of supply conductors–L1-L2, L2-L3, and L1-L3–values should match the system’s rated voltage (e.g., 400V ±10% for most industrial grids). If readings deviate, check upstream protective devices (fuses, breakers) for continuity. For single-push control loops, probe the auxiliary contacts of the main contactor: press the “go” button and confirm 24V–110V across the coil terminals. Absence of voltage suggests a broken circuit path–inspect relay coils, pushbutton springs, or thermal overload cutouts.
- Examine wire terminations: loose crimps or corroded terminals cause intermittent faults–retighten torques to manufacturer specs (typically 1.2–2.0 Nm for M4 screws).
- Swap identical relays to isolate faulty components; a non-responsive unit indicates internal contact welding or coil burnout.
- Record current draw during operation; excessive amperage (>120% of nameplate rating) signifies motor overloads–test insulation resistance (minimum 1 MΩ) or mechanical binding.
- Use a proximity sensor to detect faulty limit switches: close the circuit manually–if the motor fails to halt, replace the switch immediately.
- Log all observations in a structured troubleshooting chart to track recurring issues (sample template:
| Node | Expected | Measured | Status | Action |).
Reset thermal overloads once cooled, but investigate recurring trips–check alignment of motor shafts or adjust relay trip classes (Class 10 vs. Class 20).
