Step-by-Step Waterway Pump Electrical Connection Guide for DIY Installations

Begin by isolating the power source before handling any conductive elements. Connect the main supply line to a dedicated circuit breaker rated for at least 15 amperes if the motor draws 10 amps or less under load; for higher currents, match the breaker to 125% of the device’s continuous demand. Use 12-gauge copper conductors for runs under 50 feet and 10-gauge for longer distances to prevent voltage drop exceeding 3%.

Identify the thermal overload protector embedded in the motor housing–this component must never be bypassed. Wire it in series with the motor windings to interrupt current if temperatures exceed 140°C. Attach the protector’s terminals directly to the capacitor leads, ensuring no loose strands contact adjacent conductors.

Install a dual-run capacitor for motors requiring both start and run assistance. The start winding connects to the capacitor’s “C” terminal, while the run winding links to “FAN” or “HERM” as labeled. Measure capacitance with a multimeter before installation; replace any unit showing deviation beyond ±6% of the rated microfarads.

Ground the motor frame to a dedicated earth rod using an 8-gauge green insulated conductor. Avoid relying on pool or spa structures for grounding; verify resistance below 25 ohms at the connection point. Use waterproof heat-shrink tubing over all splices to prevent corrosion from moisture ingress.

Label each conductor at both ends: L1 (hot), L2 (neutral), GND (ground). Follow the manufacturer’s torque specifications when tightening terminal screws–typically 12-15 inch-pounds–to avoid overheating. Test insulation resistance with a megohmmeter before energizing; readings below 1 megohm indicate compromised winding integrity.

Guide to Electrical Connections for Spa Circulation Systems

Start by verifying the voltage rating on the motor’s label–most residential models require 120V or 240V AC. Mismatched power supply will cause immediate failure or tripped breakers. Use a multimeter to confirm voltage stability at the source before connecting any leads.

Locate the capacitor behind the motor housing; it’s typically a cylindrical component marked with microfarads (µF). A faulty capacitor will prevent startup–test it with a capacitance meter or replace it preemptively if the system shows signs of hesitation during activation.

Identify the three wires from the motor: common (usually black or brown), run (red or orange), and start (yellow or white). The start wire connects to the capacitor, while the run and common wires link directly to the power source. Label each wire with masking tape to avoid confusion during reassembly.

For 240V setups, use a double-pole breaker with appropriate amperage (check the motor’s specs–typically 15A for 1HP models). Run 12-gauge THHN copper wire from the breaker to the motor, ensuring all connections are secured with wire nuts and wrapped in electrical tape to prevent corrosion.

Grounding and Safety Measures

Attach the ground wire (green or bare copper) to the motor’s dedicated grounding screw–never omit this step. A missing ground increases electrocution risk and voids UL certifications. Use a 10-gauge ground wire for added safety in outdoor or wet environments.

Install a ground fault circuit interrupter (GFCI) between the power source and the motor. Spa systems are required by code to include GFCI protection, detectable by its “test” and “reset” buttons. Test the GFCI monthly by pressing the test button–if it doesn’t trip, replace the unit immediately.

For variable-speed motors, connect the control module’s PWM (pulse-width modulation) wires according to the manufacturer’s color-coding. Reversing these wires will damage the module. Use a heat-shrink connector for the PWM leads to prevent moisture ingress.

After wiring, apply dielectric grease to all terminals to resist oxidation. Power on the system and monitor the current draw with a clamp meter–normal operation should match the motor’s rated amperage within 10%. Deviations indicate miswiring or mechanical obstruction.

Key Elements in a Hydraulic Motor Circuit Schematic

Begin by locating the power source connection points–typically a pair of terminals marked L1 and L2 (or Line 1 and Line 2) on the control panel. These correspond to the main AC supply, often 120V or 240V depending on regional standards. Verify voltage ratings against the equipment label to prevent mismatches that could damage internal coils or capacitors. If the setup includes a variable speed drive, check for additional terminals labeled U, V, and W; these carry the three-phase output to the motor windings.

Trace the overload protector–a small, rectangular or cylindrical unit embedded near the motor or control box. It contains a bimetallic strip or thermal element that disconnects the circuit under excessive current. Models may feature reset buttons (red) or require manual replacement of fuses. Note the tripping curve specified on the device: Class 10 or Class 20, indicating response time in seconds under overload conditions.

Identify auxiliary components like capacitors, especially in single-phase configurations. Start capacitors (usually in cylindrical aluminum cans) provide initial torque by creating a phase shift; run capacitors (flat, oval-shaped) maintain steady operation. Both are rated in microfarads (µF) and voltage–commonly 25µF/440VAC for start types and 5-15µF/370VAC for run variants. Replace capacitors only with equivalents matching both capacitance and voltage to avoid premature failure or overheating.

Examine relay switches, often housed in a plastic enclosure with spade terminals. Look for coil voltage ratings (e.g., 120VAC) and contact ratings (e.g., 10A resistive load). On dual-voltage models, a wiring selector might appear as a sliding tab or rotary switch–ensure it matches the supply voltage before energizing. Misalignment here risks low performance or tripped breakers.

Inspect grounding points: a green or bare copper wire secured to a screw terminal on the motor housing or metal conduit. Grounding paths must be low-resistance (below 25 ohms) to ensure safety under fault conditions. Use a multimeter in ohmmeter mode to verify continuity between ground terminal and earth reference. Corrosion or loose connections here create shock hazards or erratic operation.

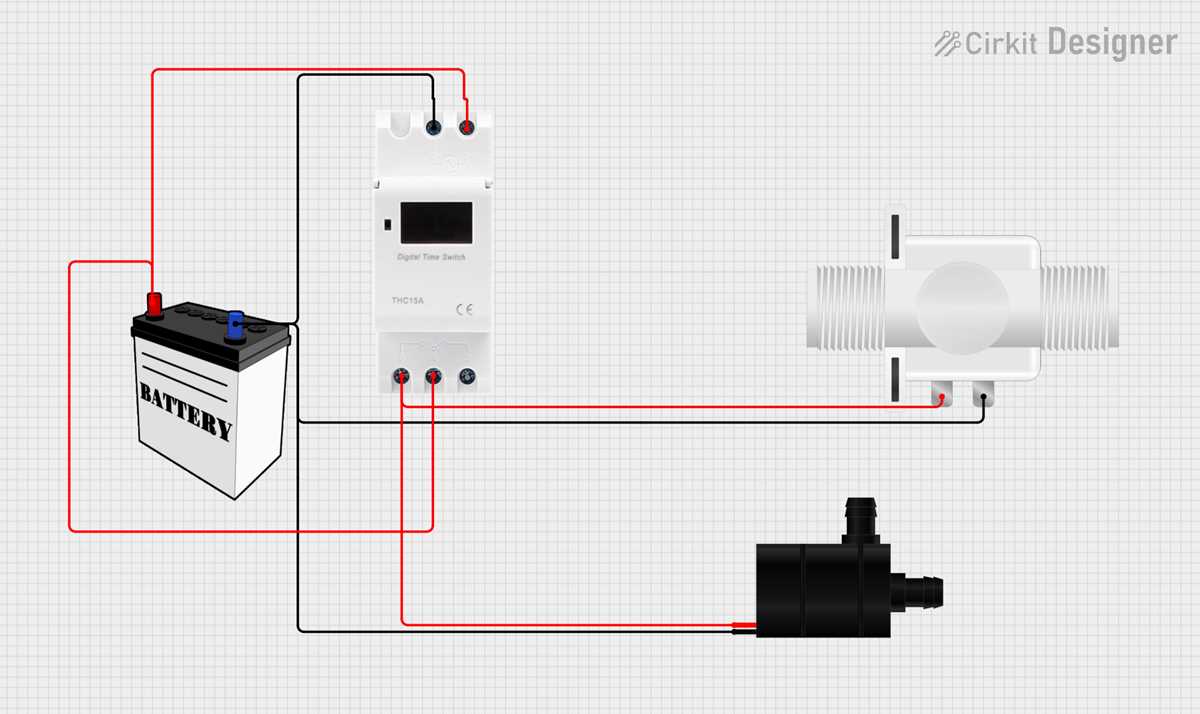

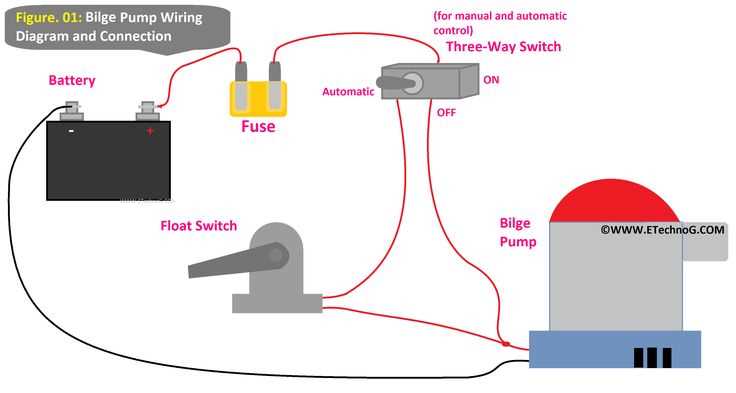

Confirm control signal interfaces if automation is present. Pressure switches, float sensors, or timer circuits connect via low-voltage terminals (typically 24VAC), marked COM (common), NO (normally open), and NC (normally closed). Wire color codes–often red for hot, black for common, and yellow/blue for switched outputs–simplify troubleshooting. Cross-reference with manufacturer documentation, as polarity or sequence errors can trigger unintended cycling or shutdown.

Step-by-Step Guide to Connecting Leads for Single-Speed Pool Circulation Units

Begin by shutting off power at the circuit breaker to prevent electrical hazards. Verify the absence of voltage using a multimeter on the terminals of the dedicated breaker–readings should be zero. If the system includes a bonding wire (typically green or bare), secure it to the unit’s grounding lug first to ensure safety compliance.

Identify the motor’s power leads, which are usually marked on the capacitor or stator plate as L1 and L2 for 115V models or T1 and T2 for 230V configurations. For 115V setups, connect the black wire to L1 and the white wire to L2, using wire nuts rated for AWG 14 or thicker. Twist the ends clockwise before fastening to prevent loosening under vibration.

Critical checks before energizing:

• Insulate all connections with electrical tape or heat-shrink tubing, overlapping by at least 1 inch.
• Tug each wire nut firmly–there should be no slippage.
• Route leads away from moving parts and sharp edges to avoid abrasion.
• For 230V units, ensure the red wire is paired with T1 and the black with T2; mismatching will reverse polarity and damage the windings.

Once connections are secure, restore power at the breaker. Listen for a steady hum within 3–5 seconds–absence of sound indicates an open circuit or incorrect lead pairing. If the unit fails to start, immediately cut power and recheck all steps, focusing on the thermal overload (if present) and capacitor continuity using a capacitance meter. A reading within ±10% of the rated microfarads confirms functionality.

Finalize the installation by sealing the junction box with a waterproof gasket and screw-down lid. Label the breaker clearly (e.g., “POOL CIRCULATOR 115V”) and test operation under load for 10 minutes, monitoring for unusual noises or overheating. Document the setup in a log, including wire gauge, breaker amperage, and motor plate details, for future troubleshooting.

Resolving Frequent Electrical Errors in Hydraulic Circulation Systems

Check voltage at the motor terminals before assuming component failure. A reading below 10% of the rated supply (e.g., 108V on a 120V system) often reveals loose conduit connections, undersized cables, or corroded junction points within the circuit. Use a multimeter with true RMS for accuracy, focusing on the black (hot), white (neutral), and green (ground) leads. Verify measurements at both the breaker panel and the terminal block–discrepancies between these points isolate fault locations.

Misconfigured capacitance can cause premature motor burnout. Ensure run capacitors (typically 10–30µF) match the motor’s specifications; substituting a 25µF unit for a required 15µF leads to excessive current draw, tripping breakers or overheating windings. Examine capacitor labels for microfarad values and voltage ratings–replace any bulging, leaking, or discolored units immediately. For motors with dual capacitors, confirm both start and run components are correctly seated in their marked slots.

Reverse polarity on the power feed produces humming but no rotation. Test continuity between the neutral (white) wire and ground–if zero resistance appears, neutral and ground are shorted, creating a safety hazard. Correct polarity by ensuring the black wire connects to the “L” terminal, white to “N,” and green to the grounding screw. For 230V models, verify both hot leads (red/black) share equal voltage relative to ground (115V each).

Thermal overloads trip when ambient temperatures exceed 40°C or airflow is obstructed. Clear any debris around the housing, and ensure air vents remain unblocked–minimum 5cm clearance prevents heat buildup. If overheating persists, measure winding resistance with an ohmmeter; values below 5Ω between phases suggest internal shorts. Reset thermal switches only after cooling (minimum 30 minutes) and inspecting for underlying causes.

Common motor protection errors stem from incorrect breaker sizing. Circuit breakers should match 125% of the motor’s full-load current (FLC) per NEC Table 430.52. For example, a 1.5HP motor with a 9.8A FLC requires a 15A breaker (9.8A × 1.25 = 12.25A). Use trip curves from manufacturer data–Class 10 overloads react faster than Class 20, protecting windings from prolonged overcurrent. Replace any breaker that trips repeatedly without load fluctuations.

Symptom	Likely Cause	Verification Method	Resolution
Motor hums but doesn’t start	Missing capacitor or phase	Multimeter on capacitance mode	Install correct µF-rated replacement
Trips breaker immediately	Short to ground or locked rotor	Megohmmeter (500V) test	Replace damaged cables or bearings
Runs slow, draws low amps	Voltage drop or worn bearings	Clamp meter on all leads	Tighten connections or lubricate bearings
Intermittent shutdowns	Loose wiring or thermal cycling	Thermal camera scan	Secure terminals, check thermal cutoff

Grounding system faults mimic internal failures. Test continuity from the motor casing to a known earth ground–readings above 1Ω indicate corroded grounding rods or broken straps. For submerged units, inspect the bonding wire (minimum #8 AWG copper) connecting all metal components in the circulation loop. Replace any stripped threads on grounding terminals and verify all conduit fittings maintain conductive integrity–use anti-oxidant paste on aluminum connections.

Label all conductors during installation to prevent miswiring. Use heat-shrink tubing or permanent markers to identify connections (e.g., “L1,” “T1”). For 3-wire models, confirm the red lead connects to the second hot terminal; swapping it with the black lead reverses rotation. Document voltage drops across each conductor–consistent readings (≤3%) confirm proper termination, while disparities pinpoint high-resistance joints requiring re-crimping or soldering.
