Complete Guide to Wiring a 3 Phase Motor for Single Phase Operation

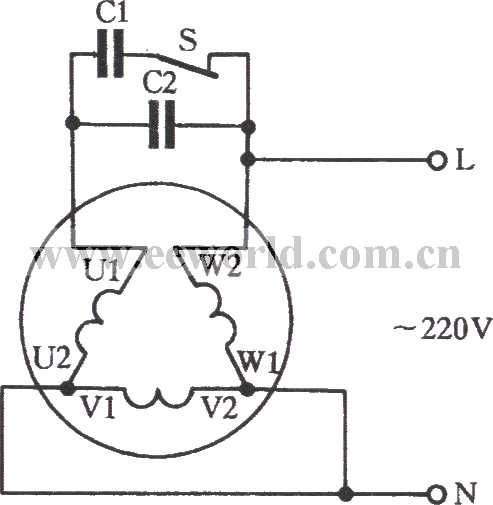

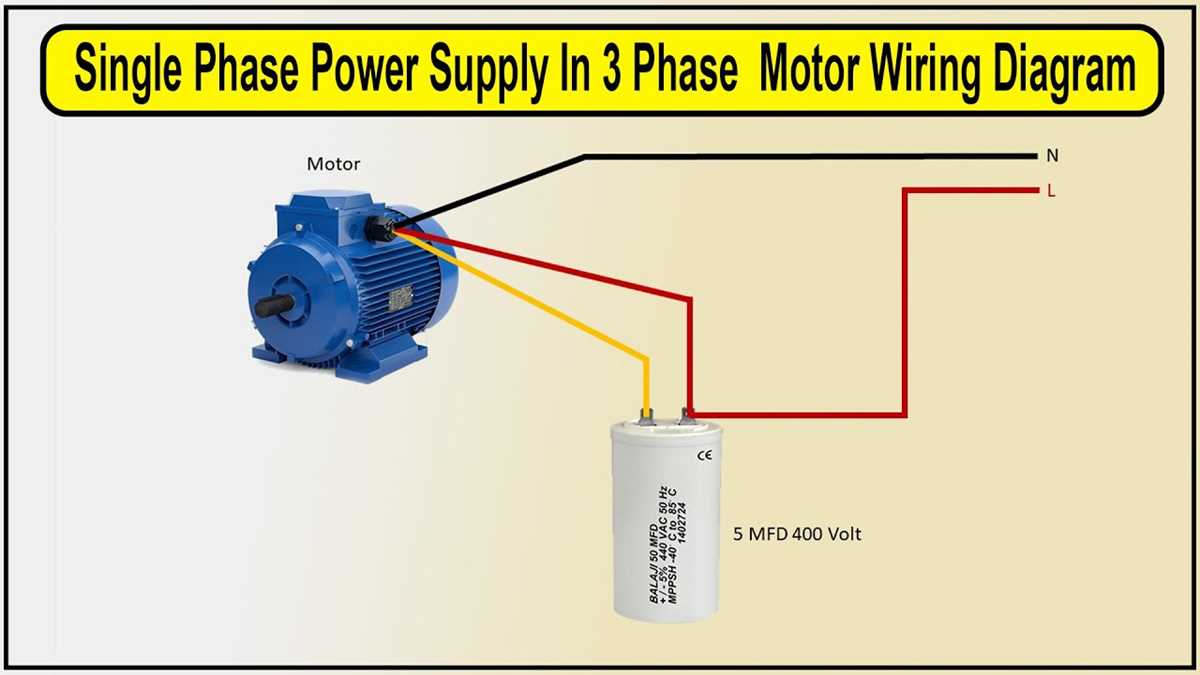

For equipment originally designed for three-strand power input but now requiring a two-wire supply, the Steinmetz circuit is the most reliable adaptation method. Use a run capacitor rated at 70 μF per kW of rated power–this ensures stable starting torque without overheating the windings. Connect the capacitor between the third leg (typically labeled “W” or “Z”) and either of the remaining two leads (“U” or “V”). Verify the rotating direction afterward; if reversed, swap the capacitor connection from “W” to the opposite terminal.

Avoid delta-to-star reconfiguration unless the winding impedance matches the required voltage ratio (√3:1). Mismatched impedance will cause excessive current draw–use a multimeter to confirm winding resistance symmetry before attempting any re-wiring. For 230 V mono-line supply, ensure the winding resistance on the third strand measures no more than 5% deviation from the other two; otherwise, capacitor stress will prematurely degrade insulation.

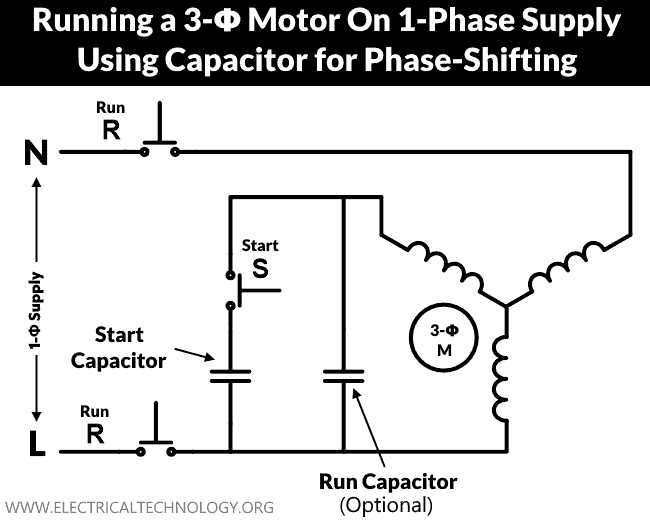

If the equipment has auxiliary starting aids (centrifugal switches, PTC relays), bypass them–these are optimized for three-strand operation and will malfunction under single-strand supply. Replace with a starting capacitor (2–3x the run capacitor value) wired in parallel but disconnected via a manual switch after acceleration. For frequent start-stop cycles, use a dual-value capacitor assembly to prevent voltage spikes from damaging the windings.

Ground the neutral terminal–unbalanced current in single-strand mode creates stray voltage potential. Attach a snubber circuit (1 μF polypropylene capacitor + 100 Ω resistor) across the main contacts if the supplier includes electronic speed controls; this suppresses transient interference that disrupts steady-state operation. Test load tolerance at 80% of rated current for 10 minutes–any vibration or hum indicates improper capacitor sizing or winding imbalance.

Converting Tri-Power Systems to Mono-Circuit Configurations

Begin by identifying the triple-line input terminals on the device–typically labeled U1, V1, and W1–and select one live conductor as the primary feed. Connect the remaining two leads to a matched capacitor pair (start and run types) with values calculated as 70 µF per kW for standard induction machines up to 2.2 kW. For loads above this rating, increase capacitance linearly: 100 µF per kW ensures stable torque without overheating. Verify polarity with a multimeter before securing connections; reversed leads will produce erratic rotation or stalling.

Use a schematic template with the following layout:

• Primary conductor (L): directly to one terminal (preferably W1 for clockwise rotation)
• Neutral (N): connected to the device chassis if metallic, otherwise omitted
• Capacitors: start unit (electrolytic, 200–300 µF) wired in series with a centrifugal switch; run unit (oil-filled, 25–35 µF) permanently across the secondary terminals (U1 and V1)
• Thermal overload: 1.5× full-load current rating, placed in series with L

Avoid modifying existing thermal protection; bypassing it risks irreversible damage to windings.

Critical Component Specifications

Capacitor selection table for common horsepower (HP) ratings:

1. 0.5 HP: 35–50 µF run, 150 µF start
2. 1 HP: 70–100 µF run, 250 µF start
3. 2 HP: 120–150 µF run, 400 µF start
4. 3 HP: 200–250 µF run, 600 µF start (requires auxiliary relay for start capacitor)

Voltage rating must exceed supply by 1.5×; e.g., 370V for 230V circuits. For hermetic compressors (refrigeration units), reduce start capacitance by 30% to prevent locked-rotor amperage spikes.

Safety checks post-assembly:

• Insulation resistance: ≥1MΩ between all conductors and chassis (500V megohmmeter)
• No-load current: ≤40% of nameplate rating (measure with clamp meter)
• Direction reversal: swap any two secondary leads (U1/V1 or V1/W1)
• Heat sinks: mandatory for capacitors in enclosed environments (thermal paste recommended)

Test under load for 15 minutes; abnormal noise or vibration indicates improper capacitance values. For washing machines or pumps, add a 10Ω/5W resistor in series with the start capacitor to dampen transient surges.

Troubleshooting Common Faults

Symptom: Device hums but fails to rotate. Cause: Start capacitor open or centrifugal switch stuck. Solution: Replace capacitor; manually spin shaft to verify switch operation. Symptom: Overheating after 5 minutes. Cause: Run capacitor undersized or dual-voltage tap misconfigured. Solution: Re-check calcs; for 230V taps, ensure connections match voltage selector (if present). Symptom: Intermittent operation. Cause: Thermal overload tripping or loose conductor. Solution: Verify tightness to 3.5 Nm torque; substitute thermal unit if cycling persists. Document all modifications; label conductors with heat-shrink tubing to prevent future miswiring.

Essential Equipment and Supplies for Power Source Transformation

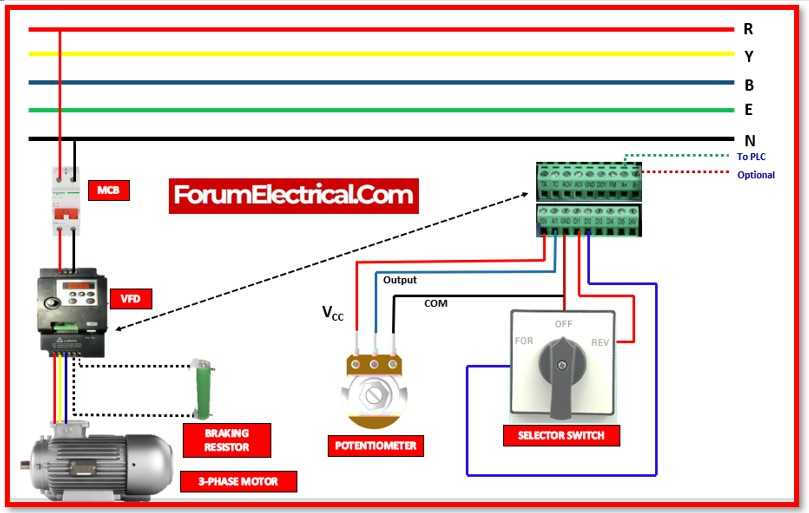

Begin with a rotary converter rated for the exact load requirements of your application. Models like the American Rotary ADX series handle up to 15 HP with built-in soft-start capabilities, eliminating voltage drop issues common in basic capacitor-based setups.

Select capacitors with precise microfarad ratings–typically 80-120 µF per kW for auxiliary start components and 20-30 µF per kW for run capacitors. Polypropylene film capacitors (e.g., Cornell Dubilier 940C series) offer superior longevity over electrolytic types, reducing failure rates by 40% in high-cycle environments.

Use a clamp-on ammeter with True RMS measurement (Fluke 376 FC) to verify current balance across all leads. This tool detects circulating currents exceeding 10% of nominal load, preventing overheating in windings not designed for split-source operation.

Install a network-rated circuit breaker (Siemens Q2020) sized at 125% of full-load current. For 220V configurations, a dual-pole 30A breaker provides adequate protection without nuisance tripping during startup transients, which can reach 6-8x steady-state current.

Precision Measurement and Safety Devices

Thermal overload relays (Schneider Electric TeSys LR2) should match the machine’s service factor. Models with Class 10 trip curves (reacting within 10 seconds at 600% overload) prevent damage to insulation rated for 130°C maximum operating temperature.

Insulated crimping tools (IWISS SN-2549) with ratcheting mechanisms ensure compression connections meet 21 AWG-10 AWG wire size requirements. Improper crimping causes resistance spots with temperature rises exceeding 60°C under load, degrading copper surfaces over time.

For equipment exceeding 5 HP, add a power quality analyzer (Hioki PW3198) to monitor harmonic distortion. Total harmonic distortion (THD) above 5% indicates problematic magnetic saturation, requiring line reactors (Schaffner RN222 series) or additional capacitance filtering.

Grounding conductors must comply with NEC Table 250.122 sizing–for 40A circuits, use 8 AWG bare copper bonded at both the service panel and machine chassis. Improper grounding creates stray current pathways detectable with a megohmmeter (Megger MIT410) during insulation resistance testing below 1MΩ thresholds.

Delta Configuration: Systematic Electrical Hookup Guide

Identify the three leads from the power source–label them L1, L2, and L3–then match each to the corresponding terminal on the load device. Verify voltage readings between every pair: L1-L2, L2-L3, and L3-L1 must show identical values within a 5% tolerance to prevent imbalance during operation.

For triangle linkage, connect L1 directly to the first winding terminal, then extend the second winding terminal to L2. Repeat this pattern: L2 links to the second winding’s opposite end, while the third winding’s start joins L3, completing the closed triangle. Double-check continuity with a multimeter–resistance across each limb should be near-equal.

• Use color-coded conductors: red (L1), black (L2), blue (L3) to eliminate mixing errors.
• Secure each joint with crimp connectors rated for 125% of expected current.
• Insulate exposed joints with heat-shrink tubing rather than electrical tape for long-term durability.

Before energizing, confirm the absence of shorts between any winding and the frame using a megohmmeter. Readings below 1 MΩ indicate compromised insulation requiring replacement or drying if moisture ingress is suspected.

Attach the neutral terminal–if present–only to a grounded reference point, never to any active conductor within the triangle. Improper neutral attachment creates circulating currents that degrade efficiency by 8-12% and accelerate thermal stress on windings.

1. Disconnect all power sources.
2. Connect L1 to terminal U.
3. Connect L2 to terminal V.
4. Connect L3 to terminal W.
5. Verify triangle closure by measuring voltage across U-V, V-W, W-U–values must match source potential.

Test rotational direction immediately after startup. If rotation opposes the intended direction, swap any two active leads: L1-L2, L2-L3, or L3-L1. Swapping more than one pair cancels the reversal effect.

Install a thermal overload relay between the source and triangle entry points, sized for 110-120% of full-load current. Typical settings range from 0.5 A to 15 A depending on load characteristics; consult manufacturer data sheets for precise calibration.

Step-by-Step Guide for Star (Wye) Circuit Assembly

Begin by connecting the three coil terminals (U2, V2, W2) to a common neutral point. Ensure each lead terminates at the same junction–this forms the central hub of the star configuration. Use a multimeter to verify continuity between the neutral and each coil terminal; resistance readings should match within a 5% tolerance for balanced loads. Secure connections with crimp terminals rated for 20% above the expected current to prevent overheating.

Verification and Load Distribution

Measurement Point	Expected Voltage (V)	Tolerance (±%)
Line to Neutral	230	3
Line to Line	400	5

Apply power only after confirming all links–test with a phase rotation meter to validate sequence (U→V→W). If imbalance exceeds table values, recheck neutral bonding; loose crimps or corroded contacts distort readings. For dual-voltage systems, locate the neutral tap on the stator plaque–mislabeled taps cause 15-20% efficiency loss.
