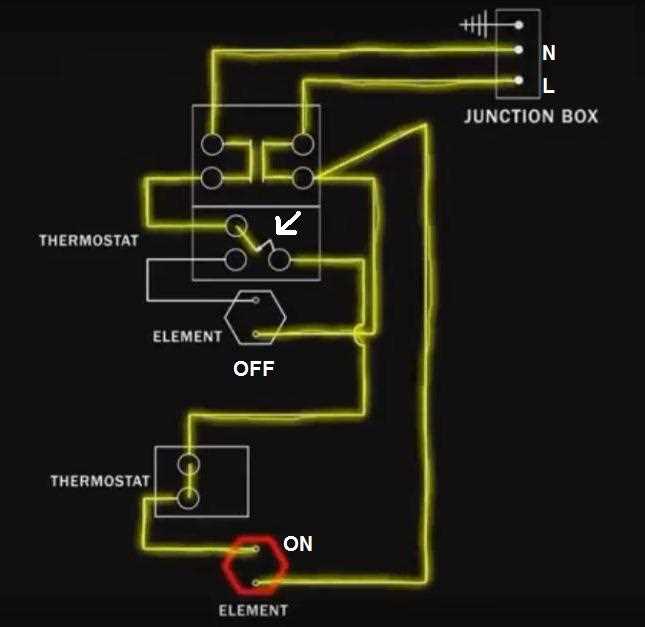

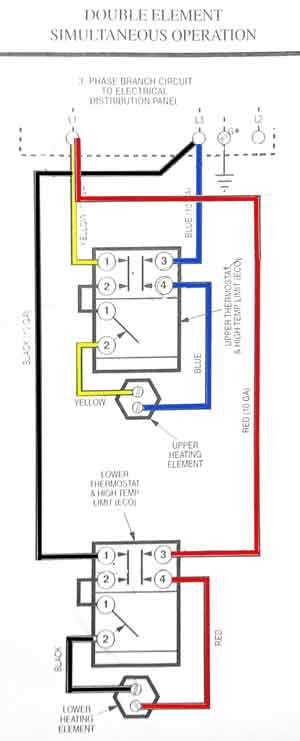

Step-by-Step 3 Phase Water Heater Wiring Guide with Diagram
For a 208V or 480V setup, connect the three supply conductors directly to the unit’s terminal block in a delta configuration. Ensure each conductor is rated for at least 125% of the device’s full-load current–calculate this by dividing the kW rating by 1.732 times the voltage. For example, a 12kW model at 480V requires 14.4A per line (12,000 ÷ (1.732 × 480)), so use 18AWG or thicker copper wire.
Neutral isn’t needed for most tri-line boilers, but ground must be bonded to the metal chassis using a bare or green-insulated conductor sized per NEC Table 250.122. Overcurrent protection must match the wire gauge–use a 25A breaker for 14AWG, 30A for 12AWG, or 40A for 10AWG at 480V. Double-pole breakers are insufficient; insist on a three-pole unit with a common trip mechanism.
Label conductors at both ends with heat-shrink tubing or embossed tags: L1, L2, L3, and GND. Verify line voltage balance before energizing–unbalanced loads above 3% degrade efficiency and risk overheating the internal coils. Replace standard thermal cutoffs with Type D fuses if ambient temperatures exceed 40°C.
For step-down applications (e.g., 480V to 208V), install a buck-boost transformer rated for 150% of the boiler’s kVA. Primary windings connect to L1, L2, L3; secondary windings feed the terminal block. Ground the transformer frame to the boiler’s chassis with a 6AWG jumper. Audit the entire circuit with a calibrated multimeter before final closure of the junction box–mismatched voltages void warranties.
Electrical Connection Guide for Tri-Voltage Storage Units
Ensure the main breaker matches the unit’s current rating before proceeding. For a 208V tri-voltage system, use three hot conductors (L1, L2, L3), a neutral (N), and a ground (G). Wire size must comply with local codes–typical configurations are shown below:
| Voltage Rating | Circuit Breaker (Amps) | Conductor Gauge (Copper) |
|---|---|---|
| 208V | 30A | 10 AWG |
| 240V | 25A | 10 AWG |
| 480V | 15A | 12 AWG |
Connect each hot lead to its corresponding terminal–failure to sequence L1-L2-L3 correctly will cause improper heating cycles. Verify terminal tightness with a torque screwdriver (manufacturer specs typically require 12-15 lb-in). Attach neutral only if the unit includes safety circuits requiring 120V; otherwise cap it securely. Ground must terminate to the chassis lug with a green or bare conductor.
After securing connections, apply power gradually–monitor initial cycling for erratic behaviour. Units above 30A demand dedicated conduits and approved disconnects within sight of the installation. Overcurrent devices must withstand 125% of the rated current draw to prevent nuisance tripping. Conduct resistance checks across all terminals before full energization.
Understanding Tri-Circuit Electrical Basics for Resistive Loads
Connect resistive loads like tank-based thermal systems using a balanced 400V tri-circuit configuration. Each conductor carries a line voltage of 230V relative to neutral, creating a 415V potential across any two conductors. Verify supply parameters with a true-RMS multimeter; mismatched voltages introduce inefficiency or damage.
Select conductors sized for continuous duty. A 15kW system demands:
- 10mm² copper for branch circuits (≤ 20A per line)
- 16mm² for main feeders (≥ 32A)
- Neutral conductor sized identically to live conductors
Oversizing by 20% accommodates voltage drop across installations exceeding 30 meters.
Implement a four-pole circuit breaker with adjustable trip settings (1.2× FLC). Three-pole breakers suffice when the neutral conductor is guaranteed uninterrupted; four-pole provides isolation for maintenance. Coordinate breaker curves:
- Type C for resistive loads (7–10× In)
- Type D for inductive components (10–20× In)
Avoid Type B (
Terminate all conductors in lugs rated for 90°C insulation (THHN/THWN). Torque specifications follow manufacturer tables–typically 10–12 Nm for 10mm² copper. Loose connections increase resistance, leading to localized heating exceeding 150°C, which degrades insulation integrity.
Grounding requirements depend on supply configuration:
- TN-S: Separate protective earth (PE) conductor connected at service entrance
- TN-C-S: Combined PEN split into PE and N at installation
- TT: Local earth electrode with RE ≤ 10Ω
Measure earth loop impedance (Zs) with a loop tester; Zs × FLC must trip the breaker within 0.2 seconds.
Label all disconnects and distribution blocks with:
- Circuit designation
- Voltage rating
- Current rating
- Short-circuit withstand (Icu)
Use durable, adhesive-backed polyester labels; inkjet-printed labels fade within 12 months.
Test insulation resistance between each conductor pair and between conductors and earth. Minimum values:
- 250 VDC: ≥ 0.5 MΩ
- 500 VDC: ≥ 1.0 MΩ
Deviation below thresholds indicates moisture ingress–mandatory drying cycle at 60°C for 48 hours before re-test.
For variable-load systems, install a contactor with auxiliary contacts rated for 10× FLC. Wire the coil through a control circuit transformer (400V/24V), reducing shock hazard. Add a motor-rated capacitor bank (3× 15μF) across each coil to minimize relay chatter at 50Hz.
Connecting a Tri-Circuit Energy Storage Unit: Practical Instructions
Verify the system’s compatibility with your utility supply by checking the nameplate voltage rating. Equipment rated for 208V or 400V line-to-line must match the incoming power source. Use a calibrated multimeter to measure live conductors before any connections–record measurements in a log for reference.
Disconnect all power at the main breaker panel. Install a dedicated 3-pole circuit breaker sized to 125% of the unit’s maximum current draw. For a 9kW element, this requires a 40A breaker with 8 AWG copper conductors or equivalent aluminum. Label the breaker clearly with permanent, water-resistant tags.
Route conductors from the breaker to the terminal block inside the unit’s access panel. Maintain phase separation by grouping wires in a star or delta configuration based on the manufacturer’s specifications. Twist each conductor end clockwise with pliers to prevent fraying, then crimp with ring lugs tin-plated for corrosion resistance.
Connect the incoming lines to the designated L1, L2, L3 terminals, ensuring torque matches the values printed on the chassis (typically 1.2–1.5 Nm for #8 wire). Secure grounding to the enclosure’s bonding point with a separate conductor sized one gauge larger than the phase wires. Double-check polarity with a non-contact voltage tester before proceeding.
Terminate neutral if required by local codes, even if not used–some models include balance circuits that rely on it. Close the access panel and restore power at the main panel. Monitor initial startup for abnormal heat, vibration, or humming; excessive noise warrants immediate re-inspection of connections.
Set the control parameters via the digital interface or manual dials. Configure temperature limits to 60°C maximum to prevent scaling in hard-water areas. Install a pressure-relief valve and discharge pipe rated for the unit’s maximum PSI–ensure the pipe exits at a safe drainage point.
Document all steps, including breaker size, wire gauge, and torque values, in a maintenance log. Schedule quarterly inspections to check for loose connections, corrosion at terminals, and sediment buildup at the base–flushing with a 3% vinegar solution extends lifespan by dissolving mineral deposits.
Identifying and Connecting L1, L2, L3, and Neutral Conductors Properly
Begin by verifying each conductor’s voltage with a multimeter before making any connections. For a three-line system, measure between L1-L2 (400V), L2-L3 (400V), and L3-L1 (400V). The neutral line should read approximately 230V when tested against any hot conductor. Label each wire immediately with heat-resistant tape to prevent misidentification during installation.
Use the following baseline color codes as a reference–though local regulations may vary:
- L1: Brown (or red in legacy systems)
- L2: Black (or yellow)
- L3: Grey (or blue)
- Neutral: Blue (or white/green in older setups)
- Earth: Green/yellow striped
In cases where markings are ambiguous or absent, rely on the multimeter readings rather than assumptions. Never presume color assignments align with international standards without confirmation.
Secure Connection Methods
Strip conductors to expose 8–10 mm of copper, ensuring no insulation enters the terminal block. Use crimp lugs or ring terminals for stranded wires to avoid loose strands causing short circuits. Torque terminal screws to the manufacturer’s specified value–typically 1.5–2.5 Nm for residential-grade devices–to prevent overheating from vibration or thermal expansion.
Neutral must connect to the designated busbar or terminal, never spliced with earth. Hot conductors (L1, L2, L3) should route through the same circuit breaker to maintain balanced loading. For systems exceeding 16A, use brass or tin-plated copper terminals to resist corrosion and oxide buildup, which increases resistivity over time.
After securing all connections, perform a polarity check with the power restored. Test load devices individually to confirm correct voltage delivery (230V line-to-neutral, 400V line-to-line). If readings deviate by more than 5%, re-examine terminations for reversed or loose connections. Keep a detailed log of wire routing and terminal assignments for future troubleshooting.
