Connecting DMX Lights Step-by-Step 3 Pin Cable Wiring Guide
Use XLR-style connectors for reliable stage lighting control. Solder lead termination in this sequence: ground (common shield) to terminal one, data positive to terminal two, and data negative to terminal three. Ensure continuity with a multimeter before securing the housing–resistance below 1 Ω confirms proper connection.
Apply heat-shrink tubing to insulate each joint, overlapping the connector housing by at least 5 mm. Avoid twisting conductors during assembly; strain relief loops of 10–15 cm reduce mechanical stress. Use 22–24 AWG stranded copper for signal integrity over runs up to 50 meters; larger gauges introduce noise. Terminate both ends identically–crossed wires cause data dropouts.
Test configurations with a controller outputting defined patterns: flashing LEDs or moving lights verify correct polarity. Reverse terminal two and three if fixtures fail to respond. For temporary setups, crimp-on contacts expedite repairs but increase risk of intermittent faults; solder remains the standard for permanent installations.
Keep shield termination consistent across the network–isolate grounds only at controller outputs, never at fixtures. Use silver-coated solder for reduced oxidation; rosin flux prevents cold joints. Label connectors immediately after assembly: “IN” and “OUT” orientation matters for daisy-chaining without signal degradation.
Connecting 3-Point Stage Control Lines: A Practical Guide
Use a balanced connection scheme to ensure interference-free signal transmission. The first conductor (ground) connects to the shield at both ends, while the remaining two carry the inverted and non-inverted signals. Terminate each segment with a 120Ω resistor between the signal paths at the far end to prevent reflections.
XLR connectors are the industry standard for theatrical lighting interfaces. The male end (chassis) should carry the outgoing signals, while the female connectors (panel-mounted) receive input. Avoid daisy-chaining more than 32 devices without signal boosters–excessive length causes voltage drop, distorting commands.
Common Mistakes in Signal Line Assembly
Reversing the hot and cold paths during soldering introduces phase cancellation. Verify polarity with a voltmeter–correct pairing shows ≈1.2Vpp across the wire pair. Skipping the resistor leads to erratic dimmer operation or flickering fixtures, especially at distances over 50 meters.
Twisted pair cabling is non-negotiable. Untwisted wires invite electromagnetic interference from adjacent power lines, corrupting low-voltage control data. For temporary setups, use pre-assembled leads with foil shielding–DIY installations should maintain a minimum twist rate of 2 twists per inch.
Moisture ingress degrades signal integrity over time. Seal connector backs with silicone or heat-shrink tubing, particularly in outdoor venues. Corroded contacts manifest as intermittent failures, often misdiagnosed as fixture malfunctions.
Quick Reference for Pinout Assignments
Connector A (male): shell → common ground, round contact → cold return, pointed contact → hot signal. Connector B (female) mirrors this configuration. Always label both ends during installation–mixed assignments disrupt entire lighting rigs.

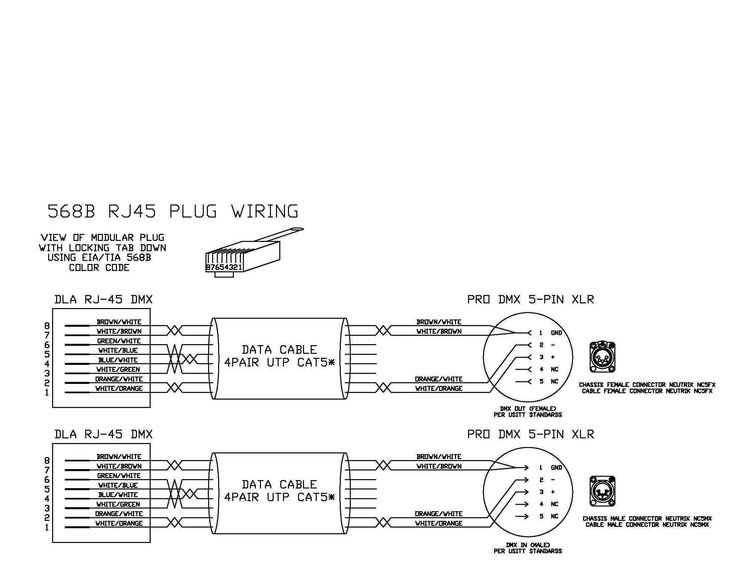

For cross-connection between different connector formats (e.g., XLR to RJ45), use adapter boards with isolation transformers. Direct bridging introduces ground loops, evidenced by low-frequency hum in audio systems sharing the infrastructure. Test each segment with a continuity tester before energizing.
Power consumption peaks during simultaneous cue execution. Budget 50mA per node; exceeding the controller’s rated output (typically 500mA) causes signal clipping. Distribute heavy loads across multiple ports or employ external repeaters rated for 10,000 nodes.

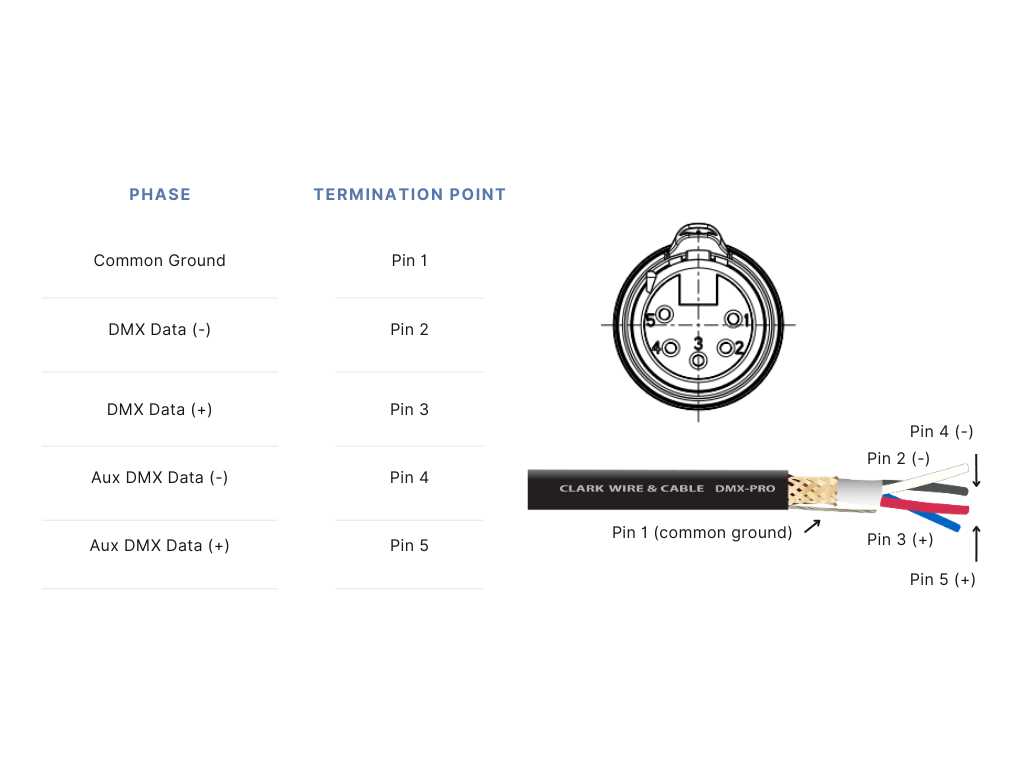

Understanding the Terminal Layout for DMX Interfaces
Always verify signal polarity before powering equipment–terminal 1 serves as the reference ground in most configurations, while terminal 2 carries the inverted data stream and terminal 3 transmits the non-inverted signal. Swapping these leads often results in erratic behavior or complete failure of connected devices. Use a multimeter to confirm continuity and proper voltage levels between sites, especially when working with long runs or daisy-chained gear.
Termination plays a critical role–omitting a 120-ohm resistor at the final connection point invites signal reflections that degrade transmission quality. Insert the resistor between the data lines (terminals 2 and 3) on the last fixture in the chain. Failure to terminate properly manifests as flickering, random color shifts, or dropout, particularly noticeable in systems with multiple linked units. Avoid relying on built-in termination unless explicitly documented.
For adaptors or custom harnesses, select materials with low capacitance to prevent signal attenuation. Solid-core copper conductors (22-24 AWG) outperform stranded alternatives in noise resistance, though flexibility may be reduced. Avoid untwisted segments exceeding 10 cm (4 inches) between connectors, as this increases susceptibility to electromagnetic interference. When joining segments, solder joints should be inspected for cold solder bridges–these introduce resistance spikes that distort timing pulses.
Test every segment sequentially before full deployment. A step-by-step approach isolates faults quickly: begin with a single fixture, add one unit at a time, and monitor stability. Tools like a DMX tester or oscilloscope reveal signal integrity issues invisible to the naked eye–look for clean, rectangular waveforms with rise times under 50 ns. If waveforms appear rounded or jagged, suspect poor shielding, incorrect gauge, or unterminated segments.
In mixed installations where power and control share conduits, separate conductors by at least 30 cm (12 inches) to avoid crosstalk. For temporary setups, use shielded cables with a foil or braided layer grounded only at the controller end. Ground loops arise when shields are bonded at both ends, causing hum or data corruption. Remove one ground connection if interference persists.

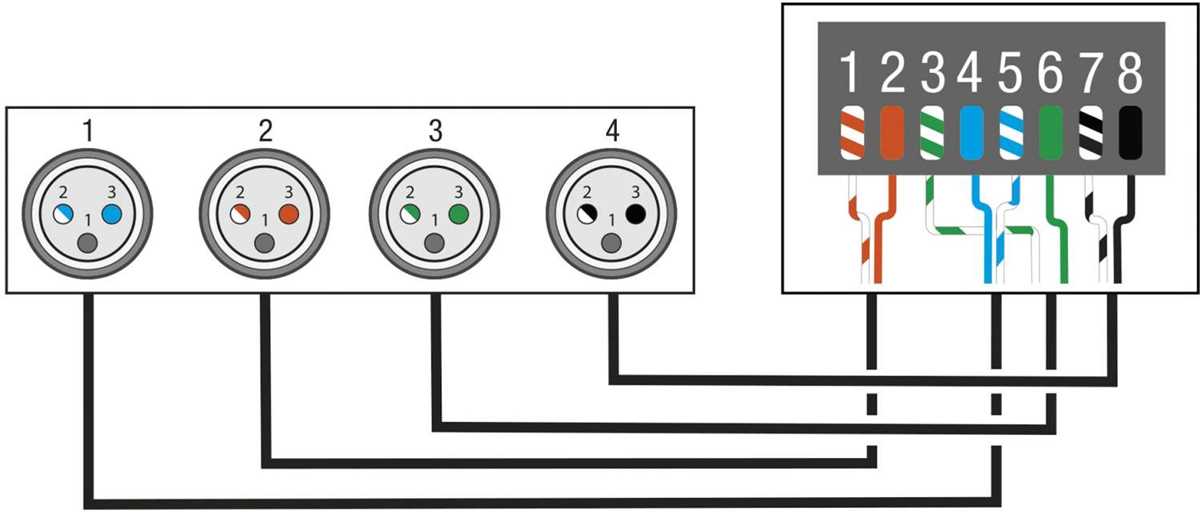

Adapters like XLR to RJ45 require careful attention to pin alignment–some third-party converters reverse signal assignments, causing silent errors. Document each adapter’s pinout and label cables to prevent misconfiguration during rapid setup or teardown. Never assume compatibility between different manufacturers’ equipment–even minor deviations in timing thresholds can render a system inoperable.
Troubleshoot by systematically eliminating variables: swap suspect leads with known-good ones, test alternate fixtures, and check power supply voltages within the controller and fixtures. Many failures stem from overlooked voltage drops rather than data issues–ensure all devices receive between 12–24V DC (or specified AC) with stable current draw. For battery-powered setups, monitor capacity, as low voltage distorts timing and triggers dropout.
When designing custom control rigs, adhere to the EIA-485 electrical standard for balanced communication. Maximum recommended segment length is 300 meters (1,000 feet) with a limit of 32 unit loads per segment. Exceeding these limits without signal boosters leads to data skew and irrecoverable errors. For extended networks, employ repeaters or splitters to regenerate the signal–place them mid-chain rather than at endpoints to maintain timing accuracy.
Step-by-Step Guide to Assembling a 3-Contact XLR Connector for Lighting Control
Begin by stripping the outer jacket of the transmission line to expose the three internal conductors, ensuring you leave approximately 5mm of shielding intact. Verify the correct color-coding: the positive signal lead (typically white or yellow) carries data, the negative return (black or blue) grounds the circuit, and the shield (bare or braided) prevents interference. Use a precision knife or dedicated stripping tool to avoid nicking the internal wires, as even minor damage can degrade signal integrity.
Twist each conductor gently to consolidate stray strands, then tin the ends with solder to prevent fraying during insertion. Refer to the connector’s housing for marked terminals–align the positive lead with terminal 1, the negative with terminal 2, and the shield with the ground lug. Secure the shield separately if the connector includes a dedicated clamp; do not solder it directly to the chassis unless specified by the manufacturer. A common error involves reversing the signal and return leads, which disrupts communication between fixtures.
Insert each tinned conductor into its designated terminal, applying solder only after confirming proper alignment. Heat the terminal evenly with a temperature-controlled iron (350°C max) to avoid melting insulation or damaging the connector’s plastic housing. For strain relief, ensure excess transmission line extends at least 1cm inside the connector before crimping the strain clamp. Over-tightening the clamp can compress the internal wires, while insufficient pressure risks disconnection during movement.
| Connector Terminal | Wire Assignment | Signal Function |
|---|---|---|
| 1 (Hot) | White/Yellow | Data+ |
| 2 (Cold) | Black/Blue | Data Return |
| Shell/Ground | Bare/Braided | Interference Shield |
Test the connection with a continuity meter before finalizing the assembly. Probe each contact to confirm no shorts exist between the signal paths or shield. Attach the connector’s back shell, threading it securely to prevent rotational stress on the soldered joints. For multi-drop setups, remember that the last fixture in the chain must terminate with a 120Ω resistor between terminals 1 and 2 to prevent signal reflection. Skipping termination causes flickering or erratic behavior in connected devices.
