Step-by-Step 3 Way LED Dimmer Switch Wiring Guide with Diagram

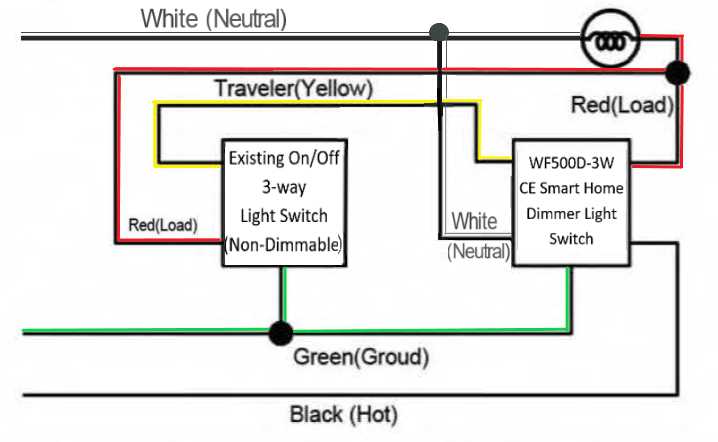

Start by identifying the common terminal on the first controller–it’s typically marked with a darker screw or labeled COM. Connect the live feed from your power source here. The remaining two terminals on this unit should link to their counterparts on the second control, using a pair of traveler wires (usually red and black). Ensure polarity doesn’t matter for these connections, but maintain consistency to avoid confusion during troubleshooting.

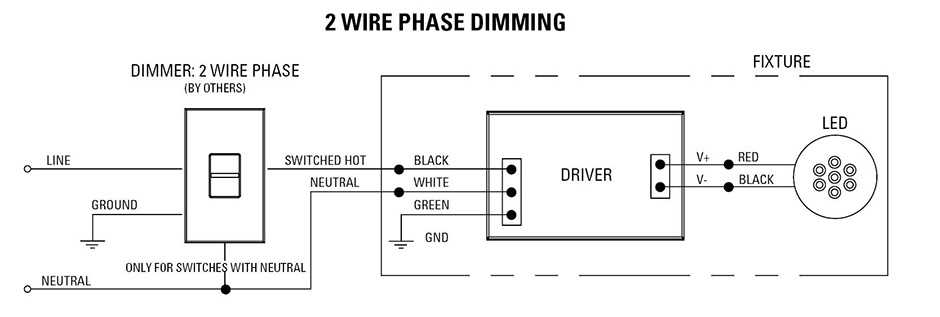

Critical step: Attach the neutral wire directly to the light fixture, bypassing both controls entirely. LED-compatible models often require a neutral path for proper operation, even if traditional incandescent setups don’t. Check the fixture’s specifications–some drivers won’t function without this connection, leading to flickering or premature failure.

For the second control, connect the remaining traveler wires to the matching terminals first. Then, link the fixture’s hot lead to the unit’s load terminal (often marked or color-coded). If your setup includes a grounding wire, bond it to all metal parts of the system, including fixture housing and control enclosures. Failure to ground properly risks interference that can manifest as buzzing or erratic brightness levels.

Pro tip: Before sealing the connections, test the circuit with a multimeter. Verify that voltage between the common terminal and neutral matches your supply (e.g., 120V AC). If readings fluctuate, recheck traveler wire continuity–intermittent connections are the most common cause of inconsistent performance. Always cap unused terminals with wire nuts to prevent accidental shorts.

For fixtures above 20 watts, confirm the controls’ wattage ratings. Exceeding capacity creates heat buildup, reducing lifespan. If unsure, opt for units labeled universal or LED-specific, as they’re designed to handle lower loads without compatibility issues. Employ stranded wire for traveler connections–it flexes better in tight electrical boxes, reducing strain on terminals over time.

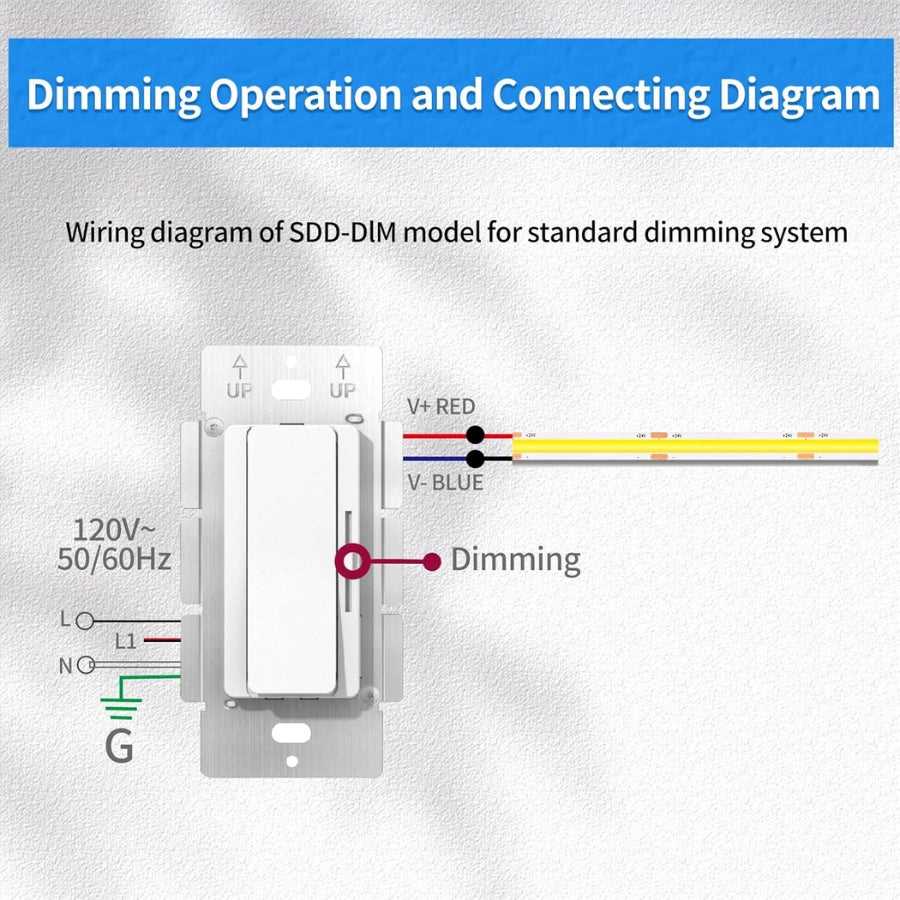

Guide to Connecting a Multi-Location Brightness Controller for Low-Voltage Fixtures

Begin by identifying the power feed line, typically marked with black insulation, and connect it to the common terminal on the primary control unit–this is the brass-colored screw. The secondary unit’s common terminal must link to the fixture’s hot lead, ensuring consistent current flow regardless of position. Use 14-gauge solid copper wire for branches rated under 15 amps; anything higher demands 12-gauge. Twist wire ends clockwise before securing under terminal screws to prevent loosening over time. Label traveler wires (red or yellow) at both endpoints to avoid misconnection, as these carry intermediate signals between the two controls.

Verifying Phase Alignment and Grounding

Ensure the travelers from both units match–crossing them causes flickering or failure. Attach the grounding conductor (bare or green) to the green screw on each device and bond it to the metal junction box if present. For non-metallic boxes, run a separate ground wire to the fixture. Test voltage with a multimeter before restoration: measure between each traveler and neutral–readings should match the supply voltage. If discrepancies appear, recheck polarity or consult the manufacturer’s schematic for alternate configurations, especially in systems with bypass capacitors or voltage droop compensation.

Core Equipment for Installing a Tri-State Illumination Regulator

Select a phase-adjusting mechanism rated for 15–600W with a neutral terminal if your circuit requires it–common in modern installations but absent in older setups. Verify compatibility with resistive, inductive, and capacitive loads; mismatch risks flickering or overheating. For multi-location control, procure two matched units from the same series to ensure uniform behavior and seamless sync. Include a voltage tester with non-contact detection (12–600V AC) and a slim-profile probe for confined junction boxes. Screwdrivers must fit #6–#10 terminal screws; magnetic tips prevent dropped fasteners. Wire strippers with 12–20 AWG notches prevent nicked conductors, while needle-nose pliers bend tight loops around terminal screws.

Auxiliary Supplies for Secure Integration

Twist-on connectors (red, 18–10 AWG) secure splices; avoid blue or yellow sizes as they may not grip solid conductors firmly. Use 12–14 AWG solid copper wire for extensions–stranded wire can fray under terminal pressure. Electrical tape should meet UL 510 for dielectric strength, while arc-fault circuit interrupters (AFCI) or ground-fault circuit interrupters (GFCI) may be mandated by local codes for branch protection. A multimeter with continuity testing identifies faulty traveler conductors; set it to 200Ω range for accurate readings. Keep a flashlight with a 90-degree articulating head to illuminate deep boxes without casting shadows.

Step-by-Step Guide to Identifying Conductors in a Three-Component Control Setup

Locate the power source cable first–this bundle enters the junction box with one hot conductor (typically black or red), one neutral (white), and a ground (bare copper or green). Use a non-contact voltage tester to confirm which wire carries current; the hot strand will trigger the detector. Label this immediately with masking tape marked “LINE” to avoid confusion later.

Examine the remaining cables in the box–there should be two traveler conductors (usually red and black) running between the control points and one common terminal (often darker than travelers). The common connects to the load or power feed and remains energized in one position; travelers alternate roles depending on toggle state. Shut off power at the breaker before handling any bare ends.

1. Attach one probe of a multimeter to the identified LINE hot wire.
2. Touch the second probe to each traveler–both should register voltage in one toggle position and drop in the other.
3. Move to the second control box; repeat the process to confirm which wires correspond to the first box’s travelers.
4. Label the common terminal in both boxes–this is the screw or clamp not sharing the same voltage pattern as the travelers.

Misidentification risks incorrect function or short circuits. Verify all markings by restoring power briefly–only the common should remain hot regardless of toggle state. If voltage behaves unpredictably, recheck connections before proceeding.

• Travelers: Two wires (often red/black) alternating voltage between control points.
• Common: Single wire (often black/brass screw) linking power or fixture.
• Neutral: White wire–always connects to load side in modern setups.
• Ground: Bare/green wire–bond all metal components together.

Test continuity with the circuit de-energized: Disconnect all wires, then use the multimeter’s continuity mode. The common should show continuity with only one traveler at a time, switching between them as the toogle flips. If continuity behaves otherwise, re-inspect connections for crossed wires.

Document each wire’s role with labeled tape at both connection points before finalizing joins. Ensure no bare strands protrude–secure all splices with wire nuts or lever connectors, then fold neatly into the junction box. Replace covers and restore power only after double-checking all steps against this guide.

Step-by-Step Guide to Integrating a Tri-Position Light Control with Current Circuits

Turn off the power at the circuit breaker for the room where you’re working–verify absence of voltage with a non-contact tester before proceeding. Identify the existing traveler wires; they’re typically red and black (or one black and one marked with tape) and must remain connected to their original terminals. Label each wire with masking tape to prevent confusion during reinstallation.

Connect the first control’s common terminal to the circuit’s load wire–usually black or marked with a distinct color–using a wire nut rated for 600V. Secure the two traveler conductors to the remaining screws, ensuring no exposed copper extends beyond the nut. Tighten each connection with pliers, then tug gently to confirm stability.

For single-pole compatibility: if replacing a two-location setup with a single control, cap the unused traveler with a twist-on connector and tuck it into the box. The neutral wire–white, grouped with others–should never be interrupted; leave it bundled intact.

Mount the device into the electrical box, aligning screws with the mounting holes. Use short, self-tapping screws if the original holes are stripped. Attach the cover plate, ensuring it sits flush against the wall without gaps. Restore power at the breaker and test each position with a voltage pen to confirm proper operation.

If flickering occurs, recheck connections for loose strands–especially at the traveler terminals–and ensure all wire nuts are securely fastened. For multi-level lighting, select the highest brightness setting during testing to verify all diodes illuminate fully.

When adding a secondary control, repeat the process in the opposite box, matching traveler colors to their original counterparts. If colors differ, use a multimeter in continuity mode to trace each conductor. Keep the load terminal on only one device; the other should connect exclusively to the traveler lines.

Troubleshooting Common Issues After Installing a Three-Control Light Adjustment Device

If the fixture fails to respond after installation, check the common terminal connection first. The brass or black screw on one adjustment unit must connect to the power source or load–verify this matches the circuit layout. Replace any loose wires with 14-gauge solid copper and secure them under terminals with 15-20 inch-pounds of torque. A multimeter set to AC voltage should read 120V between the common terminal and neutral when measuring; if not, inspect the breaker and upstream connections for continuity.

Flickering or inconsistent brightness often stems from mismatched load compatibility. Confirm the total wattage of connected bulbs does not exceed the device’s rating–most phase-control units handle 150W for smooth operation, while electronic low-voltage models may require derating. For low-wattage installations (under 20W), add a bypass capacitor or resistor inline to stabilize current. If bulbs produce a faint humming noise, replace them with compatible filament or electronic drivers designed for adjustable illumination.

Ghosting–the dim light when the controller is off–indicates residual current. Test by disconnecting one traveler terminal; if the issue persists, install a neon indicator or mechanical bypass to dissipate stray voltage. For digital or smart units, ensure the ground is properly bonded to the metal box, as floating potential can cause erroneous behavior. Check for parallel paths, such as shared neutrals with other circuits, which may introduce phantom loads.

Symptom	Possible Cause	Solution
No response	Incorrect common terminal wiring	Verify 120V at common terminal; re-terminate
Flickering	Exceeded wattage limit	Downsize bulbs or add bypass hardware
Humming	Incompatible bulb type	Use filament or electronic driver bulbs
Ghosting	Residual voltage	Add neon indicator; check ground bond

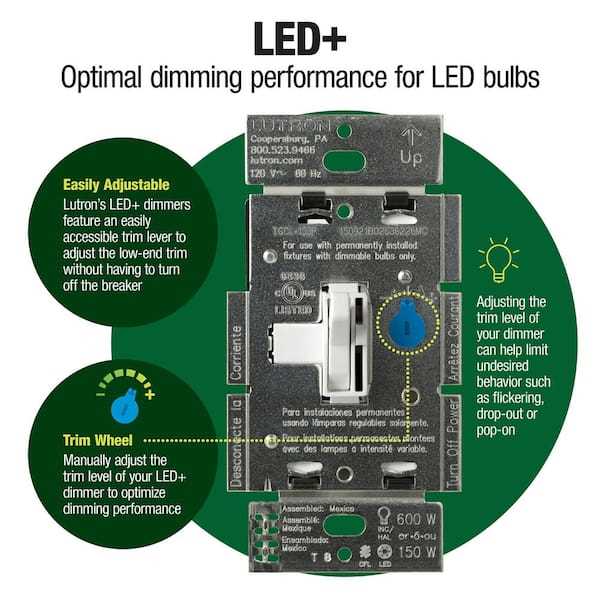

Non-linear adjustment curves point to incorrect traveler pairing. Swap the wires at one terminal block; if the issue reverses, reconfigure the travelers to match the circuit path. For multi-location setups, label both travelers and common with colored tape to avoid misalignment. If the adjustment range is truncated, recalibrate the device’s internal potentiometer or replace it if internal resistors show signs of overheating.

Overheating suggests poor thermal management. Remove the cover plate and ensure ambient temperature stays below 40°C. If the unit is mounted in a confined box, replace it with a larger enclosure or add a heat sink. On circuits with inductive loads (e.g., transformers), use an RC snubber to suppress voltage spikes, which can degrade components over time. For frequent replacements, upgrade to a unit with built-in surge protection rated for 6kV minimum.

For inconsistent operation across multiple controls, test each unit individually by disconnecting one at a time. If one fails to synchronize, its internal triac may be faulty–replace the entire module rather than attempting repairs. In smart or programmable setups, reset the firmware and reconfigure the network settings, as corrupted memory can cause erratic behavior. Always power down the circuit at the breaker before handling any terminals to avoid short circuits or shock hazards.
