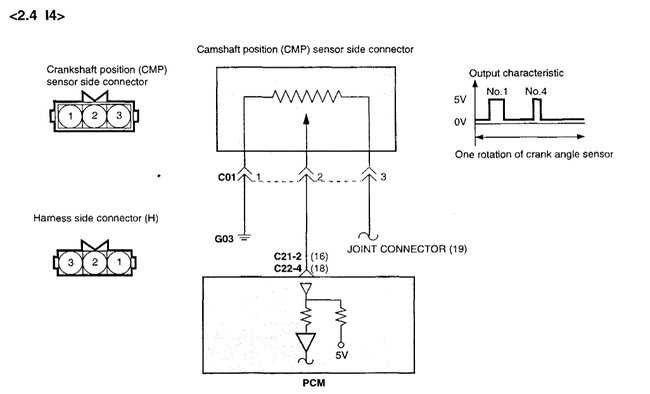

Complete 3-Wire Camshaft Position Sensor Wiring Guide with Diagram

Connect the signal wire to the ECU’s designated input–typically labeled CKP or CMP on most control units. Verify polarity using a multimeter: the output should toggle between 0V and 5V (Hall-effect) or 0-12V (inductive) during cranking. Reverse connections if readings remain flat or inverted.

Ground the reference wire directly to the engine block or a dedicated chassis point, avoiding shared grounds with high-current components like injectors or coils. Poor grounding introduces noise, leading to misfires or erroneous timing corrections. Use a 16-18 AWG wire with crimped ring terminals for stability.

The power supply must be sourced from a fused ignition circuit–not battery direct. For 5V sensors, tap the ECU’s VREF output (often marked +5V). For 12V variants, use the ignition-switched +12V line. Verify voltage stability under load; drops below 4.5V or 11.5V respectively degrade accuracy.

Test continuity between all pins and the ECU connector before final assembly. A 0.1-1.0Ω resistance across each circuit confirms integrity. Isolate faults by probing while wiggling the harness–intermittent breaks suggest damaged insulation or loose terminals.

For Hall-effect devices, shield the signal wire with twisted-pair or foil shielding if routing near alternators, ignition coils, or fuel pumps. Terminate the shield at the ECU side only, leaving the sensor-side floating to prevent ground loops. Inductive types require no shielding but benefit from 3+ cm separation from pulsing components.

When calibrating, monitor the ECU’s live data stream for consistent edge transitions. Irregular patterns indicate wiring faults, misalignment, or sensor damage. Replace the unit if signal flatlines or fluctuates unpredictably.

How to Connect a Tri-Contact Position Tracker in Your Vehicle

Start by identifying the power, ground, and signal contacts on the tracker. Most devices use a standardized pinout: a 5V or 12V supply line (red or yellow wire), a chassis reference (black or brown lead), and a pulse output (typically blue or white). Verify these assignments using a multimeter before making any connections–incorrect polarity can damage the module.

Secure the supply line directly to the ignition-switched fuse box for low-current protection. Avoid splicing into high-load circuits like fuel pumps or cooling fans; parasitic voltage drops can corrupt pulse readings. If the vehicle lacks a dedicated low-amperage fuse slot, insert an additive fuse rated no higher than 10A adjacent to an existing circuit that energizes only when the key is in the ON position.

The reference lead must terminate to an unpainted metal surface near the mounting location. Remove any corrosion or protective coatings at the contact point; even minor resistance will introduce noise into the output signal. Avoid grounding through bolted subassemblies (transmission cases, intake manifolds) unless they provide a verified clean return path. Test continuity using a dedicated chassis probe, not the vehicle’s own wiring harness.

The pulse lead connects to the engine control module via shielded cable if routing exceeds 30 cm. Twist the signal pair (pulse + reference) tightly and maintain separation from high-energy ignition wires, injector leads, or alternator output circuits. For interference-prone installations, wrap the twisted pair in conductive foil or braided mesh, grounding the shield exclusively at the control module end.

Calibration begins once all leads are secured. Key ON, engine OFF should register a baseline frequency; cranking the motor should produce a clean waveform at 5-15 Hz, depending on engine speed. Any dropouts or erratic spikes indicate poor grounding, pinched wires, or voltage leakage–re-check each connection with a scope before proceeding.

If the control module fails to recognize the pulse, swap the supply and signal leads between known-good connectors. Many aftermarket units expect high-going pulses; reversing polarity on a pull-down module can mimic a short. Confirm the expected pulse edge (rising or falling) in the service manual; mismatch causes untraceable misfires during startup.

Finalize the installation by sealing all junctions with adhesive-lined heat shrink tubing. Avoid electrical tape or liquid sealants–they trap moisture and degrade over temperature cycles. Route excess wire through existing harness channels, using existing clips to prevent chafing against moving components. Label both ends of each lead with matching heat-shrink sleeves for future diagnostics.

How to Determine the Signal, Supply, and Reference Leads in a Triple-Conductor Position Detector

Begin by locating the manufacturer’s datasheet or pinout label on the connector housing–most suppliers mark the leads with standardized symbols: “V+” (supply), “GND” (reference), and “SIG” or “OUT” (signal). If documentation is absent, measure the harness resistance with a multimeter in continuity mode; the ground wire typically shows a direct connection to the engine block or chassis ground, often featuring bare copper or ring-terminal termination.

Apply 5V from a regulated bench supply to each pair of conductors while monitoring the output at the third lead–a steady low-voltage pulse (0.5–4.7 V) on one conductor confirms the signal pin, while consistent high current draw (50–100 mA under load) identifies the power lead. Avoid exceeding 12V during testing to prevent damaging Hall-effect or magneto-resistive sensing elements.

Inspect the harness sleeve color codes common across OEM units: Bosch and Denso frequently use red (power), black (ground), and white or yellow (signal), whereas aftermarket kits may adopt blue (reference), green (output), and brown (supply)–always cross-verify with a scope trace showing crank/camshaft phase alignment for absolute confirmation.

Step-by-Step Guide to Integrating a Tri-Pin Position Indicator with Engine Control

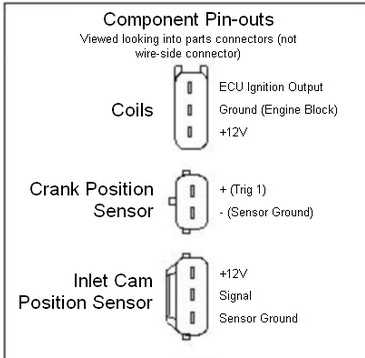

Locate the signal, power, and ground pins on the component’s connector using the manufacturer’s pinout. Most configurations assign the center pin to a 5V reference, while the outer pins serve as signal output and ground. Verify these assignments with a multimeter in continuity mode–measure resistance between each pin and its corresponding ECM terminal to confirm correct mapping. Misidentification here leads to incorrect timing readings or ECM faults.

Prepare the ECM harness by stripping 5mm of insulation from each wire end. Use heat-shrink tubing pre-slid onto the wires to insulate splices after crimping. For secure connections, match wire gauges: typically 18-22 AWG for signal leads and 14-16 AWG for power/ground. Avoid twisting strands excessively–this increases resistance. Instead, use a ratcheting crimper with die-specific jaws (e.g., 0.5–1.5mm²) to ensure crimp integrity. Test each connection with a pull test (minimum 5N force) before proceeding.

Pin Function	Wire Color (Typical)	ECM Terminal	Voltage (Key On)
Reference Voltage	Red or Orange	VREF	4.8–5.2V
Signal Output	Yellow or White	CMP	0.5–4.5V (pulsing)
Ground	Black or Brown	Sensor Ground	0V

Route the harness away from hot or moving components–maintain a minimum 50mm clearance from exhaust manifolds and belts. Secure wires with nylon ties every 150mm, avoiding sharp edges. For EMI-sensitive applications, use shielded cable for the signal line, grounding the shield exclusively at the ECM side. When splicing into existing circuits, insert a 1A fuse in the power line to prevent short-circuit damage to the control module.

Connect the harness to the ECM, ensuring polarity matches the pinout. Recheck all crimps and shrink tubing with a multimeter in diode-test mode–no continuity should exist between adjacent pins. Initialize the ECM by cycling the ignition key on/off three times, observing for stable voltage readings on the signal line (oscilloscope preferred). If irregular waveforms appear, verify ground integrity–poor grounding causes Hall-effect devices to produce false triggers or dropout.

Calibrate the system using manufacturer-specific software or scan tool procedures. For most gasoline engines, this involves setting base timing with the indicator aligned to a specific tooth or gap on the reluctor wheel. Diesels often require additional steps, such as synchronizing with the crank position indicator. Record the adaptation values persistently–some ECMs reset these during power loss, leading to rough idle or misfires until recalibrated.

Critical Errors to Sidestep When Connecting Magnetic Position Detectors

Mixing up signal, power, and ground leads guarantees immediate malfunction. Most manufacturers color-code these connections–red for supply voltage (typically 5V), black for ground, and a third color (yellow, blue, or white) for the output pulse. Verify the pinout on the component’s datasheet before crimping terminals. A single reversed pair can destroy the unit or corrupt ECU readings, leading to erratic ignition timing or fuel injection cutoffs.

Skipping the voltage verification step invites short circuits. Apply a multimeter across the power and ground pins to confirm the supplied voltage matches the specified range (usually 4.5V–5.5V). Exceeding this window fries internal circuitry; undervoltage causes intermittent signal drops. Ignore this check, and you risk permanent damage that mimics wiring errors, wasting hours on false diagnostics.

Common oversights include:

• Omitting a 0.1µF decoupling capacitor across power and ground near the connector–this filters electrical noise, preventing false triggers.
• Leaving exposed terminals–corrosion from moisture or vibration loosens connections, distorting signals.
• Using incorrect gauge wire–stranded copper AWG 20–22 is standard; thinner wires increase resistance, degrading performance.
• Disregarding EMI shielding–run signal wires away from high-current cables (e.g., alternator leads) or shield them with braided sleeving.

Signal Wire Pitfalls

Route the output lead directly to the controller without splices or extensions. Each splice introduces resistance and signal degradation, especially in high-RPM applications. If extension is unavoidable, solder and heat-shrink every joint–twist-and-tape connections corrode within months. Ground the shield at one end only; looping it creates ground loops that distort readings.

Avoid assuming factory connectors are foolproof. Many aftermarket harnesses use push-fit terminals that fail under vibration. Replace them with soldered or crimped connections secured by dual-wall adhesive-lined shrink tubing. Test continuity with a load (e.g., LED or scope) before final assembly–phantom opens from poor crimps often surface only after extended operation.
