Key Components and Process Flow in Oil Refinery Schematic Layout
Start by mapping distillation units at the core of the system–identify atmospheric and vacuum columns first. These components handle initial separation of raw feedstock into fractions based on boiling points. Place the atmospheric tower upstream, followed immediately by the vacuum unit to process heavier residues. Ensure 5–10 meters of clearance between these towers to accommodate piping, heat exchangers, and safety buffers.
Position catalytic crackers and hydrocracking reactors adjacent to the distillation section. These units require close proximity for efficient feedstock transfer via high-pressure pumps and preheated lines. Include slug catchers upstream of reactors to handle liquid carryover and prevent damage to catalysts. Use ϕ12–16-inch piping for fluidized bed reactors to maintain optimal flow rates of 5–8 m/s.
Integrate thermal oxidizers and sulfur recovery plants downstream of the conversion units. These subsystems must operate at 250–300°C and handle 3–5% sulfur content in heavy feeds. Route waste gases through quench towers before releasing them into the environment, ensuring compliance with EPA Tier III emissions standards. Place storage tanks for intermediate products (e.g., naphtha, diesel) on the facility’s periphery–use floating roof tanks for volatile compounds to minimize vapor loss.
Design pump alleys with parallel redundancy–install centrifugal pumps (rated 150–300 HP) for main feed lines and positive displacement pumps for high-viscosity streams. Separate utility corridors for steam, cooling water, and instrument air–use ANSI 300# flanges for high-temperature/high-pressure connections. Include pressure relief valves (set at 110% of max operating pressure) on all critical lines to prevent overpressure scenarios.
Label all process streams with unique alphanumeric tags (e.g., “SL-101A” for a hydrocarbon feed line) and color-code piping (e.g., yellow for oil streams, green for water lines). Specify insulation thickness (2–4 inches for cold service, 3–5 inches for hot) and jacket trace heating for streams prone to solidification (e.g., paraffin-rich cuts). Validate the layout with dynamic process simulation software (e.g., Aspen HYSYS) to confirm residence times and thermal balances before finalizing pipe routing.

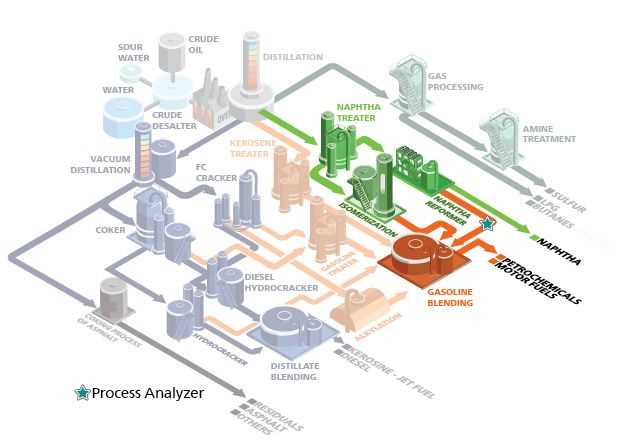

Understanding the Layout of a Petroleum Processing Plant
Begin by identifying the primary separation column, typically labeled as atmospheric distillation. This unit processes raw feedstock at temperatures ranging from 350°C to 400°C, splitting hydrocarbons into fractions like naphtha, kerosene, and diesel based on boiling points. Ensure the flow diagram includes precise temperature gradients and pressure values–critical for troubleshooting efficiency drops.
Locate the vacuum distillation tower adjacent to the first stage. Here, heavier residues undergo secondary separation at reduced pressures (50–100 mmHg) to prevent thermal cracking. Check that the schematic marks the vacuum pump system and its capacity; undersized pumps lead to incomplete separation and fouling in downstream units.
Examine the conversion zones, such as the fluid catalytic cracking (FCC) unit or hydrocracker. The FCC operates between 480°C and 550°C with catalysts like zeolite to break long-chain molecules into gasoline-range products. Verify that the diagram specifies catalyst regeneration cycles–poorly timed cycles reduce yield by up to 15%.

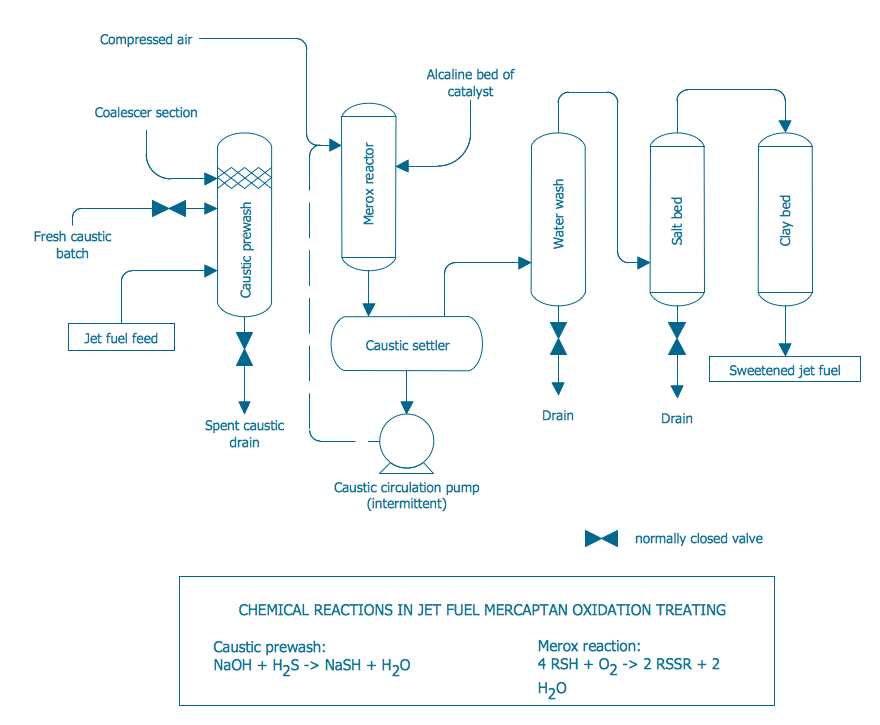

Trace the treatment pathways–hydrotreating reactors remove sulfur and nitrogen contaminants under hydrogen pressures of 30–130 bar. Cross-reference the diagram with actual hydrogen consumption rates; deviations signal leaks or catalyst deactivation. Missing these details risks compliance violations with emissions standards like Euro 5 or Tier 3.
Assess the utility section, where steam, cooling water, and electricity supply lines intersect. Steam at 10–40 bar drives turbines and reboilers; the diagram must show boiler feedwater sources and condensate return loops. Overlooking these leads to energy losses, as unrecovered condensate wastes 5–10% of fuel input.
Validate auxiliary components: flare systems for pressure relief, tank farms for intermediate storage, and wastewater treatment. The flare’s design must match the plant’s maximum emergency flow rate–commonly 1.2 times the highest daily throughput. Storage tanks should align with API 650 standards for structural integrity, while wastewater units must detail pH adjustment and settling tanks to avoid fines.
Key Components of a Crude Distillation Unit
Install a desalter upstream of the preheat train to remove salts, water, and solids–target <5 ppm salt in the feed to prevent fouling in downstream exchangers. Use electrostatic coalescers operating at 120–150°C and 1–3 kV/cm field strength; adjust pH to 6–7 with ammonia or caustic to optimize water separation. Bypass 10–15% of the feed if salt content exceeds 100 ppm to avoid overloading.
Design the atmospheric column with 40–50 trays or structured packing equivalent; maintain a top temperature of 130–150°C and bottom temperature of 350–370°C. Fit side strippers with 4–6 trays each, injecting superheated steam at 1.5–2.5 kg per barrel of residue to reduce partial pressure. Reflux ratios should range 0.5–0.8 for naphtha draws and 1.0–1.5 for heavier cuts to achieve sharp fractionation.
Heat Integration Critical Points
| Exchanger Type | Duty (MW) | ΔT (°C) | Cleaning Interval |
|---|---|---|---|
| Crude-preheat | 40–60 | 20–30 | 6–12 months |
| Bottoms-pumparound | 25–35 | 40–50 | 18–24 months |
| Overhead condenser | 15–20 | 10–15 | 24–36 months |
Specify furnace tubes in the radiant section with a heat flux of 25–35 kW/m²; use vertical-cylindrical or cabin-type designs for feeds above 10 000 BPD. Apply air preheating to achieve 90–92% thermal efficiency, targeting 15–20% excess oxygen in flue gas. Monitor tube metal temperatures–shutdown if local hot spots exceed 550°C to prevent creep damage.
Equip the vacuum section with 2–3 stages of steam ejectors or liquid-ring pumps; maintain absolute pressure at 10–30 mmHg. Use structured packing with 100–150 m²/m³ surface area in the wash zone to minimize entrainment of residue. Recover 85–90% of the vaporized gas oil; ensure quench sections cool bottoms to <120°C within 30 seconds to prevent thermal degradation.

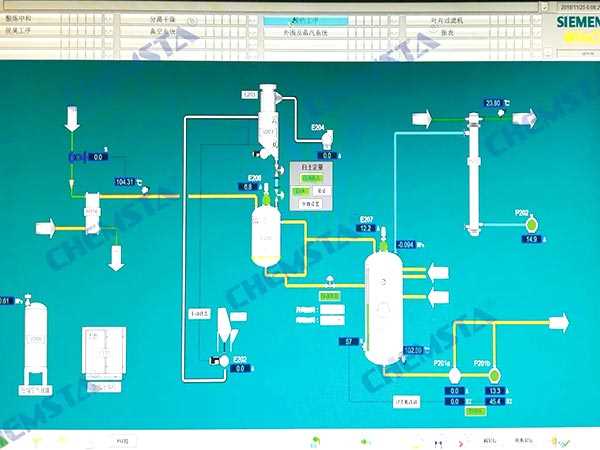

Instrumentation and Control Loops
Implement cascade control on the bottoms level: outer loop adjusts product flow based on level, inner loop trims heat input via furnace draft. Use Coriolis meters for feed and product lines–accuracy ±0.1%–to reconcile mass balances. Install online analyzers for sulfur, TBP, and flash point at key draws; update distillation models every 4–6 hours with lab data for closed-loop optimization.

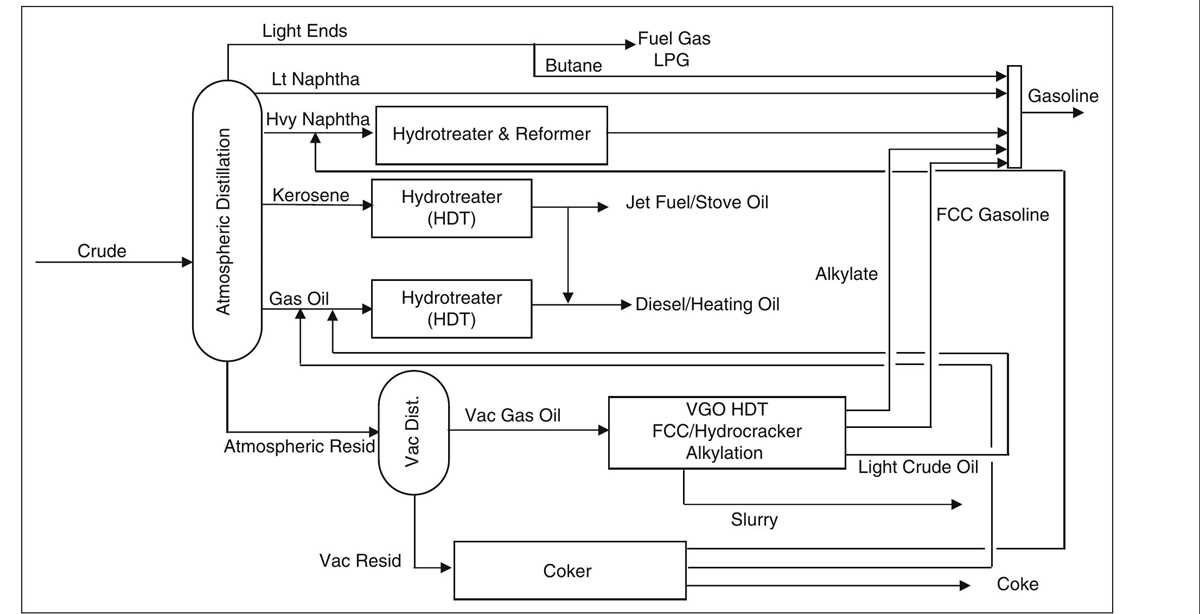

Flow Path of Intermediate Streams in Processing Units
Design inter-unit transfer lines with a minimum slope of 1° to prevent vapor lock in naphtha or light distillate streams, particularly between the atmospheric distillation column and the hydrotreater. Use 8–12 inch diameter carbon steel piping (ASTM A106 Grade B) for intermediate cuts like kerosene and diesel; schedule 40 is sufficient up to 400 psi at 350°C, but switch to schedule 80 for streams exceeding 15% hydrogen sulfide content to avoid sulfide stress cracking. Install redundant pressure gauges at both the outlet of the fractionator and the inlet of the downstream reactor–ensure differential pressure never exceeds 1.2 bar, otherwise flare the excess through a dedicated emergency line to avoid catalyst bed flooding.
Critical Transfer Valve Configurations
- Use fail-close gate valves (API 602) on all transfer lines between the vacuum tower and the catalytic cracker–pneumatic actuators must complete closure in ≤ 15 seconds if the intermediate stream temperature rises above 380°C to prevent thermal runaway.
- Insert check valves (API 594) immediately downstream of every positive displacement pump handling resid streams; tilt them 3–5° from vertical to allow trapped vapor to escape upward, reducing water hammer risk.
- Equip each line with automated three-way divert valves linked to the DCS; program them to reroute streams to the slop tank if viscosity exceeds 250 cSt at 100°C–this prevents coke formation in furnace coils.
For heavy vacuum gas oil (HVGO) routed from the vacuum unit to the hydrocracker, preheat the feed in a shell-and-tube exchanger (TEMA R-60) using high-pressure steam (4.1 MPa) on the shell side. Maintain a ΔT of 30–40°C across the exchanger to minimize pressure drop; if ΔT drops below 25°C, initiate a 5-minute nitrogen purge at 0.3 m³/min to displace waxy deposits. Store intermediate cuts like light cycle oil in floating-roof tanks with internal heating coils–operate coils at 120°C for fractions with pour points above 15°C, but limit residence time to 24 hours to avoid oxidative degradation.
Critical Process Control Points in a Petroleum Processing Plant Layout
Install redundant temperature sensors at the desalter unit with ±0.1°C accuracy thresholds and independent PLC validation loops to detect brine carryover before fouling downstream heat exchangers. Configure alarms to trigger at 120°C–beyond optimal 90–110°C operating range–with automated bypass activation diverting feed to the slop tank when fouling resistance exceeds 0.0005 m²K/W, verified weekly via heat-transfer coefficient monitoring.
Pressure differential across catalytic reformer reactors must never exceed 0.3 bar; employ smart transmitters with 0.05% FS accuracy and SIL-2 certified shutdown valves programmed to isolate feed within 2 seconds of detecting coke breakthrough–defined as a 10°C radial temperature spread or 5% hydrogen slip in recycle gas chromatograph readings. Integrate corrosion coupons upstream of amine contactors to adjust injection rates of filming inhibitors dynamically, targeting 50–70 ppm residual Fe²⁺ in lean solution while maintaining MDEA concentration between 45–55 wt% via real-time density meters calibrated to ASTM D4052.
