How to Wire a 3-Prong Dryer Outlet Step-by-Step Guide

Begin by confirming the circuit delivers 240V with a multimeter–measure between the outer terminals to ensure 220-240V, not 120V. If voltage checks out, proceed with caution: incorrect attachment risks fire or equipment damage. For older installations lacking a ground terminal, code violations may apply, but temporary solutions exist if upgrading isn’t feasible.

Locate the appliance’s power cord split into three conductors: two hot lines (typically red and black, though colors can vary) and one neutral (white or gray). Strip ½ inch of insulation from each end, twist tightly, and secure under terminal screws. The neutral connects to the center post, while the hot lines attach to the outer screws. Tighten each screw to 12-15 inch-pounds–loose connections overheat.

Before energizing, verify continuity between the neutral and the appliance chassis with a meter. A reading near zero ohms signals a proper bond; infinite resistance indicates danger. If the chassis carries voltage, stop immediately–this suggests a reversed neutral or faulty insulation. Recheck terminations, then repeat the test. Only proceed if the meter confirms zero reading.

For permanent setups, replace the 3-prong configuration with a 4-prong outlet if the appliance supports it. Modern standards mandate a separate grounding path (green or bare wire) instead of relying on neutral. If retrofitting isn’t an option, ensure the neutral conductor is at least 10 AWG–thinner gauges can’t handle fault currents safely. Final step: wrap connections in electrical tape to prevent short circuits, then reinstall the outlet cover.

Connecting Your Appliance Cord: Key Steps for 3-Prong Configurations

Ensure the outer sheathing of the power cable is trimmed exactly 1.25 inches, exposing the internal conductors without nicking insulation. Position the neutral center conductor (striped or white) directly into the central terminal post marked “N” or “W” on the appliance terminal block, securing it with a torque screwdriver set to 25 in-lbs. Attach the remaining two hot legs (typically black and red) to the outer posts labeled “L” or “X/Y”–black to the left post, red to the right–matching the corresponding prongs of the receptacle (NEMA 10-30). Verify polarity with a non-contact voltage tester before energizing the circuit; reversed connections risk 240V feeding the neutral path.

Color Coding and Terminal Assignments

Conductor Color	Terminal Label	Function	Torque Specification
White/Striped	N or W	Neutral return	25 in-lbs
Black	L or X	120V hot leg	25 in-lbs
Red	L or Y	120V hot leg	25 in-lbs

Grounding the appliance chassis to the neutral conductor is specific to pre-1996 installations; for newer setups, replace the 3-prong receptacle with a 4-slot NEMA 14-30 and run a dedicated ground conductor back to the service panel. If retaining the older setup, bond the neutral to the chassis within the appliance using a 10-32 green grounding screw, as mandated by UL 60335-2-44. Failure to do so leaves exposed metal surfaces at 120V potential relative to ground, violating NEC 250.140 exceptions.

Essential Gear and Supplies for Installing a Three-Prong Outlet

Start with a 10-30R receptacle rated for 30 amps–verify the neutral slot is offset to match older appliance cords. Pair it with 12-gauge solid copper conductors (black for hot, red for secondary live, white for return path) and a braided ground strap if the setup lacks a dedicated earth terminal. For stripping, use lineman’s pliers with notch markings at 12 AWG; avoid diagonal cutters to prevent nicking strands. Secure connections with brass-rated screw terminals–tighten to 15 in-lbs torque using a preset screwdriver to prevent loosening under heat cycles.

Safety and Precision Add-Ons

Include a non-contact voltage detector (sensitivity ≥ 50V) to confirm dead circuits before handling terminals. Add heat-shrink tubing (3:1 shrink ratio) over crimped splices to block moisture ingress–select polyolefin for 105°C resilience. For conduit runs, stock 1/2-inch EMT couplers and set-screw connectors if transitioning to flexible armor. Keep a loop-end conduit bender on hand for precision 90° sweeps in tight spaces; mark bends at 6-inch intervals for consistent pull-through clearance. Store all components in a divided tackle box with labeled compartments to segregate live parts from insulation scraps.

Step-by-Step Guide to Removing the Old Appliance Connector Safely

Before detaching anything, ensure the power source is off at the circuit breaker. Use a non-contact voltage tester to confirm no current flows to the terminal. If the tester lights up or beeps, re-check the breaker panel–ignoring this step risks severe electrical shock. Label each cable with masking tape and a marker (e.g., “L1,” “L2,” “N”) to simplify reinstallation later. Loosen the screw holding the strain relief clamp, then slide it upward to free the cord sheath from the appliance’s rear panel.

Follow this sequence to detach the connector properly:

• Unscrew the terminal screws in this order: hot legs (typically brass-colored) first, then the neutral (silver-colored).
• Gently pull each conductor away from its post, avoiding force–if stuck, wiggle slightly while pulling to avoid breaking the screw.
• Inspect the terminal block for burn marks or corrosion; clean with a wire brush if needed before reattaching a new cord.
• Tape exposed metal ends with electrical tape and tuck them away from the appliance housing to prevent accidental contact.

Discard the old connector immediately–do not reuse.

Identifying and Connecting Conductors to Terminal Blocks

Start by isolating the three leads in the cord: one neutral (typically coated in white or light gray insulation), two hot strands (black or red sleeves). Verify their identities with a multimeter set to AC voltage–neutral should read zero volts to ground, while each hot line measures 120V against the grounding path.

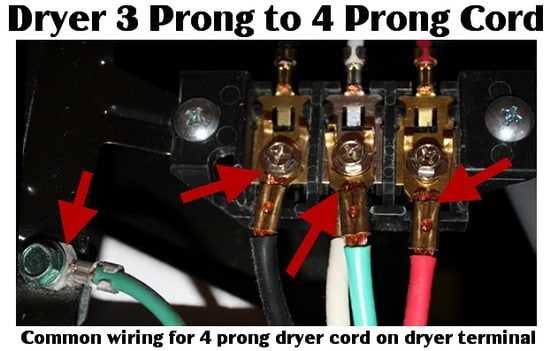

Locate the terminal block inside the appliance chassis, where brass screws mark the hot connections, a silver screw designates the neutral point, and green or bare metal secures the grounding lead. Strip exactly ¾ inch of sheathing from each conductor, twist the copper strands tightly, and loop the exposed end clockwise around each screw post to match polarity.

Secure the neutral strand first, ensuring no stray fibers touch adjacent terminals–even minimal contact can trip safety mechanisms. Tighten terminal screws to 12–15 inch-pounds; overtightening risks breaking the block housing, while loose connections invite arcing faults during peak loads.

Attach each hot lead to its respective brass terminal, noting that phase order affects motor rotation in some appliances–swap these positions if the drum spins backward after testing. Inspect every connection under a flashlight for stray copper filaments that could compromise circuit integrity.

Ground the final lead to the green terminal or chassis fixture, confirming continuity between this point and the external grounding lug before energizing. Failure here voids fault protection, leaving exposed metal parts live during insulation breakdowns.

Critical Errors to Sidestep When Installing a Three-Prong Appliance Receptacle

Neglecting polarity checks ranks as the most hazardous oversight during setup. The neutral terminal (typically silver) must bond exclusively to the center conductor, never to the grounding or hot slots. Swapping these positions creates a lethal 240V path through the chassis, turning the appliance into an electrocution risk. Use a multimeter to verify 120V between each hot slot and the neutral slot before finalizing connections.

Skipping torque specifications for terminal screws invites high-resistance failure and fire hazards. Manufacturer datasheets specify exact inch-pound values–usually 10-15 lb-in for brass screws and 7-10 lb-in for steel variants. A calibrated torque screwdriver prevents loose contacts that generate heat under cyclic loads. Over-tightening risks stripping threads, while under-tightening leads to oxidation at the junction.

Improper cable strain relief accelerates conductor fatigue inside the junction box. Securing the feed cable with a listed clamp (or built-in knockout) requires leaving ¼” of sheath inside the enclosure; omitting this step transfers mechanical stress to the termination points. Most NEC violations stem from this single oversight, particularly with flex conduit or NM cable improperly anchored.

Overlooked Bonding Requirements

Failing to bond the neutral and ground conductors at the subpanel–a common misstep in retrofit installations–violates NEC 250.140 when transitioning from four-prong to three-prong configurations. The jumper must be sized per Table 250.122 (minimum #10 AWG copper for 30-amp circuits) and fastened with a green bonding screw or listed clamp. Absent this link, fault currents seek unintended paths through metal conduits or building framing.

Material Incompatibilities

Mixing dissimilar metals at terminals (e.g., aluminum to copper) without antioxidant paste guarantees galvanic corrosion within months. Strand-compatible lugs (CO/ALR-rated for aluminum conductors) eliminate this risk, though copper remains the preferred choice for 30-amp circuits. Verify terminal plating–most residential copper feeds terminate in tin-plated receptacles, which require no additional preparation beyond oxide removal.
