How to Wire a 3 Wire Limit Switch Step by Step Connection Guide

Begin by identifying the common (COM), normally open (NO), and normally closed (NC) terminals on the sensor. The standard configuration requires linking the power source’s positive lead to the COM contact, while the NO terminal connects to the load’s input–ideal for circuits where activation completes the path. For fail-safe setups, reroute the load through NC instead, ensuring the mechanism halts if the lever disengages or power fails.

Use 22-18 AWG copper conductors for most industrial applications, stripping 6-8 mm of insulation for secure crimp or screw connections. Avoid aluminum due to oxidation risks–tin-plated stranded wire resists corrosion better. For DC circuits, confirm polarity: industrial sensors typically tolerate 12-24V, but verify the datasheet for exact limits. AC versions (110-230V) demand insulated ferrules to prevent stray strands from shorting under vibration.

Label all leads–COM (input), NO (operate signal), and NC (fault signal)–using heat-shrink tubing or permanent markers. Test continuity with a multimeter before energizing: NO should read open (OL) until triggered, while NC shows near-zero resistance. For remote monitoring, add a 1kΩ pull-down resistor between NO and ground to eliminate false signals from electrical noise.

Shielded cable (e.g., Belden 9541) reduces interference in environments with variable frequency drives or high-power lines. Ground the shield at one end only–typically at the controller–to prevent ground loops. When routing, keep conductors under 10 meters unless using signal repeaters; voltage drop across longer runs can cause erratic operation.

For PLC integration, wire COM to the sink/source terminal, then link NO or NC to the digital input–consult the PLC manual for sink-source compatibility. Allen-Bradley Micro800, for example, sinks current, requiring NO to connect to the input terminal while returning to ground. Siemens’ S7-1200 sources current, so NC would connect to the input with a positive return.

Connecting a Three-Terminal Sensor: Step-by-Step Guide

Start by identifying the common (C), normally open (NO), and normally closed (NC) terminals on the device–these are often labeled or color-coded. Use a multimeter in continuity mode to confirm: place one probe on the common terminal and check for a beep between it and each of the remaining contacts. The NO contact will show continuity only when the actuator is pressed, while the NC contact will break the circuit under the same condition. Secure each lead with crimp connectors or solder to prevent intermittent failures under vibration.

Safety and Functionality Checks

• Always disconnect power before attaching or adjusting circuits. A live connection risks shorting the control system or damaging components.
• For 24V DC systems, pair the common with the NC terminal to create a fail-safe circuit–if the sensor fails, the loop remains open, triggering an emergency stop.
• Avoid daisy-chaining sensors; each should connect directly to the controller to isolate faults and simplify troubleshooting.
• If integrating with a PLC, wire the NO contact to an input module with a pull-up resistor (typically 2.2kΩ) to ensure clean signal transitions.

Test the setup by simulating the actuator’s movement–verify the controller responds within 50ms for critical applications. Logging signal transitions with an oscilloscope can reveal bounce (typically 1–10ms), which may require a hardware debounce circuit (e.g., RC filter: 10kΩ resistor + 1µF capacitor) or software debounce in firmware. For high-current loads (e.g., relays > 10A), use a snubber diode (1N4007) across the coil to suppress voltage spikes.

Identifying the Correct Terminals on a 3-Wire Control Device

Begin by locating the common (C) connection–typically marked with a screw or label such as “COM” or “NO/NC Common.” Most industrial-grade units follow this standard, but verify against the manufacturer’s datasheet if markings are ambiguous. The remaining two terminals will be the normally open (NO) and normally closed (NC) contacts, often labeled “NO” and “NC” respectively. Use a multimeter in continuity mode to confirm: the NC terminal will show a closed circuit when the actuator is at rest, while the NO terminal will remain open.

Refer to the table below for common terminal color codes across brands:

Brand	Common (C)	Normally Open (NO)	Normally Closed (NC)
Omron	Black	White	Red
Schneider	Brown	Blue	Black
Siemens	Black	Gray	Pink
Allen-Bradley	Blue	Red	White

If color coding is inconsistent or absent, trace the actuator’s mechanical linkage. The terminal directly connected to the moving part (e.g., lever or roller) is almost always the common. Misidentifying terminals will result in reversed logic–NC will behave as NO and vice versa–so double-check before energizing the circuit.

Step-by-Step Circuit Hookup for Standard and Alternate Terminal Arrangements

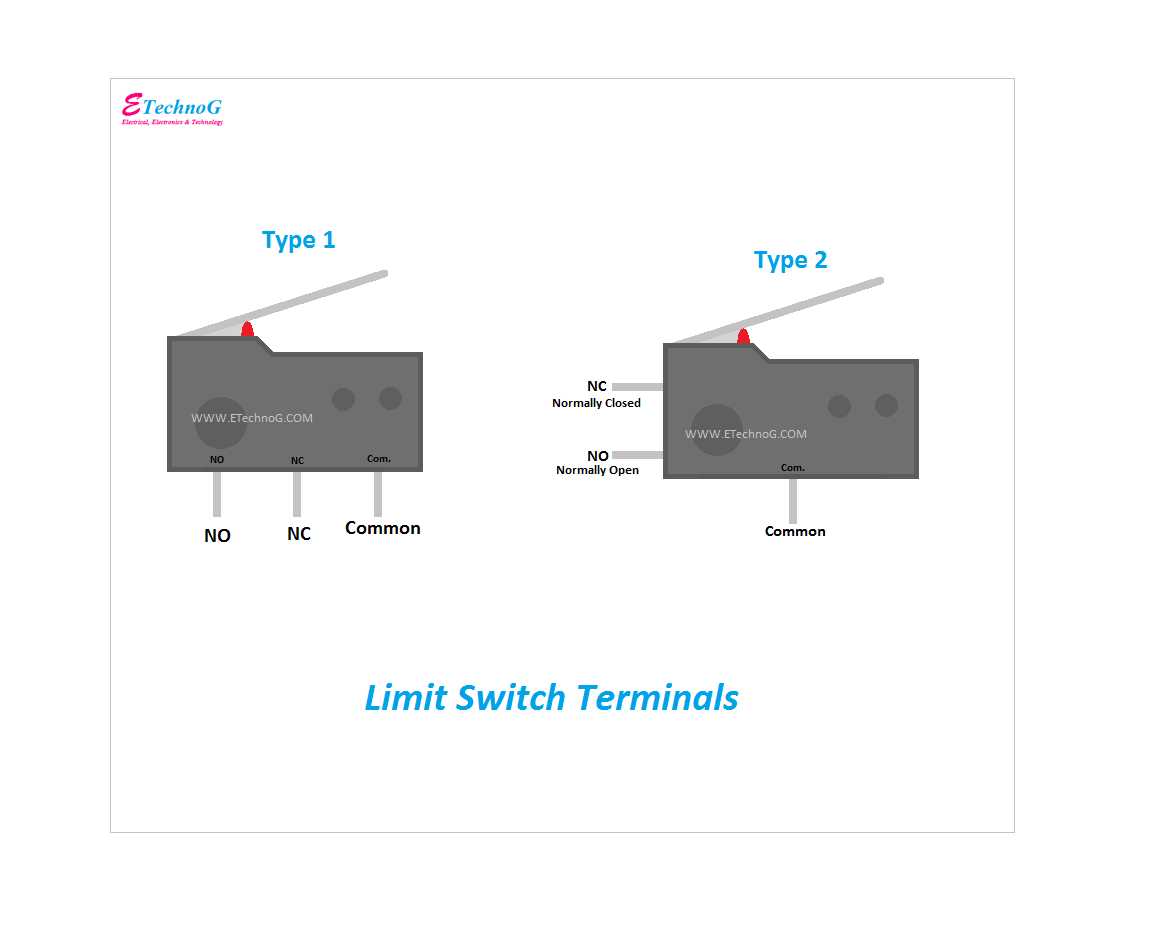

Begin by identifying the three contact points on the sensing device: the shared terminal (COM), the resting contact (NC), and the active contact (NO). Verify these positions against the component’s datasheet to prevent misalignment errors during assembly.

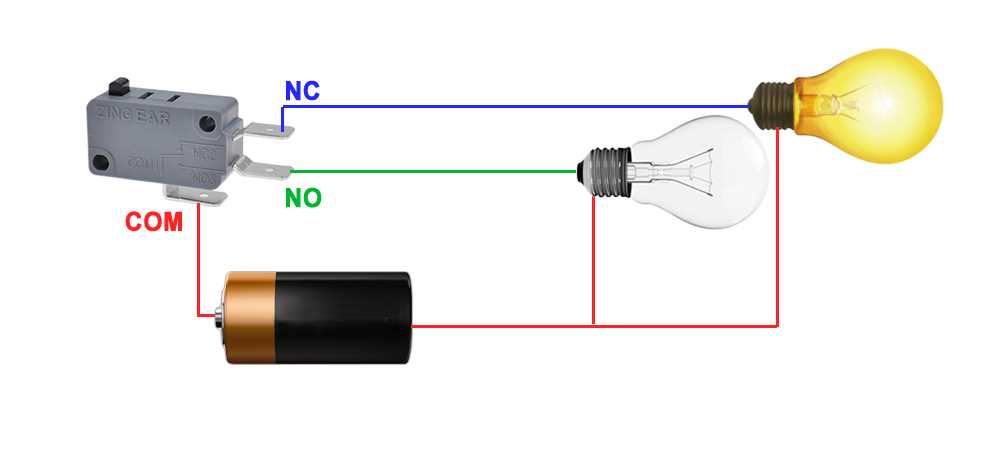

For a standard series connection, attach the power source’s live lead to the shared terminal of the unit. Route the load’s input through the resting contact, ensuring the circuit remains complete in its default state. This setup guarantees seamless operation when no external force is applied.

To configure an alternate path, disconnect the load from the resting contact and reroute it to the active terminal instead. This reverses the behavior–energizing the circuit only when the actuator engages, making it ideal for fail-safe monitoring.

Use a multimeter to confirm continuity between the shared terminal and the selected output point. Probe the resting contact first; if voltage registers, the configuration is correct for passive operation. Repeat for the active contact to validate the alternate layout.

When integrating with a control module, prioritize proper grounding. Connect the shared path to the negative bus bar if using DC, or to the neutral line in AC circuits. Mismatched polarity risks damaging sensitive equipment or creating false triggers.

Troubleshooting Hookup Errors

If the load remains inactive despite correct connections, inspect the actuator’s mechanical engagement. Debris or misalignment may prevent proper contact closure, requiring cleaning or realignment of the sensing element.

For unexpected feedback loops, isolate the component from the rest of the system and test independently. Short circuits often stem from cross-wired leads or damaged insulation–replace frayed conductors immediately to prevent arcing.

In high-noise environments, supplement the setup with shielded cabling. Terminate one end of the shield to the ground reference point while leaving the other end floating to avoid ground loops. This minimizes electromagnetic interference, ensuring reliable signal transmission.

Verifying Circuit Integrity with a Multimeter Prior to Completion

Set the multimeter to continuity mode before attaching probes to any conductive paths. Touch the probes to the terminals you intend to connect–confirm a beep or low resistance reading (typically under 10 ohms) to validate an unbroken path. If no signal occurs, inspect for oxidized contacts, loose connections, or broken strands within the conductor. Repeat this check for every pair of points in the setup to eliminate hidden faults.

For voltage verification, adjust the meter to the appropriate DC or AC range–usually 20V for most industrial control circuits. Place the probes across the power source terminals; a reading matching the expected supply (e.g., 12V, 24V, or 120V) confirms proper input. If values deviate significantly, trace the path backward to identify voltage drops, reversed polarity, or incorrect tap points.

Test each segment of the loop methodically: power source to trigger, trigger to load, and load back to power return. Ensure no unintended shorts exist by probing between live and neutral conductors–any reading above zero indicates a fault requiring isolation. For safety, disconnect power before switching between continuity and voltage checks to prevent meter damage or false readings.

Use the multimeter’s diode test function if the circuit includes solid-state components. A forward voltage drop (0.5V to 0.8V for silicon) confirms functional diodes or transistors, while an open reading signals failure. Reverse the probes to check for reverse leakage–readings above 1V suggest degradation or improper orientation in the layout.

Measure across inductive loads like relays or solenoids with the meter in resistance mode. A coil should show consistent resistance (typically 50Ω to 500Ω depending on design); infinite or near-zero readings indicate a broken winding or shorted turns. Verify absence of voltage at load terminals when inactive–any residual voltage suggests improper grounding or leakage interference.

Document all readings for future reference. Compare measured values against manufacturer specifications or schematics; deviations beyond 10% often precede component failure. If discrepancies persist, replace suspect parts rather than adjust tolerances–reliability hinges on precise baseline measurements before finalizing connections.

Integrating a Three-Conductor Safety Sensor into PLC Logic

Connect the common terminal to the PLC’s digital input channel using a shielded 0.5 mm² conductor, ensuring the shield is grounded only at the controller end to prevent loop currents. The normally open contact should terminate at a sinking input (e.g., S7-1200 DI 24 V DC), while the normally closed contact routes to a redundant safety channel if SIL/PL compliance is required–verify the exact pinout in the PLC’s manual, as S7-1500 SAFETY modules reverse the expected logic.

Set the input filter time to 3 ms for standard applications, but reduce it to 1 ms if the actuator operates above 500 strokes per minute–longer delays risk missed transitions during rapid cycles. For Ethernet/IP or PROFINET networks, assign the port an explicit device-level fault code (e.g., 0x8042) in the PLC’s tag database to streamline diagnostics; avoid relying on default codes that vendors reuse across different hardware revisions.

Voltage Drop Mitigation

Route daisy-chained conductors no longer than 50 m without intermediate repeaters; beyond this length, voltage drop exceeds 0.8 V at 24 VDC, triggering false faults. Use 22 AWG tinned copper for runs below 10 m, switching to 18 AWG for 10–30 m segments–measure actual loop resistance with a milli-ohmmeter, targeting <3 Ω per 10 m. Terminate connectors with ferrules crimped at 60 lb torque, then heat-shrink to prevent flux creep on gold-plated contacts.

Compatibility & Firmware Quirks

Firmware revisions below v2.4.3 on Allen-Bradley Micro850 controllers interpret IEC 61131-2 sinking inputs as sourcing–manually invert the logic in ladder rung 37 if the sensor’s default state conflicts. Siemens’ fail-safe CPUs require the “F_Enable” bit to be set before recognizing any state change; omit this step and the module defaults to a forced “safe” output, halting the entire safety chain without logging an alarm.
