How to Design and Interpret Electrical Circuit Schematic Diagrams

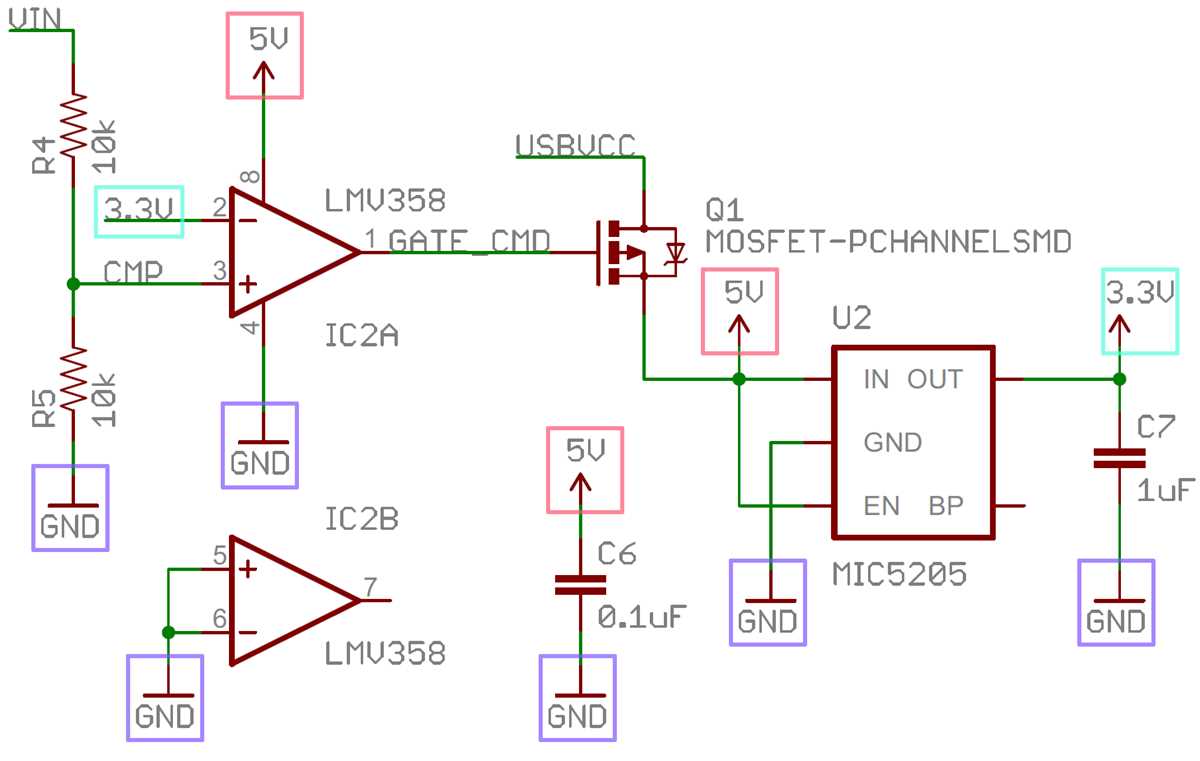

Begin with standardized symbols–resistors use straight lines with zigzags, capacitors pair parallel lines, and transistors combine angled lines with a central bar. IEC 60617 and ANSI Y32.2 provide exact representations; deviations create ambiguity. Label every component with precise values: R5 = 4.7kΩ ±5%, C3 = 100nF, Q2 = 2N3904. Incomplete notation leads to misinterpretation during prototyping or troubleshooting.
Organize flow logically: power sources at the top, ground references at the bottom, signal paths moving left to right. Break down complex sections into modules–power regulation separate from sensor inputs, microcontroller isolated from high-current drivers. Group related elements within bordered regions or dashed boxes; use hierarchical sheets for multi-stage designs like RF frontends or motor controllers.
Include critical parameters: trace widths for current capacity (1oz copper handles ~1A per 0.25mm width), voltage ratings for capacitors (X7R for 50V, NP0 for 100V), thermal considerations (TO-220 packages need heatsinks above 5W). Specify tolerances–±1% for precision resistors, ±20% for electrolytic capacitors. Omitting these details forces guesswork during assembly.
Test points demand spherical pads (1.5mm diameter) and net names like TP_VCC or TP_SCLK. Add pull-up resistors (4.7kΩ) for open-drain outputs. For microcontroller designs, show reset circuits with RC timing (10kΩ + 100nF) and decoupling capacitors (100nF per IC, located
For switching regulators, denote inductance values (4.7µH for 1A buck converters) and diode types (Schottky for low dropout). High-frequency layouts require controlled impedance traces: 50Ω single-ended, 100Ω differential. Annotate PCB layers if mixed-signal designs separate analog and digital grounds. Store variants (e.g., 3.3V vs. 5V logic) as separate branches in version control software like Git or Altium Vault.
Electrical Blueprint Essentials: Key Components and Best Practices
Begin by labeling every node with unique identifiers–use numeric (R1, C2) or alphanumeric (IC3-Pin5) tags to eliminate ambiguity. Avoid generic labels like “Input” or “Output” unless paired with specific references, as they complicate troubleshooting later. For complex networks, group related components under subheaders (e.g., “Power Stage” or “Signal Chain”) to maintain clarity.
Prioritize grounding symbols near their respective components to prevent signal interference. Use the IEEE-standard ground (three descending lines) for common returns and chassis ground (triangle) for metal enclosures. Separate analog and digital grounds with ferrite beads or a star-point connection to minimize noise coupling.
Resistors and capacitors should include tolerance values (±5%, ±1%) and wattage ratings (0.25W, 1W) to ensure compatibility. Indicate polarized components (diodes, electrolytic caps) with clear cathode/anode markings–reverse polarity risks catastrophic failure. For transistors, specify NPN/PNP types and pinout (EBC, GDS) directly on the visualization.
Integrated circuits require pin numbers and functional labels (e.g., “VCC,” “CLK”). Add decoupling capacitors (0.1µF) adjacent to power pins to stabilize supply voltages. Avoid crossing signal lines; if unavoidable, use bridges or orthogonal routes to prevent crosstalk. High-speed traces (USB, HDMI) demand controlled impedance–note required values (50Ω, 90Ω) near the lines.
Power rails should display voltage levels (5V, 12V) and current limits (e.g., “Max 2A”). Fuses or PTCs must include trip ratings (e.g., “500mA slow-blow”). For AC systems, mark phase, neutral, and earth connections per local standards (NEMA, IEC) to ensure compliance.
Test points deserve dedicated labels (TP1, TP_ADC) with expected voltage ranges or waveforms. Include connectors with pinouts and mating references (e.g., “JST-XH-4P”). For microcontrollers, annotate unused pins as “NC” (No Connect) or “Reserved.” Double-check netlist exports for missing or duplicate nets before finalizing layouts.
Key Instruments and Applications for Electronic Blueprint Creation
KiCad stands as the most robust open-source solution for engineers requiring unrestricted access to advanced features. It includes a dedicated editor (Eeschema) with hierarchical sheet support, extensive component libraries, and seamless integration with PCB design modules. The tool handles complex netlists and exports to SPICE for simulation without additional plugins. Professional teams favor it for its lack of licensing costs and active community contributions, which accelerate bug fixes and new feature rollouts.
For rapid prototyping and educational use, Fritzing provides an intuitive interface resembling physical breadboard layouts. Its strength lies in converting hand-drawn concepts into shareable visuals with minimal learning curve. While less suited for production-grade work, Fritzing excels in documentation, offering export options to PNG, SVG, and PDF. The built-in parts library covers basic components but allows user-created custom elements to bridge gaps.
| Application | Primary Use Case | Key Advantage | Compatibility |
|---|---|---|---|
| Altium Designer | Industrial-grade designs | Unified workflow from schematic to PCB | Windows only |
| EAGLE | Mid-range professional projects | Scriptable via ULPs | Linux, macOS, Windows |
| OrCAD Capture | High-complexity systems | Native PSpice simulation | Windows only |
| EasyEDA | Cloud-based collaboration | Real-time team editing | Browser-based |
Professionals handling dense multilayer designs often select Altium Designer for its native support of differential pair routing and impedance calculations directly in the editing environment. The application enforces design rule checks (DRC) during sketching, reducing downstream errors. Its database linking maintains synchronization between library components and bill-of-materials (BOM) outputs, critical for supply chain management. Despite the steep annual licensing fee, enterprise users justify the cost through time savings in documentation and manufacturing file generation.
Browser-based platforms like EasyEDA eliminate installation overhead while enabling cross-platform access. Cloud storage ensures version control automatically, with rollback features preventing data loss. Integrated ordering services connect directly to fabrication vendors, streamlining prototype procurement. Though limited in offline capabilities, cloud tools suit distributed teams needing real-time collaborative editing without file synchronization issues.
For analog and mixed-signal work, OrCAD Capture’s tight integration with PSpice delivers unparalleled simulation accuracy. Users can annotate behavior models directly within component symbols, simplifying iterative design cycles. The software’s hierarchical design support accommodates projects exceeding 10,000 nets, though interface responsiveness degrades at this scale. Legacy support for older file formats ensures compatibility with long-running projects spanning decades, a critical factor for aerospace and medical equipment manufacturers.
Critical Elements and Standardized Icons in Electrical Blueprints
Begin by mastering resistor symbols: zigzag lines for fixed values and adjustable types marked with an arrow. Standard values use a letter suffix (Ω for ohms, K for kiloohms, M for megaohms) placed adjacent to the icon. Non-polarized capacitors appear as two parallel lines, while polarized variants add a curved line to denote the negative terminal–verify polarity during placement to prevent reverse-voltage failures.
Active Components and Their Graphical Identification
Transistors demand precise symbol recognition: bipolar junction types (NPN/PNP) display three leads with an arrow indicating emitter direction, while field-effect variants (JFET/MOSFET) substitute the arrow with a perpendicular line for the gate. Integrated chips adopt geometric shapes (rectangles, circles) with labeled pins–consult datasheets for pin numbering, as errors here disrupt signal flow. Diodes feature a triangle pointing toward a bar, but variants like LEDs integrate two parallel arrows for light emission.
Power sources segment into distinct forms: direct-current cells use two unequal parallel lines (longer for positive), alternating-current variants encase a sine wave within a circle, and batteries stack multiple cells separated by dashed lines. Ground symbols bifurcate into earth (three descending lines), chassis (a downward triangle), and signal ground (a horizontal line with three descending prongs)–misapplication here risks short circuits or noise coupling.
Connectivity and Auxiliary Elements in Wiring Representations
Interconnections break down into solid lines for direct paths, dashed lines for optional routes, and dotted lines for shielding. Switches adopt a break in the line with either a gap (momentary) or a lever (toggle), while relays expand this concept with a coil-and-contact pairing. Fuses use a wavy rectangle, and circuit breakers mirror switches but include a “C” annotation. Always cross-reference ANSI Y32.2/IEC 60617 standards for regional icon variations–deviations lead to misinterpretation in global collaboration.
Constructing a Fundamental Electronic Blueprint: A Practical Walkthrough
Begin by identifying the core components required for your setup. List power sources, resistors, capacitors, transistors, LEDs, and switches with exact values. Use a reference sheet to verify standard symbols–ANSI or IEC–and stick to one notation style throughout. Mismatched symbols confuse interpretation and complicate troubleshooting later.
- Select 5V DC for beginners–it’s safe and compatible with most microcontrollers.
- Pick resistors based on Ohm’s Law: R = (Vsource – Vload) / Iload. For a 20mA LED at 5V, a 220Ω resistor ensures proper current limiting.
- Avoid placing components too close–leave at least 10mm between adjacent parts to prevent shorts during soldering.

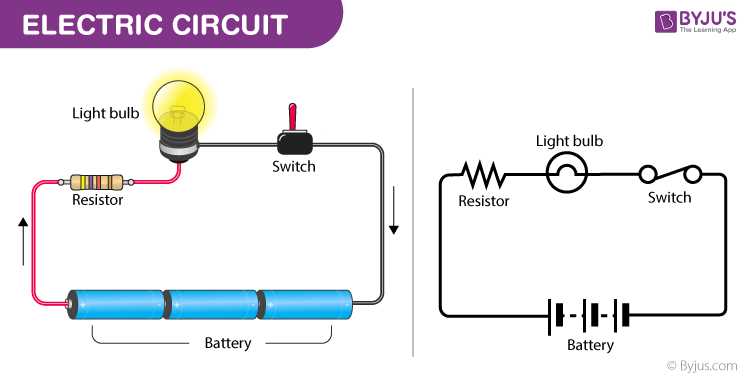

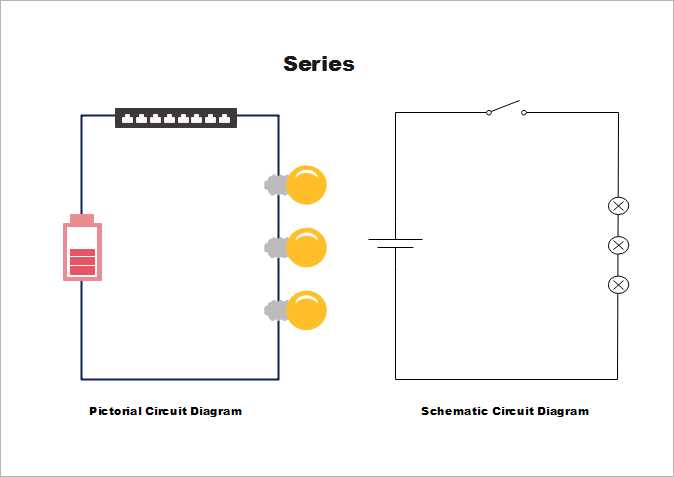

Sketch the layout on grid paper or use software like KiCad or Fritzing. Start with the power rails–vertical lines for positive and ground–then connect components in logical order: power source → switch → load → ground. Label every pin and node; Vin, Vout, GND should be clearly marked. Unlabeled nodes cause errors during prototyping.
Validate connections before finalizing. Trace each path with a multimeter in continuity mode–ensure no breaks, accidental crossings, or floating inputs. For analog setups, add decoupling capacitors (0.1μF) near IC power pins to filter noise. Digital circuits benefit from pull-up/down resistors (10kΩ) on inputs to avoid undefined states. Document component tolerances–resistors at ±5%, capacitors at ±20%–as they impact real-world performance.
Save iterations as files with version numbers: v1_base, v2_with_fuses, v3_final. Export final layouts in PDF or SVG for sharing–raster images lose clarity when scaled. Include a bill of materials (BOM) with supplier part numbers to streamline assembly. Test on a breadboard first; transfer to perfboard or PCB only after confirming functionality. Broken traces on hand-soldered boards often require complete rework if discovered late.
