How to Wire a 30 Amp 125 250 Volt Plug Step by Step Guide
For a 30-unit, dual-range electrical interface (NEMA 14-30 configuration), begin by verifying the panel’s capacity exceeds the expected load by at least 25%. Use 10 AWG copper conductors for standard runs under 100 feet; increase to 8 AWG for distances beyond 100 feet or circuits exceeding 80% of the breaker’s rating. Secure neutral and ground terminals separately–never bond them downstream of the main service disconnect.
Confirm the receptacle’s compliance with UL 498 for 30-unit loads before installation. Stripped conductor length should match the terminal’s clamping depth, typically 0.5 inches, to prevent overheating. Torque all connections to the manufacturer’s specified inch-pounds–common values range between 14-18 lb-in for brass terminals. Overtightening risks thread damage; undertightening causes arcing.
Test continuity between the grounding screw and the enclosure before energizing. A digital multimeter should read less than 1 ohm resistance. For split-phase setups, ensure the red and black leads are correctly mapped to the 180-degree phase offset–swapping them will invert polarity and damage sensitive equipment.
Use insulated crimp connectors for splices if extending conductors beyond the junction box. Soldering introduces brittleness under thermal cycling, increasing failure risk. Apply anti-oxidant paste to aluminum-copper junctions to prevent galvanic corrosion, a leading cause of high-resistance faults over time.
Label the breaker and receptacle with permanent ink, noting the exact configuration (e.g., “30u/2P/250V Split Phase”) to eliminate ambiguity during maintenance. Install an arc-fault circuit interrupter (AFCI) if the circuit serves living spaces–this reduces fire hazards from degraded connections by tripping at micro-arcs undetectable to standard breakers.
Installing a Heavy-Duty Power Connector: Step-by-Step Guide
First, verify the power source matches the connector’s rating–30 units at dual-phase configuration. Select a four-pronged outlet designed for split-phase circuits to ensure proper grounding. Confirm the breaker’s capacity aligns with the load requirements before proceeding.
Strip the cable jacket back 1.5 inches, exposing the wires. Separate the green grounding conductor first, followed by the red and black hot conductors. The white neutral wire should remain isolated. Trim each wire to expose 0.75 inches of copper, avoiding nicks that could weaken conductivity.

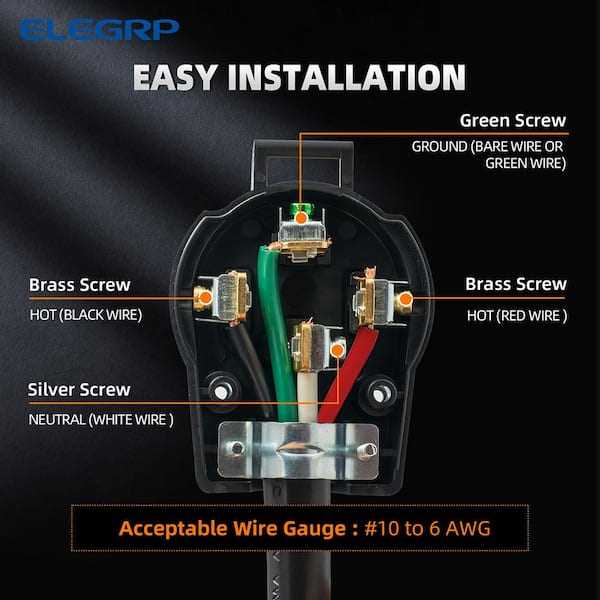

Connect the green wire to the U-shaped terminal, tightening securely with a screwdriver. Attach the red and black wires to the brass terminals–red on the right, black on the left–ensuring no stray strands touch adjacent terminals. The white neutral connects to the silver terminal, maintaining strict separation from live conductors.
Secure the outlet housing with mounting screws, pressing firmly to prevent vibration loosening. Test continuity with a multimeter, probing each conductor to confirm zero resistance. Recheck torque on all connections; loose terminals generate heat and pose fire risks.
Troubleshooting Common Errors
If the circuit trips immediately, inspect for reversed polarity between neutral and ground. Swapped hot conductors cause inconsistent voltage drops–measure readings at the outlet; both legs should deliver identical potential within 5% variance. Burn marks on terminals indicate arcing; replace damaged components rather than reusing them.
For intermittent power loss, examine the cable for internal breaks by flexing gently while monitoring voltage. Solid-core wires fare better than stranded in high-current applications but require precise stripping to avoid fraying. Ferrule crimping tools improve termination reliability in vibration-prone environments.
Finalize installation by labeling the circuit at the breaker panel. Use weatherproof covers for exterior outlets to prevent moisture ingress. Retest annually–corrosion on terminals reduces efficiency and demands immediate maintenance.
Essential Gear and Supplies for Installing a Heavy-Duty Power Connector
Begin with a multimeter (minimum 600V CAT III rating) to verify live circuits before handling. Confirm absence of voltage across terminals–never assume de-energized state based on breaker position alone. Use insulated probes and test both hot-to-neutral *and* hot-to-ground paths to rule out phantom voltages or miswired neutral-ground bonds.
- Wire strippers/crimpers: Dedicated 10-8 AWG model (e.g., Klein Tools 11055, Ideal 45-121) prevents conductor damage during preparation. Avoid generic strippers; they crush copper strands, increasing resistance at connection points.
- Terminal connectors: UL-listed ring or spade lugs (copper, tin-plated) sized for 8 AWG wire. Compression-style lugs (not solder or twist-on) ensure vibration-resistant joints. For outdoor use, specify weatherproof heat-shrink terminals.
- Torque screwdriver: Electronic model (e.g., Wiha 72390, Pico 05940) calibrated to manufacturer specs (typically 15-20 in-lbs for brass terminals). Under-tightening risks arcing; over-tightening cracks terminals or strips threads.
Safety and Precision Equipment
Non-conductive tools are non-negotiable. Include:
- A fiberglass fish tape (minimum 25 ft, 1/8″ width) for routing conductors through conduits–metal tapes risk shorting to live wires.
- Arc-flash PPE: Category 2 face shield (ATPV 8+ cal/cm²), flame-resistant (FR) long-sleeve shirt, and leather gauntlet gloves rated for 600V AC. Store gloves in separate bags to prevent ozone degradation.
- A conduit bender (manual or electric) sized for ½” EMT if threading wire through metal raceways. Pre-cut conduit sections to exact lengths; avoid sharp bends (keep radius ≥6× conduit diameter).
Consumables checklist:
- Dielectric grease: Apply sparingly to terminal contacts to prevent oxidation–excess grease attracts dust, creating insulating barriers.
- Heat-shrink tubing: Adhesive-lined polyolefin (3:1 shrink ratio) in ½” diameter for strain relief. Match shrinkage temperature to tubing specs (typically 120°C–135°C).
- Anti-seize compound: Nickel-based paste for aluminum conductors (if present) to inhibit galvanic corrosion. Avoid magnesium-based compounds; they accelerate oxidation.
- Cable ties: UV-resistant nylon (e.g., Panduit UVX8) for securing conductors–standard ties degrade under sunlight, risking loose connections.
Step-by-Step Color Coding and Wire Connections
Begin by identifying the green grounding conductor–this is non-negotiable. Terminate it to the U-shaped prong or circular grounding screw first, ensuring a secure connection with a torque screwdriver calibrated to 18 in-lbs. Failure here risks equipment damage or fire. Next, strip the black (hot) wire to 0.5 inches, insert it into the brass-colored terminal, and tighten to specification. Repeat for the red (secondary hot) wire if present, matching it to the second brass terminal. Avoid twisting wires; direct insertion reduces resistance.
White (neutral) attaches to the silver-colored screw only–cross-mating with hot terminals will trip breakers or destroy devices. Verify polarity with a multimeter before energizing: 120V between hot and neutral, 240V across hots, 0V between neutral and ground. Label wires permanently with heat-shrink tubing after testing; markings fade under load. Secure all connections with anti-vibration clamps if operating near machinery.
Key Distinctions Between Single-Phase and Dual-Line Electrical Setups
Opt for a 120-feed configuration when powering standard household appliances like refrigerators, microwaves, or computers, as these require lower energy delivery and operate on basic two-prong or grounded three-prong connectors. The neutral conductor carries the return current, reducing voltage strain on the device’s internal components, which extends operational lifespan. A 240-feed system, meanwhile, demands dual hot wires–each carrying opposing phases–to supply heavy-duty equipment such as electric ranges, welders, or air compressors, where sustained high power is non-negotiable. Always verify the appliance’s rating plate to confirm compatibility; mismatching leads to overheating or premature failure.
The choice between setups directly impacts safety mechanisms and regulatory compliance. Single-line circuits typically use a 15A or 20A breaker with 14/2 or 12/2 cable, while dual-line setups require 30A or 50A breakers paired with 10/3 or 8/3 cable, including a mandatory ground wire. Below is a comparison of critical specifications:
| Parameter | Single-Phase (120) | Dual-Line (240) |
|---|---|---|
| Cable Gauge | 14 AWG (15A), 12 AWG (20A) | 10 AWG (30A), 8 AWG (50A) |
| Breaker Type | Single-pole | Double-pole |
| Voltage Drop (100 ft run) | ~5% (6V) | ~3% (7.2V) |
| Typical Load | ≤2400W | ≤12000W |
For high-draw tools, the dual-phase arrangement halves the current flow through each conductor, minimizing resistive losses and improving efficiency. However, improper installation–such as reversing phase wires or neglecting the ground–creates hazardous conditions, including arc faults or equipment damage. Use a multimeter to confirm correct polarity before energizing; hot-to-neutral should read ~120V, while hot-to-hot should read ~240V. Always de-energize the panel when making connections, and label both the outlet and breaker clearly to prevent cross-circuit mishaps.
Safety Precautions When Handling Electrical Connections
Verify power is fully disconnected at the circuit breaker before touching any conductors or terminals. Use a multimeter to confirm zero current on both live and neutral lines–visible readings above 0.5 milliamps indicate incomplete isolation. Even after switching off, capacitors in devices like motors may retain charge; allow five minutes for dissipation before proceeding.
Wear insulated gloves rated for at least 600 V AC when handling exposed contacts. Check gloves for punctures–submerge in water and press air into the cuff; escaping bubbles reveal defects. Replace gloves immediately if compromised. Pair with safety goggles to shield from sparks or debris during accidental shorts.
Work with tools featuring non-conductive handles, such as screwdrivers and pliers with phenolic or rubber grips. Test tool insulation by touching a live circuit briefly; tingling sensations signal inadequate protection. Wrap tool handles with electrical tape for extra precaution, ensuring no metal parts remain exposed near the user’s grasp.
Secure all connections with torque specifications provided by the manufacturer. Over-tightening lugs on a 30-unit circuit can warp terminals, while under-tightening risks overheating. Use a calibrated torque screwdriver–typical values range between 17-22 inch-pounds for terminal screws in standard residential setups.
Route cables to avoid sharp edges, heat sources, or moving parts. Maintain a 1-inch minimum clearance from metal studs or conduit bends to prevent abrasion. Bundle excess length with nylon straps instead of metal ties, which can cut insulation over time. Label runs with heat-resistant tags to simplify future maintenance.
Ground all metallic enclosures before energizing the system. Connect to a dedicated ground rod with a resistance below 25 ohms–test with a ground meter annually. Verify continuity between the enclosure and neutral busbar; resistance should not exceed 1 ohm. Loose or corroded ground paths create shock hazards even without active faults.
Inspect insulation for cracks or brittleness before each use. Replace cables where rubber jacket hardness exceeds 70 Shore A or if conductors show discoloration from overheating. Store spares in cool, dry locations away from oils or solvents that degrade polymer coatings. Limit bend radii to eight times the cable diameter to prevent internal conductor fatigue.
