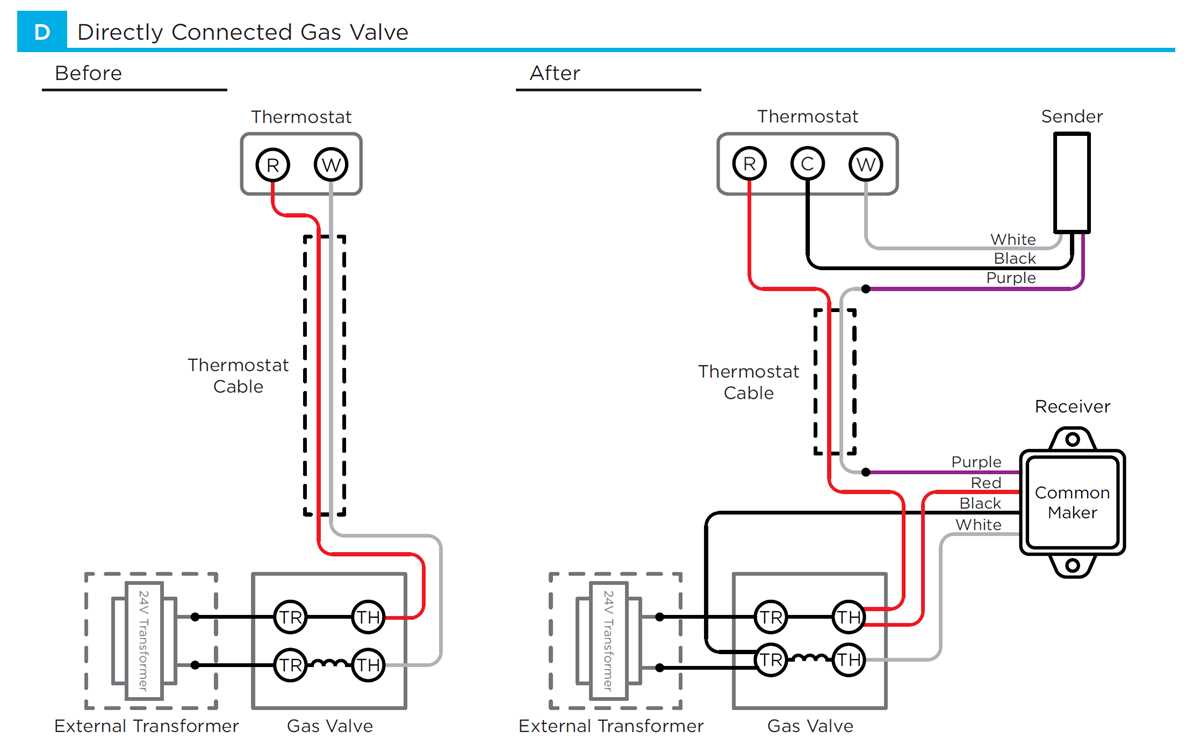

Complete Honeywell Thermostat 2 Wire Installation Guide with Wiring Schematic
Begin by verifying the device model matches the RTH series or equivalent–confirm compatibility with low-voltage heating systems. Locate the *Rh* and *W* terminals; these are critical for single-stage heating setups without a cooling function. Use 18-gauge solid copper wire, rated for 30VAC, to ensure safety and proper conductivity. Strip 5mm of insulation from each wire end, twist tightly, and secure under terminal screws.
For older baseboard heaters or radiant floor systems, skip jumper connections between *Rc* and *Rh*. Power originates from the transformer’s *Rh* side; incorrect jumper placement risks transformer overload. If the system includes a separate transformer for heating and cooling, wire *Rh* to the heating transformer and *Rc* to the cooling transformer–never combine these unless explicitly stated in the manual.
Label wires with color-coded sleeves or tape: red for power (*Rh*), white for heat (*W*). Avoid common errors like loose connections or reversed polarity–these cause intermittent failures or short circuits. Test with a multimeter: *Rh* to *W* should read ~24VAC when calling for heat. If voltage drops below 20VAC, check transformer output and wire gauge.
Before activating, inspect for exposed wires near metal surfaces–even minor contact can damage the control board. Fuse-protected models require matching the fuse rating (typically 3A, slow-blow); swap immediately if blown. For battery-backed units, insert new AA cells in pairs to prevent corruption of settings.
Valve-actuated or millivolt systems demand different wiring schemes. Connect the red power wire to the *MV* terminal instead of *Rh*, leaving *Rh* vacant. Refer to the *subbase* schematic for terminal layouts–models like the 8000 series use numbered slots rather than lettered labels. When in doubt, isolate the circuit breaker for 30 seconds then retest.
Connecting a Dual-Stage Climate Control Device: Key Wire Configurations
Start by identifying the labeled terminals on your control unit–most models use R (power), W (heat), Y (cool), G (fan), and C (common). For single-stage heating and cooling, connect the red wire to R, white to W, yellow to Y, and green to G. If your system lacks a C-wire, trace the furnace’s blue or black wire to the control board’s C-terminal and loop it back to the regulator’s C-slot.
Dual-stage systems require additional cables: W1 and W2 for primary and auxiliary heating, Y1 and Y2 for primary and secondary cooling. Match these to their corresponding furnace outputs. A mismatch in staging causes inefficiency–verify with a multimeter for 24VAC between R and each terminal before securing connections.
Heat pumps introduce extra complexity. The O/B terminal reverses valve operation (O for cooling, B for heating). Connect the reversing valve wire to this slot based on manufacturer specs–most U.S. systems use O. Check for auxiliary heat (E or AUX) if present, as it activates during defrost cycles.
| System Type | Terminal Labels | Wire Color (Typical) |
|---|---|---|
| Gas Furnace (Single-Stage) | R, W, G, Y, C | Red, White, Green, Yellow, Blue/Black |
| Heat Pump (Cooling Mode) | R, O/B, Y, G, C, E | Red, Orange/White (O), Yellow, Green, Blue, Brown |
| Dual-Stage Cooling | R, Y1, Y2, G, C | Red, Yellow, Light Blue, Green, Blue/Black |
For low-voltage wiring, use 18-gauge solid copper wire–avoid stranded cables that can fray. Secure connections with wire nuts or lever connectors, then wrap with electrical tape. Test each circuit by setting the control to call for heat/cool and verifying the furnace or compressor activates within 5 seconds.
Smart regulators with Wi-Fi or power-stealing features may not require a C-wire but will drain batteries faster. If your system lacks a common terminal, install a 24VAC transformer or use an adapter kit to tap into unused terminals (e.g., furnace’s humidifier slot). Label all wires with code-compliant tags to avoid future confusion.
Common pitfalls include swapped R and C wires (no power) or misrouted G and Y wires (fan runs continuously). Use a wiring schematic from the furnace’s manual as a reference–never rely on color codes alone. For compatibility, cross-check the control’s minimum load ratings with your HVAC system’s specifications.
Advanced: Emergency Heat Overrides
Heat pumps with auxiliary heat often use a separate relay. Connect the E-terminal to the backup heat wire (typically brown or purple) and verify activation when outdoor temperatures drop below 35°F (2°C). If emergency heat fails, check the defrost board for faults–most systems test this cycle every 90 minutes.
Understanding Terminal Markings on Climate Control Devices
Begin by locating the back panel of your control unit–this area houses the labeled connection points critical for setup. Most models feature a standardized set of terminals, though variations exist between mechanical and smart variants. The most common labels include R (power), C (common), W (heat), Y (cool), and G (fan). Some advanced units may also display O/B for heat pump reversing valves or E for emergency heat. Verify these labels against your system’s documentation before proceeding.
For single-stage heating and cooling systems, the R terminal supplies 24VAC power from the system’s transformer, while C acts as the return path for this power, completing the circuit. If your unit lacks a C terminal, check for alternative labels like C1, C2, or RC/RC–these often serve the same purpose but may indicate separate transformers for heating and cooling. Misidentifying these can lead to system failure or erratic operation.
Dual-Fuel and Heat Pump Configurations
In heat pump installations, the O/B terminal manages the reversing valve, which switches between heating and cooling modes. Typically, O energizes the valve for cooling, while B does so for heating. Some models combine these into a single terminal, requiring a jumper wire or specific setting in the unit’s menu. For dual-fuel setups–where a heat pump pairs with a gas furnace–the E or EM terminal activates the furnace as a secondary heat source during extreme temperatures.
Smart control units often include additional terminals for auxiliary functions. The Y2 terminal, for example, may handle second-stage cooling in variable-speed systems, while W2 manages second-stage heating. If your system includes humidity control, look for H or DH terminals, which connect to a humidifier. Always confirm whether these require 24V power or dry contacts, as mismatches can damage components.
Color-coding on wiring can simplify identification but isn’t universally standardized. While R often pairs with red wires, C with blue, W with white, Y with yellow, and G with green, exceptions abound–especially in older installations. Never rely solely on wire color; cross-reference with the labels on the unit itself. If labels are worn or missing, consult the product manual or a multimeter to test continuity between terminals and wires.
For multi-zone systems, terminals may be grouped or numbered to distinguish between different zones (e.g., R1/R2, W1/W2). These require careful mapping to ensure each zone’s damper or valve receives the correct signal. Some units also include a T terminal for remote sensors or outdoor reset controls, which adjust heating output based on external temperatures.
If your control unit integrates with low-voltage accessories–such as ventilation systems or dehumidifiers–check for labeled outputs like AUX or ACC. These may provide limited power or serve as signal outputs. Always verify the voltage and current ratings for these terminals to avoid overloading them. For systems with multiple transformers (common in dual-fuel setups), ensure the Rc and Rh terminals are correctly jumpered if a single power source is used.
Step-by-Step Connection Guide for Two-Wire Heating-Only Configurations
Locate the control panel terminals marked “R” and “W” on the furnace or boiler. Use a voltage tester to confirm power is off before handling cables.
- Strip 1/4 inch of insulation from each wire end.
- Insert the red conductor into the “R” slot and tighten the screw firmly.
- Attach the white conductor to the “W” terminal–ensure no bare strands extend beyond the clamp.
Cross-check polarity by matching the cable colors to the terminal labels. Misaligned connections risk short-circuiting the heat exchanger or damaging the low-voltage circuit.
If the system includes a transformer with a resettable fuse, verify the fuse rating matches the control’s specification (typically 3 A). Replace blow fuses immediately to avoid overheating the transformer coils.
- Set the selector to “Heat” mode.
- Restore power at the circuit breaker.
- Observe the inducer motor’s startup sequence–delayed response indicates incorrect wiring or a faulty relay.
For zone-controlled setups, wire additional two-conductor cables between each zone valve and corresponding control terminals. Label each pair clearly to prevent cross-zoning during future adjustments.
Finalize the setup by securing loose cables with zip ties and covering exposed terminals with protective covers. Test the system during a heating cycle–temperature should stabilize within 10–15 minutes; inconsistent heating requires revisiting the terminal connections.
Connecting a Climate Control Device to Dual-Wire Cooling Units
Begin by verifying the voltage requirements of your cooling system–most dual-conductor setups operate on 24V AC, but confirm with the manufacturer’s specifications before proceeding. If the unit demands a higher or lower power supply, risks of damage or inefficiency increase significantly.
Strip ¼ inch of insulation from both conductors, ensuring no frayed strands or exposed copper extends beyond the terminal connection. Secure one wire to the R (power) terminal and the second to the Y (cooling) terminal on the backplate, tightening screws firmly to prevent intermittent contact. Loose connections generate heat, degrade performance, and may trigger system errors.
Common mistakes during installation include reversing the wiring order or neglecting polarity–though AC systems are less sensitive than DC, incorrect placement can still cause erratic operation or short-circuiting. Use a multimeter to test continuity: set it to AC voltage (200V range) and measure between R and C (if available) to confirm the 24V supply. If readings fluctuate or drop, inspect the transformer or breaker panel for faults.
For systems without a C wire, alternate solutions include:
- Installing a power extender kit (PEK) to draw auxiliary current from another source.
- Repurposing an unused wire (e.g., G for fan) if present, but disable its original function.
- Using a 24V adapter plugged into a nearby outlet–though less reliable, it’s viable for temporary setups.
Avoid tapping into unrelated circuits; shared loads can overload the system.
After securing connections, power the unit and initiate a cooling cycle. Observe the compressor delay–most modern setups enforce a 3-5 minute pause between cycles to prevent rapid on/off cycling, which stresses components. If the unit fails to activate, recheck:
- Terminal screw tightness (finger-tightened isn’t sufficient).
- Compatibility of the control device’s output signal with the cooling unit’s input.
- Breaker status–some systems use dual poles, requiring both to be engaged.
Persistent issues often trace to incorrect jumper configurations; consult the device’s manual for model-specific configurations.
Finalize installation by isolating the low-voltage wires from high-voltage lines (minimum 6-inch separation) and enclosing the junction box to prevent accidental shorts or corrosion. Label all wires for future reference–particularly if expanding the system later (e.g., adding heating or humidity controls). Test under varying conditions (midday heat, nighttime cool) to ensure consistent performance.
