Step-by-Step 4 Tube Ballast Bypass Electrical Wiring Guide
Replace your existing linear fluorescent fixture’s control gear with a simplified power path using shunt conversion. Remove the magnetic or electronic driver entirely–LED tubes with dedicated line-voltage input (typically labeled “direct wire” or “non-shunt compatible”) will operate from the mains without intermediate components. Confirm tube specifications first: most require 120–277V AC, and incorrect polarity can destroy the module.
Disconnect the fixture at the circuit breaker. Open the housing and locate the input wires–usually black (hot), white (neutral), and green or bare (ground). Cut the wires connected to the driver’s output; leave the input side untouched. For dual-tube setups, each tube pair shares a single neutral but requires separate hot feeds. Label all splices with heat-shrink tubing or UL-listed wire nuts.

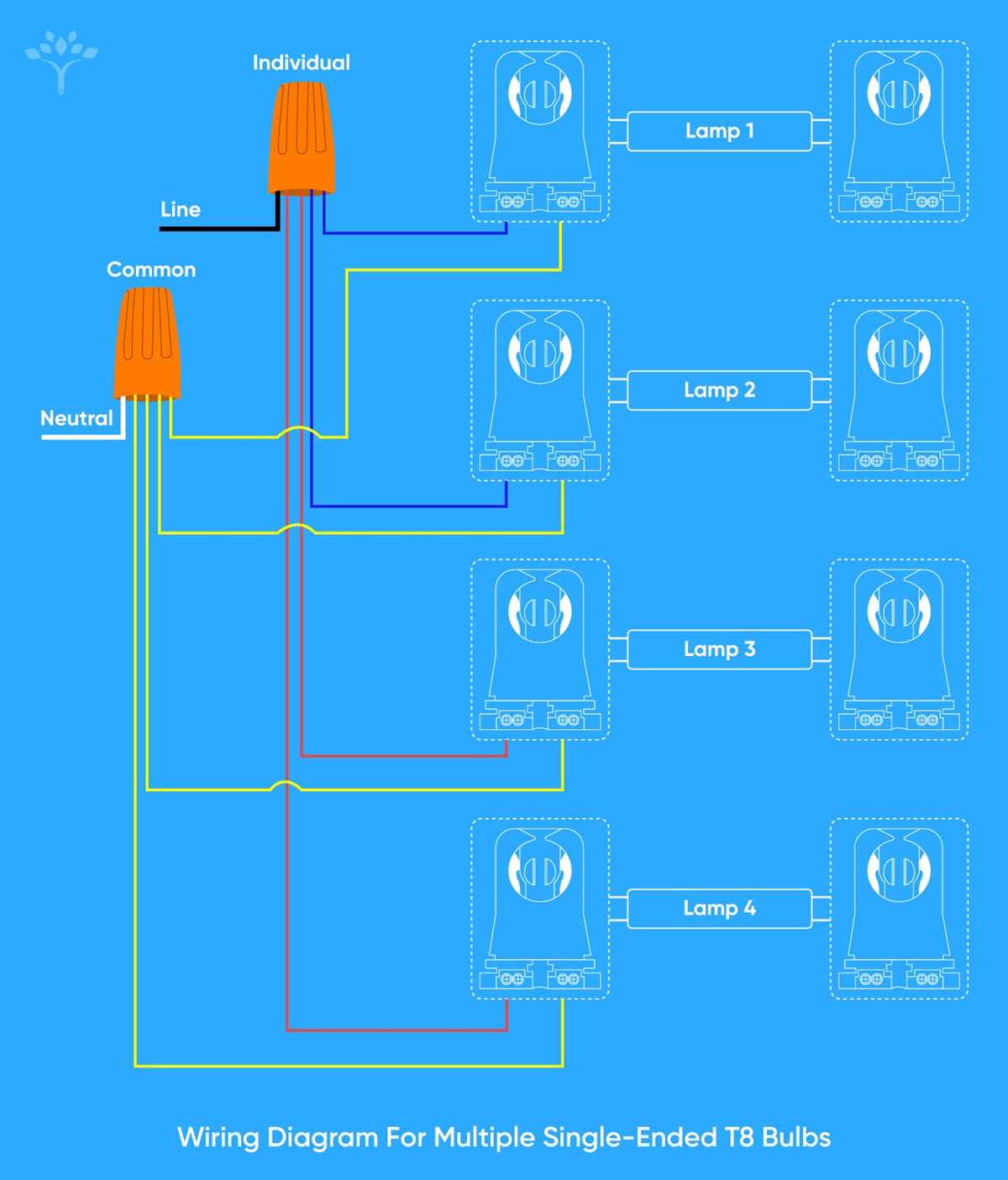

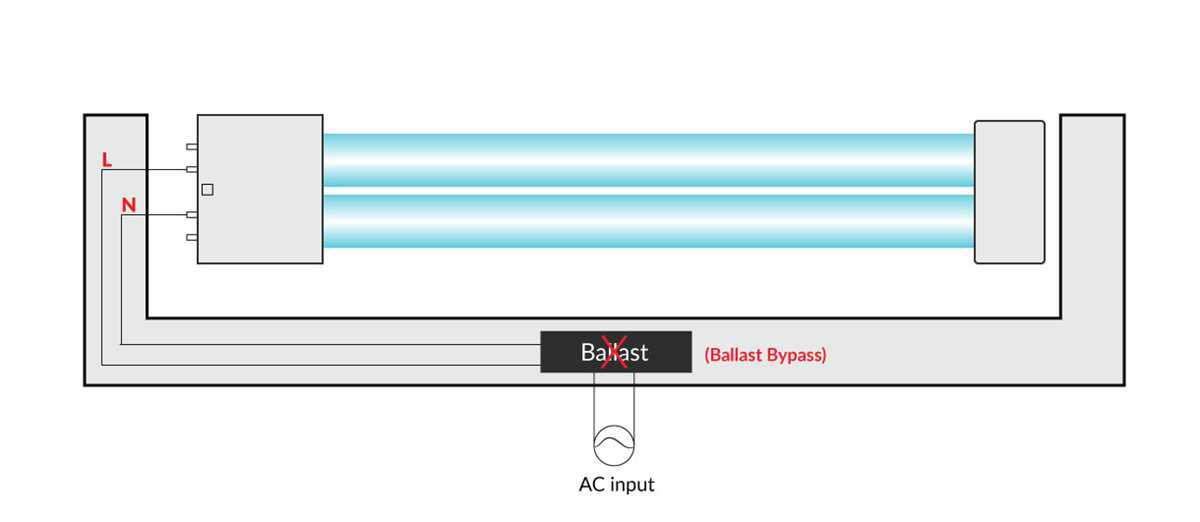

Route the incoming hot lead directly to one terminal of each tube socket–a four-tube fixture needs four separate live connections. Connect all neutrals together and return a single lead to the input neutral wire. Ground wire must terminate at the fixture chassis; do not omit. Use 14 AWG wire for circuits ≤15A, 12 AWG for 20A breakers. Test continuity before restoring power.
Verify that the tube sockets are rated for line voltage–most G13 pin bases are not, so replace with shunted or non-shunted sockets designed for LED retrofit. Avoid mixing incompatible technologies: hybrid tubes with integral drivers require reform to function without a driver, while single-ended tubes must connect live and neutral to opposite socket pins.
Install tubes in pairs or quads to match the original layout. Check manufacturer diagrams: some LED assemblies demand specific orientation, usually marked with a dashed line on the plastic diffuser indicating the live-pin side. Restore power and measure voltage at each socket–expected readings are line voltage minus negligible drop. Dim or erratic output signals incorrect wiring or faulty tubes.
Direct Tube Fixture Retrofit Guide for Optimal Performance
Start by confirming the fixture’s lamp type–most modern four-lamp systems use T8 or T12 tubes with non-shunted tombstone sockets. If the existing setup includes an electromagnetic or electronic controller, remove it entirely, cutting power at the circuit breaker first. Use a voltmeter to verify zero voltage at the input leads before proceeding. Retain only the tombstones, as they provide the necessary connection points for the new configuration.
Connect each pair of sockets in series by running a single wire from one pinslot to the adjacent unit, ensuring polarity alignment for compatible tube types. For instant-start tubes, link the hot wire (typically black) to one end of each socket pair and the neutral (white) to the opposite end. Use 18-gauge solid copper wire rated for 600V minimum; stranded wire may degrade over time under repeated thermal cycling. Secure all joints with wire nuts and wrap them in electrical tape to prevent corrosion from dust or moisture.
Test each circuit individually with a non-contact voltage detector after reassembly but before installing tubes. A common issue is reversed polarity on one socket pair, causing flickering or incomplete ignition. If flickering persists, check for loose connections or damaged pinslots–even minor oxidation can disrupt conductivity. For HO (high-output) or VHO (very high-output) lamps, use a dedicated 240V circuit or a step-down transformer if the existing wiring isn’t rated for the increased load.
Label the fixture’s breaker panel with the new configuration and include a note about compatible tube types to avoid future mismatches. Avoid mixing different wattages or color temperatures in the same fixture, as this can lead to uneven wear and reduced lifespan. For environments with frequent on/off cycles, consider adding a surge protector to mitigate stress on the tubes’ cathodes, extending their operational life by up to 30%.
Essential Gear and Supplies for Retrofitting Linear Lighting Fixtures
Start with a non-contact voltage tester rated for at least 600V to verify circuits are dead before touching any connections. Models with both audible and visual alerts reduce the risk of false negatives, especially in noisy environments. Test twice–once on the fixture’s input terminals and again on the lamp holders–before proceeding.
A precision wire stripper with 18-22 AWG notches is critical for clean, nick-free conductor exposure. Avoid generic strippers; search for ones with built-in crimping jaws for spade terminals, which are frequently required when attaching copper leads to tombstone sockets. Check that the cutting blades are replaceable–blunt edges shred stranded wire, causing unreliable joins.
Tombstone sockets labeled “shunted” or “non-shunted” dictate the retrofit path. Non-shunted types accept direct 120V or 277V mains input; shunted versions mandate jumper removal before live voltage is applied. Confirm socket compatibility against the fixture’s schematic–mismatches can trip breakers instantly. Replace any cracked or discolored sockets to prevent arcing.
| Tool/Supply | Minimum Specification | Recommended Upgrade |
|---|---|---|
| Voltage tester | CAT III 600V | CAT IV 1000V with low-impedance setting |
| Wire connectors | UL-listed twist-on 18-22 AWG | Push-in lever-nut splices for stranded wire |
| Heat-shrink tubing | 2:1 shrink ratio, 600V dielectric | Dual-wall adhesive-lined tubing for moisture-prone zones |
| Insulated screwdriver | #2 Phillips, 1000V rated tip | Magnetic shaft with torque-limiting clutch |
Specialized Consumables
Stock pre-cut lengths of 14 AWG solid copper THHN wire for jumper fabrication. Solid wire eliminates fraying when inserting into push-in tombstone sockets; stranded variants require ferrule crimping. Keep spares in 6″, 12″, and 24″ segments to bridge different fixture lengths. Verify insulation color codes–green for ground, white for neutral, red or black for hot–to maintain compliance with NEC Article 200.
For outdoor or high-humidity installations, anti-oxidant compound on every joint prevents corrosion. Apply a thin layer on exposed aluminum or copper surfaces, focusing on screw-terminal connections where dissimilar metals meet. Seal the compound with high-temperature silicone before covering with heat-shrink tubing rated for 125°C continuous duty.
LED linear tubes rated for direct line voltage must match the tombstone socket pin configuration–single-end, double-end, or universal driverless types. Look for DLC-listed models with 0-10V dimming compatibility if future control integration is anticipated. Replace tubes one at a time while powered down to avoid damaging drivers in multi-tube fixtures.
Step-by-Step Installation Guide for a 4-Lamp Fluorescent Configuration
Disconnect power at the circuit breaker before handling any electrical components. Use a non-contact voltage tester to confirm the absence of current in the fixture’s input wires. Failure to verify power can result in severe injury or equipment damage.
Preparing the Fixture

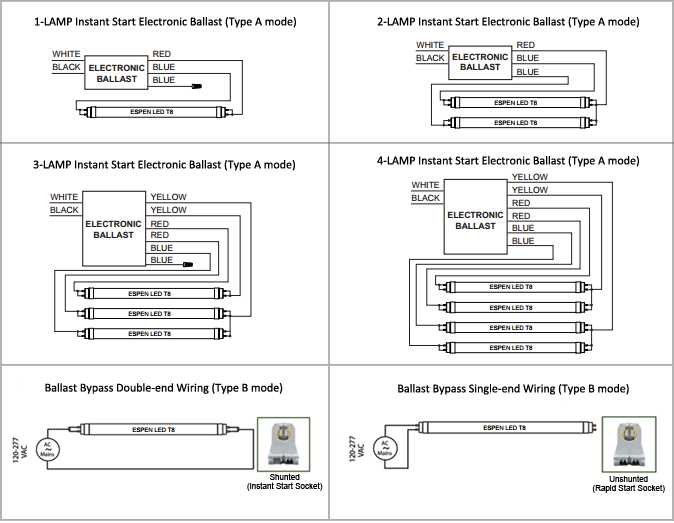

Remove the fixture’s lens or diffuser to access the internal assembly. Identify the existing control gear–typically a rectangular or square metal box with input and output wires. Label each lead with masking tape to prevent confusion during reconnection. Key wires include:
- Line input (black/hot, white/neutral, green/ground) – connects directly to mains power.
- Lamp holders (red/blue/yellow/gray) – outputs from the control gear, often grouped in pairs.
Cut the wires at least 2 inches from the control gear to retain sufficient length for splicing. Strip ½ inch of insulation from each end using wire strippers, ensuring no stray strands remain. Twist exposed copper tightly to prevent fraying during connections.
Direct Power Connection Setup
Connect the fixture’s neutral (white) and ground (green) wires directly to the corresponding mains wires using twist-on wire nuts. Secure each nut with a clockwise twist until tight, then tug gently to confirm adhesion. For the hot (black) wire, install a pigtail (6-inch length of 14 AWG black wire) between the mains and a new rapid-start socket if required. Solder all connections and wrap with electrical tape for moisture resistance.
For a 4-tube setup, two common configurations apply:
- Series wiring: Connect the first tube’s holder wires (e.g., red + blue) in line with the second tube’s corresponding wires (same colors), then route to the next pair. This method splits voltage evenly but risks uneven illumination if tubes age differently.
- Parallel wiring: Run separate leads from the main hot wire to each tube’s holder wires (e.g., two red wires to the first tube’s red holder, repeat for others). This ensures uniform brightness but requires more wire and precise splicing.
Verify the holder wires’ polarity before finalizing connections. Use a multimeter set to continuity mode–touch the probe to the holder’s socket pins while the other probe contacts the input wire. Correct polarity will show near-zero resistance. Reverse wires if values exceed 1 ohm.
Mount the tubes into their holders, ensuring pins align with socket notches. Restore power and test each illumination source individually. If flickering occurs, recheck splices for loose strands or incorrect pairing. For persistent issues, add a non-shunted tombstone socket to isolate the tube’s circuit path.
Secure all wires with zip ties or cable clamps to prevent vibration damage. Replace the diffuser and power cycle the fixture to confirm stable operation. Document the configuration with photographs or a labeled sketch for future reference.
