How to Wire a 4 Wire AC Capacitor Step-by-Step Connection Guide
Begin by identifying the two main terminals and the dual auxiliary connections on your AC unit’s energy-storage element. The main pair typically carries the primary load, while the secondary ports serve as parallel or relay points–critical for split-phase systems or dual-start motors. Label each terminal A, B, C, and D (or use the manufacturer’s designation) to avoid misalignment during installation.
For a dual-run setup, link A to the first motor winding and B to the second, ensuring the energy-storage element bridges both. Connect C and D to the relay or switch mechanism, creating a closed loop for smooth phase shifting. Confirm polarity if the component lacks symmetry–reverse connection risks overheating or premature failure.
In single-phase applications, merge C and D into a single return path, simplifying the circuit. Use 14-16 AWG conductor strands for auxiliary links, while mains connections require 10-12 AWG to handle peak current. Isolate all joins with heat-shrink tubing or insulated terminals to prevent short circuits under vibration.
Verify the arrangement with a multimeter before powering the system. Set the device to measure capacitance–the expected value should match the component’s rating (±10%). Deviations indicate incorrect pairing or internal damage. For HVAC compressors, ensure the auxiliary terminals engage only during startup; prolonged activation burns out relays.

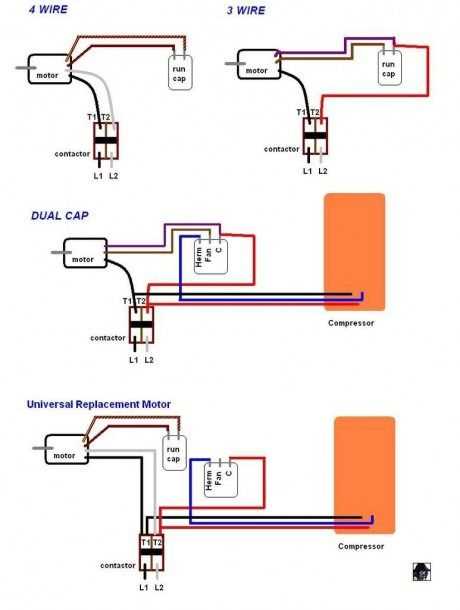

Connecting a Dual-Run Component in Split-Phase Systems
Begin by identifying the terminal labels on the dual-run element: “C” for common, “H” for hermetic (compressor), “F” for fan, and an unlabeled post reserved for auxiliary devices. Use a multimeter set to 200 ohms to confirm continuity between C-H (typically 2-5 Ω) and C-F (5-15 Ω); any deviation signals internal failure. Isolate power at the disconnect switch and lock it out with a visible tag.
Attach the leads from the power source–120V hot leg (usually black or red) to the “C” post, neutral (white) to the shared return line. Route a jumper from “C” to the auxiliary post if integrating a hard-start kit. The remaining two conductors (brown and brown-white) connect directly to “H” and “F” terminals without crossing; swapping these causes immediate phase misalignment and potential motor burnout.
Critical Phase Angle Values
| Motor Load | Minimum µF | Maximum µF | Phase Shift Tolerance |
|---|---|---|---|
| Compressor (1/3 HP) | 20 | 25 | ±3° |
| Condenser Fan (1/6 HP) | 5 | 7.5 | ±5° |
| Blower (1/2 HP) | 10 | 15 | ±2° |
Verify the outdoor unit’s nameplate lists compatible voltage (208-230V single-phase) and torque specs; mismatch destroys winding insulation within minutes. After fastening all connections with 10-12 AWG spade terminals, energize the circuit and measure voltage drop across C-H (should read ±2% of source voltage) and C-F (within 3%). A reading outside 207-253V indicates improper grounding or a faulty contactor coil.
Use a non-contact thermometer to check compressor casing after 30 seconds; temperatures exceeding 150°F suggest reversed polarity. If vibration persists, apply thread-locking compound to terminal screws to prevent loosening–standard blue Loctite suffices. Never bypass the thermal overload protector; this voids UL certification and creates fire hazards in aluminum or copper conductors thinner than 14 AWG.
Error Codes Indicating Misconnection
Flash patterns on the indoor control board pinpoint specific faults:
- 1 short + 3 long: Fan phase reversed
- 2 short + 2 long: Compressor open circuit
- Continuous short blinks: Shared common grounded
Reset the board only after correcting the misconnection; persistent codes require replacing the dual-run element rather than attempting field repairs.
Tools and Materials Needed for 4-Way HVAC Energy Storage Component Installation
Acquire a 1000V-rated multimeter to accurately measure voltage, resistance, and capacitance at the connection terminals. Ensure the device has a true RMS function for precise readings in fluctuating AC systems. A non-contact voltage detector with sensitivity up to 600V is critical for verifying power shutdown before handling terminals. Include insulated screwdrivers (shaft length 4-6″, tip sizes #1, #2) specifically designed for electrical work–models with VDE certification resist up to 1000V. Pliers with crimping capability eliminate unreliable manual twisting; opt for heavy-duty variants with 8″ handles for better torque when securing ring spade connectors. Heat-shrink tubing (polyolefin, 3:1 shrink ratio, ½” diameter) provides superior insulation compared to electrical tape–pre-cut 3″ lengths for quick application.
Use a torque screwdriver calibrated to 15-20 lb-in to prevent over- or under-tightening fasteners on the run and start terminals. Stock brass or copper lugs sized for #10-12 AWG conductors; verify compatibility with the specific HVAC unit’s ratings (typically 370-440VAC). Keep a fiberglass brush for cleaning contact surfaces–oxidation impedes conductivity. Disposable nitrile gloves (minimum 5mil thickness) protect against oils that degrade conductive pathways. Store all tools in a grounded, ESD-safe case to prevent static damage to sensitive components.
Step-by-Step Guide to Identifying Component Leads and Conductors
Locate the marked terminals on the unit’s housing first. Most manufacturers label the common (C), herm (H), and fan (F) connections with etched symbols or color-coded bands. The common lead typically aligns with the black conductor, while the herm and fan terminals pair with brown and yellow or purple sleeves respectively. Verify these with a multimeter set to capacitance mode–expected values range between 5–120 μF depending on the system’s load.
Examine the conductor insulation for abrasions or discoloration. A cracked or brittle sleeve signals potential failure; discard such units immediately. For intact assemblies, note the gauge–18–14 AWG is standard for HVAC systems. Thicker conductors (below 16 AWG) often connect to the herm terminal in dual-run setups, handling higher inrush currents.
Use a continuity tester to confirm lead assignments. Place probes on the common terminal and each remaining contact separately. A beep or zero resistance reading indicates the correct pairing:
- Common to herm: active in start and run cycles.
- Common to fan: engages only during motor operation.
If readings deviate, the unit may require replacement.
Trace the conductors back to their origins. In split-phase motors, the herm lead connects to the compressor’s auxiliary winding, while the fan lead attaches to the main winding via a relay. Misalignment here causes improper phase shifts, leading to overheating or tripped breakers. Match the colored sleeves to schematic notations before securing connections.
Secure all terminals with insulated crimp connectors or terminal blocks. Avoid solder for field applications–thermal stress can weaken joints over time. Torque specifications vary:
- 6–10 in-lbs for screw terminals.
- 12–18 in-lbs for spade connectors.
Over-tightening risks stripping threads or fracturing the housing.
Recheck all connections with a phase tester before restoring power. Energize the system in short intervals while monitoring amperage draws. Initial surges should stabilize within 5–10 seconds; prolonged spikes indicate reversed leads or internal shorts. If stable, finalize insulation with heat-shrink tubing or electrical tape, ensuring coverage extends 1/4″ beyond exposed metal.
How to Safely Disconnect Power Before Handling Electrical Components
Locate the main circuit breaker and switch it to the “off” position immediately. Verify the power cutoff by using a non-contact voltage tester on all terminals within the installation area. Confirm the tester’s functionality on a known live source first to avoid false readings.
If working with split-phase systems, disconnect both legs individually. A common error involves turning off only one breaker in dual-pole configurations, leaving residual current. Use insulated gloves rated for at least 1,000 volts when handling terminals post-shutdown.
- Wait a minimum of 5 minutes after power disconnection to allow stored energy to dissipate.
- Short-circuit terminals briefly with a screwdriver wrapped in electrical tape to discharge remaining voltage.
- Never assume wiring is dead based on visual indicators–always test twice.
Verifying Zero Voltage Before Proceeding
Apply the voltage tester to each conductor and adjacent metal surfaces. Test both line and neutral leads; neutral can carry residual charge in certain configurations. If testing reveals any reading, recheck the breaker panel for incorrectly labeled switches or fused disconnects that may have bypassed the cutoff.
For systems with backup power sources (generators, UPS), disable these separately. Battery-backed units can maintain charge even when grid power is disrupted. Check manufacturer specifications for discharge procedures–some units require disconnecting internal batteries.
- Label all switches and fuses before deactivation to ensure proper reconnection.
- Avoid touching terminals or conductors with bare hands, even after testing–static discharge or induced voltage can be present.
- Use a multimeter set to AC voltage mode for secondary verification, not just a non-contact tester.
Preventing Accidental Re-energization
Place lockout tags on the breaker or fuse box, clearly marking the system as under maintenance. Use a padlock or clamp to physically prevent the breaker from being reset. If working in a shared space, inform all personnel of the ongoing work–miscommunication causes 22% of electrical accidents annually.
For external power sources (solar panels, wind turbines), cover panels or disconnect inverters to eliminate phantom voltage. Even “offline” systems can feed back into circuits under certain conditions. Trace all supply lines to their origin, including junction boxes that might bypass the main cutoff.
