Understanding Relay Symbols and Functions in Electrical Schematics
Integrate an electromagnetic switch with a normally open contact (NO) when designing control systems requiring fail-safe mechanisms–this ensures the path remains open during power loss, preventing unintended activation. Position the coil symbol vertically on the left side of the schematic, aligning its terminals with the logic level driving it (e.g., 5V, 12V, or 24V). Use a dashed rectangle around the coil and contacts to visually distinguish the component from surrounding elements, improving readability during troubleshooting.
Label each terminal with standardized identifiers: 85 for coil input, 86 for coil ground, 30 for the common contact, 87 for the NO terminal, and 87a for a normally closed (NC) terminal if present. Connect a flyback diode (e.g., 1N4007) across the coil in reverse bias to suppress voltage spikes–this prevents damage to sensitive microcontrollers or transistors driving the switch. For high-current applications (above 10A), select a diode with a peak reverse voltage (PRV) rating at least 1.5× the circuit’s supply voltage.
Separate power and control paths using thick and thin lines, respectively. Route the supply line (e.g., 12V) directly to the common terminal (30) without intermediate branching to minimize voltage drop. For multi-contact configurations, stack symbols vertically with spacing of at least 10mm between them to avoid confusion. Include a current-limiting resistor (e.g., 1kΩ) in series with the coil if driven by a logic output lacking sufficient current capacity (e.g., Arduino’s 20mA per pin).
Verify coil resistance against the datasheet–low-resistance models (e.g., snubber circuit (0.1µF capacitor + 100Ω resistor in series) across contacts switching inductive loads (e.g., motors, solenoids) to reduce arcing. For high-frequency switching (>50Hz), opt for solid-state variants with zero-crossing detection to minimize electromagnetic interference.
Annotate schematics with critical parameters: coil voltage tolerance (±10%), contact current rating (e.g., 10A @ 125VAC), and response time (reference designator (e.g., K1, K2) followed by a sequential number to simplify BOM generation.
Switching Element Representation in Schematics

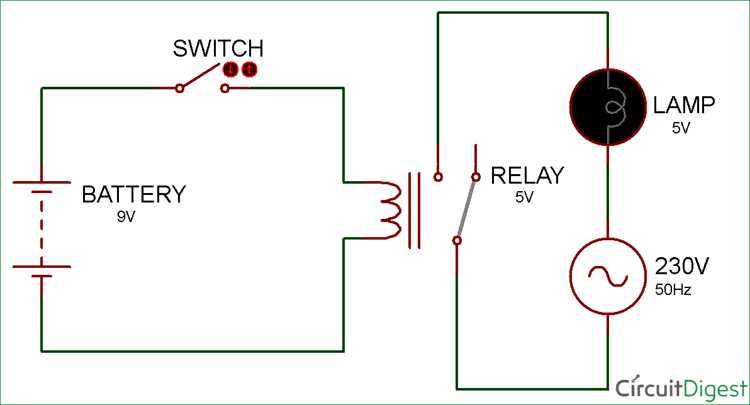

Place the switching component symbol on the left side of controlled loads to maintain clarity–vertical alignment with input lines reduces crossing wires. For single-pole variants, use a standard zigzag line for the coil and a break contact symbol (two lines angled apart) for normally open contacts; double-pole types require parallel zigzag coils with dual contact sets. Annotate coil voltage (e.g., “12VDC”) adjacent to the symbol and specify contact ratings (current/tension) near each switch pair, preventing overload during implementation.
Common Pitfalls When Charting Automated Switches
Mislabeling coil polarity or omitting flyback diodes causes immediate failure–position diodes directly across coils in reverse bias, especially for inductive loads. Overlooking contact gap distance in high-voltage layouts risks arcing; ensure symbols reflect sufficient gap (typically >5mm for 230V AC). For time-delay variants, add a dashed rectangle around the coil symbol with “T” followed by milliseconds (e.g., “T=50ms”) to distinguish from instantaneous types. Use distinct colors for control lines (blue) and power lines (red) to prevent debugging errors during prototype testing.
How to Spot Switching Device Symbols in Electrical Schematics
Look for a rectangular box with a diagonal line cutting through it–this is the most common representation of a mechanical actuator in wiring layouts. Some variants place the diagonal at 45 degrees, while others might show it vertical or horizontal, but the key feature remains the intersecting line. Always check for small circles at the ends of this line; these denote the contact points.
Common deviations include:
- Dual rectangles side-by-side, indicating changeover contacts
- A single rectangle with an arrow pointing outward, often used for latching types
- Dashed rectangles, representing solid-state or hybrid variants
If the symbol contains a coil–typically drawn as a crescent or horseshoe shape adjacent to the box–it signifies an electromagnetically operated device. The coil’s placement can vary: above, below, or to the side of the contacts. Memorize this shape, as it distinguishes switching elements from passive components like resistors or capacitors.
Search for accompanying labels such as “K,” “RE,” or “RY” followed by a number (e.g., K1, RY2). These identifier tags appear near the graphic and help differentiate multiple switching units in complex layouts. In older blueprints, the prefix may be “CR” for “control relay.” Match these tags with the bill of materials to confirm function.
Specialized Symbols and Their Meanings
Thermal-sensitive actuators often feature a zigzag line resembling a resistor, placed inside or near the rectangle. Polarized or mercury-wetted types incorporate additional markings–look for a “+” sign or a shaded area. For reed switches, expect a glass capsule drawn as a narrow ellipse around the contacts.
Compare suspected symbols against the legend or standard reference sheet–ANSI Y32.2 and IEC 60617 provide definitive guides. If the schematic lacks a legend, isolate the symbol and cross-check with reliable online databases like Digikey’s symbol library or manufacturer datasheets. Keep a printed quick-reference chart for field verification.
Key Pin Configurations and Their Functions in Switching Device Schematics
Identify coil terminals first–typically labeled 85 and 86–as these dictate activation. Apply voltage across these points to energize the coil; polarity matters in solid-state variants but is irrelevant for mechanical types. For battery-powered setups, ensure the control signal matches the coil’s rated voltage (±10% tolerance) to prevent overheating or inconsistent switching.
Common Contact Arrangements and Best Practices
Three core configurations dominate schematics: SPST (Normally Open), SPDT, and DPDT. SPST uses pins 30 (common) and 87 (NO); connect loads between them for simple on-off control. SPDT adds a normally closed (NC) contact at 87a, ideal for fail-safe designs–verify current ratings as NC paths often handle lower loads. DPDT doubles these contacts (pins 30/87/87a ×2), enabling simultaneous switching of two isolated loads; isolate high-voltage paths from logic-level signals to avoid interference.
Label terminal functions directly on overlays or silkscreen layers–ambiguity in pin numbering leads to bridging errors. For automotive or industrial applications, prioritize ground isolation between coil and contacts; use flyback diodes (1N4007) across coil terminals to suppress voltage spikes in DC systems or varistors for AC. Test continuity with a multimeter before powering up; a 10-20% resistance deviation from datasheet values signals potential coil degradation.
Step-by-Step Guide for Wiring an Electromagnetic Switch in a Schematic
Identify the control source and load paths before connecting any wires. Check the switch’s datasheet for coil voltage (5V, 12V, or 24V DC are common) and contact ratings (current/voltage for resistive or inductive loads). Mismatched values risk overheating or failure.

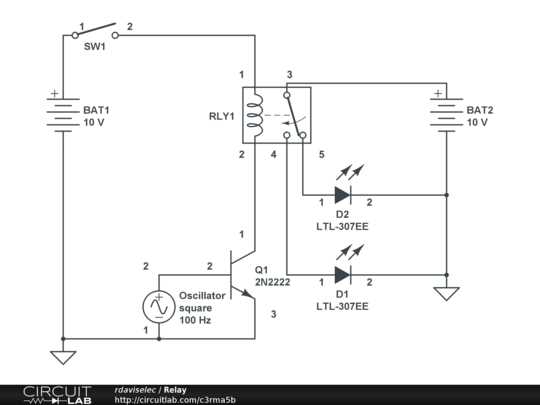

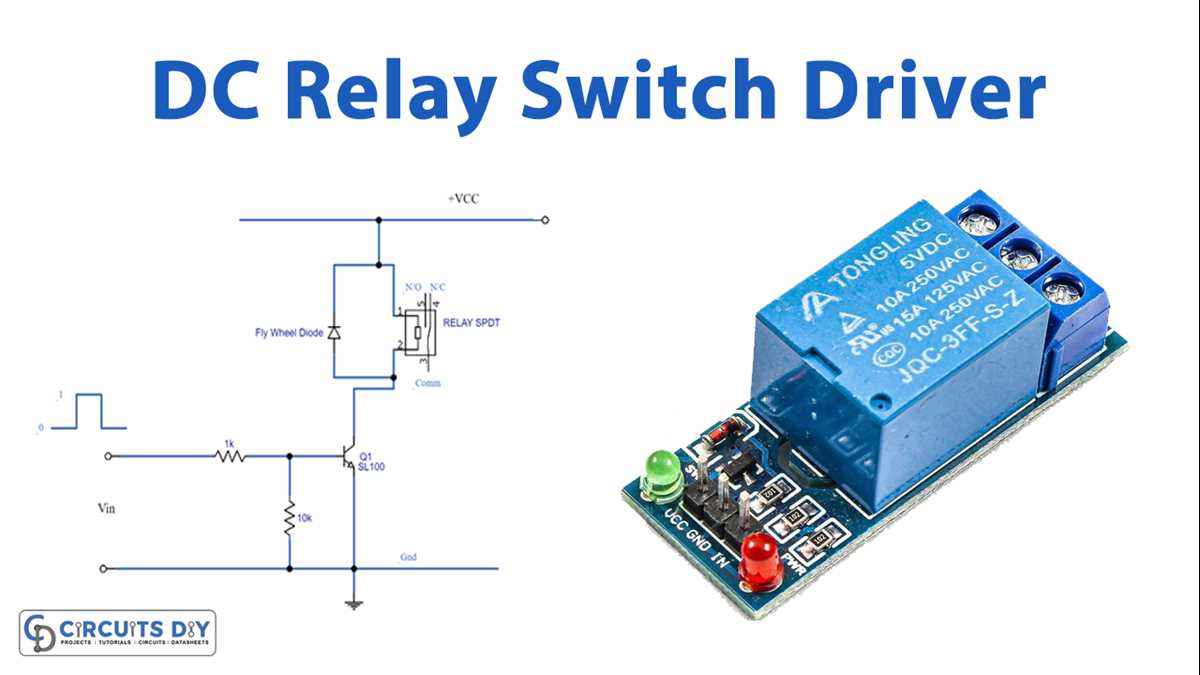

Connect the control input to the coil terminals–one to the positive voltage supply, the other to a switching device (transistor, microcontroller, or manual switch). Use a flyback diode (1N4007) across the coil if driving it with a semiconductor to prevent voltage spikes.
| Component | Terminal | Wire Gauge (AWG) |
|---|---|---|
| Coil (+) | 85 or A1 | 22-24 |
| Coil (-) | 86 or A2 | 22-24 |
| Common (COM) | 30 or C | 18-20 |
| Normally Open (NO) | 87 or NO | 18-20 |
| Normally Closed (NC) | 87a or NC | 18-20 |

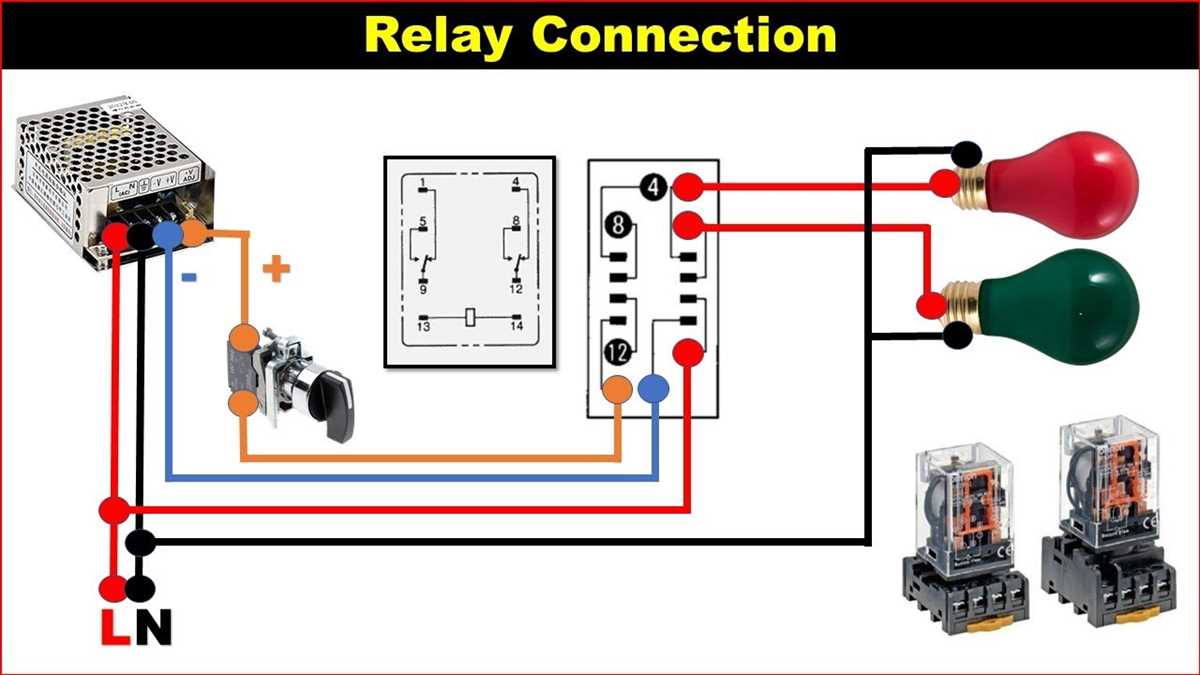

Attach the load to the switch contacts–common (COM) to the power source, and the chosen output (NO or NC) to the device. For high-power loads (motors, heaters), use heavier gauge wire (16-18 AWG) and ensure the contacts can handle the inrush current.
Add a fuse inline with the power source to protect against short circuits. The fuse rating should match or slightly exceed the load’s maximum current draw. For example, a 10A load requires a 12A fuse.
Test the installation with a multimeter before applying full power. Measure coil resistance (typically 50-150Ω for 12V switches) and verify no continuity exists between COM and NO/NC when inactive. Energize the coil; the meter should show continuity between COM and NO.
Secure all connections with crimp connectors or solder, then insulate with heat shrink tubing or electrical tape. Loose connections cause arcing and overheating, especially under vibration (e.g., automotive applications).
For alternating current loads, confirm the switch’s AC voltage rating matches the supply (e.g., 250V AC). Some devices are DC-only–crossing ratings can destroy the contacts.
Label each wire near the switch for troubleshooting. Include voltage levels, load type, and function (e.g., “12V Coil,” “Headlight Load,” “NC Spare”). Store spare switches with datasheets in a dry, static-free environment.
Common Mistakes When Placing Switching Components in Electrical Schematics
Position power control elements too close to heat-generating parts without thermal spacing. Even a 10°C rise above rated ambient reduces lifespan by 50%. Leave at least 20mm clearance from resistors, transformers, or high-current traces. Reference IPC-2221 for exact thermal separation requirements based on current load.
Overlooking coil suppression leads to voltage spikes exceeding 1 kV when contacts open. Install a flyback diode across inductive loads or a bidirectional transient voltage suppressor (TVS) for AC coils. Omitting this causes arcing, erratic switching, and premature failure of nearby semiconductors within milliseconds.
Incorrect Coil Voltage Matching
- Specify 12V coils for 24V systems without a dropping resistor–coil current doubles, overheating ensues.
- Assume universal compatibility; dual-voltage coils require configuration before soldering.
- Ignore surge current specs–momentary inrush can be 3-5× steady-state, tripping upstream fuses.
Misalign contact ratings with actual switching demands. A 10A contact rated for resistive loads fails within hours when driving motors pulling 8A inductive start-up current. Derate contacts by 50% for inductive or capacitive circuits. Refer to UL 508 for contact endurance curves.
Neglect polarity in DC-operated electromagnetic devices. Reversing polarity burns coil insulation instantly; apply diodes for protection only in the correct orientation. For polarized types, mark pin 1 on all schematics using a standardized symbol–cross-reference ISO 7000-0417.
