How to Wire a 4 Wire Phone Jack Step-by-Step Connection Guide

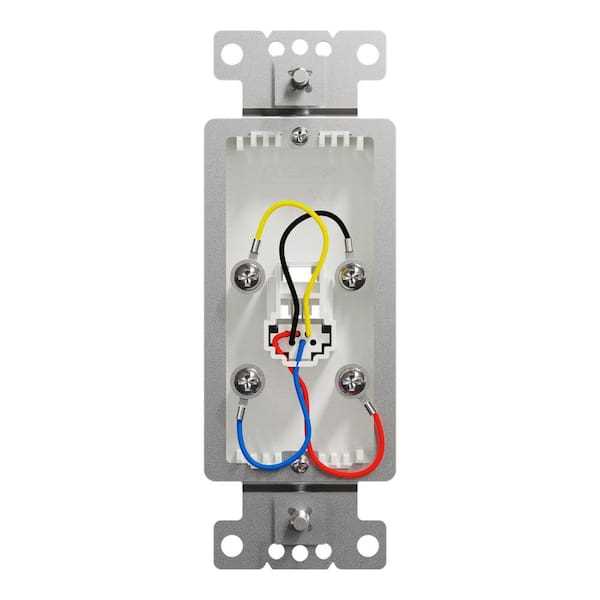

Start by identifying the terminals on your modular interface: red (ring), green (tip), yellow (ring 2), and black (tip 2). These correspond to the standardized RJ14 pinout for dual-line systems–pins 3 and 4 for the first circuit, 2 and 5 for the second. Use a multimeter to confirm continuity before attaching any leads, as incorrect pairing can cause crosstalk or no signal. Strip no more than 0.5 cm of insulation from each conductor to avoid shorting adjacent contacts.

For a standard handset installation, route the red and green pairs to the receiver’s primary terminals–the red typically carries the negative voltage (–48V), while green provides the positive return. The yellow and black lines handle the secondary channel if present; these should bypass inactive devices to prevent loading the circuit. Avoid twisting the strands too tightly–excessive stress weakens copper and increases resistance over time. Secure connections with solder or crimp terminals rated for at least 150°C to withstand line surges.

Label each terminal immediately after attaching to prevent misrouting during testing. A 4-conductor setup allows for either single-line operation (ignoring yellow/black) or full dual-line support–decide this early to minimize rework. For analog devices, verify the impedance match; mismatch (e.g., 300Ω vs. 600Ω) distorts audio and degrades transmission. If noise persists, insert a 1µF capacitor between the red and green lines to filter high-frequency interference.

Grounding is non-negotiable: connect the shield or spare conductor to a known earth point, preferably a dedicated ground bar. Never share this with power circuits–induction from AC lines will introduce hum. Final testing requires a dedicated line tester to confirm polarity, loop current (30–50 mA typical), and signal clarity. If only one channel is needed, cap the unused pair with a 600Ω resistor to maintain proper impedance.

Connecting a 4-Conductor Terminal: Step-by-Step Guide

Start by identifying the terminal blocks labeled Green (tip), Red (ring), Black (auxiliary), and Yellow (ground) on your modular socket. These correspond to RJ11/RJ14 standards where the green and red conductors handle primary voice signals, while black and yellow serve secondary functions or power delivery in VoIP adapters.

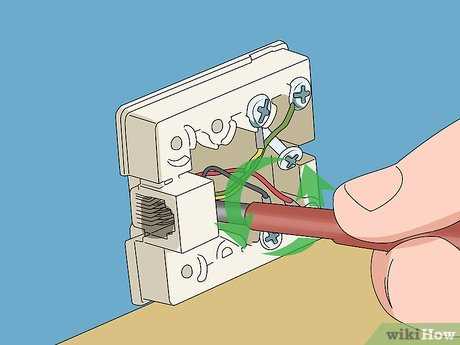

Use a punch-down tool to secure each strand to its designated slot–apply firm pressure to cut excess without damaging insulation. For analog POTS lines, green connects to terminal 3, red to 4, black to 5, and yellow to 6, though VoIP systems may swap black and yellow for auxiliary voltage.

Check continuity with a multimeter set to ohms–probe between the plug’s contact points and corresponding socket terminals. A reading below 1Ω confirms solid connectivity; higher resistance indicates loose crimps or oxidized contacts requiring re-termination.

For cross-connections (e.g., linking two devices), bridge green and red from the first port to black and yellow of the second, but avoid mixing polarity–reverse connections cause echo or no dial tone. VoIP units often need black for -48V DC and yellow for signal return.

Shielded twisted pair cable (STP) reduces interference in noisy environments–strip 0.5″ of outer jacket, twist pairs tightly (twists per inch: 20-25), and keep untwisted length under 0.3″. Excessive untwisted length degrades signal integrity, especially for DSL filters.

Label each conductor at both ends with color-coded sleeves or printable tags. Misrouted connections in PBX installations create phantom rings or dropped calls–green/red reversals invert polarity, while swapping black/yellow may render ADSL filters ineffective.

Test configurations with a tone generator if deploying multi-line setups. Plug the modular connector into each port while tracing tones; correct mapping ensures line 1 (green/red) doesn’t bleed into line 2 (black/yellow). Faulty mappings overwhelm VoIP codecs, causing jitter.

Preserve documentation of your layout–note deviations from standard RJ pinouts (e.g., some Cisco ATA adapters use yellow for ring voltage). Future troubleshooting relies on accurate records; even seasoned installers reference diagrams when laterals span 50+ feet.

Identifying Conductors in a Quadruple Strand Communication Line

Begin by locating the color-coded insulation on each strand. A standard four-conductor assembly follows a consistent color scheme: red (ring), green (tip), yellow (auxiliary ring), and black (auxiliary tip). These hues are factory-marked and rarely deviate in residential or small-office installations. Verify the sequence with a continuity tester before proceeding–misidentification can lead to crossed signals or dead lines.

Examine the conductor gauge if visual cues are unclear. Quadruple strands typically use 24-26 AWG solid copper, distinguishable by a slight stiffness compared to thinner, flexible multi-strand alternatives found in data cables. The rigidity helps maintain twist integrity during termination, ensuring minimal signal bleed between adjacent pairs.

Trace each strand from the plug to the terminal block. The red and green pair forms the primary circuit, carrying voice transmission in most analog systems. The remaining yellow and black strands often serve secondary roles–either a second line, a dedicated data channel, or power for devices like intercoms or modems. Check the equipment manual to confirm intended use before connecting.

Distinguishing Pair Polarity

Use a multimeter set to DC voltage mode to test polarity. With the system active, measure between the red and green strands: positive voltage (typically 48V) indicates correct polarity, with the green strand serving as ground. Reverse polarity (negative reading) suggests miswiring–swap strands at the terminus to resolve. Repeat the test for the yellow-black pair if a secondary circuit is present.

Inspect the insulation for any printed identifiers. Some manufacturers embed RJ11/RJ14-compliant strands with microscopic text–”T” (tip), “R” (ring), or “A” (auxiliary)–near the plug or along the sheath. These markings override default color assumptions in rare cases where non-standard coding is used (e.g., blue instead of black).

Handling Non-Standard Configurations

For older installations (pre-1990s) or international variants, strands might include blue, white, or violet instead of yellow or black. Cross-reference with regional specifications: European systems often use blue-white for auxiliary pairs, while Australian setups may swap green and black. Consult a pinout reference chart if color mismatches occur–improvised connections risk shorting the circuit.

Label each strand immediately after identification. Use a fine-tip permanent marker to note the color and function on the insulation near termination points. Include the date and installer initials if documenting for future maintenance. Store unused strands coiled and secured to prevent tangling or accidental disconnection during adjacent work.

Step-by-Step Guide to Stripping and Preparing Conductors

Use a precision stripping tool calibrated for 22–26 AWG gauge connections to remove insulation without nicking the metal core. Adjust the blade depth to 2.5–3mm for standard four-strand cable–deeper settings risk cutting conductor strands, shallower settings fail to expose enough bare metal for secure termination.

Grip the cable 15–20mm from the end and apply steady pressure; rotate the tool once around the circumference to score the outer jacket, then pull the severed insulation away in one motion. For multi-strand bundles, separate individual strands by gently flexing the cluster between thumb and forefinger until each filament stands apart.

Inspection and Pre-Solder Preparation

• Verify exposed metal length: 8–10mm for solder cups, 5–7mm for quick-connect terminals.
• Remove oxidation with 1200-grit emery paper–single light stroke against a bright light reveals remaining tarnish.
• Avoid bending strands more than 15°; work-hardened copper fractures under minimal force.

Apply rosin flux to the stripped end within 60 seconds of cleaning; flux prevents re-oxidation during heating but degrades if left exposed. Use a temperature-controlled 25W iron for stranded copper–excess heat dissolves fine filaments into brittle globules. Pre-tin the end by touching the solder to the iron tip first, then letting it flow onto the conductor; this sequence avoids overheating the insulation.

Hold strands together with needle-nose pliers while solder cools–twisting induces stress concentrations that fail under repeated flex cycles. For terminal blocks requiring bare connections, omit solder and instead crimp with 0.2mm silver-plated copper ferrules; ferrule length must equal the terminal’s insertion depth minus 1mm.

Testing Before Termination

1. Visually confirm no frayed filaments cross adjacent connectors–multi-meter resistance check should read
2. Flex the cable 20° back and forth while monitoring continuity; intermittent open circuits reveal incomplete stripping.
3. Wrap exposed ends with 12mm heat-shrink tubing before final installation to prevent short-circuiting against chassis contact points.

Trim stray filaments flush with micro-cutting pliers; protruding strands bridge gaps in modular connector housings, causing intermittent signal drops under vibration. Store prepared ends in anti-static bags if termination is delayed–ambient moisture forms dendritic growth across bare copper within hours in humid environments.
