Practical Implementation of the CD4051 Analog Multiplexer

Begin by connecting the common I/O pin (pin 3) to your analog signal source–ensure the input range stays within ±5V for reliable operation. Bypass capacitors (0.1µF) must be placed between VDD (pin 16) and VSS (pin 8) as close to the chip as possible; omit these and risk erratic switching due to power noise.

Select channel addressing via pins 9, 10, and 11 (S0, S1, S2)–binary combinations 000 to 111 map directly to channels 0 through 7. For fast transitions, add 10kΩ pull-down resistors to prevent floating inputs; without them, signals may bleed between selections.

Decouple the inhibit pin (pin 6) to ground unless actively disabling all routes–leaving it unconnected defaults to normal operation but invites crosstalk. When multiplexing high-impedance sources like sensors, buffer outputs with an op-amp to avoid loading effects distorting readings.

For bidirectional use, tie the “A” pin (pin 3) to both an input line and output load–this demands a low-current limitation (

Noise-sensitive applications benefit from enclosing the layout in a grounded copper pour, minimizing EMI from adjacent traces. Avoid routing digital control lines parallel to analog paths–orthogonal orientation reduces capacitive coupling.

When powering from split supplies (±5V), connect VEE (pin 7) to the negative rail; single-supply setups should ground it. Validate performance with an oscilloscope–glitches at transitions indicate missing decoupling or excessive trace inductance.

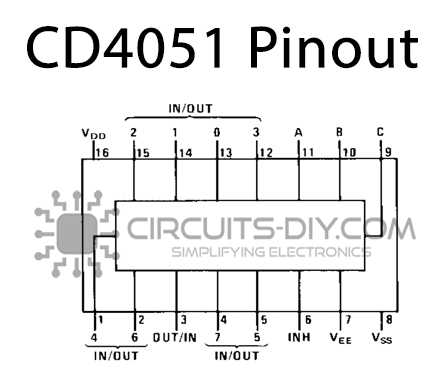

Pin Configuration and Functionality of the Analog Multiplexer IC

Begin by connecting the common output/input pin (COM or Z) to your signal path–this is pin 3 in standard DIP packages. Verify the logic levels on address lines A (pin 11), B (pin 10), and C (pin 9) to select one of eight channels (Y0–Y7) before applying input signals. Ensure the inhibit pin (INH, pin 6) is tied low (0V) during operation; pulling it high disables all channels, isolating COM from any input.

Channel Selection Logic

Use a 3-bit binary code on A, B, and C to route the desired input (e.g., 000 selects Y0, 111 selects Y7). For dual-supply operation (±5V), connect V_EE (pin 7) to the negative rail–this extends signal handling beyond the positive supply range. Single-supply setups (0V to +V_DD) require V_EE to ground, but note the reduced dynamic range below 0V.

Decouple V_DD (pin 16) with a 0.1μF ceramic capacitor placed within 2mm of the pin to suppress high-frequency noise. Avoid exceeding ±8V on V_DD–V_SS (pin 8) differential; typical limits are +5V/+15V for V_DD and -5V/-15V for V_SS. Input signals must stay within V_SS-0.5V to V_DD+0.5V to prevent latch-up or damage.

Signal Integrity Precautions

Keep unused channels terminated to V_SS or a mid-rail voltage to minimize crosstalk. For high-speed switching (>100kHz), add a 100Ω series resistor on COM to dampen ringing caused by parasitic inductance. If using TTL-compatible logic (e.g., 5V CMOS), buffer the address lines through a 74HC14 to ensure clean transitions–glitches can cause erratic channel selection.

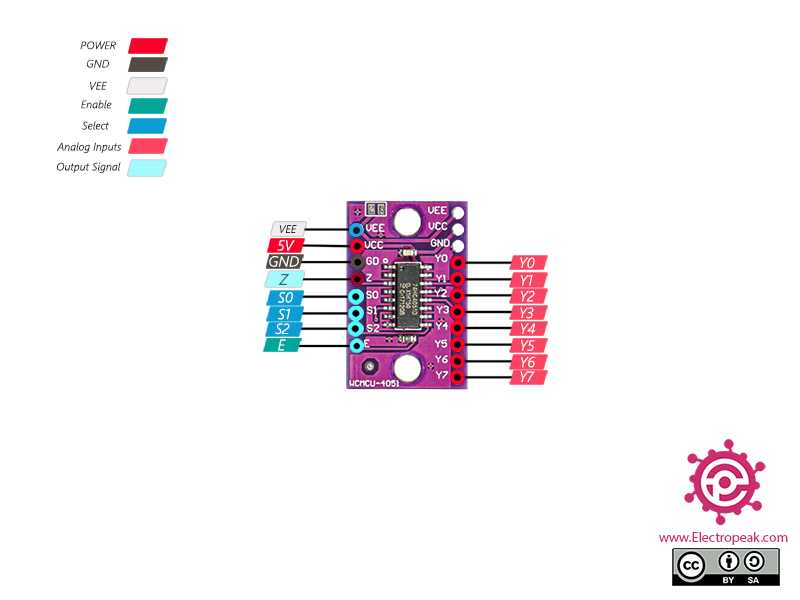

Step-by-Step Wiring for 8-Channel Input Switching with the Analog Multiplexer

Begin by connecting the common signal line to the multiplexer’s output pin. For an 8-channel configuration, pin 3 serves as the single output, consolidating all inputs into one path. Ensure this connection is direct and low-resistance to maintain signal integrity.

Wire each of the eight input channels to pins 13, 14, 15, 12, 1, 5, 2, and 4 respectively. Use shielded cables for analog signals to minimize noise interference, especially in environments with high electromagnetic activity. Label each input line at both ends to simplify troubleshooting later.

Supply power to the multiplexing IC by connecting the positive rail to pin 16 and ground to pin 8. Use a stable 5V source to avoid voltage fluctuations that could distort signal selection. Add a 0.1µF decoupling capacitor between power and ground near the IC to filter high-frequency noise.

Addressing and Control Logic

Assign three digital control lines (A, B, C) to pins 11, 10, and 9 to select the active input channel. The binary combination of these lines determines which of the eight inputs connects to the output. For example:

• 000 selects channel 0 (pin 13)
• 001 selects channel 1 (pin 14)
• 111 selects channel 7 (pin 4)

Drive these control lines with a microcontroller or logic gates, ensuring clean transitions to prevent glitches. Add 10kΩ pull-down resistors to the control lines if using open-drain outputs.

Optional Enhancements

For higher-current applications, buffer the output with an op-amp configured as a voltage follower. This isolates the multiplexer from the load and preserves signal strength. Alternatively, use a small-signal MOSFET if the output must drive capacitive or inductive loads.

Test each channel sequentially before integrating into the final system. Probe the output with an oscilloscope while cycling through control line combinations. Verify that the selected input appears at the output with minimal attenuation or phase shift. Adjust wiring if crosstalk or unexpected behavior occurs.

Finally, secure all connections with solder or terminal blocks to prevent intermittent faults. Enclose the assembly in a grounded metal case if operating in noisy environments, and avoid routing digital control lines parallel to analog inputs to reduce interference.

Common Grounding and Power Supply Considerations for Noise Reduction

Use a star grounding topology to minimize ground loops. Connect all ground references to a single central point near the power source. This prevents potential differences between grounds, which introduce 50-200 mV of noise in mixed-signal layouts. Keep high-current returns (motor drivers, relays) separate from analog grounds to avoid contamination.

Decouple power rails at the component level with 0.1 µF ceramic capacitors placed within 2 mm of each IC pin. For low-frequency stability, add a 10 µF tantalum capacitor at the power entry point. Follow this table for capacitor placement:

Component Type	Capacitor Value	Placement Distance	Voltage Rating
Logic gates (TTL/CMOS)	0.1 µF	<2 mm	1.5× VCC
Op-amps (high-speed)	1 µF + 0.1 µF	<5 mm	2× VCC
Voltage regulators	10 µF	Board edge	50 V

Route power and ground traces at least 2.5× wider than signal traces to reduce impedance. For 1 oz copper, use 0.5 mm traces for signals and 1.3 mm for power rails. Avoid daisy-chaining power; distribute from a central node with tree-like branching. This reduces voltage drop by 30% in 100 mm traces.

Ground Plane Strategies

Split ground planes only when necessary (e.g., analog/digital isolation). Use a single solid plane for frequencies below 1 MHz to maintain low impedance. For split planes, connect them at one point with a ferrite bead (600 Ω @ 100 MHz) to block high-frequency noise while allowing DC continuity. Keep the split width under 0.3 mm to prevent unintended coupling.

Use ground vias liberally–place one via every 20 mm along traces and near pad edges. For 0.6 mm holes in 1.6 mm FR4, each via adds 0.5 nH inductance. At 10 MHz, ten vias reduce ground impedance by 85% compared to a single via. Avoid stitching vias in RF sections where capacitance matters.

Isolate noisy loads (DC-DC converters, buzzers) with pi-filters using 10 µH inductors and 10 µF capacitors. Place the filter within 10 mm of the load. For 12 V rails, this reduces ripple from 200 mV_pp to 15 mV_pp at 50 kHz. Avoid electrolytic capacitors near heat sources; their ESR doubles at 85°C.

Test grounding efficacy with a differential probe. Measure noise between the central ground and each subsystem’s ground pad. Acceptable limits: <20 mV_pp for analog circuits, <50 mV_pp for digital. If noise exceeds thresholds, verify return paths–trace inductance above 10 nH causes measurable voltage drops at 1 A current swings.
