How to Wire a House Light Switch Step-by-Step Guide with Diagrams

Before modifying any circuit, disconnect power at the breaker panel. Verify absence of voltage at the terminals with a non-contact tester–assuming zero risk without confirmation invites burns or shorts. Use 14 AWG copper conductors for 15-amp circuits, 12 AWG for 20-amp. Secure connections with wire nuts rated for the gauge; loose strands oxidize and generate heat.

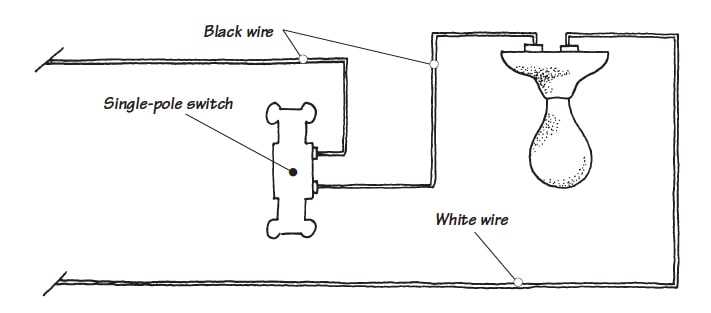

For a single-pole control, attach the live feed to the screw marked COMMON (brass or dark-colored). Connect the load terminal to the fixture’s hot wire. Ground the device to the bare or green conductor and link it to the metal box if present. Never omit grounding–it redirects fault current safely.

In a three-way setup, two controls toggle one fixture. The first device receives the feed on COMMON; travelers connect to the remaining screws. The second unit mirrors the first but attaches travelers to identical terminals. Label wires during disassembly–reconstructing unmarked circuits wastes hours.

Dimmers require compatible bulbs–LED loads often flicker if rated wattage is exceeded or the driver isn’t compatible. Replace incandescent-rated dimmers with LED-specific models. Always test the circuit with a load before finalizing wall plates–open neutrals cause unseen fires.

Aluminum wiring demands specialized treatment: coat connections with antioxidant paste and use CO/ALR rated devices. Copper-clad aluminum requires identical precautions. Check local codes–some jurisdictions prohibit aluminum for new installations.

Residential Illumination Control Circuit Guide

Start by disconnecting power at the breaker panel before handling any conductors. Use a non-contact voltage tester to confirm the circuit is de-energized–probe each terminal screw and wire end individually. For standard single-pole control setups, connect the incoming hot conductor (typically black or red) to the brass-colored terminal. The outgoing load conductor attaches to the remaining brass terminal. Wrap bare copper grounding wires tightly around the green grounding screw, ensuring a secure mechanical connection before fastening.

For two-way configurations (common in stairwells or hallways), employ travelers between the control points. Identify the travelers by their identical colors–often red–while the common terminal connects to the line or load side. Mark these distinctly during installation to prevent miswiring, which often manifests as inconsistent operation. Use 14- or 12-gauge wire depending on the circuit amperage; 14-gauge suffices for 15-amp circuits, while 12-gauge is mandatory for 20-amp designs. Twist wire ends tightly before inserting into terminals to avoid loosening under thermal cycling.

Common Pitfalls in Circuit Assembly

Loose connections remain the primary failure point. After securing terminals, tug gently on each wire to verify mechanical integrity. Avoid backstab connectors–they’re prone to intermittent contact over time. Instead, loop wire ends clockwise around terminal screws to match the tightening direction, preventing the conductor from unraveling under torque. For dimmer installations, ensure compatibility with LED loads; many older dimmers require minimum wattage thresholds (often 10W or more) to function properly without flickering or buzzing.

In multi-way layouts, confusion between travelers and neutral conductors causes most miswiring errors. Test with a multimeter: travelers should show continuity only when the remote control is toggled, while neutrals remain at zero volts relative to ground. For smart controls, reserve a neutral conductor at each location–modern energy-monitoring models typically require it. Strip insulation precisely; exposing too much bare copper risks shorts, while insufficient length prevents proper terminal engagement. Use wire strippers calibrated for the gauge (14 or 12) to avoid nicking strands.

Advanced Troubleshooting Methods

If a fixture fails after assembly, methodically validate each connection. First, verify power presence at the panel using a known-safe circuit as reference. Then isolate sections: disconnect all conductors at the last-known functional control and test continuity through the travelers. For intermittent issues, suspect thermal expansion–retighten terminal screws after 24 hours of operation, as copper contracts during cooling. Replace any corroded conductors immediately; even slight oxidation increases resistance and heat buildup.

For three-way dimmer integration, select models supporting the specific control count. Some dimmers require “dumb” companion controls, while others allow full dimming from both points. Always consult the manufacturer’s wiring schematic–colors often deviate from conventional coding. When extending circuits through metallic conduit, bond all junction boxes to the grounding system at each connection point to maintain electrical continuity. Prioritize enclosure integrity; exposed terminals violate safety codes and risk accidental contact.

Selecting Optimal Conductors for Solitary Circuit Controls

Use copper conductors sized 14 AWG for 15-amp circuits and 12 AWG for 20-amp installations–these meet NEC and IEC standards for residential and commercial environments. Solid copper resists oxidation better than stranded, reducing long-term corrosion at connection points. Avoid aluminum unless using CO/ALR-rated devices; even then, pigtailing with copper is mandatory to prevent galvanic reactions.

• Insulation type: THHN/THWN-2 (heat-resistant, nylon-coated) for dry or damp locations; Romex (NM-B) for concealed, indoor use where local codes permit. Verify temperature rating; 90°C conductors (THHN) allow higher ampacity but require derating when bundled in conduit.
• Color conventions: Black for ungrounded (hot) legs, white for neutral returns, bare/green for grounding paths–adhere strictly to avoid confusion during maintenance. In single-terminal setups, neutral is not connected at the control point but must run continuously through the box for smart or dimmable variants.
• Voltage drop considerations: For runs exceeding 50 feet, upsize conductors: 10 AWG for 3% drop at 120V on a 20-amp circuit. Use voltage drop calculators (e.g., Southwire’s tool) before finalizing wire gauge for long spans.

Grounding and Safety Protocols

Equip all control boxes with a dedicated 10 AWG copper grounding conductor–this exceeds minimum code requirements but ensures fault protection for modern overcurrent devices. Secure grounding to metal boxes with a green grounding screw; for plastic enclosures, bond the conductor directly to the device’s grounding terminal. Never omit grounding, even in older installations; retrofit with GFCI protection if no grounding path exists.

1. For circuits powering high-wattage fixtures (e.g., incandescent >150W), upsize conductors one gauge to prevent overheating at terminations.
2. Test insulation integrity with a megohmmeter before energizing; minimum 1 MΩ resistance per conductor ensures no shorts to ground.
3. Label all conductors at both ends–use heat-shrink tubing or permanent markers to identify function (e.g., “SW1-HOT”).

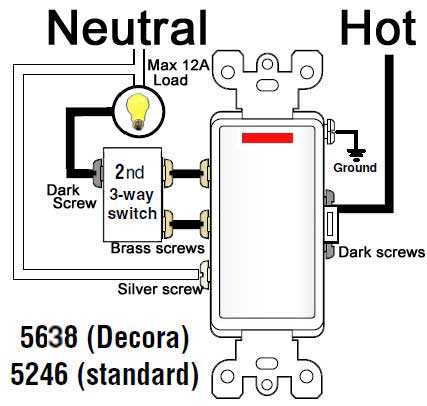

How to Install a Multi-Location Control for Your Fixture

Shut off power at the breaker panel before touching any conductors. Verify absence of current using a non-contact voltage detector on each terminal.

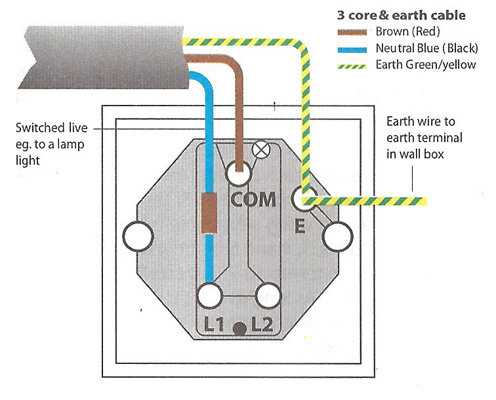

Identify the three terminals: one common (darker screw) and two travelers (brass or silver screws). The feed wire connects to the common terminal of the first unit, while the remote device shares travelers between both controls.

Required materials:

• Two multi-location toggle devices
• Three-conductor cable (plus ground) for connection between toggles
• Wire strippers
• Screwdriver (flathead or Phillips, depending on terminal type)
• Wire nuts (size appropriate for conductor gauge)

Connect the incoming feed (black) to the common terminal of the primary toggle. Attach the red and white conductors of the three-wire cable to the traveler terminals of both units–polarity doesn’t matter, but maintain consistency between devices.

At the secondary toggle, join the fixture’s hot lead (black) to the common terminal. If the remote device includes a built-in indicator lamp, use the red traveler for the lamp circuit instead of black.

1. Strip ⅜” of insulation from each conductor end.
2. Loop wire clockwise around terminal screws before tightening.
3. Secure wire nuts firmly, ensuring no bare copper is exposed.
4. Fold conductors neatly into the junction box, securing with cable clamps.
5. Restore power and test operation from both locations.

Troubleshooting Common Issues

• No power: Check common terminal connections and feed continuity.
• Works only from one location: Verify traveler connections at both toggles.
• Flickering: Ensure tight terminal connections and proper grounding.
• Indicator lamp dim: Confirm red traveler is correctly assigned.

For installations exceeding 100 feet between toggles, use 12 AWG conductors to minimize voltage drop. In damp environments, apply silicone grease to terminals to prevent corrosion.

Key Conductor Shades and Their Roles in Electrical Pathways

Begin by locating the black (or red) hot conductor–this carries the active current from the source to the device. In most residential setups, it terminates at the brass-colored screw on the control mechanism. Verify its continuity with a non-contact voltage tester before handling; a broken or improper connection here disrupts the entire circuit. For split-phase systems, red may indicate a secondary hot line, often used in multi-way configurations.

Color	Standard Function	Critical Notes
White (or gray)	Neutral return path	Must be connected to silver terminal; never splice directly to ground
Green (or bare copper)	Safety ground	Attach only to green screw; prevents shock hazards in faulty conditions
Yellow/Blue (sometimes striped)	Traveler wires in 3-way/4-way setups	Interchangeable but must match corresponding terminals across controls

For installations predating the 1990s, expect non-standard hues like tan or pink–these often serve as neutrals in older conduit systems. Modern codes mandate consistent color-coding to prevent miswirings that could lead to short circuits or fire risks. When dealing with _3-way_ or _4-way_ arrangements, isolate the travelers (yellow/blue) first; these shuttle current between multiple control points and require identical routing at each junction. Always cap unused conductors with wire nuts to avoid accidental contact.
