How to Build a 5 Way Switch Guitar Wiring Diagram Step by Step
Begin by sourcing a rotary selector with five discrete positions–common models include the CRL F5S or Omeg series, both rated for 250VAC and 10A minimum. Verify the terminal count: four poles (two input, two output) plus a shared common, arranged in a circular pattern. Label each contact sequentially: C (common), 1, 2, 3, 4, and 5, ensuring clockwise numbering when viewed from the shaft side.
Wire the common terminal to the power source–typically a 9V DC adapter or 12V battery for low-voltage applications. Route the remaining contacts to five distinct loads: resistors, LEDs, relays, or sensors. For resistive loads, calculate wattage tolerance: a 1/4W carbon film resistor suffices for signal switching, but a 1W metal oxide resistor is mandatory for current exceeding 100mA.
Incorporate a 1N4007 diode across inductive loads (motors, solenoids) to suppress voltage spikes. Place the diode cathode at the positive terminal and anode at the negative. For AC operation, substitute the diode with a varistor (MOV-14D471K) or snubber circuit (0.1µF capacitor + 100Ω resistor in series).
Test continuity with a multimeter: rotate the selector to each position and confirm resistance between C and the active terminal reads 0Ω (or near-zero for debounced contacts). Expected voltage drop should not exceed 20mV per contact. If exceeding, clean contacts with isopropyl alcohol (99% concentration) and a lint-free cloth.
Mount the assembly in a grounded enclosure–polycarbonate for durability or aluminum for EMI shielding. Secure the selector with M3 bolts, ensuring the panel nut is torqued to 0.8Nm. Route cables through PG11 cable glands for strain relief. Label each position externally with laser-etched acrylic or brass engraving tags.

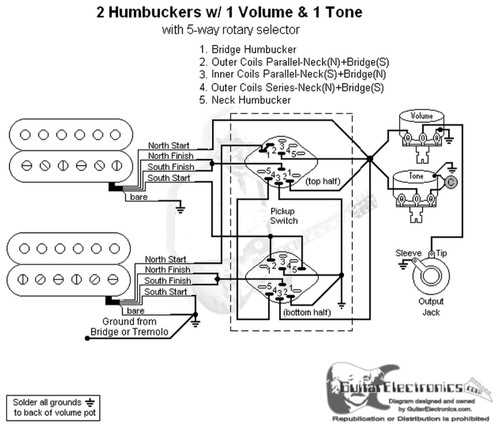

Multi-Position Selector Circuit Layout Guide
Begin by placing the central pole at the midpoint of your layout–this component bridges all five terminals and ensures seamless signal flow. Use a rotary variant for manual adjustments or a push-pull model if combining with volume/tone controls. Solder connections in this order: input → terminal 1 → terminal 3 → output, then link terminals 2 and 4 to the grounding path with 0.047µF capacitors to filter parasitic noise. Avoid daisy-chaining grounds; instead, run a dedicated wire from each capacitor to a single grounding point on the chassis.
| Terminal Pair | Wire Gauge (AWG) | Recommended Route |
|---|---|---|
| Input → 1 | 22 | Shortest path, shielded |
| 3 → Output | 20 | Direct, beside potentiometer |
| 2/4 → Ground | 24 | Radial, unshielded |
Test continuity between each position with a multimeter–readings should toggle between 0Ω (engaged) and infinite (open) without intermediate resistance. For hum cancellation on single-coil pickups, add a 1MΩ resistor across terminals 1 and 5; this balances impedance when selecting the neck or bridge positions. Keep wiring loops compact (≤3cm) to minimize electromagnetic interference, especially in high-gain setups. Label each cable during assembly to prevent misrouting during final soldering.

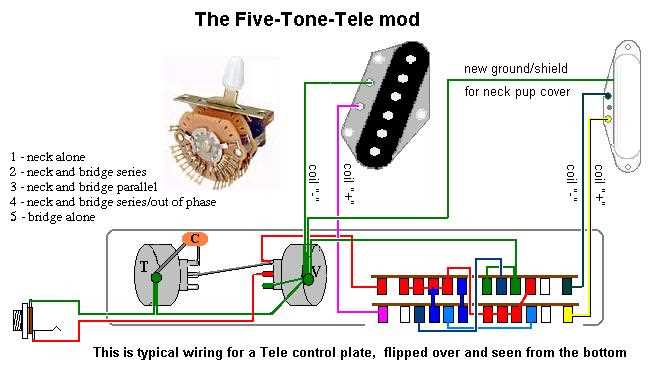

Basic Wiring Layout for a 5-Position Control Circuit
Begin by identifying the pickup connections on your instrument–typically two single-coil sensors (neck and bridge) and one dual-coil (middle). Label each wire clearly: bridge hot (white), bridge ground (black), neck hot (green), neck ground (bare), and middle coil (red/yellow). This avoids confusion during soldering.
Connect the bridge sensor’s ground wire to the rear lug of the first rotary selector. The hot lead from the same sensor attaches to the front lug of the third rotary. Ensure no stray strands touch adjacent terminals; insulated copper tape helps isolate contacts.
The middle sensor requires splitting its coil: use a 0.022μF capacitor between the red and yellow leads if hum cancellation is critical. Solder the red lead to the rear lug of the second rotary, and the yellow to the front lug of the fourth. Verify ground continuity with a multimeter before proceeding.
For the neck sensor, route its ground directly to the output jack’s sleeve terminal–this simplifies shielding. The hot lead connects to the rear lug of the fifth rotary. Use heat-shrink tubing on all joints to prevent shorts, especially near the volume potentiometer’s casing.
Install a 250kΩ logarithmic potentiometer for volume regulation, wiring its input lug to the final rotary’s moving contact. The output lug links to the output jack’s tip. Test each position rotationally; distortion at high volumes indicates cold solder joints or mismatched impedance.
Shielded cable is non-negotiable for the output lead–braid or foil wrap minimizes interference. Secure all cables with cable ties near stress points (e.g., beneath the control cavity cover) to prevent signal degradation from vibration or flexing.
Final verification: engage each rotary combination with a signal tester. Bridge + middle should register ≈10kΩ, neck + middle ≈8kΩ. Discrepancies demand re-tracing connections; reusable adhesive labels on the cavity wall help document revisions without relying on memory.

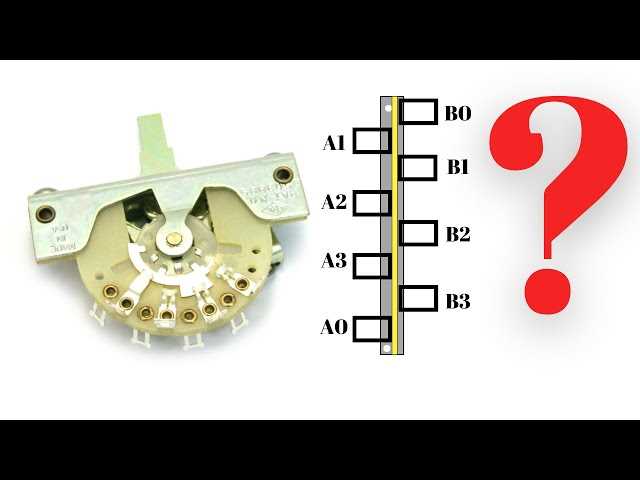

Step-by-Step Assembly of a Stratocaster Multi-Position Selector
Begin by gathering the precise components: a Fender-style lever assembly, five lug solder terminals, a ground wire (typically braided), and tinned copper hookup cable (22-24 AWG). Verify the lever’s compatibility with your guitar’s control cavity–most Stratocaster models require a CRL or Oak Grigsby unit, as aftermarket variants like import switches may misalign with vintage pickup configurations.
Disassemble the pickguard to access the wiring harness. Detach the existing selector by desoldering connections at lugs 1 through 5, labeling each wire with masking tape (e.g., “Neck,” “Middle,” “Bridge”). Heat the solder joints with a temperature-controlled iron (350°C–400°C) to avoid damaging the phenolic board. Use solder wick to remove residual alloy, ensuring clean contact points for the new assembly.
Mount the new selector by aligning its indexing tab with the pickguard’s corresponding notch. Secure it with the original screws–do not overtighten, as misalignment can cause intermittent signal loss. Position the lever so its throw directions match the factory schematic: forward detents for bridge/bridge+middle, center detent for middle only, and rear detents for neck/neck+middle.

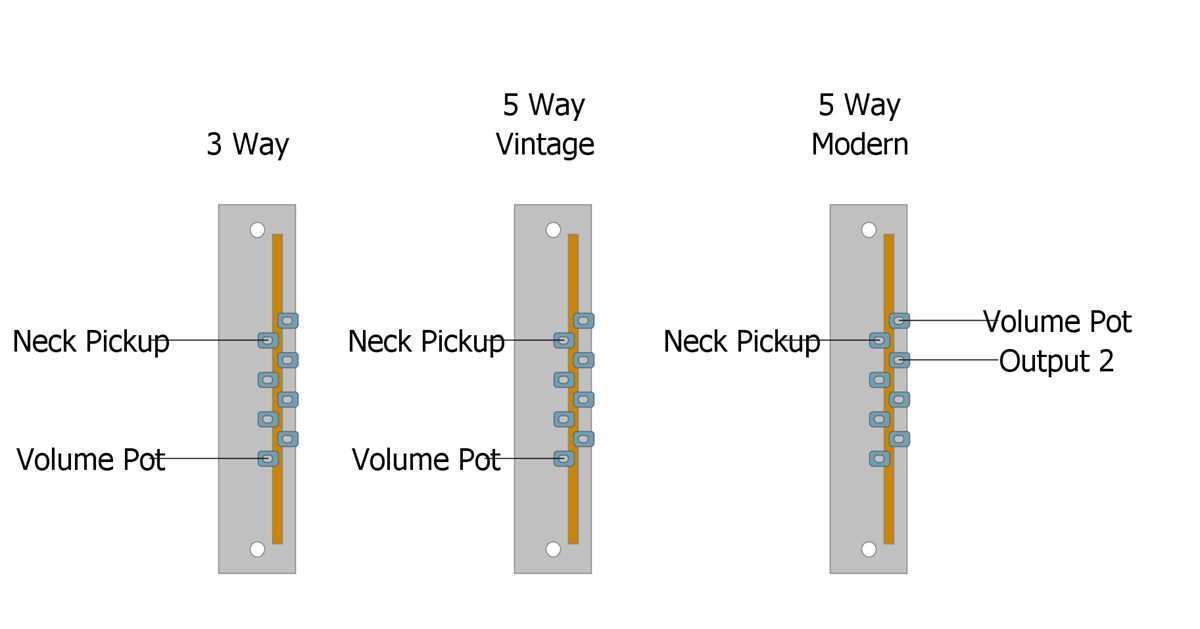

Route the wires from the pickups to the selector’s lugs. For standard Strat wiring, connect the bridge pickup hot lead to lug 1, the middle pickup to lug 3, and the neck pickup to lug 5. Bridge+middle and neck+middle combinations are created by the selector’s internal shorting bars, which link lugs 1–2 and 4–5 respectively when engaged. Confirm polarity matches the output jack’s tip (hot) and sleeve (ground).
Attach the braided shield wire to the selector’s metal casing or dedicated ground lug if present. Star-ground all components–pickup covers, potentiometer casings, and output jack–to a single 3mm solder point on the volume pot’s back. Avoid daisy-chaining grounds, as this can introduce hum or signal degradation. Use 60/40 rosin-core solder (.032″ diameter) for connections, applying minimal heat to prevent melting the selector’s internal contacts.
Test each position with a multimeter before screwing the pickguard back on. Set the meter to 20kΩ continuity mode; probes on the output jack’s tip and sleeve should show ~6–8kΩ for single pickups or ~3–4kΩ for combined pairs. Audition all positions while bending strings–scratchy or silent outputs indicate a cold solder joint or misaligned shorting bar. Adjust the lever’s electrical travel with the small set screw on the side if detents feel mushy or overshoot.
Reassemble the pickguard, ensuring no wires are pinched under the screws. Finalize the setup by verifying no-load signal clarity–plug into an amp and check for 60Hz hum in middle positions (normal due to phase cancellation) versus quiet single-pickup outputs. If interference persists, reroute the input/output cables away from the guitar’s internal electronics or add a treble bleed circuit (500pF capacitor and 150kΩ resistor in parallel) to the volume pot to preserve high-end response.
Common Pitfalls When Wiring a 5-Position Selector
Mislabeling pickups during installation causes wiring mix-ups, especially between bridge and neck positions. Confirm each terminal’s function with a multimeter before soldering–middle pickups often share wires with other contacts, leading to silent or out-of-phase outputs. Use colored heat-shrink tubing or wire markers to track connections from the factory diagram; attempts to reverse-engineer after assembly typically fail.
Overlooking grounding paths creates hum or intermittent signal loss. Ensure all conductive components (cavity shields, potentiometer casings, output jack sleeves) connect to a single, low-resistance ground point. Avoid daisy-chaining grounds–this introduces noise, particularly with high-gain amplifiers. Test continuity from each grounding node to the bridge or output jack to verify a clean circuit.
Incorrect pot values alter tonal response and taper behavior. Most standard setups require 250kΩ for single-coils and 500kΩ for humbuckers; deviations cause either mushy lows or harsh highs. Verify logarithmic (audio) taper pots match the manufacturer’s spec sheet to prevent uneven volume transitions. Replace corroded or worn pots immediately–existing carbon tracks degrade signal integrity over time.
Rushing phase alignment between pickups produces thin, weak output in certain positions. Test each combination by tapping pickups gently; a metallic *plink* indicates proper polarity, while a dull thud suggests reverse winding. If phase issues persist, swap the hot and ground wires on one pickup and retest. Document changes–resoldering without notes risks undoing progress.
