1966 Ford Fairlane Electrical Wiring Guide and Diagram Breakdown
Begin by locating the main fuse block under the dashboard–this model’s nerve center. Trace the red lead from the battery terminal to the ignition switch, ensuring continuity; a break here disables the entire charging system. Verify the 10-amp fuse linking the switch to the voltage regulator; corrosion at this junction often mimics alternator failure. Label each wire with heat-shrink tubing before disconnecting–color codes alone deceive after decades.
Focus on the instrument cluster next. The ammeter wire (yellow with red stripe) splices into the voltage regulator’s “A” terminal. Measure resistance between this connection and the generator’s armature post (below 0.5 ohms) to confirm grounding integrity. Replace any brittle loom section with cross-linked polyethylene sleeving–vinyl insulation crumbles under today’s 14.5-volt charging cycles.
For the lighting circuits, prioritize the headlamp high-beam relay. Solder a 20-gauge jumper wire from the relay’s coil terminal to the dimmer switch, bypassing degraded factory crimps. Test brake light continuity by probing the taillight socket’s center contact (6-8 ohms expected); higher readings indicate frayed wires inside the trunk harness. Use silver-bearing solder for all repairs–resin-core types fail under vibration.

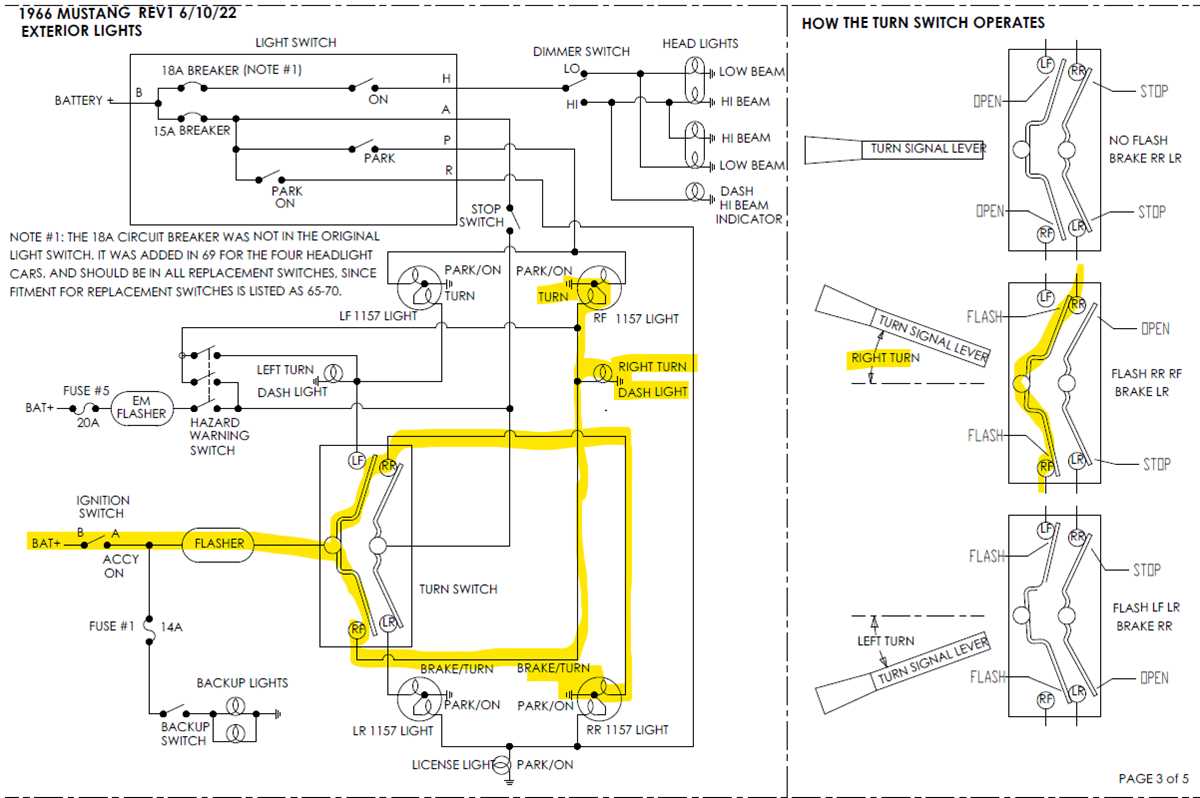

Isolate the turn-signal flasher’s power feed by back-probing the brown wire at the hazard switch connector. A steady 12.6 volts here rules out fuse block issues; erratic readings point to a melting bullet connector at the steering column base. Replace all original spade terminals with crimp-and-solder types–factory snap-locks corrode into open circuits.
Document each repair with polarized photos of the harness routing. Note variations between GT trim and base models–extra wires for courtesy lights and rear defrost terminate under the rear seat, seldom marked on aftermarket schematics. Use a magnetic wire-pulling tool for inaccessible firewall passages–drilling new holes invites moisture intrusion.
Mastering Electrical Schematics for Classic Mid-Size Models
Locate the fuse block beneath the instrument panel on the driver’s side–marked by a rectangular cover with three screws. Trace the red wire with a white stripe (circuit #36) from the ignition switch to the coil; this carries 12V during cranking. If voltage drops below 9.5V at the coil positive terminal, inspect the resistor wire (circuit #3A) between the ignition switch and ballast resistor–corrosion at the bullet connectors is common. Use a multimeter set to continuity mode to verify the starter solenoid’s “S” terminal connection to the ignition switch; readings above 0.5 ohms indicate a faulty relay or corroded pigtail.
- Headlamp circuits utilize dual-filament bulbs: high beams draw 4.8A per bulb, low beams 3.6A. Check the dimmer switch for heat damage–melting often occurs at the 14-gauge pink wire junction (circuit #10).
- Turn signals flash at 80 cycles per minute; slow flashing suggests a faulty flasher relay (mounted on the firewall, left side) or a grounding issue at the taillight housing. Scrape paint from mounting points to ensure proper earth continuity.
- Gauge clusters share a single 5A fuse (circuit #2). If needles fluctuate, probe the voltage regulator’s “A” terminal–readings should stabilize at 13.8V–14.5V with the engine at 2000 RPM. Deviation indicates regulator failure or loose alternator connections.
- Door jamb switches for courtesy lamps connect via 18-gauge yellow wire (circuit #20). If bulbs flicker, bypass the switch temporarily–if the issue persists, replace the wiring harness pigtail, prone to cracking near the hinge.
Finding Authentic Electrical Assembly and Blueprint Resources
Begin by searching factory-authorized restoration suppliers like Classic Industries or CARS Inc. These vendors maintain verified archives of OEM schematics and reproduction loom bundles for vintage models. Request part numbers C6AZ-14405-A (main assembly) and C5AZ-14485-D (engine compartment branch) to ensure compatibility. Be wary of aftermarket kits–original blueprints often include unique circuit identifiers absent in generic reproductions.
Join marque-specific forums such as Fairlane Club of America or The Ford Barn. Members frequently share high-resolution scans of service manual supplements, including annotated loom layouts. Search threads using phrases like “factory electrical schematic” or “original harness routing”–archived posts from the early 2000s often contain direct uploads. Requests for specific loom fragments (dash-to-firewall connector, tail light pigtails) typically yield faster responses than broad inquiries.
Examine salvage yards specializing in pre-1970 vehicles. Locations like Old car Parts in Michigan or Nostalgic Nova in California stock complete loom sets from donor cars. Verify the presence of color-coded tape markings–original assemblies use distinct hues for ignition circuits (red/yellow), lighting (blue/white), and accessory feeds (green/black). Avoid looms with brittle insulation or solderless connectors; these degrade within 3–5 years.
Contact automotive museums with preservation archives. The Henry Ford Museum in Dearborn and Gilmore Car Museum in Michigan offer research access to technical document collections. Submit a formal request specifying vehicle identification number ranges (1965–1967) and electrical system components. Some institutions provide digital copies of original engineering releases for a reproduction fee.
Cross-reference physical loom remnants with digital repositories. Motor’s Auto Repair Manual 1966 Edition (available via Internet Archive) contains fold-out plates with inch-by-inch circuit paths. For grounding points not shown in standard manuals, consult the Ford Truck Workshop Manual Supplement–it details shared chassis layouts. When tracing loom sections, prioritize continuity testing over visual inspection; frayed insulation often conceals intact conductors.
Identifying Critical Circuit Elements and Their Linkages
Trace the main power feed from the battery terminal to the ignition switch–this is typically a thick red cable with a 10-gauge cross-section. Interruptions here will disable the entire electrical system, so verify continuity with a multimeter set to 20V DC before proceeding. The switch itself should show voltage at the “BAT” terminal when the key is off and at the “IGN” terminal when rotated to the “start” position. Any deviation suggests a faulty contact or corroded connector.
Locate the fusible link–a short segment of braided wire, often encased in fabric, branching from the positive battery cable. Unlike standard fuses, it melts under sustained overcurrent, protecting downstream circuits. Test by applying 12V across its terminals while monitoring resistance; values above 0.5 ohms indicate degradation. Replace rather than bypass, as a compromised link risks fire.
Charging System Components
The alternator’s output should be measured at the battery terminals under load: engine running at 2000 RPM, headlights and heater blower engaged. Voltage should stabilize between 13.8V and 14.5V. Excursions outside this range point to a failing voltage regulator or damaged rotor winding. Inspect the “F” terminal–voltage here should match the battery’s reading; discrepancies confirm internal regulator failure.
Examine the voltage regulator’s grounding path–a thin black wire running to the firewall or chassis. Poor grounding elevates charging voltage, damaging electronics. Clean the contact surface with emery cloth and secure the connection with a star washer to prevent oxidation. If the regulator is externally mounted, check for loose mounting screws, which can create a high-resistance path.
Headlight circuits demand attention: the dimmer switch redirects current between high and low beams via a relay or direct mechanical contact. Probe the switch’s output terminals while toggling the switch–voltage should drop to near zero on the inactive filament. Flickering or partial illumination suggests a worn switch or corroded socket, often resolved by replacing the pigtail harness rather than the switch alone.
Instrument clusters rely on a separate voltage reducer–usually a resistor or electronic module–to step battery voltage down to 5V for gauges. Verify this by measuring voltage at the fuel sender terminal while the tank is full; readings should align within 0.2V of the reducer’s rated output. Deviations cause erratic gauge behavior and require reducer replacement. Avoid substituting with lower-wattage resistors, as they overheat.
Ground distribution is often overlooked: body-ground straps connect the engine block to the chassis, ensuring return paths for all circuits. Check each strap’s resistance–values above 0.1 ohms indicate corrosion or broken strands. Remove paint or rust at attachment points, then reassemble with anti-seize compound. Test by jumpering a temporary ground between the engine and battery negative; if symptoms resolve, the original path is compromised.
Step-by-Step Color-Coded Wire Tracing for Critical Circuits
Locate the fusebox under the left side of the dashboard–labels on the cover identify each terminal. Use a multimeter set to 20V DC to verify voltage at the battery’s positive terminal before proceeding. Red cables with a yellow stripe indicate the primary power feed for the ignition coil and starter solenoid; trace these first to isolate fuel pump issues.
Key Circuit Identification
| Wire Color | Function | Test Point | Expected Reading |
|---|---|---|---|
| Red/Yellow stripe | Ignition switch to coil | Coil positive terminal | 12V when key is on |
| Green/Black stripe | Starter solenoid trigger | Solenoid S terminal | 10-12V during cranking |
| Pink/White stripe | Alternator excitation | Voltage regulator F terminal | 6-8V with engine running |
| Dark Blue/Orange stripe | Fuel pump relay control | Relay coil terminals | 12V when key is on |
Disconnect the battery ground cable before probing connectors–this prevents accidental shorts. For lighting circuits, brown cables with colored stripes (e.g., brown/white for tail lights) often terminate at the rear lamp assemblies. A continuity test between the bulb socket and the corresponding fuse will reveal open circuits or corroded ground connections.
Attach a test light to the alternator’s output terminal while the engine idles; the bulb should glow brightly. If dim, check the drive belt tension and stator windings for resistance (0.2-0.5 ohms between stator terminals). Orange-striped cables typically handle instrument panel illumination–resistance here should not exceed 5 ohms from the fuse panel to the dimmer switch.
Strip ¼ inch of insulation from suspect cables only if necessary, avoiding damage to the conductor. For turn signal troubleshooting, follow the light green stripe (left) or yellow stripe (right) from the flasher unit to each bulb socket. Corrosion at the bulb base is a common failure point–clean with a wire brush and dielectric grease.
Ground Reference Verification
Black cables always link to chassis grounds. Use a multimeter in resistance mode to confirm each ground point reads below 0.1 ohms to the battery negative terminal. Focus on the firewall, engine block, and rear axle mounts–loose or painted surfaces here disrupt electrical flow.
For intermittent issues, gently wiggle connectors while monitoring the circuit. A voltage drop greater than 0.5V under load indicates internal corrosion or loose pins–replace the connector rather than splicing. Blue-striped cables often control high-beam headlights; verify these under load (engine running) for 13.8-14.5V at the bulb filament.
