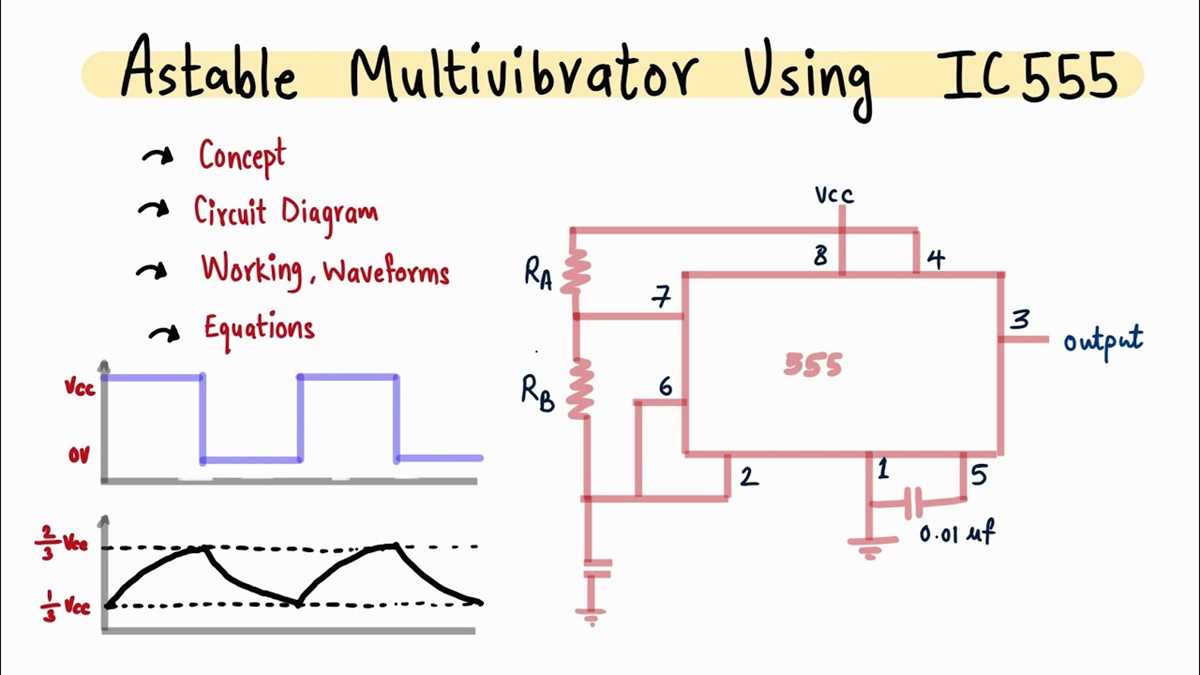

How to Build a 555 Timer Astable Multivibrator Step-by-Step Guide

Assemble this three-component oscillator core for reliable square-wave output at frequencies from 1 Hz to 200 kHz without recalibration. A pair of resistors and a single capacitor determine timing; swap values to hit your target cycle directly. Place a 1 kΩ resistor between pin 7 and the supply rail, pair it with a 10 kΩ resistor from pin 6 to pin 7, then add a 100 nF capacitor across pins 2 and 6 for clean 1 kHz pulses with a 50 % duty factor.

Keep the decoupling capacitor within 2 cm of the chip–use a 10 µF tantalum or 100 nF ceramic–to suppress glitches above 10 kHz. Power the device from a regulated 5 V source when driving logic loads; a raw 9 V battery suffices for LED flashers. Ground unused comparator inputs (pins 4 and 5) through 10 kΩ resistors to prevent phantom triggering.

Measure frequency accuracy at ±2 % across –20 °C to +85 °C when using C0G/NP0 capacitors and 1 % tolerance resistors; polypropylene capacitors cut drift below ±0.5 %. For adjustable duty cycles, replace the fixed timing resistor with a 100 kΩ potentiometer in series with a 1 kΩ safety resistor–this keeps minimum pulse width above 50 ns to avoid latch-up.

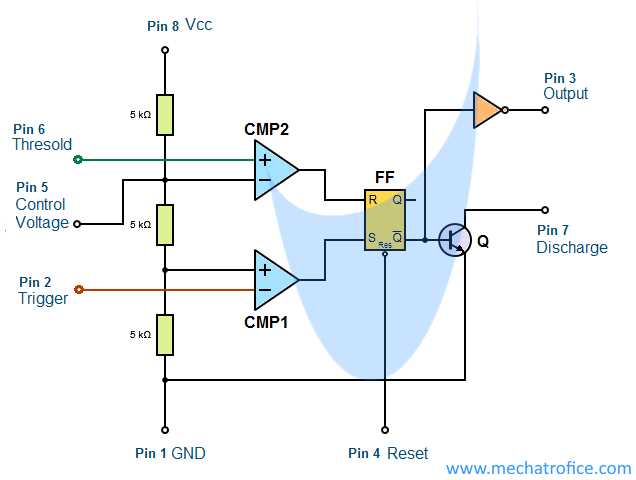

Building a Reliable Pulse Generator with IC NE555: Wiring Guide

Start by selecting precise resistor and capacitor values to control output frequency without drift. For stable oscillation between 1 Hz and 50 kHz, pair R1 (1 kΩ–1 MΩ) with R2 (1 kΩ–1 MΩ) and C (10 nF–1000 µF). Use low-tolerance components (≤1%) to minimize frequency variation–film capacitors outperform electrolytic for accuracy.

Wire the chip’s discharge pin (7) to the junction of R1 and R2, avoiding direct ground connections. This configuration ensures proper charge-discharge cycling. Bypass the power pins (4/8) to ground with a 0.1 µF ceramic capacitor to suppress voltage spikes, preventing erratic behavior.

Adjust duty cycle by modifying the ratio of R1 to R2. For a 50% duty cycle, set R1 = R2. To achieve asymmetrical pulses (e.g., 30% high, 70% low), reduce R1 relative to R2. Verify calculations with:

• Frequency: f = 1.44 / ((R1 + 2R2) × C)
• Duty cycle: D = (R1 + R2) / (R1 + 2R2)

For high-frequency applications (>10 kHz), replace standard resistors with metal-film types to reduce parasitic inductance. Keep trace lengths short between components, especially around the timing capacitor, to avoid stray capacitance affecting performance.

Test the setup with an oscilloscope to confirm waveform integrity. A clean square wave should exhibit sharp rise/fall times (

Common pitfalls:

1. Using polarized capacitors backwards–reverse voltage destroys electrolytic types.
2. Ignoring power supply sag–linear regulators (e.g., 7805) stabilize voltage for consistent frequency.
3. Neglecting thermal effects–temperature shifts alter resistor values; choose ±50 ppm/°C components.

For variable frequency control, replace R1 with a potentiometer (10 kΩ–100 kΩ) and a fixed resistor (1 kΩ) in series to prevent zero resistance. Calibrate using a frequency counter for precise tuning in applications like LED dimming or tone generation.

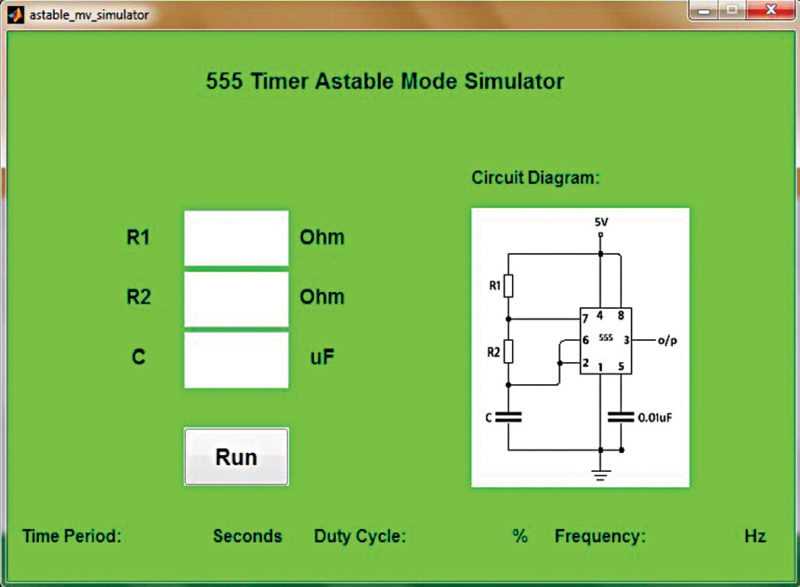

How to Select Resistors and Capacitors for Desired Frequency Output

Start with the frequency formula: f = 1.44 / ((R1 + 2R2) * C). For a 1 kHz output, choose R1 = 1 kΩ, R2 = 6.8 kΩ, and C = 100 nF. These values yield ~1.02 kHz, close enough for most applications. If precision matters, trim R2 incrementally–100 Ω adjustments shift frequency by ~10 Hz in this range.

Prioritize component tolerances. Metal-film resistors (1% or 0.1%) and polypropylene or NP0/C0G capacitors (≤5%) minimize drift. Polarized electrolytics work but introduce temperature-dependent errors–avoid them unless stabilization techniques like voltage compensation are applied. For sub-100 Hz frequencies, increase capacitance (e.g., 1 µF) rather than resistance to prevent leakage currents from distorting duty cycle.

Duty cycle expands flexibility: D = (R1 + R2) / (R1 + 2R2). Pure 50% duty cycle isn’t possible without a diode across R2, but ratios between 40-60% are achievable with R1

Test with an oscilloscope. Measure rise/fall times–ideal square waves require components fast enough to avoid slew-rate limitations (≤100 ns for standard logic levels). If edges appear rounded, reduce capacitance or parallel smaller capacitors (e.g., 10 nF + 1 nF) to maintain total value while improving response. Document chosen values for replication, noting that temperature fluctuations (e.g., ceramic X7R capacitors) can shift frequency by ±15% across 0-70°C.

Step-by-Step Wiring Guide for a Pulse Oscillator on a Prototyping Board

Begin by inserting the tri-state logic chip into the center of the breadboard, aligning pin 1 with the marked notch to avoid reverse polarity. Straddle the chip across the central divide so each pin bridges to its own separate column, ensuring no accidental shorts with adjacent rows.

Connect the power rail: route the positive supply (4.5–15V) to the chip’s pin 8 and corresponding top bus, while linking pin 1 directly to ground on the lower rail. Add a 10µF decoupling capacitor between these rails at the board’s edge–polarity matters; the cathode (striped side) goes to ground.

Wire the frequency-determining network: place a 1kΩ resistor between pins 7 and 8, a 10kΩ resistor from pin 7 to pin 2, and a 10µF timing capacitor between pin 2 and ground. The capacitor’s negative lead connects to ground; reverse this and the oscillator may fail to trigger.

To monitor output, attach an LED (with a 220Ω series resistor) to pin 3, anode to the pin, cathode to the lower rail. For variable frequency, replace the 1kΩ resistor with a 10kΩ potentiometer; wiper to pin 7, remaining leads to pins 8 and 2. Verify connections by probing each node with a multimeter–miswired components can latch the output high indefinitely.

Calculating Duty Cycle and Adjusting Pulse Width in a NE555-Based Oscillator

To achieve a precise 60% duty cycle, use R1 = 1 kΩ and R2 = 1.5 kΩ with a C = 0.1 µF capacitor. The formula T_high = 0.693 × (R1 + R2) × C determines the “on” time, while T_low = 0.693 × R2 × C sets the “off” period. For these values, T_high ≈ 173.25 µs and T_low ≈ 103.95 µs, yielding a 62.5% ratio–close enough for most applications.

For sub-50% duty cycles (e.g., 40%), bypass the upper resistor with a diode. Place a 1N4148 across R1, cathode toward the capacitor. This forces charging through R2 only, while discharging follows the standard path. Adjust R2 to 2.2 kΩ and R1 to 1 kΩ for T_high ≈ 160 µs and T_low ≈ 240 µs, achieving ≈40%. Verify with an oscilloscope at pin 3–spikes exceeding 10% variance indicate poor diode placement.

Fine-Tuning Pulse Duration Without Component Swaps

• Add a 10 kΩ potentiometer in series with R2. Rotate to tweak the discharge time without recalculating–every 1 kΩ alters the period by ≈10%.
• For high-frequency adjustments (f > 10 kHz), replace the capacitor with a low-leakage film type (e.g., polyester). Ceramic capacitors introduce ±20% error above 10 kHz due to dielectric absorption.
• Use a 2N3904 transistor as an emitter follower on the output (pin 3) to buffer loads >200 mA. This prevents duty cycle drift caused by load-induced voltage drops.

Temperature stability demands metal-film resistors (1% tolerance) and a temperature-compensated capacitor (e.g., polypropylene). Stray capacitance from breadboards adds 5–15 pF–solder directly for frequencies above 50 kHz. If pulses widen unpredictably, check the control voltage pin (5): leave it unconnected or tie it to V_cc/2 via a 0.1 µF capacitor to reject noise.

Debugging Common Errors

1. Output stuck high: Pin 7 shorted to ground–measure continuity with a multimeter; replace the IC if R_ds(on) > 50 Ω.
2. Pulse width narrowing: Leakage current in the capacitor (>1 µA) bleeds charge. Substitute with a tantalum (or C0G/NP0 ceramic) unit.
3. Oscillation failure: Confirm R1 > 1 kΩ and R2 > 1 kΩ–values below this threshold starve the internal transistors.

For microsecond-scale precision, swap the standard NE555 with a CMOS LMC555. Its rail-to-rail output swings cleanly from V_cc to 0V, eliminating the ≈0.7V saturation drop. The trade-off: lower drive current (10 mA max vs. 200 mA). Supply voltage ripple must stay –use a low-ESR capacitor (10 µF) across the power rails to prevent modulation of the pulse width.

Common Pitfalls in Constructing a Relaxation Oscillator and Corrective Measures

Incorrect capacitor selection ranks as the most frequent error. Tolerances above ±10% introduce significant frequency deviations, while electrolytics leak current, distorting duty cycles. Replace them with polyester or ceramic types rated at ±5% or better. For stable 1 Hz output, a 1 μF capacitor with a ±5% tolerance paired with 470 kΩ resistors yields predictable results within 3% of calculated values. Values below 0.1 μF exacerbate sensitivity to stray capacitance–stick within 0.1–10 μF unless high-speed switching is required.

Misplaced reset pin connections derail oscillation entirely. Floating the reset input introduces random resets; grounding it disables output. Always tie it to the positive rail via a 1 kΩ pull-up resistor, reducing false triggers from noise. If interfacing with logic gates, decouple the reset line with a 100 nF capacitor to the ground plane to suppress transients exceeding 0.5 V.

Power supply instability skews frequency and ruins symmetry. Ripple above 50 mV RMS alters thresholds, compressing or stretching pulses unpredictably. Use a linear regulator with 1% load regulation minimum–switching regulators often inject high-frequency noise exceeding 200 mVpp. Bulk capacitance alone isn’t enough; place a 10 μF tantalum capacitor alongside a 100 nF ceramic within 1 cm of the power pins to handle transient currents above 50 mA.

Resistor-Capacitor Network Miscalculations

The classic charge-discharge equation T = 0.693 × (R₁ + 2R₂) × C assumes ideal components. Real-world deviations occur when:

Error Source	Typical Impact	Fix
R₂ omitted	Symmetry collapses–output locks at ~50% duty cycle	Ensure R₂ ≥ 1/10th of R₁; never zero
R₁	Output stage saturates; current exceeds 200 mA	Keep R₁ ≥ 2.2 kΩ for standard 9 V supply
C leakage > 1 nA	Frequency drifts >10% over temperature	Verify leakage current at room temp; discard if above 0.5 nA

Thermal effects introduce hidden drift. A 100 ppm/°C resistor shifts frequency 0.5% per 5°C change. Use 25 ppm/°C metal-film resistors for R₁ and R₂, particularly below 10 kHz, where stability drops noticeably. For reliability across −10°C to 85°C, substitute electrolytic capacitors with film types–their temperature coefficient remains below 50 ppm/°C.

Ground loops create unintended feedback paths. A single-point ground star topology eliminates voltage gradients between the capacitor ground and chip reference pins–violate this, and ground bounce from a shared 1 Ω trace injects 40 mV spikes, triggering erratic state flips. Route all high-current paths directly to the power source ground, keeping control and decoupling grounds distinct until they converge at the power entry point.

Ignoring output stage limitations invites waveform distortion. The internal totem-pole driver sinks 200 mA but sources only 20 mA–driving a 50 Ω load collapses the high state to 2 V. Buffer with a 2N2222 emitter follower when loads exceed 10 mA, achieving full rail-to-rail swing with rise/fall times below 100 ns. For bidirectional control, add a 4.7 kΩ series resistor to the output to prevent ringing exceeding 1 Vpp.

Parasitic Component Effects

Stray capacitance between 5–20 pF from breadboard traces or long leads alters timing. A 10 cm wire adds 7 pF–enough to shift 10 kHz designs by 1%. Minimize exposed traces, and for frequencies above 100 kHz, use a ground plane beneath timing components. PCB designs should place decoupling capacitors vias within 2 mm of the chip pins, reducing loop inductance below 5 nH to suppress overshoot exceeding 1.5× the supply voltage.
