Complete 6 Pin Trailer Brake Wiring Diagram for Safe Towing Setup
Begin by identifying the vehicle-side connector–most modern setups use a standardized 7-way plug, but a 6-way configuration remains common for auxiliary braking circuits. Locate the ground contact first, typically designated as the large flat terminal or a bare wire. Secure it directly to the chassis with a self-tapping screw or bolt; a corroded or loose ground is the leading cause of intermittent failures. Next, trace the electric actuator line–the wire supplying 12V to the surge controller or manual braking actuator. This wire must handle at least 20 amps continuously; use 10-gauge copper wire for runs under 10 feet, upgrading to 8-gauge for longer distances to prevent voltage drop.
Verify the brake light and turn signal feeds before connecting. These circuits share a common return path through the actuator, so cross-wires will trigger false engagements. Use a multimeter set to continuity mode: probe the contact intended for the left stop/turn signal while actuating the corresponding vehicle control–if the meter chirps when testing the right circuit, swap the connectors. For dual-function bulbs, ensure the harness separates the stop and turn signals at the connector; many aftermarket adapters merge these into a single feed, which violates most vehicle codes and risks module damage.
Integrate a proportional controller if the towed load exceeds 1,500 lbs. Connect the output wire from the controller to the 6-way plug’s auxiliary contact–this line must remain isolated from the battery feed to prevent backfeeding. Install an inline fuse (25 amp for most controllers) within 7 inches of the battery terminal to protect against short circuits. Avoid daisy-chaining power from the tail light circuit; draw directly from the vehicle’s main bus or a dedicated relay if the OEM wiring lacks sufficient gauge. Test under load: with the vehicle running, engage the controller and confirm the towed unit responds smoothly–jerky or delayed action indicates resistance issues or incorrect polarity.
Seal all junctions with shrink tubing or dielectric grease to prevent moisture ingress. Corrosion accelerates in environments with road salt; inspect connections every 3,000 miles or before long trips. Replace any connector showing green oxidation–alternative terminals with gold-plated contacts reduce resistance over time. For trailers equipped with ABS, ensure the plug includes a dedicated circuit for the ABS sensor; omit this wire and the system defaults to non-ABS mode, compromising stopping distances on uneven surfaces.
Understanding Your Six-Connector Vehicle Socket Layout
Begin by verifying the voltage across each terminal with a multimeter before connecting any components. The standard configuration allocates power as follows: 12V constant hot (red), ground (white), left turn/stop (yellow), right turn/stop (green), electric actuator feed (blue), and auxiliary or backup lights (brown). Deviations from this layout may indicate a non-standard setup–consult the vehicle manual.
Use heat-shrink tubing or dielectric grease on all joins to prevent corrosion, especially in environments with high moisture or road salt exposure. Copper crimps outperform tin-coated alternatives in conductivity and longevity, though they require a specialized tool for proper termination. Avoid twisting wires together without soldering; this creates resistance points prone to failure.
For vehicles with integrated controllers, match the output amperage to the actuator’s requirements–typically 12-24A for hydraulic systems and 30A for surge units. Install an inline fuse rated 5A above the system’s peak draw to protect against short circuits without nuisance blows during surges. Position the fuse within 7 inches of the power source for optimal protection.
Testing Sequence for Reliable Operation
- Attach the ground terminal first–ensure it connects directly to the chassis, not through body panels or painted surfaces. Scrape off any coating at the attachment point to expose bare metal.
- Activate the stop lamp circuit and measure voltage drop under load; values above 0.5V indicate inadequate grounding or excessive wire length.
- Engage the turn signals while monitoring for signal bleed into the opposite channel–a sign of crossed lines or faulty isolation diodes.
- Trigger the actuator feed and verify smooth engagement without buzzing or overheating–symptoms of insufficient power delivery.
If retrofitting older equipment, replace any factory connectors showing signs of greening or pitting. The six-way plug’s housing should lock securely; a loose fit allows vibration-induced disconnections. Consider upgrading to a sealed junction box if frequent disassembly is expected–water intrusion remains the primary cause of intermittent failures.
Troubleshooting Common Connection Issues
- Intermittent operation: Wiggle each wire at the plug while testing–broken strands often hide inside insulation.
- All lights dim when engaged: Check for a grossly undersized ground wire or shared paths with high-current devices like winches.
- Actuator engages erratically: Measure resistance across the solenoid; values under 10 ohms point to internal shorts.
- Rapid fuse failure: Inspect for pinched wires shunting power to ground through metal edges in the frame.
For towing multiple units, distribute load evenly across the system–parallel connections reduce voltage drop better than daisy-chaining. Label each wire at both ends during installation to simplify future maintenance. Store spare connectors in humidity-controlled conditions to prevent terminal oxidation between uses.
When splicing into existing circuits, prioritize relays for high-draw components like actuators rather than tapping into low-output switches. A relay coil draws minimal power while allowing full system voltage to pass through its contacts–critical for maintaining performance during simultaneous operation of multiple loads.

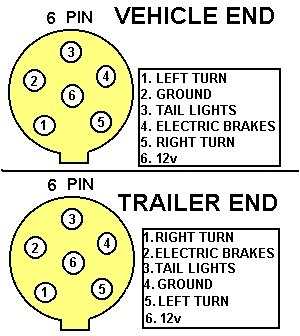

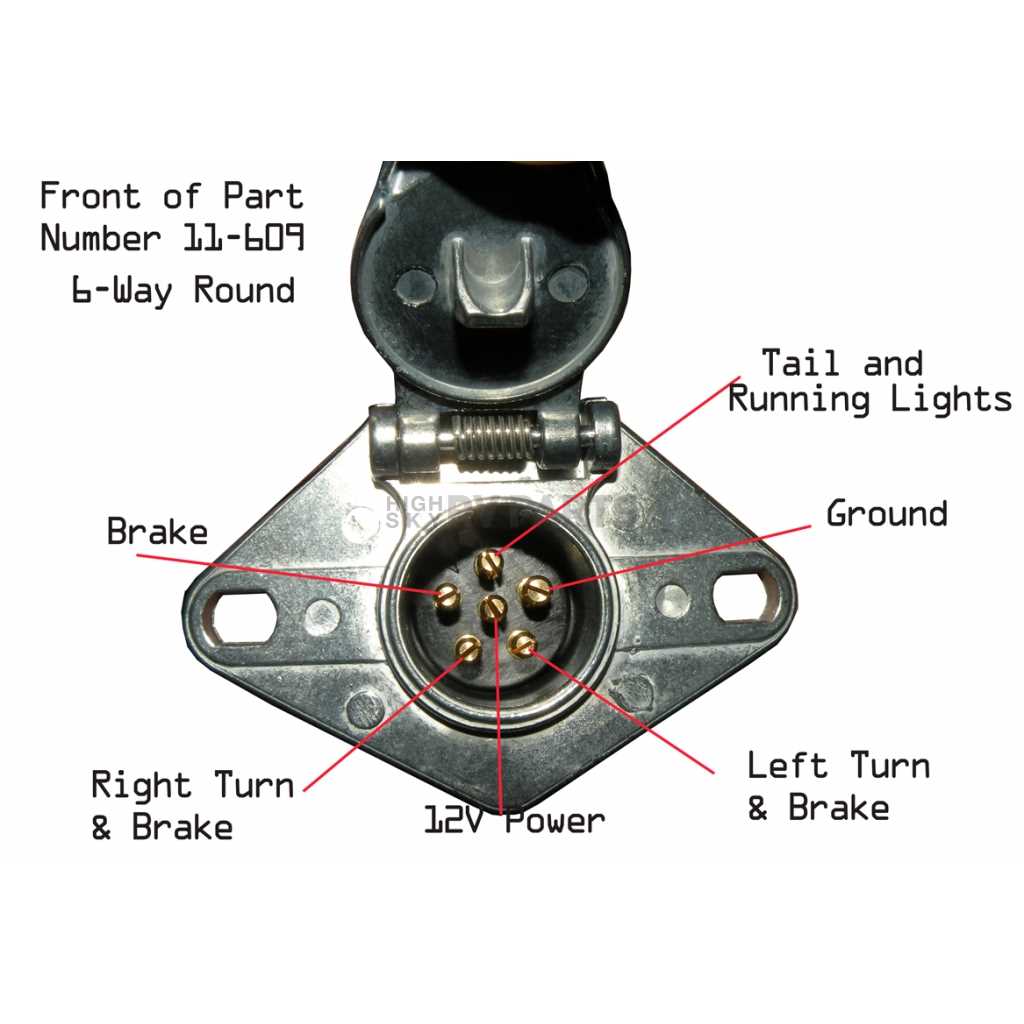

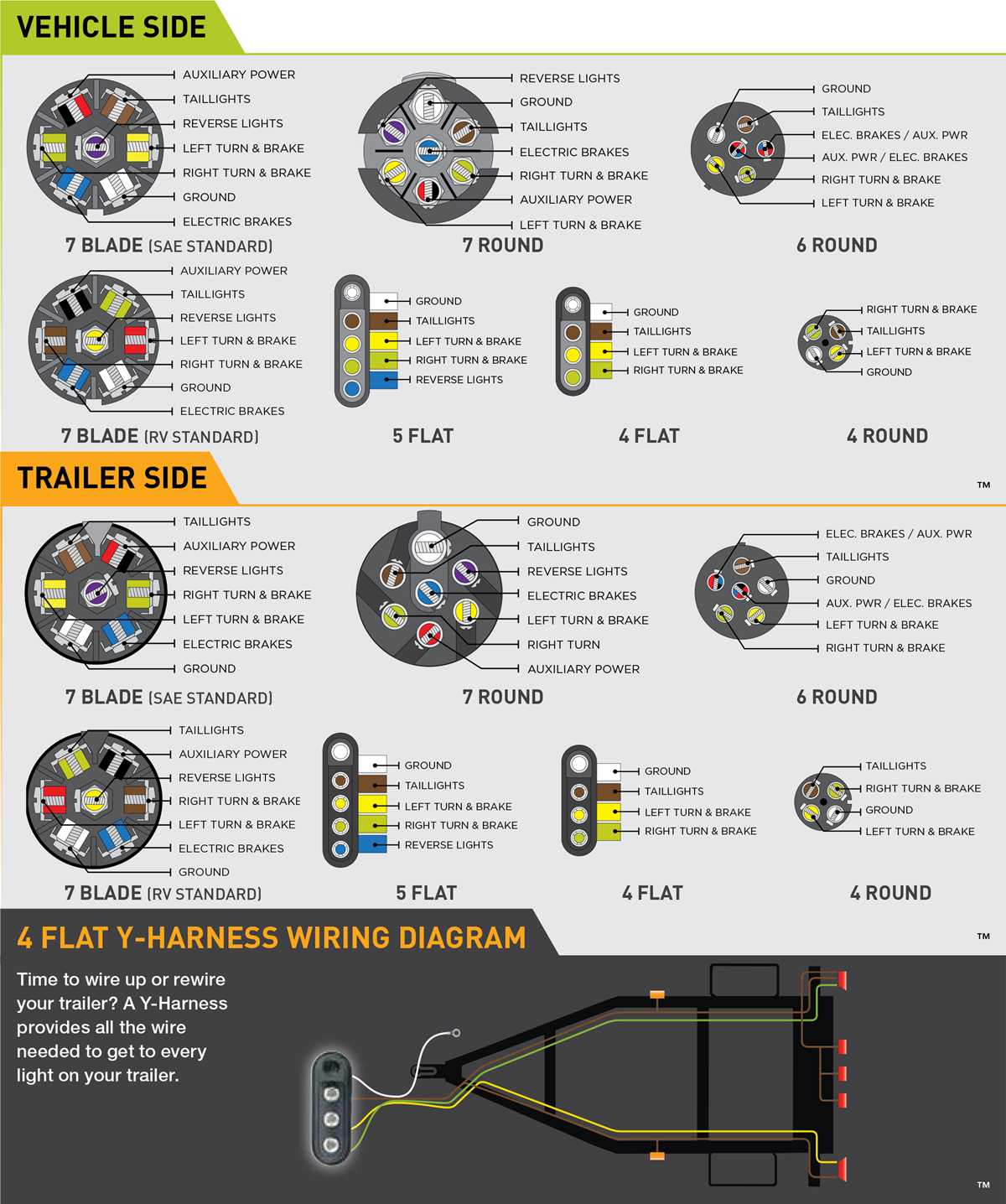

How to Identify the Correct Leads in a 6-Way Vehicle Towing Interface
Begin by referencing the manufacturer’s specifications for the tow vehicle and attached unit–standard color codes exist but can vary by brand. Use a multimeter set to continuity mode to verify connections: probe each terminal while activating corresponding functions (e.g., lighting circuits, charging line, or ground) to confirm signal paths. A standard 6-way interface typically includes these assignments:
| Terminal Position | Common Function | Typical Color Code |
|---|---|---|
| Top Right | Electric Stop Control | White with Blue Stripe |
| Bottom Right | Right Turn/Taillight | Green |
| Top Left | Left Turn/Taillight | Yellow |
| Bottom Left | Ground | White |
| Center Right | Auxiliary Power | Red |
| Center Left | Backup Light or Brake Controller | Brown or Purple |
Label each verified lead immediately with heat-shrink tubing or numbered tags to prevent misconnections during assembly. Cross-reference with a wiring schematic unique to your model–some manufacturers invert the auxiliary and brake controller positions, and certain European models swap left/right turn signals. Isolate the ground lead first, as it serves as the baseline for accurate multimeter readings. For systems with integrated surge protection or LED-compatible circuits, ensure the meter tests voltage (DC 12V) rather than continuity alone.
Step-by-Step Guide to Connecting a 6-Point Towing Electrical Setup from Ground Zero
Start by identifying the color codes for each circuit in your vehicle’s harness and the matching connector on the towed load. Standard configurations typically assign white to ground, blue to auxiliary power (12V), brown to running lights, yellow to left turn/stop lights, green to right turn/stop lights, and red to a dedicated stoplight circuit. Verify these assignments against your manufacturer’s specifications–variations exist, especially in older or custom builds.
Mount a junction box near the rear of the towing vehicle to house splices and protect connections from moisture and vibration. Use a weatherproof enclosure with knockouts sized for 12-14 AWG conductors. Secure the box to a rigid frame member or underbody panel using self-tapping screws or rivet nuts; avoid drilling into fuel tanks, brake lines, or suspension components.
Route cables from the junction box to the towed load’s coupling using split loom tubing or conduit rated for automotive applications. Maintain at least 15 cm of slack at both ends to accommodate turning and suspension travel. Avoid sharp edges, exhaust systems, and rotating drivetrain parts–secure loops every 30 cm with zip ties or insulated clamps, keeping conductors clear of moving linkages.
Strip 8-10 mm of insulation from each conductor and terminate using crimp connectors sized for 12 AWG wire. Apply heat-shrink tubing over each joint, then solder for added mechanical strength. Connect the white ground wire to the towing vehicle’s chassis at a bare metal point, scraping away paint and rust for a low-resistance path. For the blue auxiliary line, add a 30A fuse inline within 15 cm of the battery or power distribution block.
Test each circuit sequentially with a multimeter or dedicated lighting tester. Activate parking lamps, turn signals, and hazard flashers individually; verify voltage (12-13.8V) at each termination. Check for parasitic current draw–any reading above 0.1A suggests a short or improperly disconnected circuit. Inspect all connections for heat buildup after 10 minutes of continuous operation; discoloration or melting indicates undersized conductors or loose crimps.
Seal all exposed wiring with flexible silicone sealant or liquid electrical tape to prevent corrosion. Label both ends of each conductor with heat-shrink sleeves or embossed tags indicating function (e.g., “L TURN,” “GROUND”). Retest after 24 hours–moisture ingress often reveals itself as intermittent failures days after installation. Store a spare 6-connector plug and 1 meter of each color wire for repairs.
