Step-by-Step Guide to Building a 7-Segment Digital Clock Circuit

Begin with a BCD-to-7 decoder (74LS47) for each numeric unit. This IC directly interfaces with common-anode or common-cathode displays–verify polarity before soldering. For a 24-hour format, use a CD4026 counter/divider on the seconds output of a 4060B oscillator, cascading through minutes and hours. Clock pulses from the oscillator should be 32.768 kHz (standard watch crystal) for precision; divide by 2¹⁵ to yield a 1 Hz signal.

Power requirements: 5V DC regulated with 220Ω resistors per LED leg to limit current–adjust for brightness without exceeding 20 mA per segment. For multiplexing, a ULN2003 Darlington array reduces component count; toggle displays at 100 Hz or faster to prevent flicker. Ground each digit’s common anode through a transistor (2N3904) or MOSFET (IRFZ44N) for clean switching.

A 1 Hz signal gates the seconds counter via an AND gate (74HC08). Cascade counters by connecting the carry-out of each CD4026 to the clock-in of the next. Reset logic: wire a NOR gate (74HC02) to detect 10 for tens and 6 for units (minute/hour rollover); output triggers the reset pin (MR) of the respective counter. For 12-hour mode, add a quad NAND (74HC00) to detect hour 13 and reset.

Test each display individually before assembly. Probe the decoder outputs with a logic analyzer or LED to confirm correct digit formation (e.g., input 0x0C = ‘3’). For stability, decouple the 4060B with a 100 nF capacitor near the power pins. Use a schottky diode (1N5817) if powering from a non-regulated source to block reverse voltage. Debug multiplexing by checking transistor base voltages–should swing 0–5V during digit transitions.

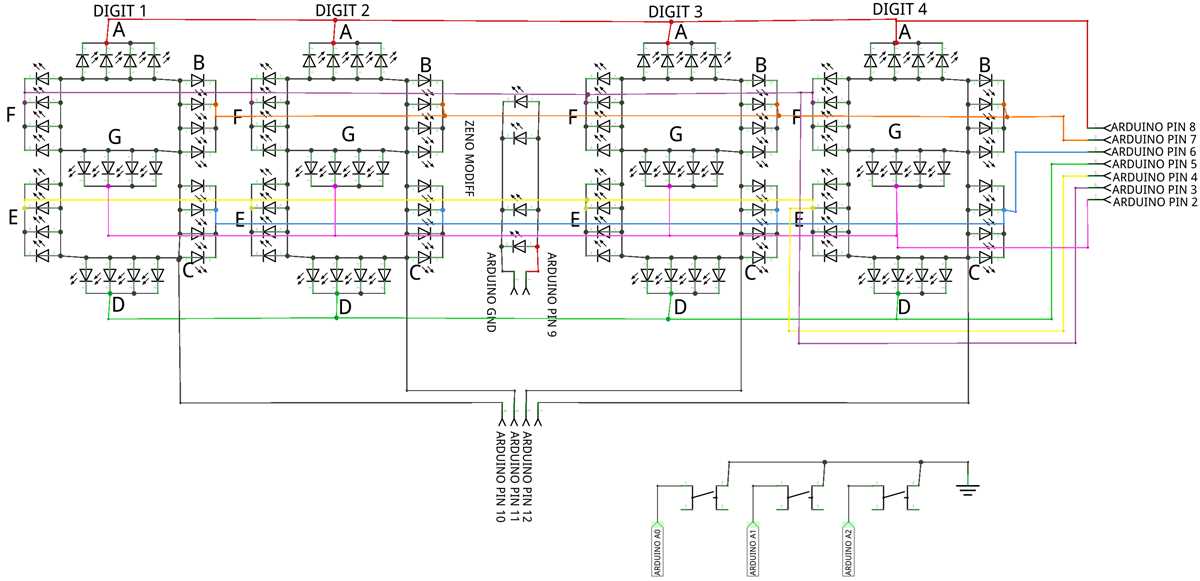

Building a Time Display with LED Numerals: Key Schematics

Start with a 4-digit LED numeral arrangement driven by a microcontroller like the ATmega328P. Connect each of the seven bars per numeral to a dedicated output pin using current-limiting resistors (220Ω for 5V logic). Group common cathode or anode pins by digit and multiplex them through transistors (e.g., 2N3904) to reduce pin usage. Ensure the microcontroller’s timer interrupts refresh each numeral at 100Hz or higher to prevent flicker.

Implement a timekeeping algorithm counting seconds, minutes, and hours using an external 32.768kHz crystal oscillator. Feed the crystal’s signal into the microcontroller’s timer/counter module, dividing the frequency to generate precise 1-second intervals. Store numeric values in an array, converting each to its corresponding LED bar activation pattern via a lookup table (e.g., byte patterns for 0–9). Shift these patterns to the microcontroller’s output ports during multiplexing.

Power the setup with a regulated 5V supply, adding a smoothing capacitor (100μF) near the microcontroller to stabilize voltage during digit transitions. For DS3231 RTC modules, wire the I2C pins (SDA, SCL) to the microcontroller’s corresponding ports, enabling backup timekeeping during power loss. Configure pull-up resistors (4.7kΩ) on I2C lines if not built into the module.

Design a printed board layout with traces wide enough to handle multiplexing current spikes (minimum 20 mil traces). Place decoupling capacitors (0.1μF) close to each power pin of the microcontroller and RTC. Separate analog and digital ground planes, connecting them at a single point near the power source to minimize noise interference.

Program the microcontroller to handle edge cases: 60-second rollover, 24-hour wrap-around, and leap seconds if needed. Use bitwise operations for efficient numeral rendering instead of conditional statements. Test each numeral pair (e.g., HH:MM) by simulating rapid time progression to verify multiplexing stability before final assembly.

Core Parts Needed for a LED Numerical Timekeeper

Start with a microcontroller–ATmega328P or ESP8266 work reliably. These handle timing logic, multiplexing, and precise signal output. Add a 16 MHz crystal oscillator for stable timekeeping; accuracy degrades without it. For power, use a 5V regulator like LM7805 to prevent fluctuations that corrupt displays. Include a real-time chip (DS3231) if backup time during power loss is critical–it loses under 2 minutes per year.

Display and Driver Essentials

Four common-cathode LED numerals (Kingbright SA52-11 or similar) are standard for readability. Each requires a resistor (220Ω–470Ω) per anode to limit current–higher values dim brightness. A BCD-to-7 decoder (74LS47) simplifies control by converting binary to numeral signals, reducing microcontroller pins. For brighter output, drive numerals directly with transistors (2N3904) or shift registers (74HC595), but multiplexing cuts wiring by cycling outputs.

Keep traces short between components to minimize noise. A 100nF decoupling capacitor near the microcontroller and RTC stabilizes power. Use a PCB or perfboard for solid connections–breadboards introduce resistance and intermittent faults. Test each part individually: a faulty decoder or loose wire can mimic complex issues. For case options, acrylic sheets laser-cut to fit the numerals ensure durability while diffusing light evenly.

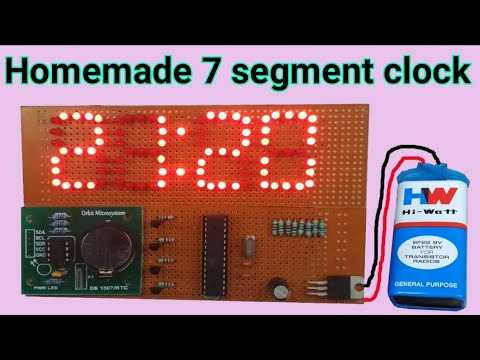

Step-by-Step Assembly of Numeric Indicator Blocks

Begin by securing the LED arrays onto a perforated board, ensuring proper polarity. Each unit has a common cathode or anode–verify this with a multimeter before soldering. Align the pins with the board’s holes, leaving a 1mm gap to prevent short circuits during assembly. Use a temperature-controlled soldering iron (350°C max) to attach each leg, working from the center outward to avoid overheating adjacent connections. Apply flux to improve joint quality and prevent cold solder spots.

Connect the common terminal to a current-limiting resistor (220–470Ω, depending on voltage). For multi-digit setups, daisy-chain the shared lines to reduce wiring clutter. Test each numeral outline with a 5V source and a 10kΩ pull-down resistor before proceeding. If any outline fails to illuminate, recheck solder joints and resistor values–common errors include inverted wiring or incorrect resistor selection.

Wiring Control Lines to Microcontroller

Attach each numeral’s individual pins to microcontroller outputs via ribbon cables or jumper wires. Label both ends of the wires to avoid confusion during debugging. For 4-digit setups, use a multiplexing approach: cycle through each digit rapidly (1–2ms per unit) to maintain brightness. Ensure the microcontroller’s GPIO pins can supply sufficient current–if not, add a transistor or MOSFET (e.g., 2N2222 or IRLZ44N) for each numeral outline.

Finalize the setup by enclosing the board in a 3D-printed or acrylic housing, leaving ventilation gaps around the LEDs. Use a thin diffusive cover to soften the light output. Power the assembly with a regulated 5V supply, adding a 1000µF capacitor near the input to smooth voltage fluctuations. Calibrate the display refresh rate in code to eliminate flicker–adjust delays if necessary, but keep cycles under 10ms to retain visual clarity.

Connecting the MCU for Timing and Visual Output Management

Assign specific ports for time tracking and output activation by using an ATmega328P with the following pinout: PB0–PB5 for cathode control of numerals (via ULN2003A), PD2–PD7 for multiplexing anodes, and PC0–PC5 for input signals like setting buttons. The internal 16 MHz oscillator provides sufficient accuracy for timekeeping if calibrated with a 32.768 kHz crystal at TOSC1/TOSC2 for long-term stability (±2 ppm achievable with proper loading capacitors). Avoid software delays in ISRs–use Timer1 in CTC mode with OCR1A = 15624 for a 1 Hz interrupt, ensuring precise second increments without drift.

Function	MCU Pin	Recommended Component	Notes
Seconds Counter	Timer1 (CTC)	32.768 kHz Crystal	Load C = 12.5 pF
Numeral Cathodes	PB0–PB5 (OC0A/B)	ULN2003A	Current limit: 40 mA per pin
Anode Switching	PD2–PD7	2N3904	Base resistor: 4.7 kΩ
User Input	PC0–PC2	Tactile Switch	Pull-up enabled; 10 ms debounce

Power-saving techniques include disabling unused peripherals (e.g., ADC, SPI) via PRR and reducing multiplexing frequency to 200 Hz to cut dynamic current draw by ~30%. For brightness control, PWM on OC0A with a 1 kHz duty cycle (0–100%) adjusts intensity without flicker. Store time values in EEPROM only on power loss (detected via analog comparator interrupt on VCC), reducing write cycles and extending MCU lifespan to >50k operations.

Programming the Timekeeper: Code Snippets for Precise Display Control

Start with a microcontroller supporting I2C or SPI for real-time data acquisition. The DS3231 RTC module offers built-in temperature compensation and ±2 ppm accuracy, eliminating drift correction loops. Use this initialization:

• Wire.begin(); – Activates I2C bus (pins A4/SDA, A5/SCL on Arduino Uno)
• RTC.begin(); – Initializes the module with default 24-hour mode
• RTC.adjust(DateTime(F(__DATE__), F(__TIME__))); – Syncs fresh upload timestamp

Time extraction requires parsing two-byte BCD registers (0x00-0x05). Fetch hours, minutes, and seconds in one transaction to prevent rollover errors between reads:

uint8_t readTime() {
Wire.beginTransmission(0x68);
Wire.write(0x00);
Wire.endTransmission();
Wire.requestFrom(0x68, 3);
uint8_t sec = bcdToDec(Wire.read() & 0x7F);
uint8_t min = bcdToDec(Wire.read());
uint8_t hr = bcdToDec(Wire.read() & 0x3F);
return (hr
Convert BCD values using bitwise operations rather than division/modulo to reduce clock cycles. The DS3231 uses packed BCD (e.g., 0x59 = 59 minutes):
uint8_t bcdToDec(uint8_t val) {
return ((val / 16 * 10) + (val % 16));
}

Implement time formatting as a lookup table mapping nibbles to display patterns. For common cathode LEDs, define each numeral (0-9) as its bitwise complement:
const uint8_t numerals[10] = {
0x3F,  // 0
0x06,  // 1
0x5B,  // 2
0x4F,  // 3
0x66,  // 4
0x6D,  // 5
0x7D,  // 6
0x07,  // 7
0x7F,  // 8
0x6F   // 9
};

Multiplex displays using timer interrupts to avoid flicker. Configure Timer1 for 200Hz refresh rate (5ms interval) to cycle through four digits. Store the current digit index and pre-fetched time data globally:
volatile uint8_t activeDigit = 0;
void timerIsr() {
PORTD = 0;  // Blank all digits
PORTB = numerals[timeBuffer[activeDigit]]
Attach concatenated time values to an array prior to updating displays. Separate tens and units of hours/minutes using shifts and masks:
timeBuffer[0] = (hours / 10) % 10;
timeBuffer[1] = hours % 10;
timeBuffer[2] = (minutes / 10) % 10;
timeBuffer[3] = minutes % 10;

Handle button input via pin change interrupts for debounce-free operation. Use a simple increment/decrement routine for setting values, clamping hours to 23 and minutes to 59:
void btnIncHr() {
hours = (hours + 1) % 24;
RTC.adjust(DateTime(2020, 1, 1, hours, minutes, 0));
}

Calculate leap seconds or daylight savings only if UTC synchronization is unavailable. The DS3231’s 0x0E control register offers a 1Hz square wave output for precise timekeeping triggers without software polling.
Minimize power consumption by placing the microcontroller in SLEEP_MODE_IDLE between interrupts. Disable unused peripherals and regulators–typical current draw drops below 1mA when multiplexing at 10% duty cycle. Use low-side switching for displays to reduce EMI from high-side PWM.
