Understanding the 74151 Multiplexer Circuit Layout and Functionality

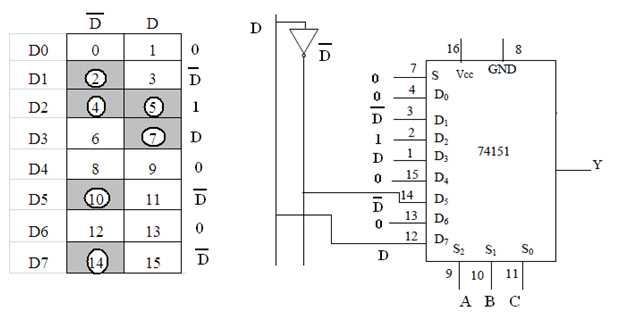

74151 multiplexer circuit diagram

Start with the IC pinout: inputs A, B, and C control the address lines, while D0–D7 handle the data channels. Ground the enable pin (E̅) to activate the selector–leaving it floating introduces erratic behavior. For basic prototyping, tie unused inputs to a stable logic level (0V or VCC) to prevent noise interference.

Power requirements are strict: 4.5V to 5.5V for reliable operation, with a 0.1µF decoupling capacitor across VCC and ground placed within 5mm of the IC to suppress voltage spikes. Test each channel sequentially using a logic probe or oscilloscope, verifying that the selected output (Y) mirrors the addressed input without cross-talk. If glitches appear, check for inconsistent signal rise times–slew rates above 50ns/V often violate setup/hold margins.

For complex routing, chain multiple selectors by linking outputs to higher-order units. Use the W̅ (inverted output) pin for cascading, ensuring proper timing synchronization–delay variations exceeding 10ns between stages degrade performance. PCB layout prioritizes short traces for address lines (

Debugging tips: Measure VOL (≤0.4V) and VOH (≥2.4V) at the output pin to confirm drive strength. If outputs stick high/low, inspect the enable circuitry or substitute the IC–latent ESD damage is common. For high-frequency applications (>1MHz), add a 22pF load capacitor to ground on the output to stabilize transient responses.

Building an 8-Input Selector Schematic: Practical Steps

Begin by connecting the selector inputs (S0-S2) to a 3-bit binary decoder. These control lines determine which of the eight data inputs (D0-D7) passes to the single output (Y). Use a 3-to-8 line decoder like the 74138 to simplify wiring–this eliminates manual logic gates and reduces errors. Ground unused inputs if working with fewer than eight signals to prevent floating voltages.

Power the component with a stable 5V supply, ensuring decoupling capacitors (0.1µF) are placed near VCC and GND pins. Without proper decoupling, noise from switching transitions can corrupt the selected signal, especially when handling high-speed data streams. Verify voltage levels with a logic probe before proceeding.

For signal integrity, route high-frequency inputs (D0-D7) with short traces and avoid shared ground paths. If inputs originate from different voltage domains, insert level shifters or series resistors (22-47Ω) to match thresholds and prevent reflections. A 74HC151 variant tolerates 2V to 6V, but CMOS versions (74HCT151) require strict 5V compliance.

Test the selector by toggling S0-S2 through all eight combinations while monitoring Y. A logic analyzer or oscilloscope reveals glitches–common when transitioning between inputs. If inconsistent, check for race conditions by adding a 10ns delay to the enable line (G) or using a Schmitt-trigger input buffer to clean noisy control signals.

Integrate the selector into larger designs by tying the complement output (W̅) to an inverter or NOR gate. This expands functionality: pair two units for 16:1 selection or cascade them with priority encoding. For reliable operation, document pin assignments (e.g., S0=LSB) and label each input’s purpose directly on the schematic.

Wiring an 8-Channel Data Selector For Logic Routing

Connect the selector inputs (S0–S2) directly to a 3-bit binary source: LSB (bit 0) to pin 11, middle bit (bit 1) to pin 10, MSB (bit 2) to pin 9. This maps every decimal value 0–7 to a unique channel input D0–D7, each tied to pins 4, 3, 2, 1, 15, 14, 13, and 12 respectively.

Leave the strobe (pin 7) permanently grounded or drive it low via a 1 kΩ resistor to maintain continuous output. A floating strobe or high signal will force the output into a high-impedance state, halting data throughput.

Route the output (pin 5) through a 220 Ω resistor straight to an LED anode–cathode to ground–for visual feedback. Alternatively, feed it into a downstream gate input, but ensure the chosen signal matches TTL thresholds (0.8 V max low, 2.0 V min high).

Pin Function Connection
1–6, 12–15 Data inputs D0–D7 TTL-compatible sources
9–11 Select lines S0–S2 Binary counter or manual switches
7 Strobe Ground
8 Ground Common ground bus
16 VCC 5 V regulated supply

Decouple the supply with a 0.1 µF ceramic capacitor placed within 5 mm of pin 16. Avoid long traces from the capacitor to VCC and ground; excessive inductance here induces ringing that distorts selected signals.

If cascading multiple units, wire the first output to the enable (pin 7) of the next stage. A three-stage cascade routes 64 distinct channels using only 6 select lines and 3 strobes–each stage’s output inverted via a single NAND gate to restore true logic.

For intermittent readback, insert a tri-state buffer before the output pin, controlled by a separate enable line. This isolates the channel switcher during clocked sampling, preventing transient shorts between data lines.

Proper Signal Routing: Data Lines, Selectors, and Strobes

Label each input channel with its binary equivalent (D0–D7) before wiring to prevent misrouting. Assign the least significant bit (LSB) of the selector lines (A, B, C) to the rightmost pin–swapping A and C inverts output logic. Verify signal integrity by testing with logical LOW on unused inputs; floating pins cause erratic switching.

  • Connect D0–D7 to stable voltage sources (e.g., pull-down resistors or pushbuttons) if external data is unavailable.
  • Route selector lines directly from a microcontroller or binary counter, avoiding long traces to minimize capacitance.
  • Wire the strobe pin to ground or a TTL-level enable signal; leaving it unconnected defaults to internal pull-up, disabling selection.

Measure voltage levels at D0–D7 with a logic probe; valid inputs must read 0V or VCC (not intermediate values). For dynamic testing, cycle selector lines through all 8 states (000–111) and confirm the output mirrors the correct channel. If outputs glitch, add 0.1µF decoupling capacitors near VCC/GND pins.

Constructing Truth Tables for the 8-Input Data Selector: Pin-Level Analysis

Start by identifying all control pins: three address lines (A, B, C), one strobe (G), eight data inputs (D0–D7), and two complementary outputs (Y and W). Document every possible 3-bit address combination (000 to 111) in a vertical column on the left of your table.

Create columns for each pin state, including the inverted strobe. The strobe column must show active-low logic; mark 0 for enabled, 1 for disabled. Populate address lines with every permutation from 000 to 111–no shortcuts. Next to each, write the corresponding selected input (D0–D7) and its binary state (0 or 1).

  • For address 000, output Y mirrors D0.
  • For 001, Y mirrors D1, and so forth.
  • When strobe is high (G=1), both outputs default to 0 (Y) and 1 (W), regardless of address.

Verify each address with a multimeter or logic probe before finalizing the table. Connect the selector to a 5V supply, ground the strobe pin momentarily, and cycle through address inputs. Record measured output states; discrepancies indicate wiring faults or damaged IC. Include a column labeled “Measured Y” alongside “Expected Y” to isolate faults quickly.

Build a secondary table for inverted outputs (W). For every row in the main table, W equals the negation of Y. If Y is 1, W must be 0, and vice versa. Cross-check complementary logic with a NOT gate simulation if direct measurement isn’t feasible.

Troubleshooting reference values:

  1. Strobe G=0, address 101, D5=1 → Y=1, W=0.
  2. Strobe G=0, address 110, D6=0 → Y=0, W=1.
  3. Strobe G=1, any address → Y=0, W=1.

Save the table as CSV for circuit simulators. Format headers precisely: Address_A,B,C, Strobe_G, Data_D0-D7, Output_Y, Output_W. Import into LTspice or Logisim to validate logic paths before physical prototyping.

Key Errors in Building an 8-Line Data Selector and How to Diagnose Them

Incorrect logic level pairing on control inputs causes erratic output behavior. Ensure the selector pins (S0–S2) match the voltage standards of your logic family–TTL-compatible devices (like LS or HCT variants) require 0–5 V signals, while CMOS types (HC or AHC) often tolerate 3.3 V. Verify pull-up or pull-down resistors on floating selector lines; even brief undefined states can latch false data. Use an oscilloscope to confirm clean transitions–noise spikes above 0.8 V or below 0.4 V on TTL inputs trigger unpredictable selection.

Power Rail and Decoupling Pitfalls

Missing or undersized decoupling capacitors directly on the VCC and GND pins invites crosstalk and glitches. Install at minimum one 0.1 µF ceramic capacitor as close as possible to the package; add a 10 µF tantalum for high-frequency stability if the board traces exceed 2 cm. Confirm power rails with a multimeter–voltages below 4.75 V (for TTL) or 2.7 V (for CMOS) degrade noise margins and skew propagation delays. If outputs remain stuck, probe the enable line (active-low) for proper assertion; a permanently high signal keeps the tri-state buffer disabled.
