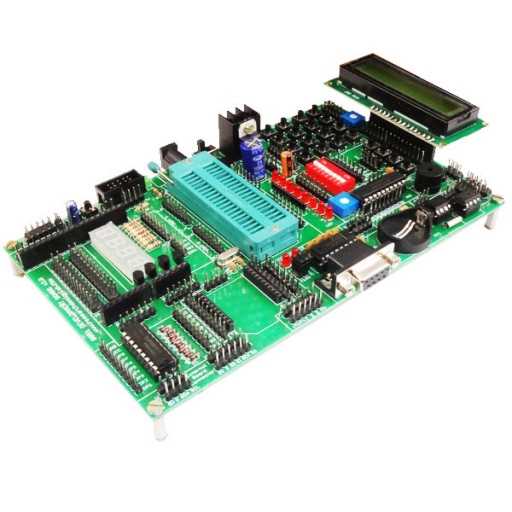

Complete 8051 Microcontroller Development Board Circuit Design Guide

Start with a 12 MHz crystal oscillator paired with two 33 pF capacitors for reliable timing. This configuration ensures stable operation while minimizing jitter, critical for precise interrupt handling and serial communication in cost-sensitive applications.

Include a reset circuit with a 10 kΩ pull-up resistor and a 10 μF capacitor. This arrangement provides a clean power-on reset without requiring external intervention, which is essential for embedded projects with space constraints.

Route power traces directly from the regulator to the core microcontroller pins using 22 AWG or thicker wire. Avoid daisy-chaining power to multiple peripherals; instead, use separate traces for analog and digital ground planes to prevent voltage noise.

For programming interfaces, dedicate four lines to the serial port: TX, RX, VCC, and GND. Use a 6-pin header (2.54 mm pitch) with clear pin labeling. If ISP is needed, include a 2×5 pin header compatible with standard 10-pin adapters, ensuring proper isolation resistors (4.7 kΩ) on the programming lines to prevent contention during debug.

Integrate a status LED (typically on P1.0) with a 470 Ω series resistor for current limiting. This simple addition aids in diagnosing boot sequences or application-specific states without additional test equipment.

When cascading shift registers or peripherals, use direct port-to-peripheral connections instead of bus arbitration. The 8-bit architecture lacks native DMA, so minimize multiplexing delays by grouping related I/O on the same port. Allocate port P0 for external memory interfacing if needed, but be aware it requires external pull-ups (10 kΩ) for standard logic levels.

Decouple all power pins with 0.1 μF ceramic capacitors placed within 2 mm of the microcontroller. For noise-sensitive analog components, add a 10 μF tantalum capacitor in parallel to handle low-frequency transients without increasing footprint significantly.

For voltage regulation, select an LM7805 in TO-220 package with adequate heatsinking when input exceeds 9V. Add reverse polarity protection using a 1N4007 diode on the input line. If battery operation is intended, consider an LDO like the MCP1700 for better efficiency at 3.3V or lower.

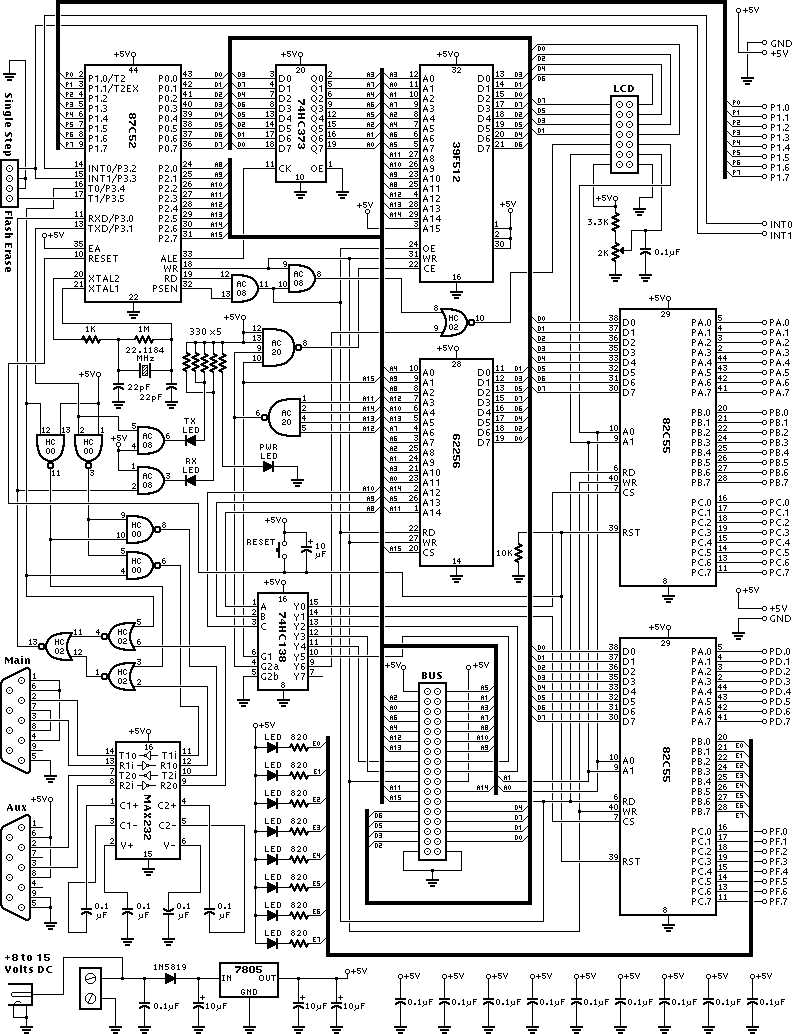

Microcontroller Evaluation Kit Circuit Blueprint

Begin with a minimal core circuit incorporating the MCU in a PLCC-44 or DIP-40 package. Power the IC via a linear 5V regulator (e.g., LM7805) with input decoupling (10µF tantalum) and output smoothing (0.1µF ceramic). Route V_CC and GND to pins 40/20 (DIP) or 44/22 (PLCC) with separate traces for digital and analog supplies if using the internal ADC. Include a 12MHz crystal oscillator (parallel resonant HC-49/US, 18pF load capacitors) connected to XTAL1/XTAL2, avoiding ground planes beneath the oscillator traces to prevent parasitic capacitance. Add a RESET circuit with a push-button (momentary SPST) and 10kΩ pull-up resistor; use a 1µF capacitor to debounce and ensure ≥2 machine cycles for proper initialization.

Expand the reference design with these peripheral connections:

• Serial interface: Connect UART0 (TXD/RXD) to a MAX232 level shifter (or equivalent) bypassed with 0.1µF capacitors on V_CC, V+, V-, and C inputs; route signals to a DB-9 female connector with handshake lines (CTS/RTS) omitted unless required.
• GPIO headers: Break out Ports 0–3 to 2.54mm pitch headers, adding 1kΩ series resistors on Port 0 lines to prevent damage during external bus mode. Include optional pull-ups (4.7kΩ) on Port 0 for open-drain operation.
• Programming interface: Dedicate a 5-pin connector (V_CC, GND, PSEN, ALE, EA/V_PP) for ISP, spacing signals ≥2.5mm apart to prevent shorts. For flash-based variants, add an 8-pin header (V_CC, GND, RST, TXD0, RXD0, MOSI, MISO, SCK) compatible with standard USB-to-serial adapters.
• Peripheral power: Fuse (500mA PTC) the 5V rail and include reverse-polarity protection (Schottky diode). Allocate separate ground planes for digital/analog sections, tying them at a single star point near the regulator.
• Diagnostic LEDs: Attach low-current LEDs (3mm, 2mA) via 470Ω resistors to unused GPIO pins (e.g., P1.0–P1.7) for firmware debugging.

Avoid placing high-speed traces (XTAL, UART) parallel to power rails; cross at 90° angles. Keep decoupling capacitors ≤1cm from MCU pins. For dual-layer PCBs, use the bottom layer as a ground plane, stitching vias at ≤1cm intervals to reduce EMI. Validate the layout with a continuity tester before populating components, particularly for PLCC sockets, which often mask cold solder joints.

Key Components and Pin Configuration for AT89C51 Single-Chip Controller

Begin integration by assigning V_CC (pin 40) and GND (pin 20) first; verify power stability with a 5V regulated supply before connecting auxiliary circuits. Bypass capacitors (0.1µF ceramic) adjacent to these pins suppress noise – non-negotiable for consistent operation.

• XTAL1 (pin 19) & XTAL2 (pin 18): Pair a 12MHz crystal with two 22pF load capacitors. Higher frequencies (up to 24MHz) demand tighter PCB layout to prevent stray capacitance-induced failures.
• EA/V_PP (pin 31): Tie high (5V) for internal ROM access; pull low for external program memory. Floating this pin risks unpredictable code execution.
• PSEN (pin 29): Assert low during external program fetches. Connect directly to ROM/OE pin without intermediate logic for minimal propagation delay.

Port pin roles demand strict adherence:

1. Port 0 (P0.0–P0.7, pins 39–32): Open-drain; requires external 10kΩ pull-ups when interfacing with logic. Use as multiplexed address/data bus only if latching address bits externally.
2. Port 1 (P1.0–P1.7, pins 1–8): Quasi-bidirectional; internal pull-ups obviate external resistors. Dedicate P1.0/P1.1 for UART if serial communication is enabled (SMOD bit in SCON).

Reset circuitry must meet precise timing:

• RST (pin 9): Hold high for ≥2 machine cycles (≈2µs @12MHz) during power-up. Implement an RC network (10kΩ + 10µF) for automatic reset; add a diode (1N4148) across the resistor to expedite capacitor discharge during power-down.
• Avoid push-button resets without debounce; Schmitt-trigger inputs (e.g., 74HC14) eliminate false triggers.

Interrupt priority dictates hardware routing:

• INT0 (pin 12) & INT1 (pin 13): Edge-triggered by default; reconfigure via TCON register for level-sensitive mode – crucial for servicing external devices without missing pulses. Assign higher priority interrupts to INT0.
• Timer outputs T0/T1 (pins 14/15): Connect directly to counter loads; no additional buffering needed unless driving >5mA loads.

Memory expansion follows a rigid hierarchy:

• External data memory (RAM) shares Port 0 for 8-bit data and Port 2 for high-order address. Latch A0–A7 with a 74HC373 triggered by ALE (pin 30).
• Program memory uses PSEN for strobe; decode upper addresses (≥0x8000) with a 74HC138 if ROM exceeds 32KB.

Analog peripherals require impedance matching:

• ADC inputs (if augmented via Port 3) demand ≤10kΩ source impedance. Use dedicated analog V_REF (pin 40 via a ferrite bead) isolated from digital V_CC.
• PWM outputs (Timers) benefit from RC filters (1kΩ + 0.1µF) to smooth transitions – essential for motor control applications.

Harness Port 3 alternate functions judiciously:

• P3.0/RxD & P3.1/TxD (pins 10/11): Serial mode 1 (8-bit UART) operates at baud rates derived from Timer 1 overflows (TH1 reload value = 256 – (Crystal/12*baud)).
• P3.2/INT0 & P3.3/INT1: Disable interrupts during critical code segments via IE register to prevent stack corruption.
• P3.4/T0 & P3.5/T1: Pulse-width modulation requires disabling Timer interrupts during reconfiguration to avoid glitches.

Layout directives minimize crosstalk:

• Route ALE, PSEN as short traces; avoid parallel runs near high-speed signals (e.g., XTAL lines).
• Ground plane beneath Port 0/2 traces reduces capacitive coupling during memory accesses.
• Power decoupling: Place capacitors within 2mm of each V_CC–GND pair; vias to ground plane should be ≤0.3mm diameter to avoid inductance.

Crystal Oscillator Circuit Design and Capacitor Selection

For microcontroller clock sources at 12 MHz and below, use 18pF–22pF load capacitors. At frequencies above 12 MHz, reduce capacitance to 8pF–12pF to minimize startup instability. Always verify crystal manufacturer specifications–some HC-49/S packages specify 12.5pF or 16pF exact values.

Mount capacitors as close to the crystal pins as PCB routing permits–ideally within 2 mm. Trace inductance above 5 nH per mm introduces phase noise and lowers effective capacitance. For 20 MHz crystals, keep ground return paths short and avoid vias; each via adds ~0.8 nH.

Crystal Freq (MHz)	Recommended CL (pF)	ESR Max (Ohms)	Drive Level (μW)
4	22	100	100
8	18	80	200
16	12	60	300
24	10	40	500

Select crystals with ESR below the microcontroller’s specified maximum–typically 50–100 Ohms. Exceeding ESR causes frequency drift and potential startup failure. For 16 MHz AT-cut crystals, common ESR is 20–40 Ohms; SMD variants may reach 60 Ohms.

Temperature-compensated designs require NPO/COG capacitors. X7R types introduce ±15% capacitance variation over -40°C to +85°C, affecting oscillator stability. For 12 MHz operation at -20°C, expect +50 ppm frequency deviation with X7R; NPO limits this to ±3 ppm.

Add a 1 MΩ feedback resistor across the crystal to ensure reliable startup under all conditions. For low-power designs, reduce to 500 kΩ–oscillator startup may take 2–5 ms longer but current consumption drops by 30%. Avoid resistor values below 100 kΩ; excessive loading attenuates gain margin.
