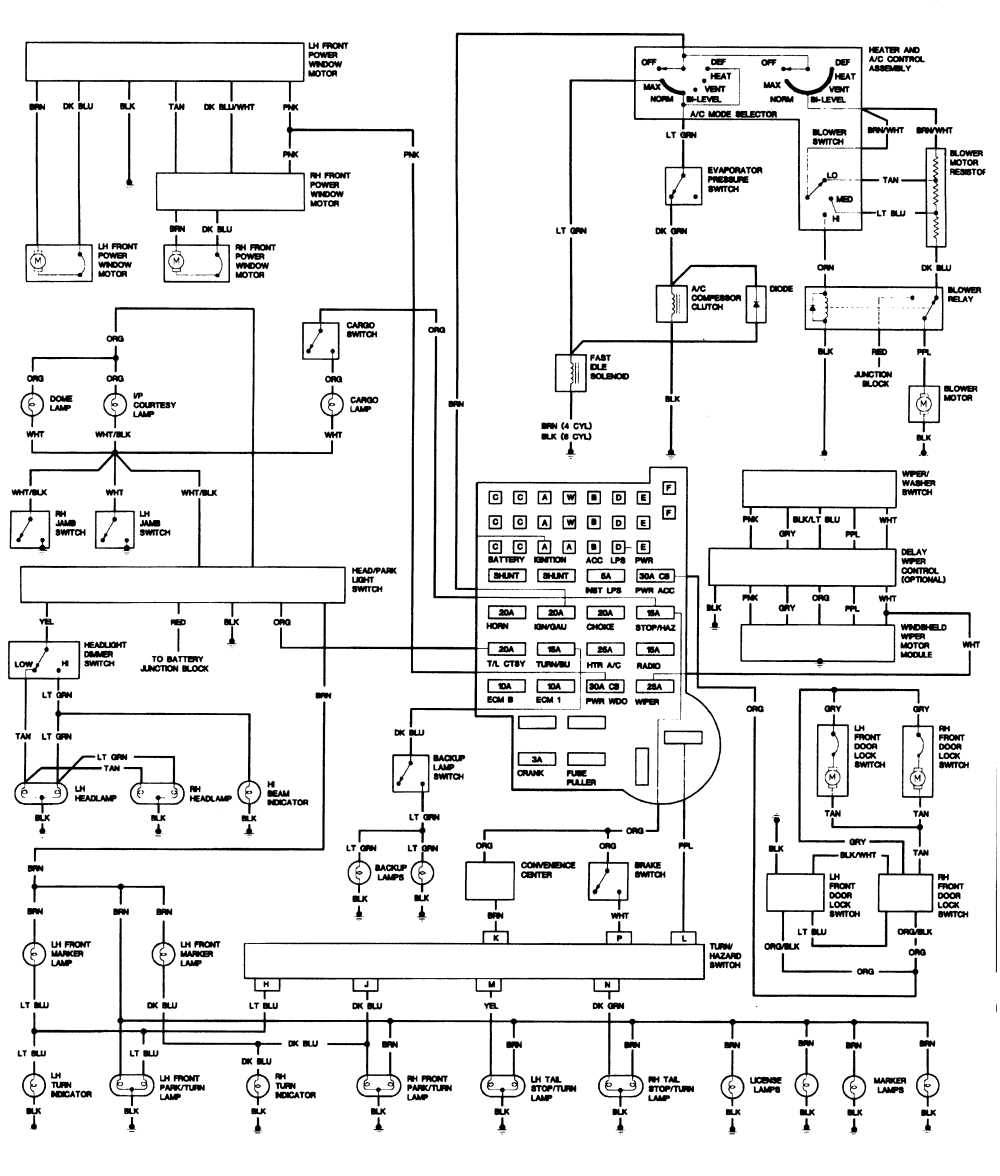

C10 Bulkhead Wiring Connector Pinout Guide and Circuit Diagram
Start by locating pin G1 on the firewall connector–this controls the fuel pump relay and must match the factory schematic precisely. Misalignment here triggers a no-start condition, often misdiagnosed as a faulty pump.
Check the circuit protection paths for fusible links near the battery junction. GM’s 1985 model uses a dual-link setup: one for ignition, another for accessory loads. Trace these wires using a multimeter; resistance above 0.5 ohms indicates corrosion or a broken strand.
Focus on the instrument cluster feed–terminals labeled A, B, and C correspond to power, ground, and illumination. Reverse polarity here fries the voltage regulator. Use a wiring harness adapter if splicing; avoid soldering near plastic clips to prevent melting.
For headlight circuits, verify the dimmer switch outputs. Low beams run through pin H, high beams through pin J. If lights flicker, inspect the firewall grommet for chafed insulation–replace the entire harness section if damage exceeds 1 inch.
Transmission control modules require a dedicated four-wire harness. Pins X, Y, Z, and W handle shift solenoids. Test with a scan tool; codes P0750–P0755 point to wiring faults, not just solenoid failures.
Always cross-reference with GM’s service bulletin #85-6E-10. Factory revisions include updated color codes–orange/purple replaced dark green/white for hazard flashers in late-production models.
Electrical Connector Assembly Guide for 1985 Chevrolet R-Series: Step-by-Step Approach
Start by locating the firewall junction panel behind the dash on the driver’s side. Disconnect the battery’s negative terminal first to prevent short circuits. Use a 10mm socket to remove the plastic cover–this exposes the harness terminals numbered 1 through 12. Terminal 3 (constant 12V) and terminal 4 (ignition-switched 12V) are critical for power distribution; verify their integrity with a multimeter before proceeding.
Trace the harness from the junction panel to the instrument cluster plug. The three-pin connector (green, yellow, and black wires) handles the fuel gauge, temperature gauge, and voltmeter. Cross-reference the wire colors with the vehicle’s service manual–green corresponds to temperature, yellow to fuel, and black to ground. If resistance readings exceed 5 ohms, replace the wire segment between the panel and the cluster.
Common Fault Points and Quick Fixes
Check the fusible links beneath the hood near the starter solenoid. These 14-gauge wires (red with black stripe) protect the main power feed. If melted, strip 6 inches of damaged section and splice in new wire using crimp connectors–never twist-and-tape. For dimmer switch issues (terminal 9), probe the brown wire with a test light while cycling the switch; if the light flickers instead of glowing steadily, the switch requires replacement.
Replace the original bullet connectors on the wiper motor leads if corrosion is visible. The two-pin plug (blue and red wires) connects to the two-speed motor–blue for low, red for high. Scrape oxidation off the contacts and apply dielectric grease before reconnecting. For intermittent turn signals, inspect the hazard flasher relay in the fuse block; swap it with the spare horn relay to confirm failure before ordering PN D1919C.
Final Assembly Tips
Secure all wires with nylon zip ties every 4 inches to prevent vibration wear. Route the harness away from sharp edges, especially near the steering column bracket. Before reattaching the junction panel cover, apply a thin layer of silicone spray to the terminals to repel moisture. Reconnect the battery and test each circuit methodically: turn signals, brake lights, gauges, and horn, noting any voltage drops below 11.8V on the voltmeter during cranking.
Locating Critical Elements in the Vehicle’s Rear Electrical Interface

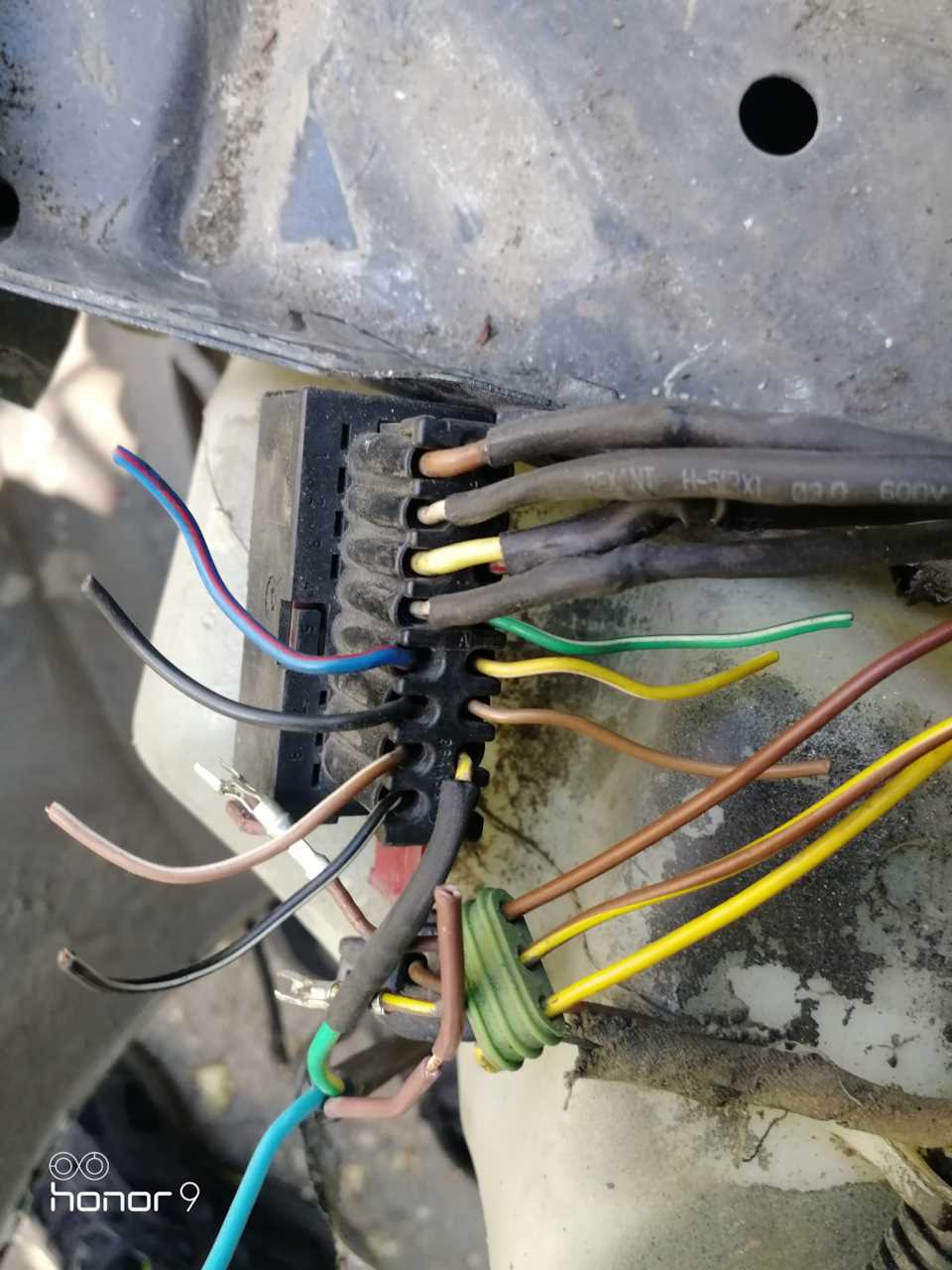

Begin by isolating the firewall connector panel–typically a rectangular or circular multi-pin assembly secured with screws or clips near the cab’s rear wall. Trace each pin grouping to its corresponding subsystem: power distribution (thick red/black cables), lighting controls (yellow/blue striped leads), and sensor feeds (thin multi-color wires). Label these clusters immediately to prevent cross-circuit confusion during testing.
Verify the presence of a fusible link–a short, heat-resistant segment often embedded in the main power line–positioned close to the battery connection point. Its absence or damage (visible melting/blackening) signals a compromised safety mechanism, requiring replacement with the exact gauge and insulation rating specified in the factory schematic.
Inspect the relay mounts, usually clustered in groups of three to five beneath the dashboard or behind the glove compartment. Check for corrosion on the socket contacts and test coil resistance (typically 50–120 ohms) using a multimeter. Failed relays exhibit infinite resistance or clicking without output; bypass temporarily with a 12V jump wire only for diagnostics.
Identify the chassis ground strap–a braided copper conductor bolted to the frame near the electrical interface. Corrosion here mimics intermittent faults; clean both terminal surfaces with a wire brush and apply dielectric grease before reattaching. Confirm continuity between the strap and battery negative post (resistance <0.5 ohms).
Decode color-coding anomalies: aftermarket modifications often introduce non-standard hues (e.g., purple replacing brown for brake circuits). Document these deviations against OEM standards–red (ignition), black (ground), green/yellow (signal returns)–and cross-reference with a pinout chart before probing circuits.
Prioritize the instrument cluster connector–usually a 12–24 pin plug with staggered tabs. Probe pin positions for expected voltages: ignition-on (12V), accessory mode (~10V), and signal outputs (0–5V for sensors). A single faulty pin here can cascade failures across gauges, warning lights, and transmission controls.
Step-by-Step Color Coding for 1985 Pickup Electrical Harness Terminations
Begin by isolating the main connector cluster behind the dash panel–this 24-pin plug handles critical engine, lighting, and instrument feeds. Label each wire with 3M vinyl tape matching these exact colors and circuit IDs:
| Pin | Wire Color | Circuit Function | Termination Point |
|---|---|---|---|
| A1 | Dark Green | Battery feed to ignition coil | Positive coil terminal |
| A2 | Yellow | Headlight switch output | Left headlight high beam |
| A3 | Black/White stripe | Instrument panel illumination ground | Dash light cluster common |
| B7 | Light Blue | Brake warning light activator | Combination valve switch |
| C12 | Pink | Fuel gauge sender input | Gas tank level sender |
Verify ground continuity on all black wires–corrosion at chassis attachment points (typically #4 stud rear of cab, left frame rail) causes intermittent dash gauge failures. Scrape paint from mounting surface and apply dielectric grease before reattaching. For circuits lacking dedicated chassis grounds (notably fuel pump and turn signals), trace to the 12-pin firewall plug where the harness exits the cab interior.
Use a multimeter set to 20VDC to confirm voltage on orange wires (always hot) at the fuse block–readings below 11.8V indicate corroded connections at the battery positive terminal or starter solenoid. Replace factory pigtail connectors on fuses #5 (headlights) and #9 (blower motor) with 16-gauge female spade terminals crimped using a ratcheting crimper, then solder for corrosion resistance.
Map the 8-way lighting connector near the steering column separately–mistakes here cause front/rear lamp miswiring. Pair these:
- Tan/Brown = Left turn signal output
- Tan = Right turn signal output
- Dark Blue = Backup lamp activation during reverse
- Brown = Tail/park lamp common feed
Cap unused connector slots with heat-shrink tube to prevent shorts.
For the engine bay section, prioritize temperature-sensitive circuits first. Route the tan wire (temperature sender) away from exhaust manifolds–excessive heat melts insulation causing intermittent gauge readings. Bundle with nylon tie wraps every 6 inches, ensuring slack near moving components (hood hinge). Replace factory loom wrapping on the passenger-side inner fender with split-braided polyethylene sleeving (0.5″ diameter) for moisture resistance.
Final step: test all circuits with ignition key cycled between OFF/ACC/RUN/START positions. Document voltage fluctuations on a notepad–engine off readings should match battery voltage (12.6V) across orange wires, dropping no more than 0.2V during cranking. Any deviation indicates a fault in either the solenoid, ignition switch, or fusible link.
Common Electrical Integration Mistakes and Solutions
Solder connections without heat-shrink tubing fail within months due to moisture ingress. Use dual-wall adhesive-lined tubing with 3:1 shrinkage ratio and crimp connectors rated for 600V minimum. Pre-treat copper strands with rosin flux to prevent oxidation before soldering; acetone doesn’t clean oxide layers effectively.
Incorrect Gauge Calculations
Underestimating voltage drop causes overheating in circuits exceeding 3 meters. Apply the 3% rule: for 12V systems, limit drop to 0.36V; use 10AWG for 10A loads at this distance, not 12AWG. Online calculators often omit inductive loads–adjust for motors by doubling the required cross-section. Tinned copper resists corrosion better than bare strands but requires 10% larger diameter for identical conductivity.
Parallel runs of signal and power lines induce interference measurable at 50mV. Separate them by 15cm minimum; use twisted pairs for CAN bus lines with 120Ω termination resistors at both ends. Ground loops form when chassis and battery grounds meet–bond them at a single star point near the load to eliminate 1-2V potential differences. Test continuity with a milliohm meter, not a multimeter, which lacks resolution below 0.1Ω.
Overlooking connector gender matching creates shorts. Mate only crimp terminals with identical current ratings–NEMA 5-15 plugs (15A) shouldn’t pair with IEC C13 sockets (10A). Label both sides of every junction with heat-resistant polyester tape, not paper, which degrades at 80°C. Document each path with a unique alphanumeric code (e.g., “A1-RL4”) and store schematics in a QR-coded aluminum tag affixed to the enclosure.
