Practical Guide to BLDC Motor Circuit Diagram Design and Components

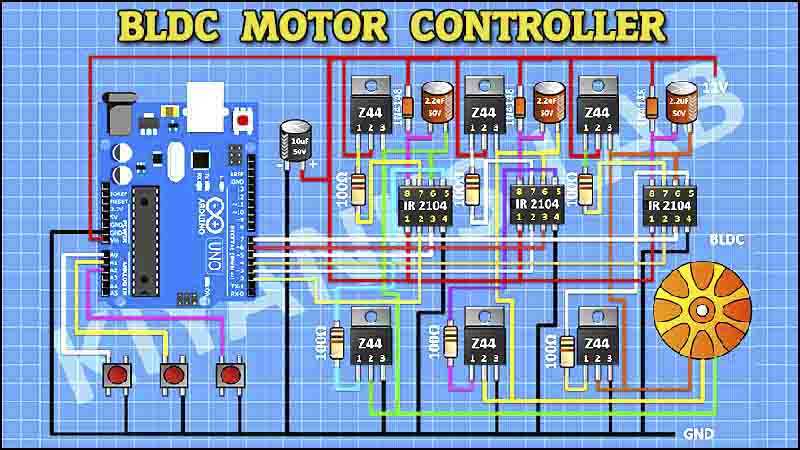

Start with a three-phase inverter configuration using six MOSFETs or IGBTs arranged in three half-bridges. Each leg of the bridge must include a high-side and low-side switch, driven by complimentary PWM signals with dead-time insertion to prevent shoot-through. Select components with fast switching times (≤100 ns) and low R_DS(on) (≤5 mΩ) for minimal conduction losses. Pair each switch with a flyback diode (preferably Schottky for

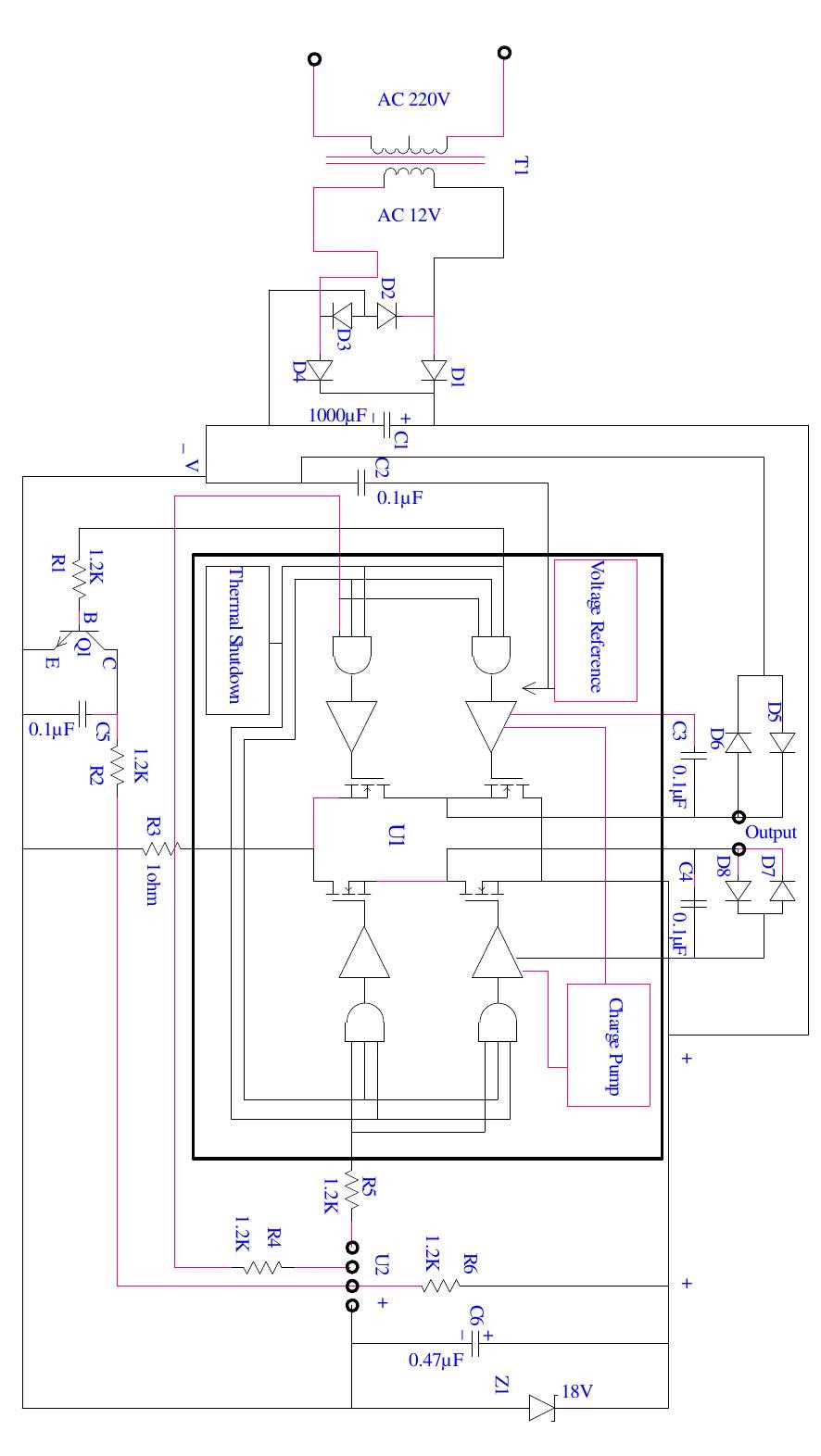

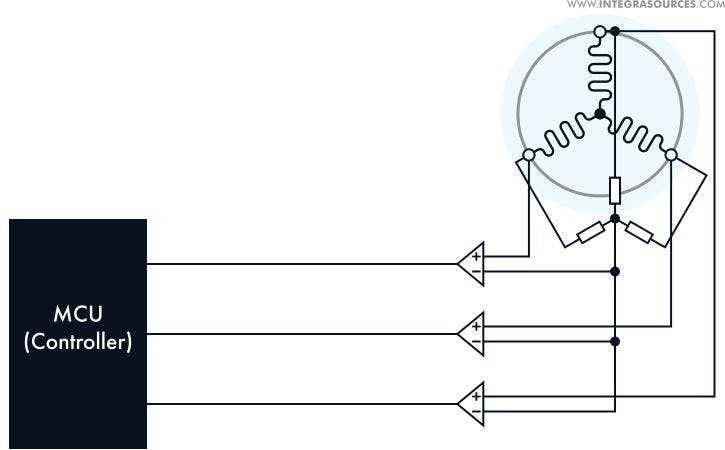

Integrate Hall-effect sensors or an encoder for rotor position feedback. Position sensors must be aligned with a 120-degree electrical offset for trapezoidal commutation. For sensorless designs, incorporate back-EMF detection via comparator circuits feeding INTO a microcontroller’s ADC. Use a voltage divider (≤10 kΩ total impedance) to scale phase voltages to the MCU’s input range (

Add a current sensing resistor (≤0.01 Ω) in series with the DC bus or each phase leg. Amplify the voltage drop using a differential op-amp (e.g., LM358) with a gain of ≥20 to achieve detectable signal levels. Filter noise with a low-pass RC network (cutoff ≤10 kHz)–values typically range from 1 kΩ / 10 nF for 10 A systems. Ensure layout minimizes loop area between the shunt and amplifier to reduce EMI pickup.

Regulate power with a buck converter (e.g., LM2596) if the drive operates above 12 V, stepping down to 5–7 V for MCU and gate driver supply. Isolate gate drivers (ISO7721 or similar) when input voltage exceeds 30 V to prevent ground loops. Decouple each gate driver with 100 nF ceramic capacitors placed

For commutation logic, use a microcontroller (STM32F103, ATmega328) with dedicated PWM hardware (e.g., TIM1 on STM32). Configure PWM frequency between 16–24 kHz to balance switching losses and audible noise. Implement space-vector modulation (SVM) for smoother torque output–pre-calculate switching vectors in firmware to avoid runtime calculations. Store motor constants (Kv, Rm, Lm) in flash and recalibrate them during startup using a self-commissioning routine.

Wiring Layout for Brushless Direct Drive Mechanisms

Start with a three-phase inverter bridge configuration using N-channel MOSFETs or IGBTs rated for 1.5× the peak current draw of your system. Position the gate drivers (like DRV8301 or L6384E) within 5 cm of the switching devices to minimize inductance–critical for preventing shoot-through. Include a snubber network (RC pair of 10Ω and 0.1µF) across each switch to suppress voltage spikes exceeding 1.2× the bus voltage during commutation.

Use Hall effect sensors (A1302 or equivalent) spaced at 120 electrical degrees for trapezoidal control; ensure their placement aligns precisely with the stator’s magnetic poles (±1.5° tolerance). Connect sensor outputs directly to the controller’s input pins via twisted pair cables (24AWG) to reduce noise susceptibility. For sensorless operation, implement back-EMF zero-crossing detection by filtering phase voltages through a 1st-order high-pass (cutoff at 1 kHz) and comparing against a virtual neutral point tied to Vbus/2 via a resistor divider (100 kΩ precision resistors).

Add a bulk electrolytic capacitor (470µF/450V) across the DC bus to stabilize input voltage, supplemented by ceramic decoupling capacitors (0.1µF) at each MOSFET’s drain-source junction. Implement overcurrent protection using a low-value shunt resistor (≤0.01Ω) in series with the negative rail, amplifying the signal (gain: 50) with an op-amp (e.g., LM358) before feeding it to the microcontroller’s ADC. For thermal safeguards, mount NTC thermistors (10 kΩ) on the heatsink or stator, configuring the controller to derate torque linearly when temperatures exceed 85°C.

The control logic should employ a locked-antiphase PWM scheme (20 kHz carrier frequency) to minimize ripple torque, with dead time set to 1.5 µs to prevent cross-conduction. For six-step commutation, store pre-calculated timing tables in flash memory to eliminate runtime calculations, optimizing processor bandwidth for closed-loop PID tuning (gains: P=1.2, I=0.03, D=0.005 for 10A systems). Include a brake chopper circuit (P-channel MOSFET and 20Ω/10W resistor) on the DC bus to dissipate regenerative energy when deceleration exceeds 5000 RPM/s.

Critical Elements for Brushless Drive Assembly Wiring

Select a three-phase inverter with a current rating 20% above the continuous load of the drive unit to prevent overheating during prolonged operation. Opt for MOSFETs or IGBTs with switching frequencies between 16–20 kHz to balance efficiency and audible noise–frequencies below 15 kHz risk excessive whine, while above 25 kHz increases switching losses. Ensure the inverter’s gate drivers include built-in dead-time control (typically 1–3 μs) to avoid shoot-through failures, especially in high-voltage applications (48V or higher).

Position Hall effect sensors or encoders within 0.5 mm of the rotor’s magnetic poles for precise commutation timing; misalignment beyond 1 mm degrades torque consistency by up to 15%. Use shielded twisted-pair cables for sensor signals to reject EMI, particularly in environments with variable-frequency drives or switched-mode power supplies. For sensorless operation, integrate a back-EMF detection circuit with low-pass filters cutting off below 1 kHz to isolate the zero-crossing signal from PWM noise–sampling rates below 10 kHz introduce phase lag sufficient to destabilize closed-loop control.

Employ ceramic or polypropylene capacitors (10–100 μF) across the inverter’s DC bus to suppress voltage spikes from regenerative braking; film capacitors outlast electrolytic types in high-temperature settings. Route power traces on the PCB with a width of at least 0.5 mm per ampere to minimize resistive losses–use 2 oz copper for currents exceeding 10A. Ground the system at a single star point to eliminate ground loops, connecting the driver’s logic and power grounds via a ferrite bead (e.g., 100 Ω at 100 MHz) to block high-frequency noise without affecting DC performance.

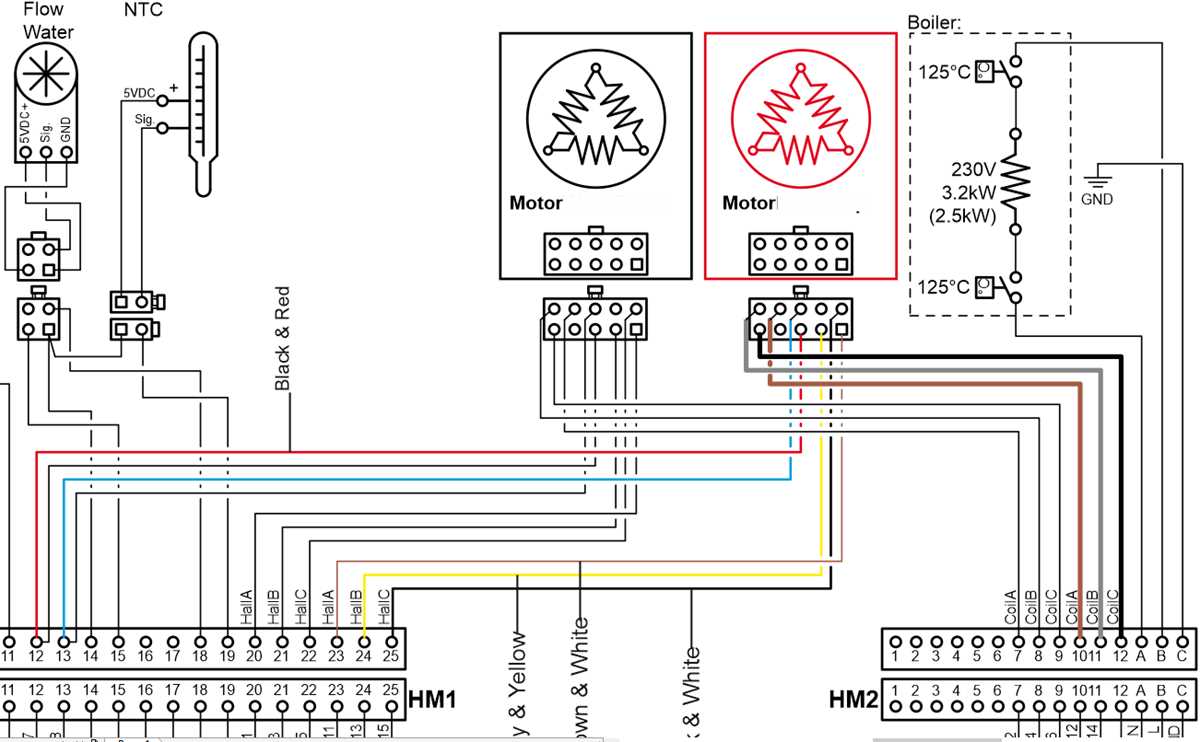

Step-by-Step Connection of Hall Sensors to Controller

Locate the sensor wires on the brushless drive–typically a trio of thin cables colored red, black, and yellow or blue. Match these to the controller’s dedicated sensor input terminals, ensuring red aligns with the +5 V pad, black with the ground pad, and the remaining wire with the signal pad. Verify the controller’s datasheet for exact labeling; some boards use H1, H2, H3 instead of general markings. A multimeter in continuity mode confirms correct pairing before soldering.

Power the controller first without load. Apply 5 V to the sensor input and measure the signal wires’ output–active sensors toggle between 0 V and near-supply voltage as the rotor turns. If readings remain static, swap any two sensor wires; correct sequencing produces distinct high-low patterns within 60 electrical degrees. Failure to detect transitions signals sensor misalignment; recalibrate by rotating the rotor slightly before rechecking.

Secure connections with heat-shrink tubing or silicone sealant to prevent shorts from vibration. Route sensor leads away from high-current paths to minimize induced noise–separate bundling with signal ground wires reduces interference spikes. Some controllers integrate pull-up resistors; if absent, add a 4.7 kΩ resistor between each signal line and +5 V to stabilize readings.

Verifying Sensor Functionality Under Load

Engage the drive at minimal throttle; monitor sensor outputs with an oscilloscope for clean square waves. Glitches or rounded edges indicate poor grounding or nearby switching regulators–relocate sensor wires or add ferrite beads near the connector. Finalize by testing phase commutation under load; erratic acceleration suggests incorrect timing–reverse any single sensor wire to invert the commutation sequence and re-test.

Power Supply Requirements and MOSFET Driver Configuration

Select a DC voltage source matching the winding specifications of your electromechanical actuator–typically 12V, 24V, or 48V–with current ratings exceeding the peak demand by at least 20%. For example, a 24V system drawing 10A under load requires a supply delivering 12A continuously to prevent voltage sag during acceleration. Use low-ESR capacitors (220μF–1000μF) at the input to filter high-frequency switching noise, positioned no farther than 2cm from the power stage to suppress parasitic inductance. Avoid linear regulators; opt for a synchronous buck converter with >90% efficiency for voltages above 36V to limit thermal losses.

MOSFET Driver Voltage and Gate Resistance

Gate drivers must supply 10V–15V (Vgs) to fully enhance modern low-voltage trench FETs while preventing shoot-through. Below is a reference table for optimal gate resistance values based on FET size and switching frequency:

FET Die Size (mm²)	Gate Charge (nC)	Switching Freq (kHz)	Recommended Rg (Ω)	Peak Gate Current (A)
5–10	20–40	20–50	5–10	1–2
10–20	40–80	50–100	10–20	2–4
20–40	80–150	100–200	20–30	4–6

Use dedicated half-bridge drivers (e.g., DRV8305, UCC27211) with integrated dead-time control (300ns–500ns) to eliminate cross-conduction. For isolated designs, opt for drivers with reinforced isolation (VISO ≥ 5kV) like the ISO5852 or Si827x series, ensuring CMTI > 100kV/μs. Place a 1μF–4.7μF bootstrap capacitor directly between the driver’s VB and VS pins, selecting X7R dielectric for stable capacitance across temperature. Avoid ceramic capacitors >10μF in bootstrap circuits due to voltage derating at high temperatures.
