Complete Ford F150 Radio Wiring Diagram Guide for 1997 Model

If your aftermarket sound unit isn’t powering up in a 1997 Ford half-ton, the issue likely stems from mismatched harness pins. Factory connectors use an 8-way black plug (C2090) with these color-coded leads: yellow (constant 12V), red (switched 12V via ignition), black (ground), orange (dimmer), and blue/white (antenna trigger). Verify continuity with a multimeter before splicing–many adapters swap the red and yellow wires, causing silent install failures.

Behind the dash, the factory loom branches into two harnesses: one for the speaker array (four door models use six-wire harnesses; regular cabs use four) and another for power/control. Speaker wires follow this scheme: front left (+ white/green | – white/orange), front right (+ white/blue | – white/yellow), rear left (+ gray/blue | – gray/orange), rear right (+ gray/green | – gray/brown). Polarity swaps here reduce bass response by 30%.

For illumination retention, bridge the dimmer lead (orange) to the dash-light circuit–factory harness terminates at fuse block C240, pin 6. Skipping this step leaves the display frozen at full brightness. If amplifier noise persists, add a 1000μF inline capacitor on the main power feed; Ford’s thin-gauge ground cable often picks up alternator whine above 1500 RPM.

Aftermarket harnesses like Metra 70-1771 include incorrect connectors for 1997 models–swap the 8-pin female plug for a Molex 03-09-1024. Factory connectors use 2.36mm male pins; common replacements (e.g., 2.54mm) risk intermittent shutdowns. Crimp connectors with 18-20 AWG heat-shrink tubing to prevent corrosion under the driver’s kick panel.

Electrical Connections for 1997 Ford Pickup Audio System

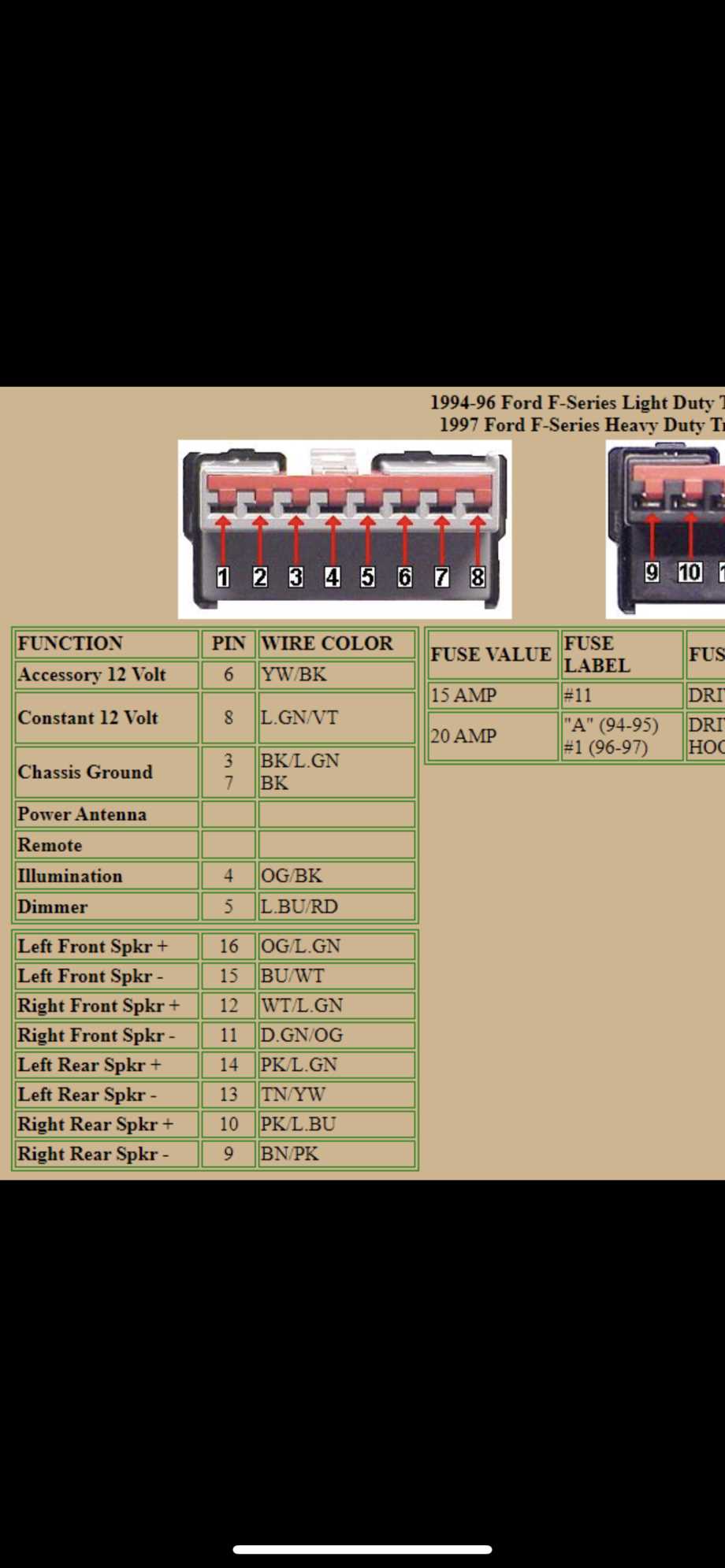

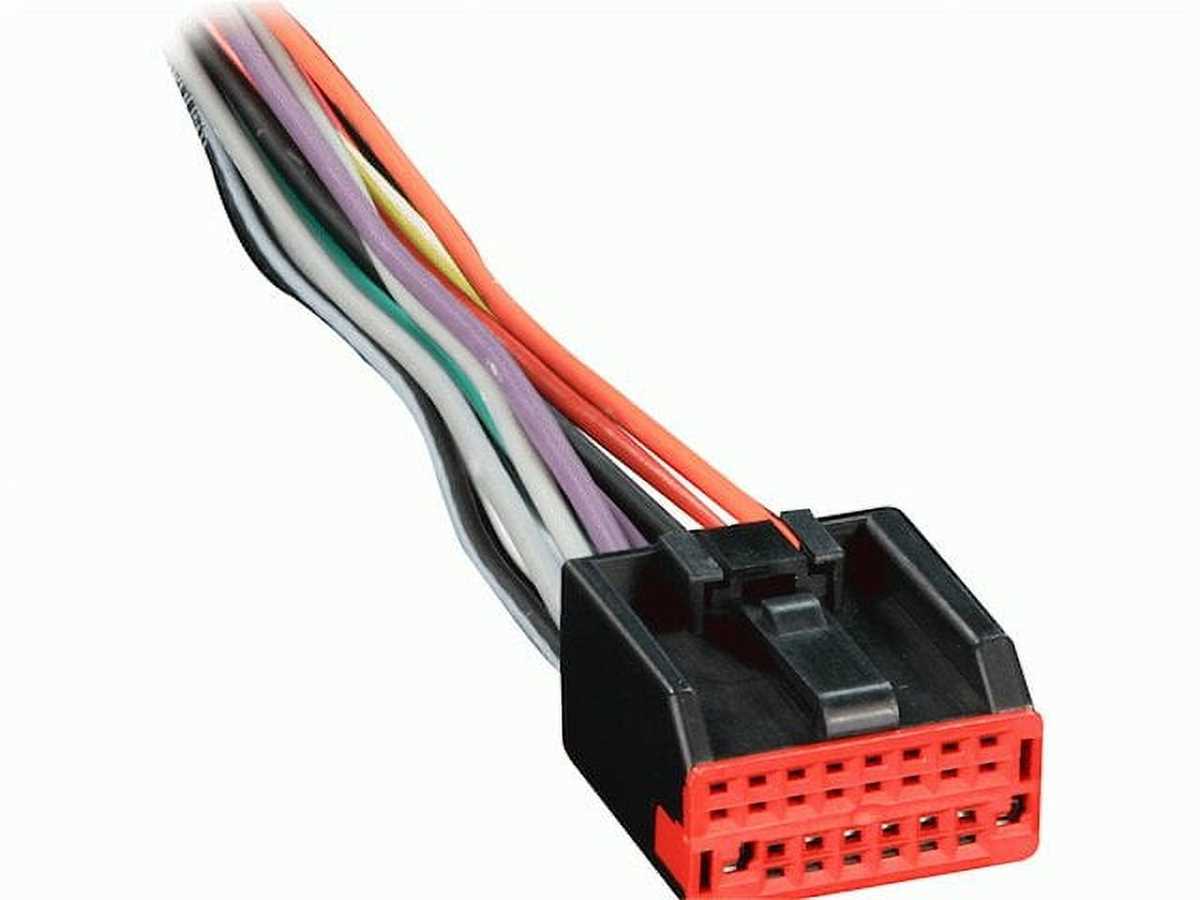

Begin by locating the vehicle’s harness connector behind the stereo unit. This 12-pin plug interfaces directly with the factory harness–match each wire by color code rather than position, as pinouts can vary across trims. Cutting into the original loom risks signal loss; instead, use a harness adapter (PAC SNI-1 or Metra 70-1771) to preserve factory reliability while enabling aftermarket upgrades.

• Black with white stripe: chassis ground (essential for noise reduction; confirm continuity to bare metal at dashboard mount).
• Yellow: constant 12V (direct from battery; pair with a 10A fuse inline to prevent drain).
• Red: switched 12V (activates with ignition; avoids accessory errors by splicing to fuse #15 in the under-dash panel).
• Blue with white stripe: amplifier turn-on (0.5V trigger; connects to aftermarket units requiring remote power).
• Green/black and gray/black: front speaker positives (stripe denotes negative; polarity-critical for correct phasing).
• Violet/black and tan/black: rear speaker positives (stripe denotes negative; test with 1kHz tone before final connection).

For vehicles equipped with the factory amplifier (XLT/Lariat trims), an additional 6-pin connector lurks beneath the glove box. The amplifier’s output impedance (2Ω per channel) mandates matching wire gauge:

1. Use 16-gauge wire for runs under 12 feet; upgrade to 14-gauge for longer cable paths.
2. Twist pairs at 6 turns per foot to cancel induced noise from the alternator.
3. Solder all connections and insulate with adhesive-lined heat shrink tubing–crimps corrode over time.

If static persists, bypass the factory noise filter by grounding the head unit’s metal chassis directly to the vehicle frame using a dedicated 10-gauge wire. Avoid daisy-chaining grounds; each device should terminate at a single clean attachment point, preferably the passenger-side firewall stud.

Aftermarket stereos often omit the Ford-specific data bus wire (orange with blue stripe). Retain this line for retained accessory power, chime signals, or steering wheel control compatibility. Use a T-harness (Metra ASWC-1) to translate signals if installing a non-Ford head unit–resistance values must match 47kΩ for proper function.

Test connections with a multimeter before securing panels:

• Verify voltage drop across the yellow wire (
• Check speaker impedance (4Ω nominal; below 3Ω risks overheating).
• Confirm the dimmer wire (orange) reduces voltage by 30-50% when headlights activate.

Anti-theft systems in this model interrupt the red wire circuit when battery power is disconnected. To reset, turn the ignition to ACC within five seconds of reconnecting power–failure activates a persistent chime and disables accessory functions.

Identifying the Factory Audio System Harness Connector Pin Layout

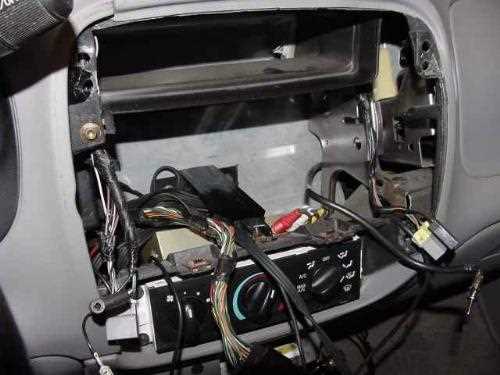

Begin by removing the dashboard trim surrounding the head unit–two screws secure the climate control bezel, while hidden clips hold the lower panel. Use a trim removal tool to pry gently at the edges, working clockwise from the top-left corner. Once exposed, the factory harness connector sits directly behind the audio module, typically clipped into a plastic bracket. The connector is a 12- or 18-pin rectangular plug, depending on the model year, with numbered terminals molded into the housing–pin 1 is always at the lower-left when facing the connector’s terminal side.

• 1997 standard trim: Pins 1-4 (left rear speaker), 5-8 (right rear), 9-12 (left front), 13-16 (right front), 17 (constant 12V), 18 (ground).
• Premium sound variant: Additional pins 7 (illumination), 10 (antenna trigger), and 14 (data bus) appear in late-production units.
• Color-code verification: Yellow (power), black (chassis ground), gray/red (left front +), gray/white (left front -), violet/red (right front +), violet/white (right front -), brown/red (left rear +), brown/white (left rear -), dark green/red (right rear +), dark green/white (right rear -).

If the molded numbers are illegible, probe the terminals with a multimeter set to continuity mode–touch the chassis ground (pin 18) and locate the matching terminal that produces zero ohms. For power circuits, switch the multimeter to DC voltage and measure against the ground while keyed to the RUN position. Expect 12-14V on pin 17; factory amplifiers may draw an additional 1-2A, so confirm with a load test using a 12V bulb. Record all findings on a scrap of paper or label the harness wires immediately to avoid misconnection.

Decoding Aftermarket Stereo Harness Wire Colors and Roles

Begin by locating the factory connector behind the dashboard unit–most third-party audio systems use a 12-pin ISO or 16-pin Metra harness adapter. Pinpoint the ground lead first, typically a black or brown wire with a bare copper end or ring terminal; verify continuity to chassis ground with a multimeter before proceeding.

Key Wire Functions and Standard Color Assignments

Function	Common Colors	Verification Method
Constant 12V (memory)	Yellow, Orange w/stripe, Red w/stripe	Test voltage with ignition off; should read 12V
Switched 12V (accessory)	Red, Pink, Purple	Voltage present only with key in ACC/ON position
Speaker outputs (front left positive)	Gray, White	Polarity check: 4-8 ohms to matching negative lead
Speaker outputs (front right positive)	Green, Violet	Same impedance test as above
Illumination (dimmer)	Orange, Light Blue	Voltage drops when headlights are activated
Antenna trigger	Blue, Blue/White stripe	12V pulse when stereo powers on
Amplifier remote turn-on	Blue/White stripe, Solid Blue	Same trigger pulse as antenna; often shared

Aftermarket harnesses frequently deviate from OEM conventions–always cross-reference the installation manual supplied with your new unit. Manufacturers like Pioneer, Kenwood, and Alpine often print tiny function labels directly on the wires themselves; magnifying glasses help decipher these. If labels are absent, use a multimeter’s diode test mode to trace connections back to the head unit’s circuit board.

Solder joints outperform crimp connectors for long-term reliability; use heat-shrink tubing or liquid electrical tape to insulate splices. Avoid twisting dissimilar metals (copper and aluminum) to prevent galvanic corrosion. For steering wheel control interfaces, wire the red/white data line through a dedicated resistor network–values typically range between 1.5kΩ and 4.7kΩ depending on vehicle year.

Troubleshooting Unmarked Leads

If factory documentation is unavailable, employ a 9V battery with two jumper wires to safely probe speaker outputs–temporary connection should produce an audible pop from the corresponding speaker. Never apply power directly to unknown leads; use a 10Ω resistor in series to limit current. For CAN bus systems, dedicated scan tools or dedicated decoder modules like iDatalink Maestro integrate more seamlessly than splicing into complex data networks.

Step-by-Step Guide to Connecting a New Head Unit to Factory Harnesses

Disconnect the vehicle’s negative battery terminal first to prevent short circuits or electrical damage. Use a 10mm socket to loosen the terminal clamp and isolate the cable. This step eliminates voltage from the system while working.

Locate the factory connector behind the existing audio system. Press the release tab on the plastic clip and gently pull the plug free. Inspect the pins for corrosion or bent connectors–clean with electrical contact spray if needed. Match each terminal to the new unit’s adapter by color or function, ensuring compatibility with aftermarket harness kits designed for 1997 models.

Preparing the Aftermarket Harness

Align the factory wires with the corresponding aftermarket adapter leads. Solid colors (yellow, red, black) typically serve primary functions: constant 12V, switched ignition, and ground. Striped wires (orange/white, gray/black) often handle illumination and speaker outputs. Use a multimeter to verify each wire’s purpose if the documentation lacks clarity. Set the meter to DC voltage (20V range) and probe the terminals with the key in the ACC position.

Strip 1/4 inch of insulation from each wire end. Twist the bare strands of matching factory and adapter wires together, then secure with a crimp connector or solder for durability. Apply heat-shrink tubing over the joint and use a heat gun to seal, preventing moisture or vibration from loosening the connection. Avoid electrical tape–it degrades over time.

Mount the new unit’s mounting sleeve into the dash cavity. Slide the head unit into place until the retaining clips click. Reconnect the factory plug to the aftermarket adapter, ensuring a snug fit. Route any excess cabling away from moving components like the steering column or HVAC vents to prevent interference or damage.

Reattach the negative battery cable using the 10mm socket. Turn the ignition to ACC and test each function: power, volume, source selection, and speaker balance. If any channels produce distortion, recheck ground connections or speaker impedance. For steering wheel controls, integrate an interface module (e.g., PAC RP4-CH11) following the manufacturer’s pinout guide.
