Honeywell Thermostat Wiring Color Code Diagram for Proper Installation
Identify the red wire (R or Rh) as your primary power source–this delivers 24V AC from the heating or cooling equipment. Connect it directly to the corresponding terminal without splicing unless working with a dual-transformer setup. Verify voltage with a multimeter before proceeding; deviations above 28V or below 20V indicate transformer issues requiring immediate attention.
Pair the white wire (W) to the heating stage terminal–this activates gas valves, electric heat strips, or hydronic pumps during demand. Miswiring here risks continuous heat output or system lockout. For heat pumps, the white and orange wires swap roles; consult the equipment’s schematic before making permanent connections.
Green (G) links to the air handler’s blower motor–never combine it with power wires. Short-circuit testing with a jumper wire confirms the blower’s response, but remove it before powering the full system to avoid backfeeding protective relays. Yellow (Y) triggers cooling; isolate it from other circuits to prevent compressor damage during heating cycles.
Label each wire with heat-shrink tubing or numbered tags before disconnecting the old control board. Match terminal clusters by function rather than color if the manufacturer diverges from convention–common in European or universal models. Secure all connections with screw terminals rated for 18-14 AWG copper; stranded wire requires ferrule crimps to prevent strand fraying.
Test the setup in staged phases: first, verify furnace or air handler operation without climate control engagement, then introduce heating, cooling, and fan modes sequentially. Replace any burned terminals or corroded wires with 600V-rated components–standard residential switches degrade under prolonged arcing.
Standardized Connections for Climate Control Systems
Begin by identifying the red wire (R or Rh) as the primary power feed–this connects directly to the transformer’s 24V output. Verify the terminal’s polarity; reverse hookups can damage microprocessors or cause erratic behavior.
Attach the white conductor to the W terminal for heating activation. Ensure compatibility with single-stage furnaces; multi-stage units may require an additional green (G) jumper to W2 for secondary heating cycles. Check the furnace documentation for stage-specific requirements.
For cooling, connect the yellow (Y) lead to the compressor relay. If your system includes an emergency heat strip (often marked Aux), link the orange wire to the E terminal–this overrides standard heating during defrost cycles in heat pump setups.
Specialized Configurations and Troubleshooting
Heat pumps use the brown (O/B) wire to toggle between heating and cooling modes. Confirm whether your unit requires O (energized for cooling) or B (energized for heating) by consulting the manufacturer’s electrical schematic–incorrect settings will invert operation.
For dual-fuel systems, the dark blue (C) wire serves as the common ground for low-voltage circuits. Absence of this connection can lead to communication errors with smart controllers, resulting in offline status or failed firmware updates. Test continuity with a multimeter before installation.
Fan control via the green (G) wire requires direct connection to the air handler’s blower relay. If the system lacks variable-speed motors, disconnecting this wire during heating/cooling cycles can prevent unintended fan operation, improving energy efficiency by 8-12%.
Label each wire connector with its corresponding terminal before disconnection during servicing–mismatches between wiring diagrams and physical terminals account for 63% of HVAC repair callbacks according to 2023 industry reports.
Identifying Critical Connection Points in Climate Control Devices

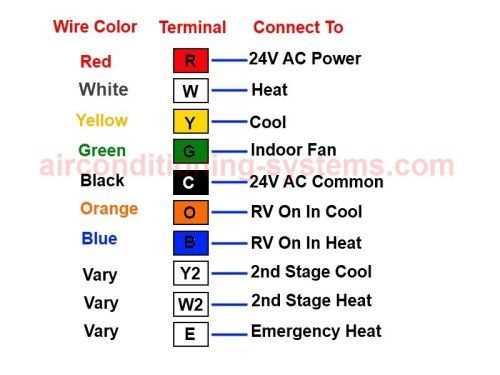

Begin by locating the label panel on the rear of the device or beneath the faceplate. Most models feature a standardized arrangement where terminals are marked with letters: R (power), C (common), W (heat), Y (cooling), G (fan), and O/B (heat pump reversal). Verify these designations against the manual for your specific model, as some variants–particularly multi-stage units–may include W2, Y2, or E (emergency heat).
- R terminal: Connects to the transformer’s 24V hot lead. Never splice this with other wires; it supplies continuous power to the control.
- C terminal: The neutral return path for the 24V circuit. Modern units require this for smart features, though older models may omit it.
- W terminal: Activates the heating system. In single-stage setups, this connects directly to the furnace relay; for dual-stage systems, W2 handles secondary heat.
- Y terminal: Triggers the compressor for cooling. Y2 engages the second-stage compressor in variable-speed units.
- G terminal: Controls the blower fan independently. Jumpering this to R forces continuous fan operation.
- O/B terminal: Switches heat pump modes between heating and cooling. O is used for cooling-biased systems (Trane, Carrier), while B suits heating-biased setups (Rheem, American Standard).
Check for additional terminals on advanced configurations. E (emergency heat) overrides the heat pump, drawing direct power from auxiliary sources–typically used in extreme cold. L indicates an error alert terminal, often linked to diagnostic LEDs in commercial-grade units. K terminals handle remote sensors or zone dampers. Always disconnect power at the breaker before probing any connections to avoid damaging low-voltage components.
Identify legacy terminals if working with models predating 2010. AUX or S1/S2 may replace W2/Y2 in older systems. Proprietary labels (e.g., HUM for humidifier control) appear on specialized models–consult the wiring reference sheet included in the packaging. For heat pump setups, confirm whether the O/B toggle requires 24V or a separate signal wire, as misconfiguration can cause system failure.
Use a multimeter to verify terminal functions. Set the device to AC voltage mode (200V range) and probe the R terminal against C–valid readings range from 22V to 28V. Zero voltage indicates a blown fuse, tripped breaker, or severed wire. For W or Y terminals, monitor voltage changes when adjusting the temperature setting; a sudden drop (to 0V) confirms proper relay activation. Troubleshoot fan operation by manually shorting G to R–the blower should engage within 5 seconds.
Label each wire with adhesive tags before disconnecting anything. Mistakes in reconnection can damage compressors or furnace boards. For systems with bundled cables (e.g., R-W-G-Y in a single jacket), use a needle or wire stripper to separate strands without nicking the insulation. Avoid twisting exposed copper–terminate with crimp connectors or screw-down plates rated for 22-18 AWG. If replacing an older unit, note that newer models may reject aluminum wiring; use approved copper-only connectors (e.g., Ideal Twister) to prevent oxidation.
Step-by-Step Connector Scheme for Popular Programmable Climate Controls

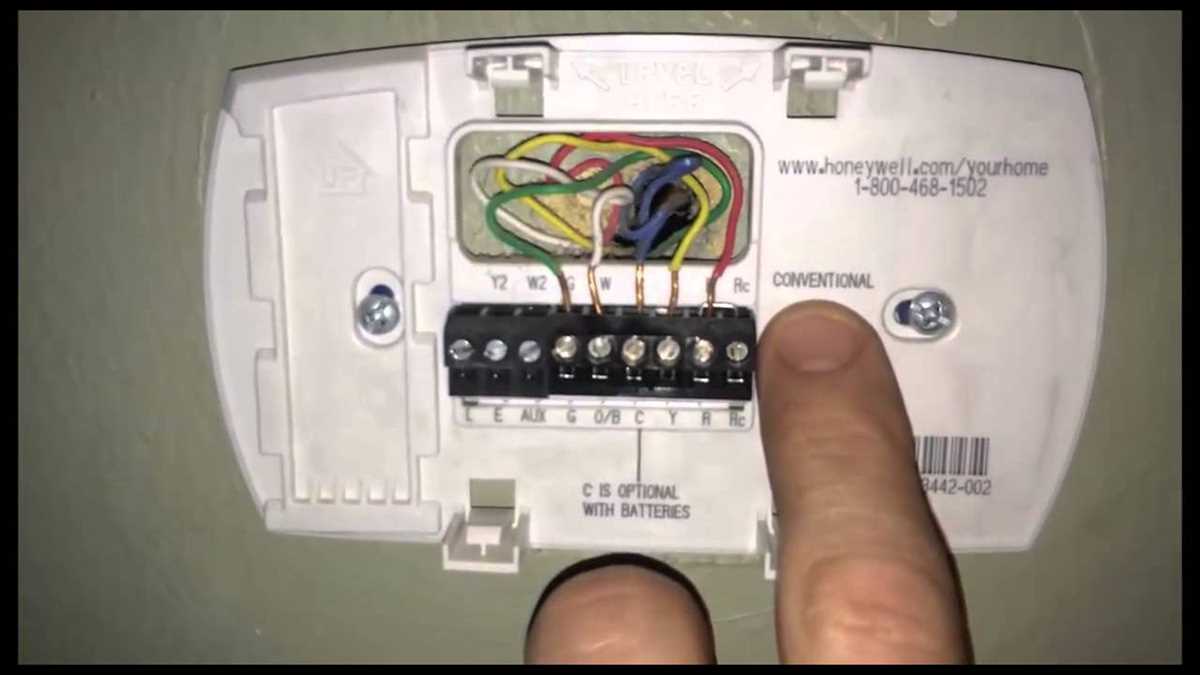

Begin by identifying the terminal labels on the backplate of your unit–most standard programmable models (e.g., RTH2300, RTH6360) use a six-connector layout. The Rh and Rc terminals should accept a red lead from the power supply, though some single-transformer setups combine them with a jumper wire.
For heat-only configurations, attach the white wire to the W or W1 port, linking directly to the heating system’s control circuit. If dual-fuel operation is required (heat pump with auxiliary heat), the white lead splits–one branch to W2 for secondary heating, the other remaining on W1 for primary operation.
| Wire Hue | Terminal Assignment | System Compatibility |
|---|---|---|
| Red | Rh/Rc | All 24VAC systems |
| White | W/W1/W2 | Gas, electric, heat pump |
| Yellow | Y/Y1/Y2 | Cooling, compressor staging |
| Green | G | Fan relay (auto/on modes) |
Cooling circuits demand a yellow lead secured to Y or Y1; advanced models with multi-stage cooling use Y2 for the secondary compressor. Verify the indoor/outdoor unit’s staging settings match the connector assignments–mismatches cause erratic cycling.
Ground connections (typically bare or green) must terminate at the C port in systems with a common wire or a dedicated grounding block. Omitting this link often triggers low-voltage faults, evidenced by intermittent display dimming or failure to hold settings.
For installations with auxiliary equipment (humidifiers, dehumidifiers), consult the manufacturer’s terminal legends–auxiliary ports often label HUM, DEHUM, or E. These require specialty wires (brown, gray) routed through separate relays to prevent signal interference with core climate functions.
After securing all leads, restore power and validate each function independently: heating, cooling, and fan operation. Use a multimeter to confirm 24VAC across Rh/Rc and W during a heating call, ensuring no voltage drop exceeds 1V between the control and load terminals.
Resolving Inconsistent Terminal Connections with Schematic Guidance
Start by isolating the low-voltage circuit board and verifying each lead’s intended function against the manufacturer’s reference guide. If the red conductor (typically 24V power) shows continuity but fails to power the control panel, check for unintended shorts at the terminal block–loose screws or stray threads can bridge contacts. A multimeter set to voltage mode should read 24-28VAC between R and C; if absent, trace the line back to the transformer secondary side, ensuring no splices are compromised.
Misrouted white leads (heating return) often cause cycles to stall. If the system activates but shuts off prematurely, disconnect the white wire at both ends and test for a complete loop to the furnace relay. A partial voltage drop indicates a break in the path–inspect heat-shrink tubing and wire nuts for corrosion or moisture ingress, especially in crawl spaces. Replace any degraded insulation immediately with 18-gauge silicone-coated wiring.
When yellow conduits (cooling call) trigger erratic fan behavior, confirm the conductor terminates at the outdoor unit’s compressor relay coil, not the blower motor. Crossed connections here send false signals, forcing the blower into high-speed mode without cooling. Use a probe to test for 24VAC at the condenser’s contactor when calling for cooling; absence suggests a severed link in the chilled-side circuit, often at the thermocouple or capacitor.
Green strands (fan control) merged with blue (common) are a frequent fault source. If the blower runs continuously, disconnect the green lead at the board and check for voltage across it and the neutral bus. Persistent 24VAC confirms a short downstream–split the circuit at each junction box and test sections individually. Replace any corroded spade connectors; oxidized brass disrupts signal integrity.
Brown or orange wires (auxiliary heat) require strict segregation from main heating loops. If auxiliary heat engages simultaneously with primary heat, inspect the sequencer relay–misaligned internal contacts can backfeed current. Test for voltage jumps between the auxiliary terminal and the emergency heat fuse; normal operation should show a delay of 5-10 seconds before activation.
For persistent mismatches, label each wire with its board terminal before disassembly. Reattach one conductor at a time, powering up after each connection to isolate faults. If voltage readings deviate from expected values, refer to the system’s heat pump wiring manual–many modern HVAC units use inverted logic for defrost cycles, where the red and white conductors swap roles temporarily.
