Complete AC Condensing Unit Wiring Schematic and Connection Guide

Before handling any electrical schematics for your cooling or heating installation, disconnect the power at the circuit breaker. A multimeter should verify zero voltage across terminals–any residual current poses a severe hazard. Follow the manufacturer’s technical manual, as models like LG LW1516ER or Rheem RA14AZ have unique terminal configurations. Note the color coding: red typically represents the live wire for power input, white for grounding, and blue/black for compressor activation.

Use 14 AWG copper wire for standard residential setups, but upgrade to 12 AWG if the run exceeds 50 feet to prevent voltage drop. For split systems, ensure the indoor and outdoor components share the same circuit–mixing phases can damage capacitors or compressors. Label each wire termination with heat-shrink tubing or permanent markers to avoid misconnections during maintenance.

Capacitor testing is non-negotiable. A faulty start capacitor (typically 30–50 µF) will cause humming without full engagement. Replace if resistance readings exceed 5% of the labeled value. For variable-speed models like Daikin FTXS15LVJU, refer to the PCB schematic–these units often integrate a current relay requiring precise polarity. Never bypass safety switches or thermal overload protectors; their absence risks fire or permanent system failure.

Grounding rods must be copper-clad and 8 feet long, driven fully into moist soil for systems over 2 tons. Improper grounding leads to voltage leakage, which can trip GFCI breakers or damage sensitive electronics. For three-phase commercial units (e.g., Carrier 50HC), verify L1, L2, L3 sequencing with a phase monitor–reverse rotation will prevent compressor startup.

After rewiring, test run the system for 30 minutes while monitoring line voltage at the disconnect. A drop below 220V indicates undersized wire or loose connections. Check airflow at indoor vents–restricted flow suggests improper duct sizing or a clogged filter, which may cause evaporator coil freeze-up. Document all changes in a service log for future diagnostics.

How to Read and Troubleshoot Your Cooling System Electrical Layout

Locate the disconnect switch first–this isolates power before any repair. Most systems use a 240-volt feed with two hot legs, a neutral, and a ground wire. Check the color coding: black and red for hot, white for neutral, green or bare copper for ground. If replacing a capacitor, match microfarad (µF) and voltage ratings exactly–undersized components overheat or fail prematurely. Label every wire before detachment using masking tape; incorrect reconnection risks compressor burnout or condenser fan motor damage.

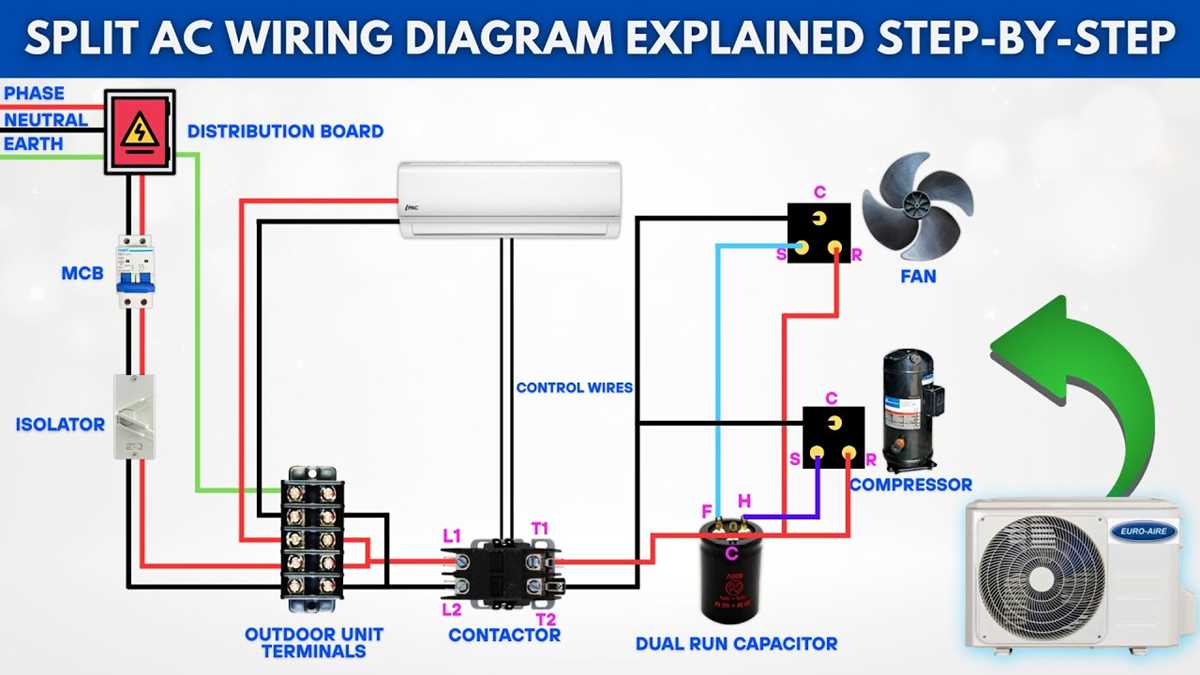

Key Components and Their Connections

• Compressor: Typically wired to a start capacitor (45–60 µF) and run capacitor (5–10 µF). Verify dual-capacitor models connect *HERM* to compressor, *FAN* to condenser fan, and *COM* as common terminal.
• Condenser Fan Motor: Uses a single-speed PSC motor–check winding resistance (2–10 ohms between common and run, 50–150 ohms between start and run). If open, the motor requires replacement.
• Thermostat: Low-voltage control circuit (24V) links R (power), Y (cool), G (fan), and C (common). If the blower runs but cooling doesn’t engage, test continuity between R and Y at the air handler.
• Contactors: Line-voltage relays with 24V coils–use a multimeter to confirm 24V across coil terminals when thermostat calls for cooling. Pitted contacts mandate replacement.

For split systems, trace the refrigerant lines from outdoor coil to indoor evaporator–electrical runs parallel. Use a non-contact voltage tester to confirm power is off at the disconnect and air handler before touching terminals. If the system trips breakers repeatedly, suspect a locked rotor (compressor), shorted capacitor, or faulty contactor. Test capacitors with an analog meter: a functional capacitor shows initial low resistance dropping to infinity when charged.

Common Mistakes and Fixes

1. Miswired Capacitor: Reversing *HERM* and *FAN* terminals causes erratic fan operation. Correct order: *HERM*-compressor, *FAN*-condenser fan motor, *COM*-jumper wire.
2. Incorrect Wire Gauge: 10 AWG minimum for 240V circuits under 30 amps, 8 AWG for 40 amps+. Undersized wires overheat, degrading insulation.
3. Loose Connections: Terminals must be tight–vibration loosens screws over time, causing arcing. Use star washers under screw heads to prevent loosening.
4. Reversed L1/L2: Swapping hot legs on a single-phase system won’t affect operation but will reverse compressor rotation, reducing efficiency by 10–15%. Confirm rotation by observing fan blade spin direction against label arrows.

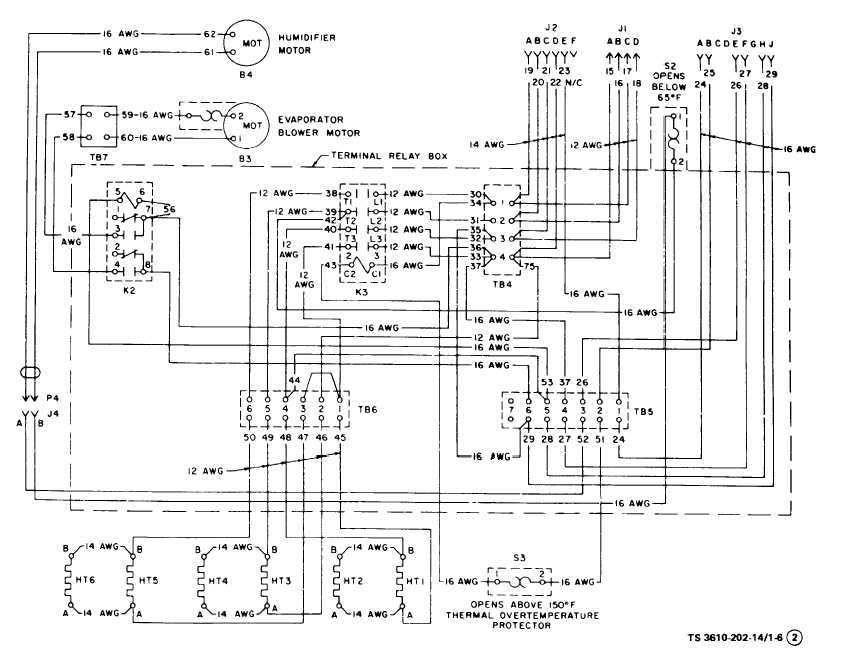

Identifying Key Components in an A/C Electrical Blueprint

Locate the compressor relay first–it’s typically marked as K or CR near the condenser’s power feed, often adjacent to a fuse or circuit breaker rated between 20-30A. Verify its position by tracing the thickest line in the schematic; this high-current path directly connects to the compressor motor. If labels are absent, measure voltage at the relay’s coil terminals: 24V AC confirms proper control signal flow from the thermostat.

Examine the contactor next–look for symbols resembling || or [ ] enclosing coil labels like C or M. This component bridges power to the fan and compressor; its failure accounts for 40% of condenser malfunctions. Check for burnt contacts if the fan operates but the air handler doesn’t–use a multimeter to verify 0 ohms across closed contacts when energized.

• Run capacitor: Identified by ○→ or ⌒ symbols, usually paired with HERM and FAN terminals. A failing capacitor (<70% of rated µF) causes delayed startups or humming without rotation. Replace if bulging or leaking.
• Start capacitor: Less common in modern systems but found in older models, denoted by ○─. Its absence in newer schematics indicates reliance on PSC motors.
• Overload protector: Shown as a ⏜ or ⌒ with OL or P labels. Positioned in series with the compressor windings, it trips at 120-150°C. Test for continuity; infinite resistance means failure.

Thermostat connections appear as dashed lines or thin traces branching from the control board. Focus on R (24V), Y (cooling call), G (fan), and C (common) terminals. For heat pumps, O/B (reversing valve) is critical–energized during cooling mode. Cross-reference terminal labels with color codes: R (red), Y (yellow), G (green), C (blue/black).

Trace transformer inputs to the primary (120/240V) and outputs to the secondary (24V). Primary side connects to L1/L2; secondary feeds R/C terminals. Measure secondary voltage with system on–deviations (<22V or >26V) suggest core saturation or winding shorts. High-voltage lines (>240V) are drawn thicker; low-voltage (

Isolate safety switches: high-pressure (HPS) and low-pressure (LPS) cutouts appear as normally closed contacts (≈⏜) in series with the contactor coil. LPS triggers at 50-100 PSI, HPS at 400-600 PSI. Bypass temporarily for testing, but never operate without them–compressor damage risks exceed $1,200 in repairs. For dual-fuel systems, locate the defrost board near the reversing valve; its timer circuits (TD) engage every 30-90 minutes for 5-15 minutes.

Step-by-Step Wire Tracing for Common Cooling System Models

Start by locating the condenser terminal block on the outdoor compressor–most 3-ton Carrier models label connections L1, L2, and C. Trace the red (R) lead from the contactor to the compressor’s hermetic terminal; verify continuity with a multimeter set to 200 ohms. If resistance exceeds 2 ohms, the windings may be shorted or the wire corroded at the splice near the fan motor capacitor.

For Trane split systems, identify the control board’s Y1 terminal–this initiates the cooling cycle. Follow the yellow conductor through the low-voltage bundle to the thermostat’s Rc terminal; ensure it isn’t pinched under the condensing coil fins. At the indoor air handler, check the brown wire bridging the defrost control to the reversing valve; a loose connection here mimics a refrigerant leak by preventing heat pump mode.

Handling Older Rheem and Goodman Configurations

On pre-2015 Rheem units, the orange conductor from the thermostat’s O/B port activates the reversing valve. Use a non-contact voltage tester to confirm the wire isn’t energized during heating mode–if it is, the valve solenoid may be stuck. Goodman’s high-voltage wiring often routes through a disconnect with fuse links; replace any blown 30-amp links with exact amperage replacements, not standard fuses, to avoid compressor damage.

In ductless mini-split Mitsubishi systems, the two-conductor cable between indoor and outdoor units carries power and communication signals. Separate these by color–black/red for power, white/green for signal–before testing; interference from nearby HVAC lines can disrupt the self-diagnostic codes displayed on the remote. If the system error blinks three times, the wire gauge may be insufficient (minimum 14 AWG for runs over 50 feet).

For York packaged rooftop models, focus on the economizer wiring–blue and purple leads control outside air dampers. Disconnect the actuator’s plug and measure voltage at the terminals during economizer call; readings below 22 VAC indicate a faulty transformer or corroded connections inside the control box. Always re-seal the box with conductive nickel paste on gasket surfaces to prevent moisture ingress.

Color Coding Standards and Their Meanings in HVAC Electrical Schematics

Always follow North American NEC/NFPA 79 guidelines for HVAC installations: black denotes line/ungrounded conductors, red identifies switched or secondary power paths, blue signifies neutral returns, and green or bare copper indicates equipment grounding. Deviations from this palette risk misinterpretation during troubleshooting or expansion work.

For 24V control circuits–common in thermostats and relays–manufacturers frequently adopt yellow for power feeds (R terminal), white for common returns (C terminal), and orange or brown for heating calls (W terminal). Low-voltage wiring often adds purple for cooling commands (Y terminal) and light blue/gray for fan activation (G terminal). Verify these against the equipment’s specification sheet before terminating connections.

IEC 60446 (Europe, Asia) applies distinct markers: brown replaces black for phase conductors, blue substitutes for neutral, and green/yellow striped cables specify grounding. Multi-phase systems introduce additional distinctions–grey for neutral in three-phase setups, and black/red alternating for secondary phases. Installers must cross-reference regional compliance codes before selecting cable insulation.

Condensing furnaces and heat pumps integrate unique sequences: dark green frequently denotes defrost cycles, pink or violet may represent reversing valve activation, and striped conductors (e.g., black-white stripe) typically identify interlock safeties or limit switches. Label each termination explicitly–marker sleeves or heat-shrink tubing prevent field confusion under diagnostic lighting.

Residential split systems occasionally repurpose colors: red may switch between primary line and condenser fan motor, while yellow could toggle between compressor contactor and indoor blower relay. Commercial rooftop packages standardize differently–consult OEM wiring matrices to avoid conflicts between compressor start capacitors and outdoor fan run capacitors.

High-efficiency modulating equipment often employs digital communication buses wrapped in foil-shielded pairs: typically blue-red twisted pairing for serial data, with adjoining black-green reserved for low-voltage DC power feeds. These cables require separation from line-voltage conductors–minimum 4 inches of clearance–to prevent signal noise or induced interference.

When retrofitting legacy systems, cross-match existing color-coding against current standards using continuity testing before splicing. Document all deviations with permanent tags or digital schematics–ambiguity in color assignments escalates hazards in multi-technician environments, particularly during emergency repairs or code inspections.
