Step-by-Step Guide to AC Furnace Electrical Connection Schematics

Start by ensuring the main disconnect switch is off before inspecting any high-voltage components. Industrial heating units operating on alternating current (AC) circuits–particularly those rated at 480V, 60Hz–require a dedicated three-phase power feed with a minimum 60A breaker. Verify the incoming line voltage matches the equipment plate data, as deviations beyond ±5% risk damaging control boards or reducing element lifespan by up to 40%.

Primary connections must use THHN copper conductors sized at 6 AWG minimum for 480V applications, routed through liquid-tight flexible conduit to prevent abrasion from thermal expansion. Ground conductors should never share a path with neutral wires; instead, bond them directly to the chassis at a single point near the transformer to eliminate stray voltages that can disrupt safety relays. A 10Ω ground resistance is the maximum allowable threshold–exceeding this risks nuisance tripping of overcurrent devices or interference with temperature controllers.

Thermal overload protection is non-negotiable for resistance heating coils. Install Class J or Class RK5 fuses upstream of the contactor, matching the element’s full-load amperage (e.g., 25A for a 10kW coil at 480V). Bypass capacitors (0.1µF, 600V AC) across each phase at the terminal block reduce noise-induced false triggering in PID controllers, which operate with a hysteresis of ±2°C. For systems exceeding 20kW, incorporate a soft-start circuit using SCRs to limit inrush currents to 150% of steady-state–this prevents warping of metal-alloy filaments during cold starts.

Label every conductor at both ends with heat-resistant shrink tubing, noting phase (L1, L2, L3), neutral (if used), and ground. Color-coding alone is insufficient: European standards (IEC) differ from North American practices (L1=black, L2=red, L3=blue; neutral=white/gray; ground=green/yellow). Cross-reference the schematic against NEC Article 424 or IEC 60364-7-721 for discrepancies. High-altitude installations (above 3,000ft) demand derated conductors–consult manufacturer tables, as resistance increases by ~0.4% per 1,000ft elevation gain.

Electrical Layout for Climate Control Units

Start by verifying the voltage requirements on the installation plaque–most central air handlers operate on 240V split-phase circuits, but compact systems may use 120V. Trace the power feed from the disconnect switch to the contactor: check for 20A or 30A double-pole breakers sized to the unit’s amp draw. If the breaker trips repeatedly, measure resistance across the compressor windings–readings below 1 ohm suggest a short, while infinite resistance indicates an open winding.

Label each conductor before disconnecting: red for 240V, blue for common, yellow for compressor relay control, and green/bare for ground. Use 10 AWG THHN wire for 30A circuits, 12 AWG for 20A, and ensure stranded copper for flexible connections. Tighten terminal screws to 12–15 lb-in torque–overtightening cracks plastic housings, undertightening causes arc faults.

Low-Voltage Control Circuit Checks

Test the 24V transformer secondary with a multimeter: readings should stabilise between 24–28V AC. If voltage drops below 22V, inspect the transformer taps–some models allow 120V or 240V primary adjustment. Replace the transformer if the winding resistance exceeds 0.5 ohms. Connect the thermostat R (power) wire directly to the control board’s R terminal bypassing the furnace relay–this isolates thermostat wiring faults from board failures.

Short the G (fan) terminal to R on the control board–a functional ECM blower motor should start immediately. If the motor hums but doesn’t spin, check the capacitor: a 5–20 μF start capacitor should charge within 3 seconds. For PSC motors, verify the run capacitor (typically 35+5 μF) with an ESR meter–values outside ±10% require replacement. Replace capacitors secured with metal straps, not plastic zip ties, to prevent heat distortion.

Inspect the condenser’s dual-run capacitor: one section serves the compressor, the other the outdoor fan. Label each terminals: “C” (common), “HERM” (compressor), and “FAN.” Use a capacitor analyzer to confirm microfarad ratings match the unit’s specifications–common failures show bulging tops or oil leakage. Replace capacitors with identical voltage ratings (minimum 370V for 240V systems) to avoid premature dielectric breakdown.

Confirm the defrost board’s sensor reads 10k ohms at 77°F (25°C). If resistance drifts, recalibrate or replace the sensor–factory defaults often drift to 8k–12k ohms. Jumper the defrost termination switch temporarily to test board responsiveness: the outdoor fan should stop, reversing valve should click, and compressor should cycle off within 90 seconds. If the board fails these checks, bypass it with a universal hard-start kit (PTC relay) to restore cooling while awaiting replacement.

Key Components in an AC Climate System Electrical Layout

Start by identifying the power disconnect switch–it must comply with NEC 424.19, ensuring a lockable, visible-break device within 50 feet of the unit. Models like Siemens Q200 or Square D D221NRB are field-tested for reliability under 240V loads. Verify the disconnect’s amp rating exceeds the circuit breaker by 125% of the equipment’s full-load current to prevent nuisance tripping during startup surges.

Thermostat conductors require 18 AWG solid copper for low-voltage control circuits, but use 16 AWG if runs exceed 100 feet to mitigate voltage drop. Secure connections with crimp sleeves or WAGO 221 lever-nuts; soldered joints fail under thermal cycling. Label R, C, W, Y, and G terminals with shrink tubing–mismatched leads cause erratic cycling or short cycling in ECM blowers. For variable-speed systems, confirm the control board’s PWM signal matches the motor’s input range (typically 2–10VDC).

Blower motors in systems like the Lennox EL296UH use dual capacitors–run and start–rated at ±6% of their marked value. Test capacitors with a multimeter in microfarad mode; replace if outside tolerance. Induced-draft motors (e.g., Fasco 70629310) require a separate 1 µF capacitor across the auxiliary winding to suppress radio interference. Check rotor endplay: excessive play indicates bearing wear, which escalates amperage draw by up to 30%.

Component	Wire Gauge (Copper)	Max Circuit Length	Voltage Drop Limit
Power feed (240V)	10 AWG	150 ft	3%
Thermostat (24V)	18 AWG	75 ft	5%
Compressor relay	14 AWG	100 ft	2%

Condensing units demand dedicated circuits–never share with lights or receptacles. Use THHN/THWN-2 wire in conduit; NM-B deteriorates above 140°F. For outdoor units, seal conduit entries with duct seal to block moisture, which causes corrosion at contactors. Hard-start kits (e.g., Supco SPP6) reduce inrush current by 40%, but size them precisely: undersized kits trip overloads, oversized ones damage compressors.

Pressure switches act as fail-safes–verify cut-out settings against manufacturer specs (typically 40–50 psi for low-pressure). Jumpering these for testing bypasses critical protection and violates UL 1995. Flame sensors in 2-stage systems require annual cleaning with fine emery cloth; oxidized surfaces drop below 2 µA, causing lockouts. For heat pumps, confirm defrost board sequences–reversed polarity or incorrect delay timers freeze coils.

Gas valve solenoids (e.g., Honeywell V8220) need 24VAC control loops; DC causes overheating. Test with a clamp meter during call for heat: normal draw is 0.15–0.25A. Higher readings indicate coil degradation. Inducer motors must achieve 2.5–4.5″ WC draft pressure within 15 seconds of ignition–delays trigger safety lockouts. Replace motors with cracked housings immediately: exhaust gases corrode heat exchangers.

Electronic air cleaners (EACs) require a dedicated 120V circuit. Route wires away from high-amperage lines (compressor, blower) to avoid EMI; use shielded cable (Belden 9841) if interference persists. Grounding rods must be #6 AWG copper, bonded to the unit’s chassis–resistance above 25 ohms violates NEC 250.53. For smart thermostats, ensure the C-wire supplies 24VAC to prevent USB ports from draining control voltage.

Transformer secondary windings should show 26–27VAC under load. Voltages below 24VAC indicate loose connections or undersized transformers; replace if primary side draws over 0.5A. Replace fuse links with UL-listed 3AG fuses sized for 125% of the transformer’s VA rating. For systems with humidifiers, confirm the 24V solenoid clicks audibly during operation–silent operation signals failed hydration or clogged distribution tubes.

Step-by-Step Guide to Interpreting Home Climate System Electrical Schematics

Locate the legend first–most electrical blueprints include a key identifying symbols for components like capacitors, relays, and thermostats. Match each symbol to its labeled part before tracing connections; manufacturers vary symbols, but standard shapes exist: circles represent motors, rectangles indicate switches, and zigzag lines denote resistors.

Identify power sources by following thick lines originating from the breaker panel or transformer. AC systems typically show a 240V main feed splitting into 120V branches for blower units and control circuitry. Trace these paths backward to confirm voltage ratings before proceeding.

Break the schematic into zones: low-voltage control (24V), high-voltage power (120V/240V), and safety circuits (limit switches, pressure sensors). Each zone connects at specific terminals–note junction points where wires intersect, marked by dots for splices or arrows for directional flow.

Essential Components and Their Connection Patterns

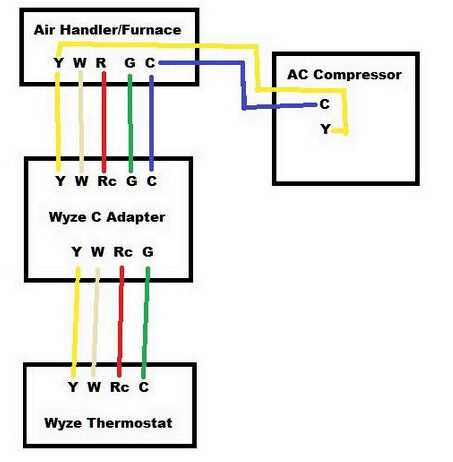

• Thermostat: Typically wired to the R (power), W (heat), Y (cool), and G (fan) terminals. Verify connections against the unit’s manual–some models include auxiliary C-wire for smart thermostats.
• Blower assembly: Controlled via relays; check for labeled wires like “Blower Hi” or “Fan ON” tied to speed taps on the motor. Miswiring here can cause overheating or failure.
• Capacitors: Marked with ovals or double circles, usually paired with compressor or blower motors. Confirm microfarad (µF) ratings match the legend–common values range from 5 to 80 µF.
• Safety switches: Look for normally closed (NC) or normally open (NO) contacts on rollout sensors, flame detectors, or discharge lines. These open circuits halt operation during faults.

Use a multimeter to verify continuity across components while referencing the diagram. Set the meter to ohms (Ω) and probe terminals as labeled–typical readings for motors should show near-zero resistance; infinite resistance indicates a broken circuit.

Troubleshooting Misfires with the Blueprint

1. Highlight the problem area (e.g., cooling cycle not engaging). Follow the Y terminal path from thermostat to compressor relay, checking for voltage drops at each stage.
2. Inspect relay coils–volts should trigger contacts to close. If relay clicks but no power passes, the coil may be faulty or contacts corroded.
3. Test transformers by measuring output at secondary coils (should read ~24V). Primary coils should match supply voltage (e.g., 120V). Lower readings suggest internal shorts.
4. Cross-check wire colors against legend labels. Manufacturers often use red for power (R), white for heat (W), yellow for cooling (Y), and green for blower (G). Deviations can indicate field modifications or errors.

Document deviations between the schematic and physical setup, especially if prior repairs modified wiring. Label all splices with the diagram’s terminology to ensure future reference matches. Store a photographed copy of the annotated blueprint near the system for quick access during maintenance.
