Step-by-Step AC LED Bulb Circuit Diagram and Wiring Guide

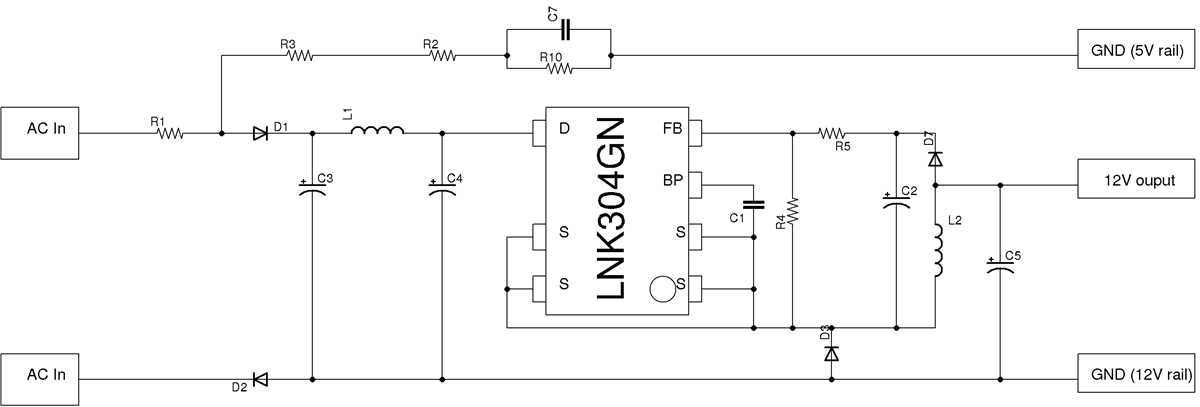

Choose a non-isolated buck topology for compact 220V mains-driven designs requiring 12W output. A high-voltage MOSFET (600V, 2A) paired with a fast-recovery diode (1N4007 alternative) minimizes switching losses. Input filtering demands a 1μF X2-rated capacitor (400VAC) to suppress EMI; position it directly across the AC input terminals.
Opt for a constant-current driver IC (e.g., PT4115, MT7801) with built-in over-voltage and thermal shutdown. The feedback network should consist of a 10kΩ resistor in series with a 1kΩ trimpot, allowing fine-tuning of luminous intensity. Keep trace inductance below 0.1μH by routing high-current paths (rectifier → inductor → output) as short, wide copper pours.
For safety, isolate the control circuit from the high-voltage section using an optocoupler (PC817). A snubber network (1nF capacitor + 47Ω resistor) across the MOSFET drain-source mitigates voltage spikes exceeding 450V. Test the assembled board with a variac at 50% rated voltage before applying full mains; verify no audible whine () or visible flicker () exists.
Thermal management dictates a 2oz copper PCB for heat spreading, with the driver IC mounted on a 15×20mm thermal pad. Avoid placing the output capacitors (2× 100μF, 50V) near the MOSFET; heat accelerates ESR degradation. Final testing should include an oscilloscope check for stable output ripple () and a thermal camera to ensure junction temperatures stay below 105°C during 8-hour endurance runs.
Constructing an Efficient AC-Driven Light Source Assembly

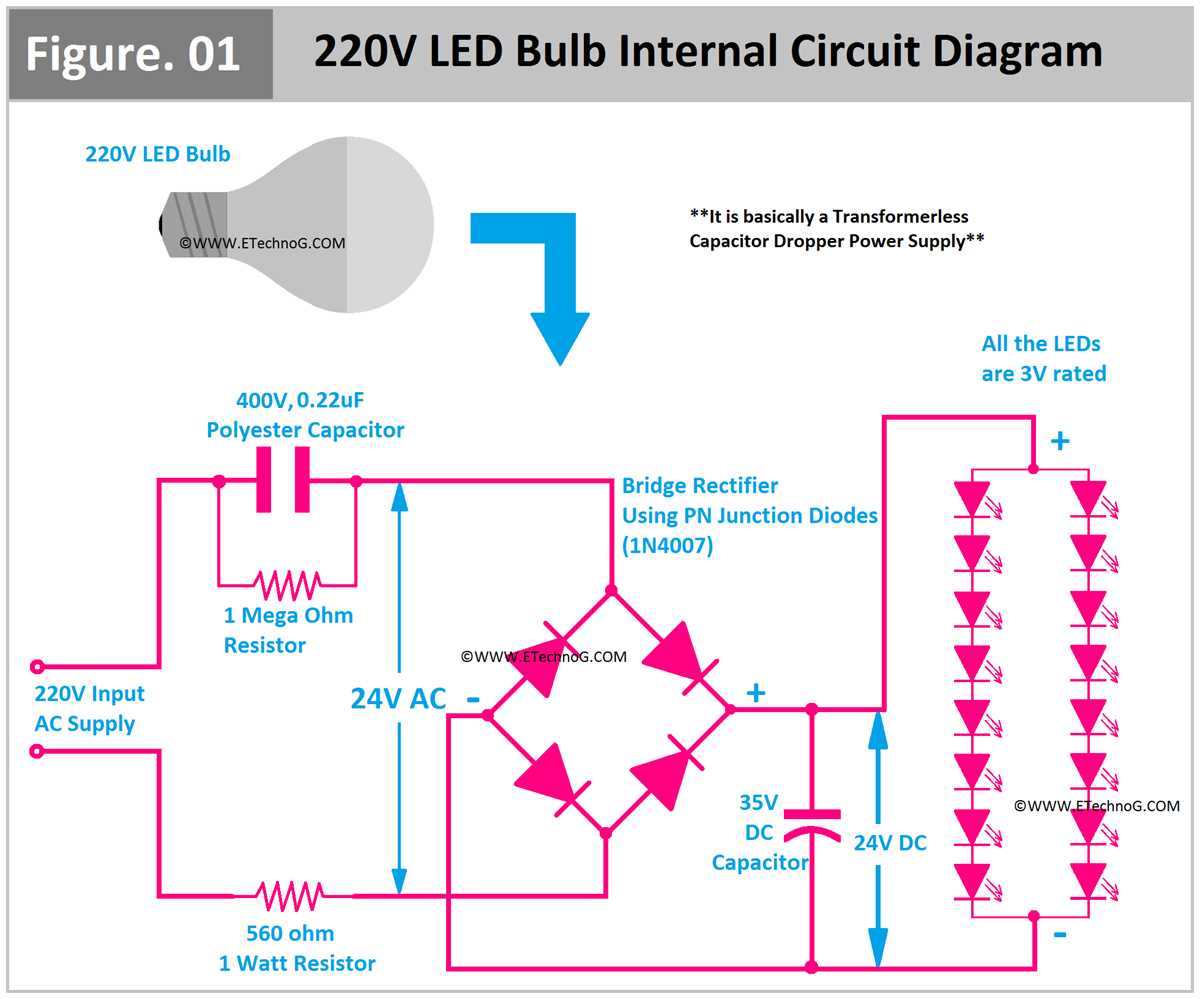

For a reliable mains-powered illumination unit, incorporate a capacitor-based dropping component to regulate voltage without dissipating excessive heat. A 220V AC input requires a 2.2µF X2-rated safety capacitor (or 1µF for 110V) in series with a 1N4007 rectifier diode to convert to pulsating DC. Parallel a 0.1µF ceramic capacitor after the diode to smooth ripples, followed by a 100Ω 1W resistor to limit inrush current. Arrange 10–15 high-brightness emitters (20mA forward current, 3V forward voltage) in series–a total of 30–45V drop ensures stable operation. Bypass each emitter with a 10µF electrolytic capacitor to suppress flicker. Verify component ratings against input voltage: capacitor voltage must exceed 275V AC (400V DC) for 220V systems.
| Component | Specification | Quantity | Purpose |
|---|---|---|---|
| Safety Capacitor | X2 2.2µF/275V AC | 1 | Voltage drop |
| Diode | 1N4007 | 1 | Half-wave rectification |
| Smoothing Capacitor | 0.1µF 50V ceramic | 1 | Ripple suppression |
| Current Limiter | 100Ω 1W resistor | 1 | Inrush protection |
| Emitter Array | Series: 10–15 (3V, 20mA) | 1 | Light output |
| Flicker Suppressor | 10µF electrolytic (per emitter) | 10–15 | Stability |
Test the assembly with a multimeter: measure 30–45V DC across the emitter chain and confirm the capacitor’s AC voltage rating matches your mains supply. Use a non-polarized capacitor for the dropping stage–polarized electrolytics will fail under AC. For dimming, add a 1MΩ potentiometer parallel to the emitter array; adjusting resistance alters brightness without overheating. Avoid exceeding the emitter’s absolute maximum rating (typically 30mA) to prevent premature degradation. For longevity, encase the unit in a heat-resistant housing with ventilation gaps.
Core Elements for an Alternating Current Illumination Source

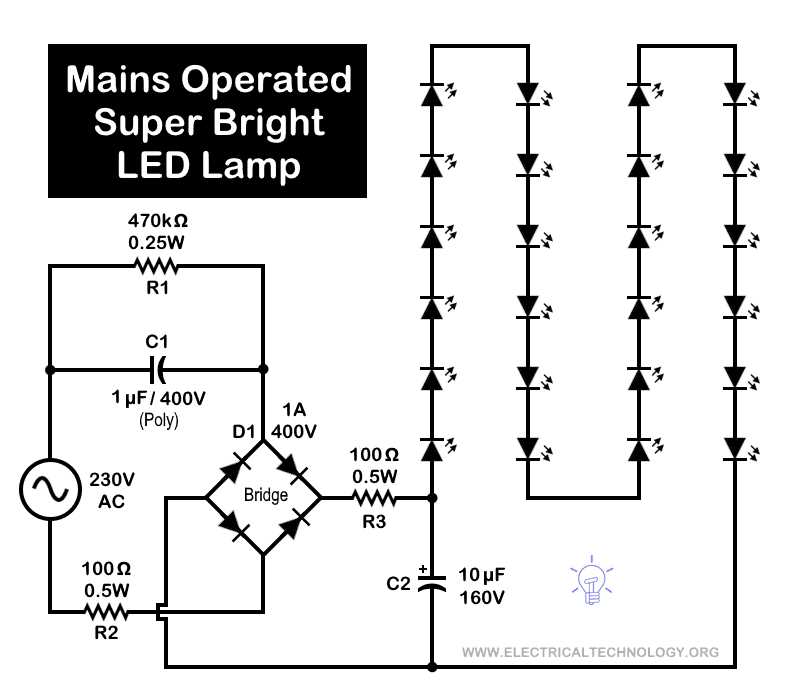

For any mains-powered luminous assembly, begin with a rectifier bridge–a set of four diodes arranged in a diamond configuration. This converts bidirectional current into unidirectional pulses essential for steady operation. Ensure each diode withstands at least 400V reverse voltage and 1A forward current to handle household voltages safely. Pair it with a smoothing capacitor–typically 4.7µF to 22µF, 400V–placed immediately after the bridge to flatten voltage ripples. Without this, flicker becomes visually detectable, reducing lifespan and user comfort.
Resistors play dual roles: current limitation and voltage division. A high-wattage resistor (e.g., 10Ω, 5W) in series with the diode string prevents inrush surges, while smaller resistors (e.g., 1kΩ) protect control components like transistors or ICs downstream. For isolation, a high-value resistor (1MΩ, 1/4W) across the capacitor bleeds stored charge when power is removed, preventing residual shocks during maintenance. Opt for metal film resistors–carbon types degrade under continuous AC stress.
Protection and Regulation Essentials
A varistor (e.g., 390V clamping voltage) across the input terminals absorbs transient spikes from power lines, critical in regions with unstable grids. Follow this with a fast-acting fuse–rated at 250V, 315mA–fitted in series with the live wire to interrupt faults before downstream components fail. For dimmable variants, integrate a triac driver (e.g., MOC3021) with a zero-crossing detection circuit to synchronize phase control, ensuring smooth brightness adjustment without flicker.
Step-by-Step Wiring of Alternating Current to Direct Current for Illumination Sources
Choose a rectifier with a voltage rating at least 30% above the peak input voltage–common 1N4007 diodes withstand 1000V reverse voltage and 1A forward current. For a 230V AC input, bridge rectifiers like KBU6K handle 6A and 800V, reducing component count. Solder diodes in a bridge configuration: connect AC input terminals to opposite corners of the bridge, ensuring anode-cathode alignment matches the datasheet. Misalignment causes thermal runaway or failure under 50/60Hz load cycles.
Calculate capacitor values using C = (I × Δt) / ΔV, where I is the load current in milliamps, Δt is the discharge time in milliseconds (8.3ms for 60Hz), and ΔV is the ripple voltage (target
Fasten capacitors with thermal paste to the enclosure base–a 0.5°C/W rise in temperature cuts lifespan by 30%. Verify polarity with a multimeter in diode-test mode: positive probe on the cathode band side reads 0.6–0.7V, reversed polarity reads open-circuit.
Determining Optimal Resistance for Semiconductor Current Control
To compute the required series resistance in a solid-state emitter setup, apply Ohm’s law with known parameters: supply voltage (Vs), forward voltage drop (Vf), and target current (I). The formula simplifies to R = (Vs – Vf) / I. For instance, a 5V source driving a 3.2V emitter at 20mA requires (5 – 3.2) / 0.02 = 90Ω. Always round up to the nearest standard value (e.g., 100Ω) to ensure margin against current spikes.
Dissipation limits must guide resistor selection. Calculate power rating via P = I² × R. At 20mA and 100Ω, P = (0.02)² × 100 = 0.04W. Use a 1/8W or larger resistor to prevent overheating. For pulsed operation, derate by 50% to accommodate transient loads. Verify component tolerance (±5% typical) to avoid under/overcurrent scenarios.
- 5V–3.3V emitters: 82–100Ω (15–20mA)
- 12V–9V emitters: 150–180Ω (20–25mA)
- 24V–12V emitters: 470–560Ω (10–12mA)
Paralleling emitters demands matched resistances to balance current. For two 3.2V emitters at 20mA on a 5V rail, split the 90Ω total into two 47Ω resistors–each handles half the load. Series chains require no adjustment if Vf sums linearly (e.g., 3×3.2V = 9.6V needs (12–9.6)/0.02 = 120Ω). Thermals and ambient temperature affect Vf; account for ±0.2V variation in cold/hot conditions.
Critical Errors in Home Lighting Assembly
Mismatching component ratings causes immediate failure or fire hazards. AC-powered lamps require precise voltage and current alignment with driver specs. A 12W module paired with a 24W transformer overheats within minutes, degrading insulation and risking short circuits. Always cross-check wattage and voltage labels–differences as small as 0.5V can reduce lifespan by 60%. Verify compatibility through manufacturer datasheets, not product descriptions.
Skipping polarity checks on diodes and capacitors guarantees premature burnout. Most emitters and passive components tolerate reverse voltage only up to 5V; exceeding this destroys junctions. Use a multimeter in diode mode before soldering–positive to anode, negative to cathode should show ~0.7V forward drop. Reverse connections read open-loop or infinite resistance. Even momentary reversal during testing damages internal layers.
Improper heat sink attachment leads to thermal runaway. Aluminum cores must bond flush to the module’s thermal pad with thermal paste; gaps thinner than 0.2mm trap heat. Secure mounting screws apply pressure evenly–torque variability beyond 0.2Nm creates hotspots. Monitor shell temperature during initial power-on; stable operation demands ≤70°C shell readings after 30 minutes.
