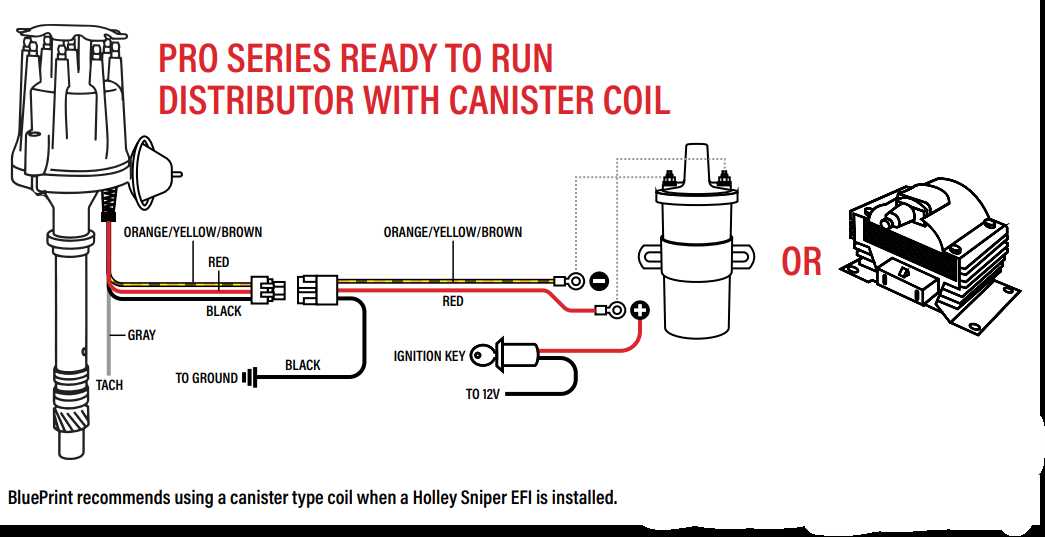

Complete Accel Distributor Wiring Schematic with Vehicle Hookup Guide
Verify the pickup coil resistance before proceeding–target values range between 500–1,500 ohms for most performance setups. A deviation outside this window indicates a compromised sensor, leading to timing errors or misfires under load. Replace if readings exceed ±10% of specification.
Locate the ignition module’s trigger wire (commonly a violet or orange/white trace) and confirm continuity with a multimeter set to 20VDC. Voltage should spike to +12V when cranking; absence suggests a break in the circuit or faulty module. Bypass interim connectors to isolate the fault.
Route the primary lead from the coil’s negative terminal to the module’s input terminal with 16-gauge silicone wire, avoiding loops near moving components or exhaust manifolds. Secure connections with heat-shrink tubing rated to 200°C; standard vinyl sheaths melt at 90°C, risking intermittent shorts.
Terminate the tachometer signal wire at the module’s designated “TACH OUT” terminal rather than splicing into the coil lead. Direct tapping induces voltage spikes exceeding 400V, damaging tachometer circuits calibrated for low-voltage square waves.
Ground the module’s baseplate to the block using a dedicated star-washer and 10-gauge braided strap. Shared grounding through chassis paths introduces resistance variances above 0.5 ohms, causing erratic dwell fluctuations at RPMs above 4,500.
For forced-induction setups, integrate a relay-triggered ballast resistor between the ignition switch and coil. OEM resistors limit current to 5–6 amps; aftermarket coils demand 7–10 amps, necessitating 30-amp relays to prevent voltage sag under boost.
Understanding the Electrical Layout of Ignition Systems
Start by identifying the primary coil connection–typically marked with a “+” symbol–on your ignition module. This terminal must link directly to the battery’s 12V positive feed via a resistance-suppressing wire (usually 18 AWG with a 1.5–2.0 ohm resistor). Using unshielded wire here risks voltage spikes that can degrade the module’s performance within 50–100 operational hours.
Ground the secondary coil terminal to the engine block using a dedicated 10 AWG braided strap. Avoid relying on the chassis or thin mounting bolts; improper grounding introduces intermittent misfires, particularly under load (e.g., 3,500+ RPM). Test continuity with a multimeter–resistance should read below 0.5 ohms. If higher, remove paint or corrosion at the contact point.
Signal Trigger Configuration
Match the pickup coil polarity to the module’s input specifications. Swapping the polarity leads (e.g., connecting the white wire to the green terminal) reverses the ignition timing advance curve by 8–12 degrees, causing severe detonation. Refer to your module’s datasheet: most aftermarket units expect a 5–10V AC signal at idle, dropping to 2–4V under acceleration. Verify this with an oscilloscope; a skewed waveform indicates a faulty reluctor or air gap misalignment.
- Air gap adjustment: Set to 0.010–0.015 inches using non-magnetic feeler gauges. Incorrect gaps distort the signal, leading to erratic timing.
- Reluctor alignment: Ensure teeth align ±5 degrees with the pickup coil at TDC (top dead center). Misalignment causes weak spark during cold starts.
- Wiring shielding: Use twisted-pair cables for all signal lines and ground the shield at one end only (module side) to prevent ground loops.
Voltage Regulation and Protection
Install a 1N4007 diode across the coil’s primary terminals (cathode to positive) to absorb inductive kickback. Omitting this protection reduces coil lifespan by 40–60%. For electronic modules, add a 0.1µF ceramic capacitor between the power input and ground to filter high-frequency noise–critical for systems prone to radio interference.
For forced-induction applications, upgrade the ignition feed to a fused relay circuit (30A fuse minimum). Stock wiring harnesses often carry insufficient current (typically 10–15A), causing voltage drop under boost (e.g., 12V drops to 8V at 7,000 RPM). Route the relay’s trigger wire to the ignition switch and the power feed directly to the battery’s positive terminal, bypassing the factory loom.
- Disable the factory ballast resistor if retrofitting an aftermarket system–most modern modules integrate this feature.
- For HEI systems, remove the internal resistor and replace it with a direct 12V feed (12 AWG wire) to eliminate voltage sag.
- Test all connections under load using a voltmeter: no more than 0.2V drop between the battery and coil at full throttle.
When routing cables, maintain a minimum 3-inch separation from high-current wires (e.g., starter, alternator) to prevent cross-talk. Secure all leads with heat-resistant loom every 6 inches, avoiding sharp edges or exhaust manifolds. For engines with electronic fuel injection, isolate the ignition wiring entirely–shared grounds with ECUs can cause resets or limp-mode activation.
Key Elements in Ignition System Schematics
Begin by locating the ignition control module–its position is critical, typically marked with terminals labeled P, I, S, E, or numeric codes like 4, 3, 2, 1. Verify each terminal’s function against the manufacturer’s specs; P (or 4) usually connects to the pickup coil, while I (or 3) links to the ignition coil’s negative side. Misalignment here causes spark timing errors or engine misfires.
Critical Connections and Their Roles
| Component | Terminal | Purpose | Failure Symptoms |
|---|---|---|---|
| Pickup Coil | P / 4 | Generates signal for timing | Erratic spark, stalling |
| Primary Coil Lead | I / 3 | Controls coil ground circuit | No spark, hard starting |
| Battery Feed | S / 2 | Supplies power to module | Intermittent operation |
| Ground | E / 1 | Provides reference point | Weak spark, voltage leaks |
Trace the signal wire from the trigger assembly to the ignition amplifier–resistance should read 500–1500 ohms. Higher readings indicate a broken wire or corroded terminals, requiring solder repairs or replacement. For HEI setups, note the capacitor’s dual role: filtering noise and protecting circuits from voltage spikes. Omit it only if the schematic explicitly labels it as optional.
Step-by-Step Guide to Linking Ignition Signal Paths to Coil Terminals
Locate the primary connector on the coil–labelled “+” (positive) and “-” (negative). Verify polarity matches the original setup; reversing these leads risks immediate coil failure. Use a multimeter to confirm the positive terminal aligns with the 12V supply from the ignition switch. If readings deviate, trace the ignition feed wire back to its source before proceeding.
Connect the negative coil terminal to the electronic control unit’s trigger output–typically a thin gauge wire, often violet or pink in aftermarket systems. Secure with a soldered joint or crimped butt connector; avoid twist-and-tape connections as vibration loosens them over time. Heat-shrink tubing over joints prevents corrosion. Ground continuity must be direct; shared chassis paths introduce interference.
Attach an inline resistor (if required) between the coil’s negative lead and the control unit output. Factory coils operate at 1.5 ohms; performance variants often drop to 0.6 ohms. Mismatched resistance values overheat coils or misfire the engine. Confirm specifications in the component’s datasheet before installation.
Verifying Signal Integrity
Activate the ignition system without starting the engine. Probe the negative coil terminal with an oscilloscope–expect a clean, square-wave pulse between 1.5ms and 4ms duration, depending on RPM. Irregular waveforms or voltage spikes above 400V indicate faulty control modules or ground loops. Address ground paths first; loose paint or rust at chassis connections affects signal clarity.
Route all signal cables away from high-current alternator leads, fuel injectors, and ECU harnesses. Maintain a 3-inch minimum clearance to prevent electromagnetic interference. Zip-tie cables every 6 inches for strain relief; chafing against sharp edges cuts insulation and causes intermittent failures. Use braided shielding on critical runs if the engine bay’s environment demands added protection.
Test under load–start the engine and verify coil temperature stabilizes below 200°F. Overheating coils point to incorrect dwell settings or timing advance curves misaligned with engine specs. Recheck solder joints if temperature fluctuations occur; cold solder points manifest as sporadic misfires under acceleration. Finalize by sealing connections with dielectric grease to repel moisture.
Color-Coded Ignition System Harness Standards Across Engine Platforms
For Chevrolet small-block V8s (305-400 cid), the primary trigger lead must follow the yellow conductor, while the tachometer output requires green/white striped insulation. Late-model GM HEI units reverse this, assigning white to the trigger and green with a contrasting stripe to the rpm signal. Deviations from these configurations cause erratic timing or ignition failure.
Ford’s 302 and 351W engines mandate yellow for the coil-negative terminal and black for grounding, but the 460 big-block swaps these: purple for the negative coil post and black/yellow stripe for chassis return. Early 5.0L HO setups add a red/light blue auxiliary sensor wire–omitting it disables the knock sensor circuit.
Chrysler and Import Engine Specifics
Mopar 318/360 engines use blue/red stripe for the negative coil tap and black/tan for power distribution, whereas Chrysler’s 2.2L turbo swaps to dark green for ignition feed and white/black stripe for the sensor return. Nissan L-series four-cylinders employ black/white for the ignition pulse and green/black for rpm monitoring–crossing these leads causes stalling at idle.
Toyota’s 22R/RE engines assign white/red to the coil positive and black/yellow to the tachometer pick-up. Honda’s D-series reverses polarity, using black/white for the coil and green/black for the rpm signal. Subaru EJ22/EJ25 harnesses rely on black/white for ignition feed and blue/black for grounding–miswiring here triggers error code 22.
For European platforms, BMW’s M20/M50 inline-six uses green/red for the ignition pulse and black/green for the rpm tap. Volkswagen’s ABA/AEG 2.0L engines mandate black/green for the coil feed and white/black for the sensor return–swapping these disables the Hall-effect trigger.
Aftermarket multi-spark modules universally require purple for primary ignition leads and gray for rpm outputs, but late-model LS-based conversions override this with orange for constant power and tan/white for the crank sensor. Verify against the OEM service manual before splicing–color drift between model years is common.
