Complete Guide to Air Compressor Pressure Switch Wiring Connections

Begin by locating the normally closed (NC) and common (COM) terminals on your device’s control unit–these are typically marked L1 and C or similar. Use 14-gauge copper wire for all primary connections to handle currents up to 15A without voltage drop. If the cut-in adjustment screw is turned fully counterclockwise, the system will activate at around 90 PSI; clockwise rotation raises this threshold to 120 PSI. Confirm the differential spring tension by testing the cut-out range–factory settings usually separate on/off points by 20 PSI, but tightening the differential screw can reduce this gap to 10 PSI for finer control.

Shut off power at the circuit breaker before exposing any terminal blocks. Strip 3/8 inch of insulation from each wire end and crimp ring terminals for secure attachment under screw clamps. Connect the line input (typically 120V or 230V) to the COM terminal first, then run a wire from NC to the motor start relay coil–this creates the default energized path. Some models include a safety unloader valve; wire its solenoid in parallel with the motor circuit, ensuring both activate simultaneously during startup to prevent unintended pressurization.

Ground the metal housing directly to the chassis using a dedicated 10-gauge wire, never relying on threaded fasteners alone. Test continuity between ground and each terminal with a multimeter–resistance should read less than 1 ohm. After power restoration, monitor the first pressurization cycle for erratic cycling; if the unit fails to hold pressure, inspect for loose terminal screws or a faulty differential mechanism. Replace the entire control module if cut-in values drift beyond ±5 PSI after recalibration–internal diaphragm fatigue is irreversible.

For dual-voltage installations (120V/240V), verify fuse ratings match the lower voltage setting to prevent overheating. Use a thermal overload protector rated for 125% of full-load current and wire it in series with the motor windings. Label all wires with heat-shrink tubing or printed sleeves, noting voltage and function–ambiguity in high-amperage circuits causes irreversible damage during future maintenance.

Electrical Hookup for Pneumatic Control Devices

Start by locating the labeled terminals on your device’s control unit. Most models feature a common (C), normally open (NO), and normally closed (NC) contact. Connect the power source’s live wire to the common terminal–this ensures the circuit completes only when triggered. For standard cut-in/cut-out operation, route the pump motor’s input to the NO terminal, allowing current flow when internal forces reach preset thresholds.

Verify voltage compatibility before proceeding–single-phase units typically operate at 120V or 240V, while industrial setups may require 480V. Use a multimeter to confirm the motor’s rated voltage matches the supply line. Mismatches risk overheating or premature failure. If uncertain, consult the manufacturer’s specifications for exact values.

Grounding is non-negotiable. Attach the green or bare wire to the control unit’s dedicated ground terminal and bond it to the motor’s housing. Skipping this step creates a shock hazard and violates electrical codes. For added safety, install a 10-amp fuse or breaker inline with the live wire to prevent overload damage.

Differential settings dictate how aggressively the system engages. A 30-psi span between activation (e.g., 90 psi) and deactivation (e.g., 120 psi) suits general use, but adjust based on demand. Industrial tasks may need tighter control (e.g., 20-psi span), while tools with low demand tolerate wider ranges (40+ psi). Use the unit’s adjustment screws to fine-tune–rotate clockwise to raise thresholds, counterclockwise to lower.

Test the configuration with an empty tank. Manually activate the pump by pressing the reset button or toggling the control lever. Observe the motor’s startup sequence: it should run until internal forces peak, then shut off automatically. If it fails to disengage, check for loose connections or faulty contacts. Persistent cycling indicates incorrect differential settings.

Troubleshooting Common Issues

Failure to start: Confirm power reaches the control unit. Check for tripped breakers, blown fuses, or disconnected wires. If voltage is present, inspect the motor’s capacitor–bulging or leaking indicates replacement is needed. For dual-stage systems, verify the unloader valve isn’t stuck open, preventing buildup.

Excessive cycling or short runtime: Low volume output often stems from leaks in hoses or fittings. Spray soapy water along connections–bubbles reveal breaches. Alternatively, examine the check valve for wear. Replace if it fails to hold pressure between cycles. Over-tightened differential settings can also cause rapid toggling–widen the span by 5-10 psi to stabilize performance.

Locating and Understanding Connection Points for Secure Electrical Hookup

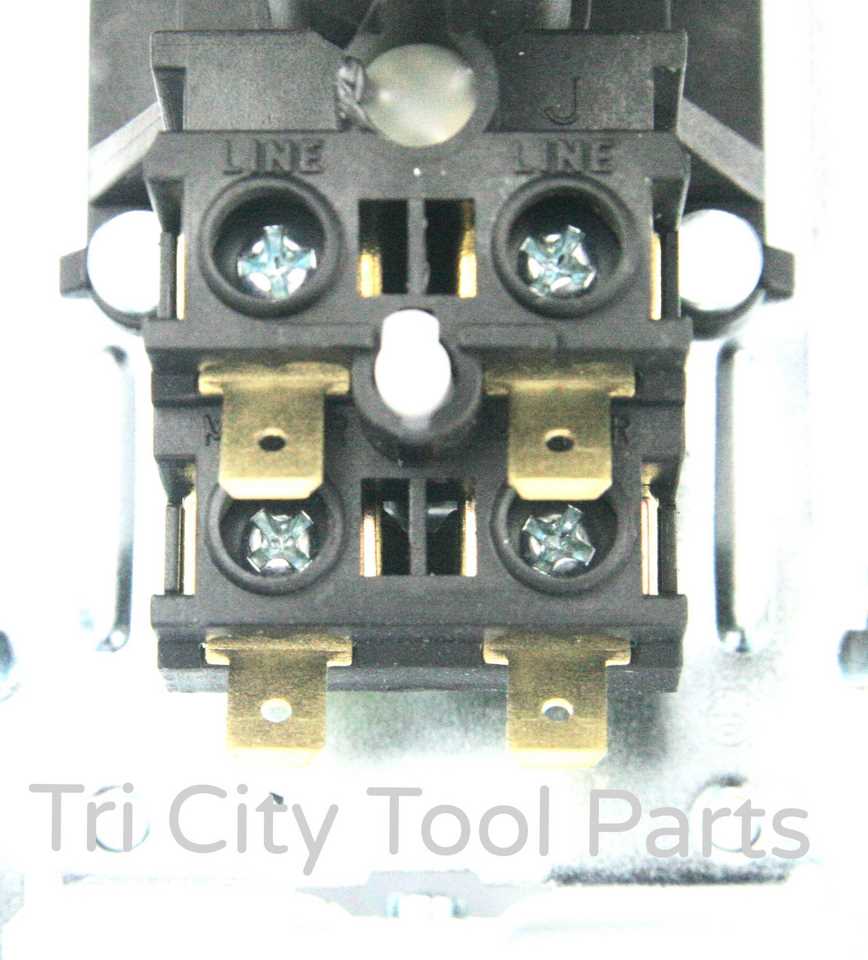

Begin by examining the device’s labeled contacts–most manufacturers mark them with L1, L2 (line inputs) and T1, T2 (load outputs). If labels are missing, look for screw terminals positioned in a single row or paired groupings. The outer terminals typically carry incoming current, while inner ones distribute power to the motor.

Check for a grounding stud–usually green or uncoated metal–separate from the power connections. Never connect live wires to this point, as it serves solely for safety grounding. Verify its presence before proceeding, as omitting this step risks equipment damage or injury.

On dual-voltage models, additional terminals (L3, T3) may appear. These require specialized configuration, so consult the manufacturer’s specifications if found. Miswiring here can lead to motor overload, so cross-reference with provided documentation if uncertainty arises.

Test continuity between terminals using a multimeter in ohmmeter mode. A closed circuit between line inputs confirms proper internal relay operation, while load terminals should show infinite resistance when the device is off. If readings deviate, the internal mechanism may be faulty.

For adjustable cutoff controls, note any auxiliary contacts labeled NC (normally closed) or NO (normally open). These regulate secondary circuits, like alarms or indicator lights. Incorrect attachment here won’t affect primary operation but may disable safety features.

Once identified, disconnect power entirely before fastening wires. Use appropriately sized ring or spade terminals for secure connections, ensuring no exposed copper extends past the screw clamp. Tighten firmly–loose contacts generate heat and pose fire hazards.

Step-by-Step Assembly for Single-Phase Pneumatic Device Electric Circuits

Disconnect the power source before handling any electrical connections to prevent accidental activation or short circuits. Identify the motor’s terminal block–typically marked “U,” “V,” and “W” for the three primary windings–and confirm the auxiliary winding label, often denoted as “Z” or “AUX.” Splice a 14-gauge copper conductor from the start capacitor to the auxiliary winding terminal, ensuring the crimp connector is securely fastened with a torque of 0.8–1.2 Nm. Route the main winding conductors to the run capacitor (rated between 15–50 µF for standard 1–3 HP units) via a centrifugal governor or relay if the motor lacks built-in start protection.

• Connect the main power leads to an appropriately rated thermal overload protector (typically 5–15A for 230V single-phase systems), matching the motor’s FLA (full-load amperage) specified on its nameplate.
• Secure all conductors with strain relief within the junction box to prevent vibration-induced loosening–use M20 or ½” NPT cable glands for industrial-grade installations.
• Test continuity across windings using a multimeter set to 200Ω range; readings should align with the motor’s datasheet (e.g., 4–12Ω for main windings, 50–150% higher for auxiliary).
• Energize the circuit through a double-pole circuit breaker sized at 125% of the motor’s FLA (e.g., 16A breaker for a 12A motor).
• Verify rotation direction by momentarily powering the setup–adjust phase inversion by swapping any two main winding conductors if reverse operation occurs.
• Seal the junction box with IP54-rated gaskets or silicone sealant to mitigate moisture ingress, critical for outdoor or high-humidity environments.

Common Pitfalls in Electrical Connections for Regulators and How to Prevent Damage

Reverse polarity during hookup is a frequent error that instantly fries internal relays. Always verify wire colors against the schematic before securing terminals–red should match the live input, black or blue the neutral, and green or bare copper the ground. Use a multimeter set to DC voltage (for 12V/24V systems) or AC (for 120V/240V) to confirm polarity at the unit’s contacts before tightening screws. A single second of reversed current can destroy the microcontroller, leaving the entire assembly non-functional. Keep a 1A fuse inline during testing to limit damage if mistakes occur.

Critical Errors and Corrective Measures

Error	Consequence	Prevention
Loose terminals	Arcing, overheating, fire risk	Torque to 8-10 lb-in; recheck after 24hrs for creep
Skipped ground	Static buildup, erratic cutoff, shock hazard	Attach green wire to chassis; resistance
Crossed high/low setpoints	Continuous cycling, motor burnout	Label wires before disconnecting; mark differential (Δ) on cover
Exposed conductors	Shorts, corrosion, false trips	Use heat-shrink tubing; avoid wire nuts–crimp and solder

Incorrect gauge selection accelerates overheating. Match wire size to amperage: 14 AWG for ≤15A, 12 AWG for ≤20A, 10 AWG for ≤30A. Undersized conductors cause voltage drops, triggering false triggers and premature wear on contacts. Strip insulation precisely–excessive bare wire invites short circuits, while too little causes high-resistance joints. Apply dielectric grease to terminals in humid environments to prevent oxidation.
