Detailed Schematic of Air Cooled Screw Chiller Design and Key Components

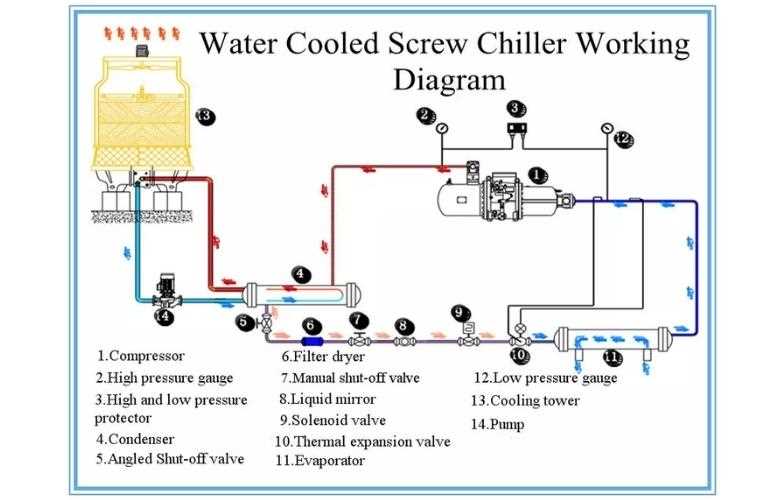

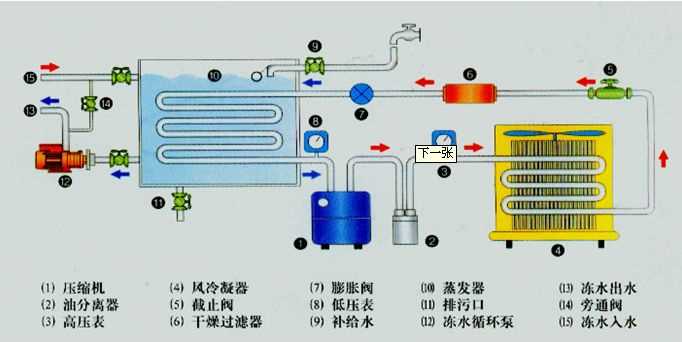

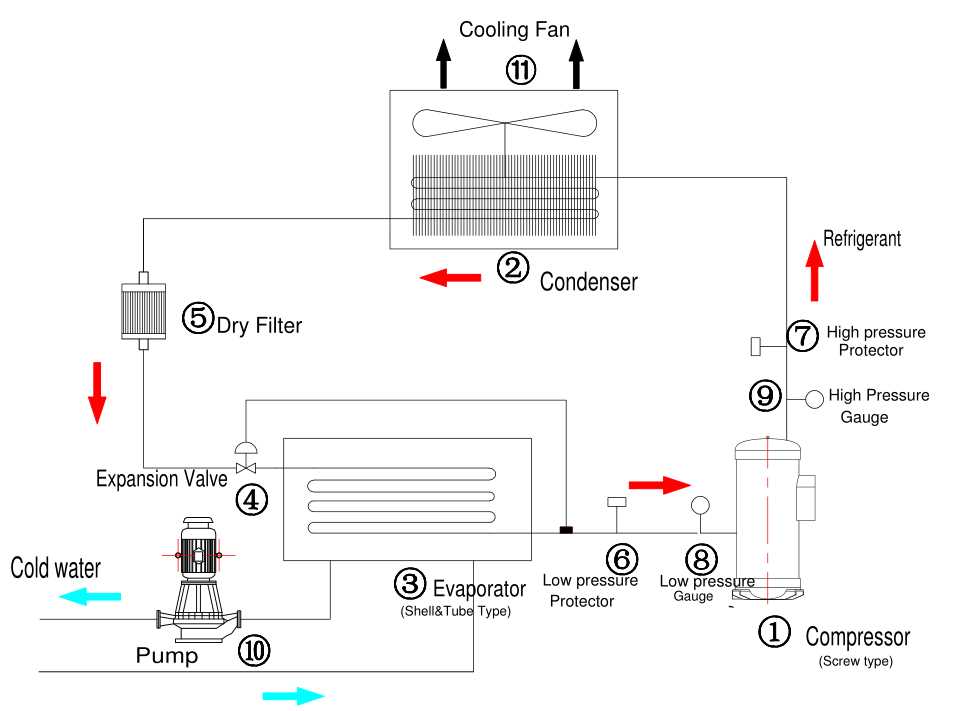

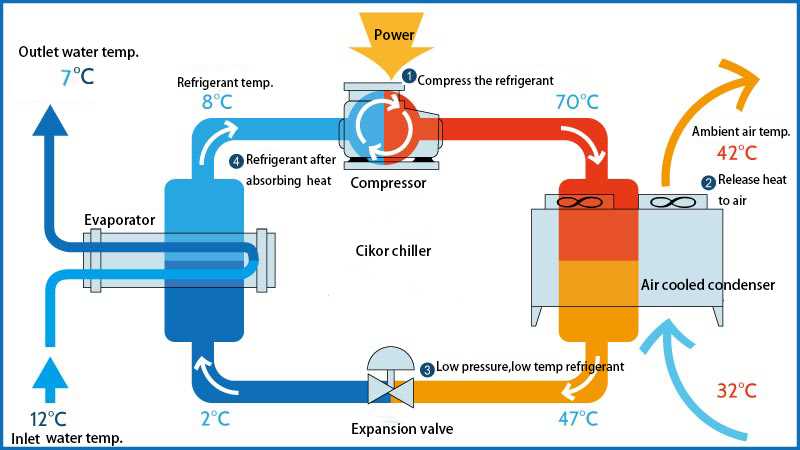

Begin by mapping the refrigerant flow paths in the vapor-compression cycle–identify the low-pressure suction line feeding the helical compressor, the high-pressure discharge piping routed to the condenser coil array, and the liquid line directing condensed working fluid toward the thermostatic expansion valve. Verify the coil arrangement: staggered finned-tube bundles angled 15–25° to enhance cross-flow convection, spaced at 2.5× tube diameter intervals. On the compressor skid, ensure 30 mm clearance between the scroll casing and discharge muffler for acoustic attenuation.
Label the electrical panel: dedicated 3-phase 415V supply for the compressor motor rated at 1.5× FLA, 24V control circuitry for solenoid valves, and a separate 20A circuit for the condenser fan bank. Position temperature sensors–NTC thermistors–in the suction line (2 mm downstream of the evaporator outlet), liquid line (10 mm upstream of the TXV), and coil inlet/outlet plenums. Calibrate sensor tolerances ±0.2°C to maintain 3.5°C subcooling at 30°C ambient.
Isolate vibration transmission: mount the compressor assembly on neoprene pads with Shore A hardness 60–70, and secure refrigerant piping to steel brackets via elastomeric grommets at 1.2 m intervals. For condensate drainage, slope drip trays 1:50 toward gravity-fed PVC drains sized for 0.5–0.8 L/min per kW of cooling, vented to atmosphere above frost line. Verify torque specs: compressor mounting bolts 45 Nm, coil header bolts 22 Nm, and electrical terminals 12 Nm.
Cross-reference the wiring with the manufacturer’s ladder logic–confirm run capacitors (40–60 μF per kW) are paralleled across compressor motor windings, and overload relays are set to trip at 10% over FLA. In the safety circuit, sequence pressure switches in series: high-pressure cutout (2.8 MPa), low-pressure cutout (0.1 MPa), and oil pressure differential switch (150 kPa). Install current transformers on the supply side to monitor compressor amp draw, integrating with a PLC issuing soft-start commands above 5°C ambient.
For the expansion device, use a thermostatic valve with balanced port design and a sensing bulb charged with the same blend as the system refrigerant to eliminate superheat drift. Position the bulb against the suction line, securing it with copper straps and thermal paste to eliminate air gaps. At 15% part-load, the valve should maintain 5–7°C superheat; verify by measuring evaporation pressure at the compressor inlet and adjusting the valve stem incrementally (⅛ turn clockwise per adjustment).
Understanding Ventilated Rotary Compressor Unit Blueprints
Begin by locating the refrigerant circuit on the layout–identify the compressor section first, typically positioned centrally with discharge and suction lines clearly labeled. Verify that isolation valves are placed before and after the compression assembly to enable maintenance without system shutdown. Check for thermal expansion valves adjacent to the evaporator coil, ensuring they align with pressure drop calculations from the manufacturer’s specifications (e.g., 4–7 bar for R134a systems).
Examine the condenser fan arrangement–units with dual fans require parallel wiring to a single contactor, while single-fan models demand larger diameter blades (minimum 600mm) for adequate heat rejection. Cross-reference fan RPM (900–1200) with motor power ratings (1.1–2.2 kW) to prevent undersized airflow, which reduces efficiency by 12–18% per 10% speed deficit. Include phase monitors at the power entry point to prevent reverse rotation damage.
Verify oil separator placement–it should connect directly to the compressor’s discharge port, with return lines leading back to the suction inlet. Use a sight glass with moisture indicator between the oil separator and compressor to detect contamination early. Capillary tubes in the oil return line must have an internal diameter of 3–5mm to avoid clogging, as smaller bores (
Ensure the control panel integrates dual pressure transducers (high/low) with a differential of 1.5 bar to trigger safety shutdowns, and confirm defrost timers are set to activate every 6 hours for 10 minutes in ambient temperatures below 2°C. Label all electrical connections with heat-shrink tubing to prevent short circuits; copper terminals corrode 3x faster than tinned alternatives.
Key Components of a Ventilated Rotary Compressor Climate Unit
Select scroll-type or twin helical compressors for optimal thermal performance–models like Bitzer HSK7461-90 or Hanbell RC2 deliver 30-40% higher volumetric efficiency than reciprocating alternatives at 50-70 Hz. Prioritize units with built-in economizers; these reduce energy consumption by 12-15% during part-load operation by injecting flash vapor at intermediate pressure stages. Verify compressor oil cooling methods: separated oil coolers (ΔT ≤ 8°C) outperform direct refrigerant injection in systems above 200 kW.
Condenser coils must use aluminum-finned copper tubes with 18-22 FPI (fins per inch) spacing–denser fin arrangements increase fouling risk but boost heat rejection by 0.7% per FPI up to 22. Apply hydrophilic coatings to fins in humid climates; untreated coils lose 18% efficiency within 18 months due to biofilm accumulation compared to 3% for coated surfaces. Fan selection hinges on static pressure: axial fans (900-1400 Pa) suit low-static setups, while centrifugal blowers (1500-2500 Pa) are mandatory for ducted designs.
| Component | Material/Design | Performance Impact |
|---|---|---|
| Evaporator Shell | Carbon steel (316L for corrosive fluids) | +1.2% heat transfer/kW with grooved tubes vs. smooth |
| Expansion Device | Electronic valve (PWM > 4 kHz) | ±0.5% superheat stability vs. ±2.0% for mechanical |
| Control Module | PLC with Modbus RTU (sampling ≤ 250 ms) | Reduces on/off cycling by 40% over standalone controllers |
Refrigerant circuits demand parallel or series-parallel piping layouts for multi-compressor units–series configurations simplify oil management but reduce capacity modulation flexibility below 30% load. Install double shut-off valves on liquid lines to isolate components without recovery: Schraeder-type valves leak 0.03 kg/year R134a vs. 0.8 kg/year for ball valves. Specify filter-driers with 3Å molecular sieve for HFC refrigerants; moisture levels must remain below 50 ppm to prevent acid formation at compressor discharge temperatures above 105°C.
Step-by-Step Assembly of the Refrigerant Circuit
Begin by positioning the compressor on a vibration-dampening base, ensuring clearance of at least 150 mm on all sides for heat dissipation. Secure it with M12 bolts torqued to 45–50 Nm, verifying alignment with a precision level to prevent shaft misalignment during operation. Connect the discharge line–preferably copper tubing with a 3/8″ wall thickness–using silver brazing alloy (AWS BCuP-5) at 750°C to avoid oxidation. Install a Schrader valve upstream of the discharge check valve for pressure verification post-assembly.
Mount the condenser coils vertically on a galvanized steel frame, spacing fins at 2.1 mm intervals to optimize airflow. Use a fin comb to correct any bent fins before attaching the liquid receiver, which should hold 1.2 times the system’s refrigerant charge capacity. Connect the receiver outlet to a filter-drier (minimum 30 microns) using flared fittings, tightening to 35 Nm to prevent leaks. Apply Loctite 577 thread sealant only on male threads to avoid contaminating the circuit.
Route the liquid line through a sight glass with moisture indicator, placing it no further than 1 meter from the expansion valve inlet. For R-134a systems, use a TXV with a nominal capacity of 2.5 tons; for R-410A, select a valve rated for 40 bar maximum operating pressure. Secure the valve to the evaporator inlet manifold with gaskets cut from 0.5 mm NBR sheet, ensuring the sensing bulb is strapped tightly to the suction line 150 mm downstream of the evaporator outlet.
Assemble the evaporator coils with a 1° downward slope toward the suction header to facilitate oil return. Connect the suction line to the compressor inlet using a vibration absorber–copper with a 1/2″ bore and 200 mm length–to dampen pulsations. Install a suction accumulator if the vertical rise exceeds 3 meters, sized to hold 50% of the system’s oil charge. Verify all soldered joints with a nitrogen purge at 1.5 bar during brazing to prevent internal scaling.
Pressurize the circuit with dry nitrogen (99.9% purity) to 10 bar for leak testing; use an electronic detector calibrated to 1 ppm for R-134a or 0.5 ppm for R-410A. Isolate sections with block valves if retesting is required. Evacuate the system to 500 microns or below using a two-stage vacuum pump, holding the vacuum for 30 minutes after reaching target pressure. Charge the system with refrigerant based on evaporator load–0.6 kg/kW for scroll compressors, adjusting ±5% for ambient temperatures below 15°C.
Install pressure transducers at both high-side (condenser outlet) and low-side (evaporator inlet) locations, wiring them to a control module with a 4–20 mA signal range. Set the high-pressure cutout to 22 bar for R-134a; for R-410A, use 30 bar. Connect the compressor motor starter via a contactor with 110% FLA rating and delay-on-relay to prevent short cycling. Finalize by labeling all service ports, disconnects, and valves with UV-resistant polyester tags coded to ASME B31.5 standards.
Wiring Connections for Compressor and Fan Motors
Ensure the compressor motor receives power through a dedicated contactor rated for at least 125% of its full-load amperage (FLA). For a 40 HP unit, this typically requires a contactor with a 200 A capacity. Connect L1, L2, and L3 to the contactor’s input terminals, then route the output to the motor’s U, V, and W terminals. Use 2/0 AWG copper wire for circuits exceeding 150 A to prevent voltage drop, verified with a megohmmeter (minimum 1.5 MΩ). Ground the motor housing directly to the system’s earth bus with 6 AWG green-insulated wire.
Fan motors, particularly in multi-stage condensing units, demand separate overload protection. For 1.5 kW axial fans, install individual relays with 10 A thermal fuses. Wire the motor leads (common, start, run) to a capacitor-run circuit: connect the run capacitor (e.g., 30 µF for 230 V single-phase) between the start and run terminals, while the common lead links to the power source. Use 14 AWG wire for circuits under 15 A and secure all connections with ring terminals crimped at 20 Nm torque. Verify phase rotation with an induction motor tester to prevent reverse operation.
Key Compliance Checks
- Cross-reference motor nameplate data with wiring diagrams–mismatched voltages (e.g., 230 V vs. 460 V) will cause immediate failure.
- Label all wires per NEC Article 430, including conductor size (e.g., “L1/2/0 AWG”), phase color code (black/L1, red/L2, blue/L3), and terminal designations.
- Install surge arrestors (Class 2, 10 kA rating) on compressor lines to mitigate transient spikes from VFD interactions.
- Seal outdoor connections with silicone-filled splice kits to prevent moisture ingress in high-humidity environments.
For three-phase scroll compressors, confirm the control circuit operates at 24 VAC using a step-down transformer. Connect the transformer’s secondary to a pressure switch (cut-out at 400 psi, cut-in at 50 psi) and a dual-pole thermostat. Route the switched 24 V output to the compressor contactor coil. Add a manual disconnect within 3 feet of the unit per OSHA 1910.303. Test the control circuit with a multimeter: verify 0 V at the coil with the thermostat open and 24 V when closed.
Troubleshooting Common Errors
- Inconsistent fan speed: Check capacitor values (±5% tolerance) and replace if swollen or leaking dielectric fluid.
- Compressor humming but not starting: Measure line voltage–drop below 90% of rated voltage (e.g.,
- Frequent overload trips: Disconnect power, measure winding resistance (typical 1–3 Ω for 40 HP motors), and compare across phases. Deviations >5% suggest shorted windings.
- Phase imbalance: Use a true-RMS clamp meter to measure current on all legs; imbalance exceeding 10% requires balancing via load adjustments or power quality analysis.
