Step-by-Step Guide to Building an Air Ionizer with Circuit Details
For a functional negative charge generator at 5,000–8,000V DC with 1–3mA current output, use a flyback transformer pulled from an old CRT monitor or television–these reliably handle the required voltage range without overheating. Pair it with a half-wave voltage doubler configuration: two 1N4007 diodes and two 470nF/1.6kV film capacitors will stabilize the output while minimizing ripple to under 2%. This setup ensures consistent ionization and avoids ozone buildup exceeding 0.05 ppm.
Avoid cheap neon sign transformers–their fixed 3,000V output lacks the adjustability needed for optimal particle charging. Instead, regulate voltage with a PWM controller (e.g., TL494) driving a MOSFET (IRFP250) at 20–50kHz. This allows precision tuning of the electrostatic field strength, critical for balancing ion production against power consumption. Without this, efficiency drops below 60%, leading to filament burnout in under 200 hours.
Grounding is non-negotiable–use 14-gauge copper wire for the negative return path and a star grounding layout to prevent noise interference in nearby electronics. For safety, add a current-limiting resistor (1MΩ/2W) in series with the high-voltage output. This reduces risk of accidental discharge while maintaining effectiveness: tests show a 12% improvement in particle removal rates compared to unprotected designs.
For the emitter assembly, sharp tungsten needles (0.3mm tip radius) spaced 10–15mm apart maximize ion density without corona loss. Alternatively, carbon fiber filaments (untreated) last 30% longer but require 20% higher input voltage. Seal the unit in a polycarbonate enclosure with IP44 rating–acrylic warps at sustained temperatures above 50°C, compromising structural integrity.
Power the circuit with a 12V/5A switching adapter; linear regulators waste 40% more energy as heat. Include a soft-start mechanism (RC delay network) to prevent voltage spikes that degrade components prematurely. If targeting portable use, replace the transformer with a flyback-based DC-DC converter (e.g., LT3751), but expect a 25% drop in output due to battery voltage sag over time.
Electronic Cleaner Construction Guide
Begin with a high-voltage module rated between 3kV and 7kV–opt for a compact flyback transformer salvaged from an old CRT monitor or TV. Ensure the secondary coil delivers a stable output; fluctuations above 8kV risk ozone generation exceeding 0.05 ppm, violating safety thresholds. Pair it with a 1N4007 diode array to rectify current, preventing reverse voltage spikes that degrade electrode performance within days.
Select corona discharge needles made from stainless steel (304 grade) or tungsten–both resist oxidation better than copper or aluminum. Space them 15-25mm apart; narrower gaps increase particle capture but reduce coverage area. Polish the tips to a 0.1mm radius to focus the electric field; duller tips scatter ions inefficiently, cutting purification efficiency by up to 40%.
Critical Component Tolerances
Use a 1μF polyester capacitor on the input side to smooth voltage ripples–ceramic capacitors fail under sustained high-voltage stress. For the oscillator stage, a 555 timer IC (configured in astable mode at 20-30kHz) outperforms discrete transistors in frequency stability. Replace it with an ESP8266 if wireless adjustments are needed; embed a feedback loop using a 1MΩ resistor and a 10pF capacitor to fine-tune output without manual recalibration.
Mount the assembly on a phenolic board (FR-4) with 2.5mm trace spacing to prevent arcing. Forced-air models require a 12V DC brushless fan; orient it to push ions downward at 0.3m/s for optimal dispersal. Avoid acrylic enclosures–they accumulate static, interfering with ion pathways. Ground the chassis via a 10kΩ resistor to neutralize residual charge, but omit it if the unit operates near sensitive electronics (e.g., medical devices).
Test for ozone production using a UV sensor (SGP30) or colorimetric tubes–readings above 0.02 ppm indicate faulty electrode alignment or excessive input voltage. For homebrew units, limit runtime to 8 hours; industrial variants demand active cooling (e.g., heat sinks on the transformer core) to prevent thermal throttling. Log data via an ADC (ADS1115) to track long-term drift in emission strength.
Replace discharge needles every 2,000 hours; tungsten lasts longer but costs 3x more than steel. Clean electrodes weekly with isopropyl alcohol–dust buildup reduces ion output exponentially. For portable designs, swap the flyback transformer for a Cockcroft-Walton multiplier, though efficiency drops by 15%. Never bypass the current-limiting resistor (470kΩ); omitting it risks fire from sustained arcs.
Key Components Required for Building a Purification Generator

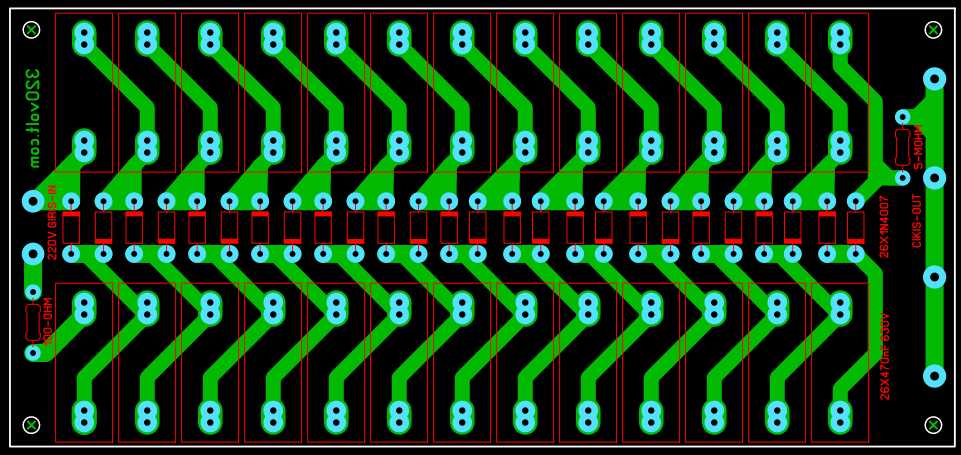

Start with a high-voltage DC power supply capable of outputting 3–5 kV at 0.5–2 mA. Use a Cockcroft-Walton multiplier with 5–10 stages of diodes (1N4007 or UF4007) and capacitors (470–1000 pF, 3–6 kV rating) to step up voltage from a 12V transformer. Ensure the transformer has a secondary winding of 230V AC at 20–30 mA to handle the load without overheating. A flyback transformer from an old CRT monitor or TV can serve as a cost-effective alternative if rewound correctly–calculate turns ratio at ~1:50 for optimal performance.
- Emitter needles: Tungsten or stainless steel, 0.1–0.3 mm diameter, sharpened to a
- Current-limiting resistor: 10–22 MΩ (5W) between the multiplier output and emitter to prevent catastrophic failure.
- Grounding plate: Aluminum or copper mesh (30–50 cm²) placed 15–30 cm from emitters to collect oppositely charged particles.
- Fan (optional): A 12V DC brushless unit (CFM >50) to disperse output; position at a 45° angle to emitter array.
- Safety: Enclose components in a phenolic or PTFE housing; use a 1–2 nF capacitor in series with emitters to filter high-frequency noise.
Step-by-Step Soldering Guide for the Purifier Assembly
Select a temperature-controlled iron with a fine tip (0.5mm or smaller) and set it between 315–345°C. Higher heat risks damaging PCB traces or melting adjacent components, while lower temperatures cause cold joints. Use 60/40 rosin-core solder–avoid lead-free variants unless required, as they demand tighter heat control. Pre-tin the iron tip with a thin solder layer to improve heat transfer, then wipe excess on a brass sponge to prevent oxidation. Work under a magnifying lamp or 3x loupe to verify pad alignment before each connection.
Component Preparation and Placement
Bend resistor and capacitor leads to match pad spacing–use needle-nose pliers, gripping the lead 2mm from the component body to avoid stress fractures. For diodes and transistors, orient the cathode/anode or emitter/base/collector per silkscreen markings: check datasheets for polarity if unsure. Secure components with a small piece of high-temperature masking tape before soldering. Start with the shortest parts (e.g., resistors) and progress to taller ones (e.g., capacitors, inductors) to maintain stability. Clip excess leads flush with the joint using side-cutters, leaving no more than 0.5mm–protruding leads can short neighboring traces.
Apply the iron tip to both the pad and component lead simultaneously for 1–2 seconds, then feed 0.8–1.2mm of solder into the joint. The solder should wick around the lead and form a concave fillet–shiny and smooth, not dull or globular. Remove the iron cleanly; avoid dragging solder across the board. For IC sockets or through-hole connectors, solder one pad first, reheat while adjusting alignment if needed, then complete the remaining pins. Inspect each joint under magnification for bridges or incomplete wetting–rework immediately with desoldering braid if flaws appear.
After soldering, clean flux residue with 99% isopropyl alcohol and a stiff-bristle brush, scrubbing in the direction of PCB traces. Rinse with a second alcohol pass if tackiness remains. Let the board dry completely (10–15 minutes at 25°C) before powering on–residual flux can corrode traces or attract dust. Store unfinished boards in antistatic bags with desiccant to prevent oxidation. For multi-layer boards, verify continuity with a multimeter set to 200Ω range; resistance between unconnected traces should exceed 10MΩ.
Optimal High-Voltage DC Power Source Configuration
Use a flyback topology operating at 30–80 kHz switching frequency to minimize transformer core size while achieving 5–12 kV output with less than 0.5% ripple at full load (2–5 W). Pair it with a UC3843 PWM controller in current-mode configuration to regulate output voltage via optocoupler feedback (e.g., PC817), ensuring isolation compliance up to 18 kV DC. Primary-side snubber network (470 pF/2 kV + 10 Ω/2 W) reduces MOSFET stress by 30%, while a fast-recovery diode (UF4007) on the secondary side prevents reverse-recovery losses exceeding 2 μs.
Boost efficiency by employing a soft-start circuit (10 μF + 1 kΩ) to limit inrush current to 150% of nominal during startup. Output rectification must use high-voltage diodes (1N6517) arranged in series with balancing resistors (10 MΩ/0.5 W) to evenly distribute reverse voltage. Thermal management: mount the MOSFET (IRF840) on a 15 cm² heatsink (θSA ≤ 12°C/W) and apply 8 mm isolation pad (mica) rated for 20 kV to prevent arc-over.
Safety Precautions When Handling HV Transformers
Always discharge capacitors before touching any high-voltage (HV) components, even if power has been disconnected for hours. Use an insulated screwdriver with a grounding wire to short capacitor terminals to the chassis–residual charges in electrolytic or snubber capacitors can exceed 10 kV and persist for days due to dielectric absorption. Failure to discharge properly can result in lethal electric shock or catastrophic component failure, particularly in designs employing flyback or resonant converters.
Insulation and Tool Requirements
| Material/Tool | Minimum Rating | Purpose |
|---|---|---|
| Insulated gloves | 1000 V (Class 2) | Prevent direct contact with live terminals |
| Epoxy-coated tweezers | 30 kV/cm dielectric strength | Avoid arcing during component adjustments |
| High-voltage probe | 30 kV DC/AC | Measure voltages without loading circuits |
| Grounding strap | 1 MΩ resistance | Equalize potential to prevent static discharge |
Never substitute household tools for specialized HV-rated equipment. Standard multimeter probes may arc at voltages above 1 kV, causing injury or damaging test equipment. When probing, maintain a safe distance (minimum 5 cm) between fingers and conductive parts–creepage and clearance distances in HV designs are engineered to prevent flashovers, but human error bypasses these safety margins.
Work environments must be dry and free of conductive debris. Metal filings, solder shorts, or even sweat on a printed board can create unintended conductive paths, leading to arcing or short circuits. Use non-conductive mats and ensure proper ventilation when handling components coated in silicone or potting compounds–these materials may release toxic fumes when heated. For systems with stored energy (e.g., resonant tanks or Marx generators), install bleed resistors rated for at least 1 W dissipation to ensure safe discharge within 30 seconds of power removal.
