Alpine Wiring Harness Diagram Guide for Installation and Troubleshooting
Start with the manufacturer’s official repair manual. Skip generic aftermarket guides–they often omit critical details like pinouts for the ECU, sensor calibrations, or fuse ratings. For models using OEM connectors (Axxess, Metra, or similar), verify the color codes against the original equipment blueprints before splicing. A single misrouted wire can trigger error codes or damage modules.
Use a multimeter set to continuity mode to trace circuits back to their source. Factory schematics frequently show power distribution blocks, but real-world installations may reroute ground paths through body panels or chassis rails. Check for hidden grounds–these are common failure points in aftermarket setups. If resistance exceeds 0.5 ohms, clean the contact surface with Grade 0000 steel wool and apply dielectric grease to prevent corrosion.
For installations involving CAN bus interfaces, ensure compatibility with the vehicle’s data protocol (J1850, ISO 9141, etc.). Use a sniffer tool (CANalyzer, Peak PCAN) to monitor traffic before connecting aftermarket components. Incorrect termination resistors or missing shielding can cause intermittent faults. Keep signal wires at least 15 cm away from high-current lines to avoid EMI.
Label every connection with heat-shrink tubing and wire markers. Avoid relying on memory or improvised notes–color codes vary between manufacturers. For relays, confirm coil voltage (12V/5V) and contact rating (typically 30A for automotive). Store all schematics in PDF/A format for durability, and cross-reference with the VIN-specific build sheet to avoid swapping variants.
Test under load before finalizing. A bench power supply at 13.8V simulates alternator voltage–critical for components like heated seats or amplifiers. If a circuit behaves unpredictably, isolate segments using fuse taps (ATC/ATO style) to narrow down the issue. Avoid soldering high-stress connections; crimp sleeves with a ratcheting tool (Panduit, Thomas & Betts) provide reliable mechanical bonds.
Understanding Your Vehicle’s Electrical Connection Layout
Locate the main power distribution block under the dashboard–most models position it near the fuse panel for direct access. Verify the color-coding: red (constant 12V), yellow (switched 12V), black (ground), and blue (remote turn-on) are standard across aftermarket integration kits. Cross-reference these with your factory plug configuration to prevent incorrect splicing.
Use a multimeter to test each terminal before connecting replacement components. Set the device to DC voltage and probe between the red and black wires–expect 12.5V with the ignition off and 14.4V when the engine runs. Deviations indicate faulty alternator output or parasitic drain requiring further diagnostics.
Identify the CAN bus lines if your system supports advanced vehicle interfaces. These appear as twisted pairs, often purple/white and white/purple, and carry critical data for audio muting, steering wheel controls, or navigation sync. Bypass these only with OEM-rated connectors to avoid triggering error codes.
Splicing and Adapter Requirements

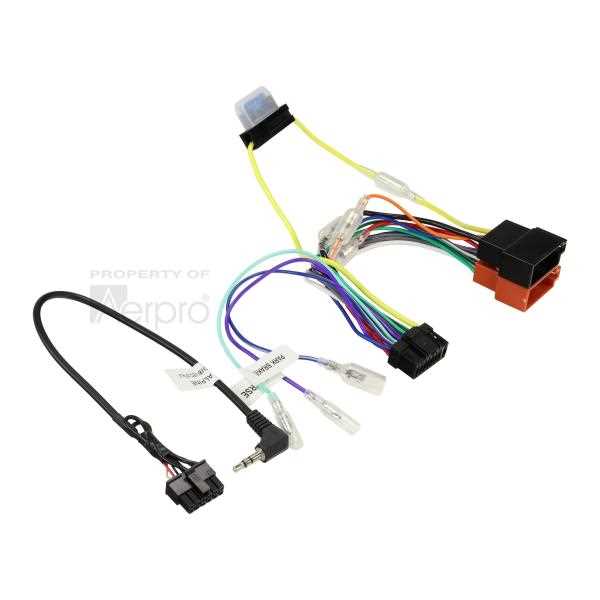

For vehicles with ISO 10487 plugs, utilize a pin-to-pin adapter rather than cutting factory cables. Ensure the adapter matches the following pin assignments: A4/A5 (speakers), A7 (power antenna), and B2/B3 (illumination). Mismatched connections risk blowing amplifiers or damaging the head unit.
When soldering is unavoidable, use heat-shrink tubing over each joint and crimp connectors with ratcheting pliers for mechanical strength. Avoid electrical tape–it degrades over time, leading to corrosion or shorts. For high-current circuits (e.g., power leads), upgrade to 16-gauge wire with a fused link rated for 20A within 7 inches of the battery.
Troubleshooting Common Installation Issues
If the display remains dark after installation, confirm the yellow wire receives voltage during accessory mode. Check the fuse for the ignition circuit–blown elements suggest a short in the dash circuit or improper grounding. Reposition the ground strap to a bare metal chassis point, free of paint or undercoating, to prevent intermittent connections.
For distorted audio or intermittent power loss, inspect the blue remote wire for voltage drops. This signal activates external amplifiers; weak output causes clipping. Measure the voltage at the amp’s remote terminal–if below 10V, run a dedicated 18-gauge wire from the head unit to the amplifier’s control input, bypassing factory relays.
Locating Critical Elements in Vehicle Electrical Schematic Layouts
Begin by isolating the power distribution module, typically marked with bold lines or thick traces leading from the battery terminal. This node branches into fused circuits, each labeled with amperage ratings that should match the device specifications–mismatches indicate potential hazards or misconnections. Verify the fuse box location against the vehicle’s service manual, as some models integrate relays directly into this cluster rather than dispersing them.
Trace the ground reference points next, identifiable by black wires or symbols resembling inverted triangles. Poor grounding is a primary failure point, so confirm these attach to unpainted metal surfaces devoid of corrosion. Test continuity between the ground and the negative battery terminal using a multimeter; resistance above 0.5 ohms warrants cleaning or re-securing the connection.
Inspect the connector terminals for color-coded wires and pin assignments. Below is a typical breakdown of color-to-function correlations:
| Wire Color | Typical Function | Voltage (Key On) |
|---|---|---|
| Red | Constant +12V (battery feed) | 12.0–14.0V |
| Yellow | Switched +12V (accessory) | 12.0–14.0V |
| Black/White | Ground | 0V |
| Blue/White | Remote turn-on (amplifier) | ~12V (when active) |
| Green/White | Left front speaker (+) | ~2–4V (AC signal) |
Look for splice points where wires split or join, often covered in insulation tape or heat-shrink tubing. These junctions are prone to oxidation; strip and re-crimp if the protective layer appears compromised. Use solder and adhesive-lined heat shrink for permanent repairs to prevent water ingress.
Identify signal inputs by locating thinner wires, usually blue, purple, or gray, leading to sensors or control units. Test these with an oscilloscope for waveform integrity–flatlined readings suggest severed connections or faulty components. Swap suspected wires with known-good ones from a secondary circuit to isolate faults without guesswork.
Leveraging Diagnostic Shortcuts
Use a tone generator on speaker wires to audibly trace them through door panels or under carpets. Set the meter to diode-test mode to quickly determine polarity in DC circuits; the positive lead will show a voltage drop when connected correctly. For CAN bus networks, focus on twisted-pair wires (typically orange/black and white/black) and ensure terminator resistors between the ends measure ~120 ohms.
Document deviations from standard color codes immediately, as aftermarket interfaces often reuse colors for different purposes. Label each wire with masking tape and a permanent marker at both ends before disconnecting any connectors to prevent cross-wiring during reassembly. Photograph the layout from multiple angles, noting connector orientation, to serve as a reference if disassembly becomes necessary.

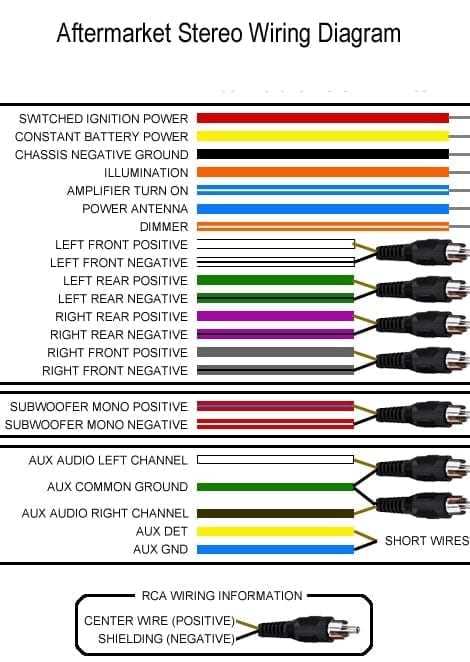

Decoding Audio System Cable Color Conventions: A Practical Walkthrough
Identify the main power feed first–typically marked by a yellow or orange line. This strand carries continuous battery voltage and must connect directly to a fuse-protected circuit capable of handling at least 15 amperes.
Ground connections follow: look for black, dark brown, or striped black-white conductors. Ensure these terminate at a chassis point free of paint, rust, or oxidation; torque each fastener to 12-15 inch-pounds.
Speaker outputs use dual-color strands: white/white-black (front left positive/negative), gray/gray-black (front right), green/green-black (rear left), and purple/purple-black (rear right). Verify impedance before mating–most factory-standard tweeters tolerate 4-8 ohms.
Illumination control feeds appear as a light blue, light green, or pink trace. Route this wire to the dash lighting dimmer output; confirmation comes when headlights activate and the panel glows synchronously.
Remote activation lines come in blue, violet, or white-blue striping. Pair this lead with the accessory terminal on a vehicle radio or ignition-switched fuse to prevent parasitic drain. Use a 1N4007 diode if integrating into factory telematics systems.
For amplifier interfaces, locate the red constant or orange memory-preserve line; splice with a 10-amp fuse holder to prevent accidents during installation. Never tap into the ignition circuit without verifying peak inrush ratings.
Contrast your findings against the vehicle’s build sheet–manufacturers occasionally transpose green and purple rear outputs on early-year variants. Testing with a 9V transistor battery ensures polarity before final connection.
Common Errors in Aftermarket Audio Integration
Ignoring wire color coding leads to reversed polarity or short circuits. Manufacturer schematics label ground wires in black, power in yellow, and accessory in red–misaligning these causes immediate system failure or blows fuses. Verify each connection with a multimeter before powering up; resistance under 0.5 ohms confirms proper grounding.
Critical Connection Pitfalls
- Skipping fuse installation on the main power line invites fire hazards–always splice a 10-20A fuse within 18 inches of the battery terminal.
- Twisting bare wires instead of crimping or soldering creates intermittent failures under vibration; use heat-shrink tubing to insulate joints.
- Overlooking aftermarket head unit’s dimmer wire (usually orange) disables dashboard illumination synchronization–test with a 12V bulb to confirm functionality.
Neglecting speaker impedance matching damages amplifiers. Typical aftermarket stereos expect 4-ohm loads; connecting 2-ohm speakers without impedance correction overheats circuits. Calculate total impedance before pairing: parallel-wired speakers halve impedance, series-wired add it. Use an ohmmeter to measure existing speakers prior to installation.
Assuming universal compatibility with steering wheel controls results in non-functional buttons. Aftermarket adapters require precise pin assignments; consult the adapter’s pinout guide for OEM-specific configurations. For example, GM vehicles often repurpose the yellow/light blue wire for volume up/down–swapping this with multifunction buttons disables controls entirely. Test each button post-installation with the vehicle’s ignition on to verify signal transmission.
