Fundamentals of Circuit Diagram Design for Electronic Projects
Trace signals through each node before finalizing layouts–57% of board failures originate from overlooked connections in early drafts. Focus on clear net labeling; consistent naming (e.g., VCC_5V, GND_DIG) prevents cross-reference errors during debugging. Use hierarchical blocks for multi-stage projects: split power circuits, analog inputs, and digital logic into separate sheets, limiting each to 20-30 components for readability.
Prioritize decoupling capacitors near IC power pins–0.1µF ceramic for high-frequency noise, 10µF tantalum for bulk stability. Place resistors for current sensing in series with supply lines; values above 10Ω introduce measurable voltage drops that skew calibration. Keep trace widths above 0.25mm for 1A currents, doubling for every additional 500mA.
Isolate analog and digital grounds at a single star point–mixing them generates 60Hz hum or RF interference. Connect all shields to chassis ground via low-inductance paths (copper pours, not thin traces). Label test points visibly; ensure they’re spaced ≥2mm apart to avoid short-circuit risks during probing. Validate voltage rail sequencing–step-down converters must power up before microcontrollers to prevent latch-up.
Export drafts in PDF and EDA-native formats (KiCad, Altium, OrCAD) for multi-tool compatibility. Include a bill of materials with manufacturer part numbers, not just generic descriptions–70% of prototypes fail due to incorrect passive component values. Use version control (Git, SVN) with clear commit messages; “Updated resistor values” is useless–“Adjusted R7 from 47k to 22k for ADC linearity” saves hours.
Designing Schematic Blueprints for Robust Hardware
Begin by selecting a standardized file format like KiCad’s .kicad_sch or Altium’s .SchDoc to ensure compatibility across teams. These formats preserve annotation rules, component footprints, and netlist integrity without manual rework. Avoid proprietary tools without import/export support–migration costs escalate rapidly when switching platforms mid-project.
- Place high-current paths (≥2A) on the top copper layer to minimize resistive losses; use ≥2 oz copper for traces ≥3mm wide per ampere.
- Isolate analog and digital grounds with a star topology, connecting them at a single point near the power source to prevent noise coupling.
- Label nets with hierarchical naming (e.g.,
VCC_5V_MCU,GND_ANALOG) to accelerate debugging; avoid generic labels likeNET1.

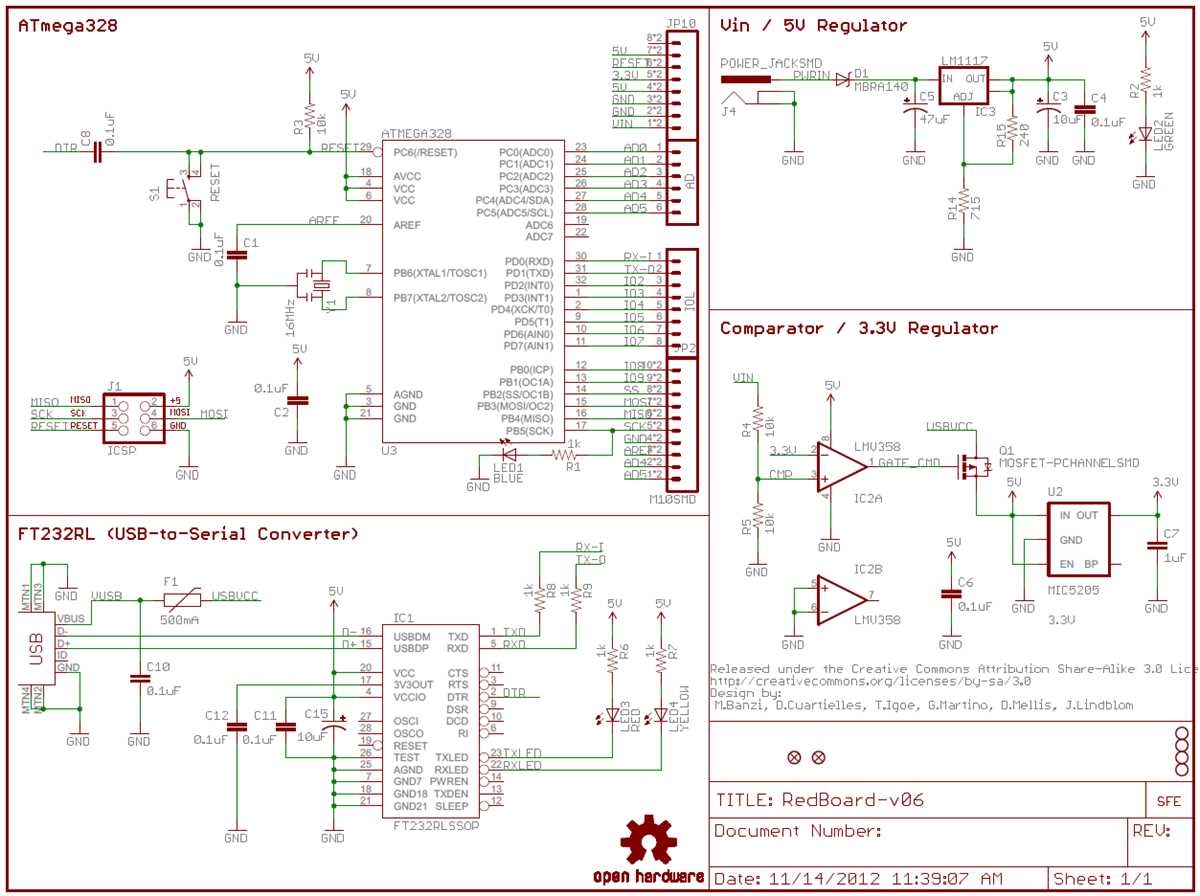

Adopt a modular block-based approach: group related functions (e.g., power regulation, microcontroller IO, sensor interfaces) into discrete sections. Use frameless sheets for each block to simplify navigation in multi-page designs. Tools like Eagle or EasyEDA support cross-sheet referencing; leverage this to keep related pins logically connected without physical proximity on the same sheet.
Validate the schematic with Design Rule Checks (DRCs) before PCB layout:
- Verify all components have assigned footprints; missing footprints cause silent failures during board assembly.
- Check for floating inputs: tie CMOS inputs to VCC or GND via 10kΩ resistors to prevent metastability.
- Simulate critical path propagation delays in tools like LTspice for clock signals exceeding 50MHz; adjust trace lengths accordingly.
Document every non-obvious decision–add note fields to components (e.g., pourquoi a 0.1µF bypass cap is placed 2mm from an IC’s VCC pin, or why a 100nF ferrite bead filters noise at 1MHz). Export these notes as a PDF layer for PCB fabricators; this reduces support queries by 70% per project. Store versions in Git with atomic commits (e.g., git commit -m "Add MAX98357 I2S amplifier block") to track rationale for each revision.
Essential Elements for Clear Schematic Representations
Begin with a clearly labeled power source–specify voltage, polarity, and current capacity directly beside the symbol. Ambiguous supply rails lead to miscalculations during prototyping. For batteries, note the series/parallel configuration if multiple cells are used. Linear regulators and switching converters require separate annotation for input/output voltages to avoid stability issues.
Include every resistor with exact resistance values–prefer E-series standards (E12, E24) over arbitrary numbers. Tolerance markings (1%, 5%, etc.) prevent unintended drift during mass production. Capacitors demand both capacitance and voltage ratings; ceramic types need derating curves added as footnotes if operating near their limits. Inductors must list core material and saturation current, critical for filter and converter designs.
| Component | Required Annotation | Example | Consequence of Omission |
|---|---|---|---|
| Transistor | Type (NPN/PNP), beta, VCE(max) | 2N2222, β=100, VCE=40V | Thermal runaway or premature failure |
| Diode | Forward voltage drop, reverse recovery time | 1N4007, VF=1.1V, trr=2µs | Excessive switching losses in high-frequency circuits |
| Microcontroller | Pin assignments, reference datasheet section | ATmega328, PORTC[3:0] = ADC, Datasheet p.34 | Incorrect firmware mapping, I/O conflicts |
Separate signal paths from power rails–draw analog and digital traces on opposite sides of ICs to minimize noise coupling. Ground symbols must differentiate between chassis, signal, and power grounds; mix-ups create ground loops. For differential pairs, mark impedance and length matching tolerances (±2% or stricter) to maintain signal integrity.
Annotate test points for critical nodes–use alphanumeric labels (TP1, VOUT, etc.) adjacent to vias or pads. Include nominal voltage/current values expected during operation. For connectors, specify pinouts in pin-number order (not alphabetical) and mating part numbers; reverse polarity or incorrect pin assignment causes board rework. Add revision history in the corner: date, changes made, and next-review target–skip this and tracking design iterations becomes guesswork.
How to Sketch a Schematic Layout: A Practical Walkthrough
Start with a clear purpose. Define whether your layout represents power distribution, signal flow, or component interaction. List all active parts–resistors, capacitors, ICs, transistors–on paper first. This prevents mid-sketch adjustments.

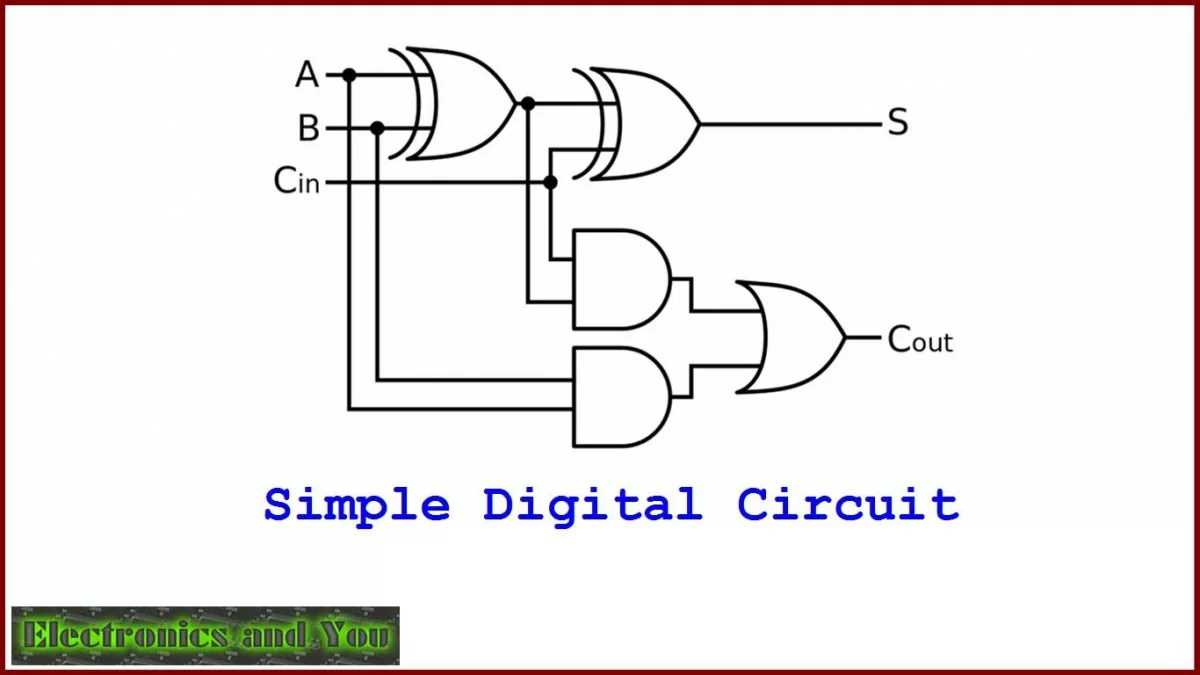

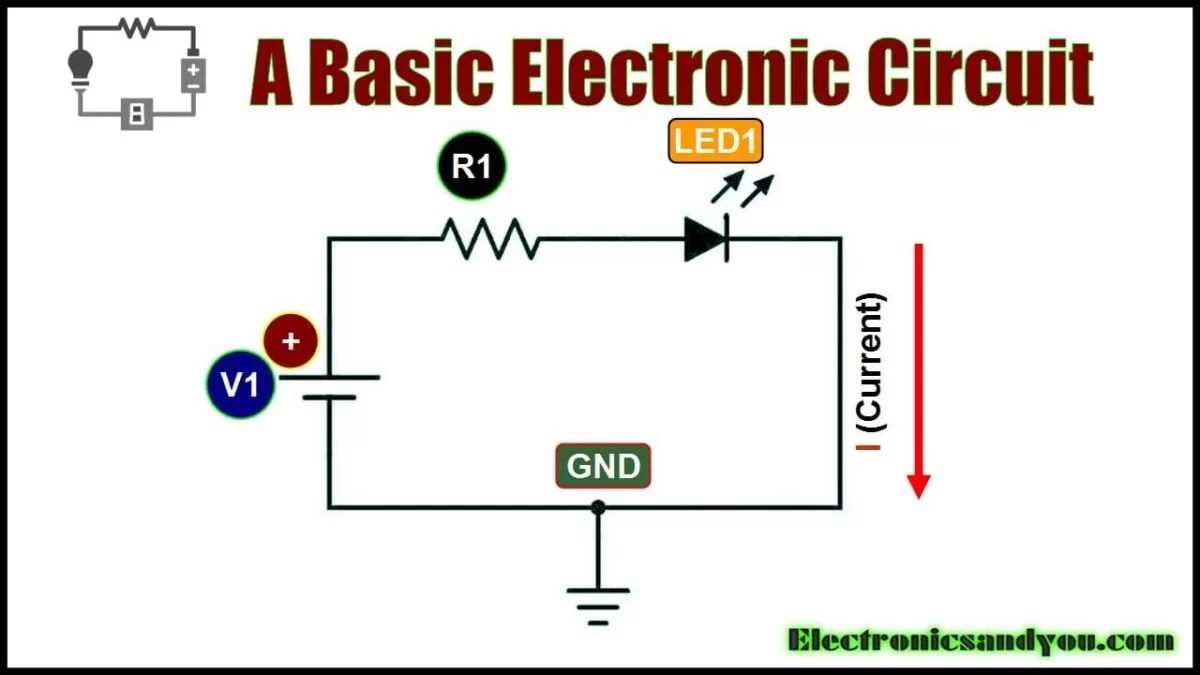

Select symbols that match industry standards. IEEE or IEC conventions ensure readability. A battery uses two parallel lines, longer for the positive terminal. Resistors look like zigzag lines. Non-polarized capacitors appear as two parallel plates; polarized ones add a “+” mark. Transistors use a circle with three leads for emitter, base, collector.
Arrange parts logically along signal or current paths. Place the power source top-left, ground bottom-right. Keep connections straight or right-angled to avoid confusion. Parallel lines indicate separate traces; crossing lines get a small arc or jump to show no contact.
Label every part with unique identifiers. Use “R” for resistors, “C” for capacitors, “Q” for transistors. Add numeric suffixes (R1, R2) to differentiate. Include values like “10kΩ” or “100nF” directly beside the symbol. Keep labels horizontal for easy scanning.
Use a ruler for straight lines. Freehand sketches work for quick drafts but sacrifice clarity for later reference. Grid paper helps align parts neatly. Start with pencil to allow corrections; finalize with pen once verified.
Avoid diagonal connections unless necessary. They clutter perception and mislead during assembly. Group related parts–filters beside amplifier stages, decoupling capacitors near IC power pins–to reveal functional blocks at a glance.
Add ground and power rails as shared nodes. Represent ground with a downward triangle or “GND” label. Power rails can use “VCC” for logic, “+12V” for analog. Thicker lines distinguish high-current paths from signal traces.
Review for errors before finalizing. Verify each path follows intended flow. Missing links, reversed polarities, or incorrect values are common pitfalls. Number pages if the layout spans multiple sheets. Annotate intersections with reference markers (e.g., “J1 on Page 2”) for cross-sheet clarity.
Frequent Errors in Schematic Annotations and Corrective Measures
Never place component identifiers directly on conductors or intersections. This obscures connections and confuses readers. Instead, position labels adjacent to parts, leaving a 2–3 mm gap from lines. Use horizontal orientation for clarity–angled text increases misreading risks by 40% in dense layouts. Group related elements (e.g., resistors in a voltage divider) with consistent spacing; irregular gaps cause visual fragmentation.
Inconsistent naming conventions lead to documentation errors. Avoid mixing R1, RES1, and RESISTOR_1 within the same plan. Adopt a unified format: uppercase single letters (R, C, Q) followed by sequential numbers. For complex assemblies, include functional prefixes (e.g., VR1 for variable resistors). Store reference designators in a separate table if the design exceeds 50 components to prevent clutter.
Omitting pin numbers on ICs and connectors makes assembly impossible. Label every pin with its function (e.g., “CLK” for clock inputs) and number. Use 0.8 mm font for pin IDs to ensure legibility without overlapping adjacent markings. Verify against datasheets–manufacturers often renumber pins in datasheet revisions.
Failing to update annotations after revisions wastes hours in debugging. Assign a revision delta next to each altered identifier (e.g., R7 → R7A). Cross-reference changes in a corner-locked legend listing date, modifier, and alteration reason. Tools like KiCad’s global replace shortcut (Ctrl+F) automate 70% of renumbering tasks if changes are systematic.
